ID # 14130202

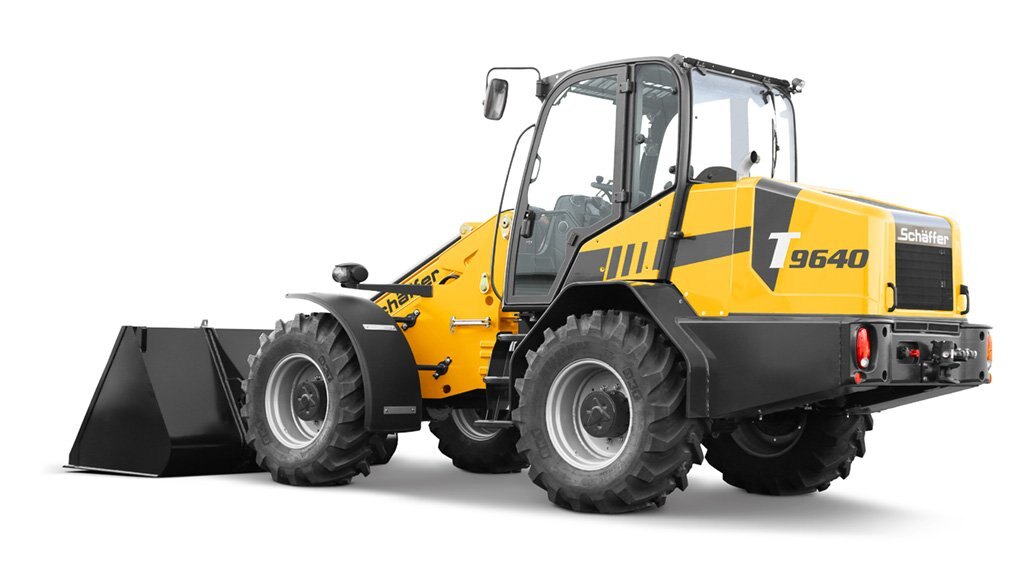

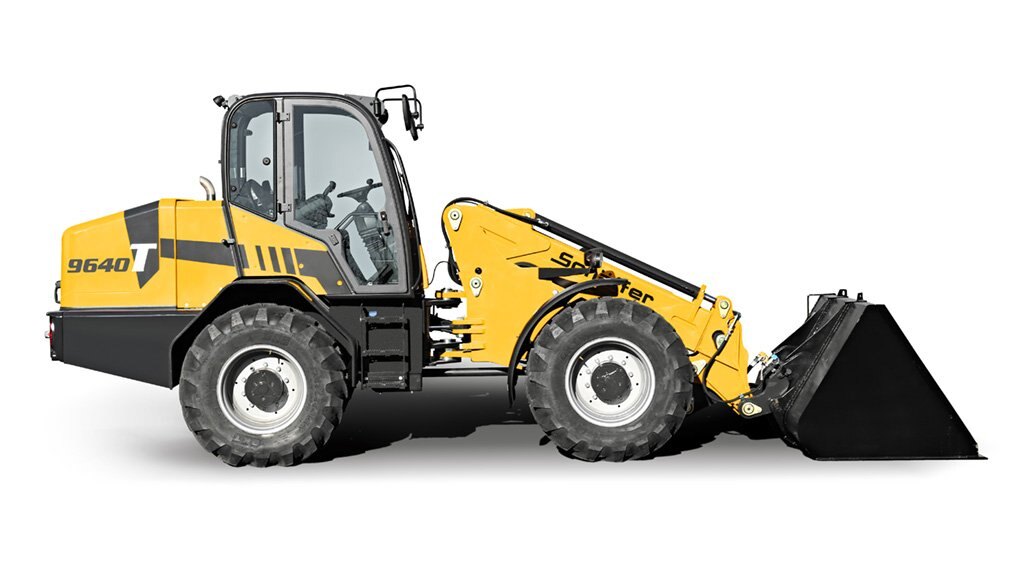

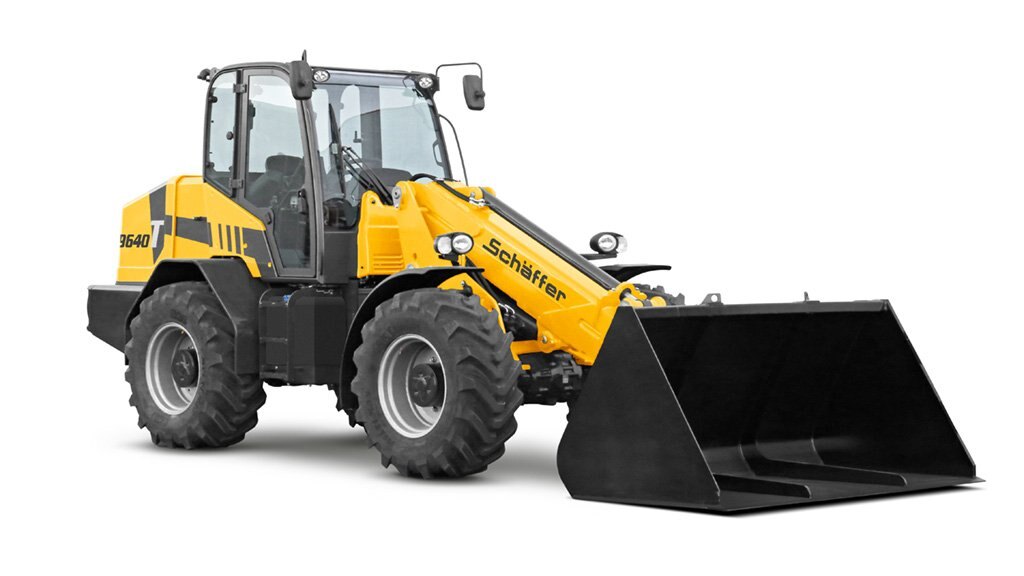

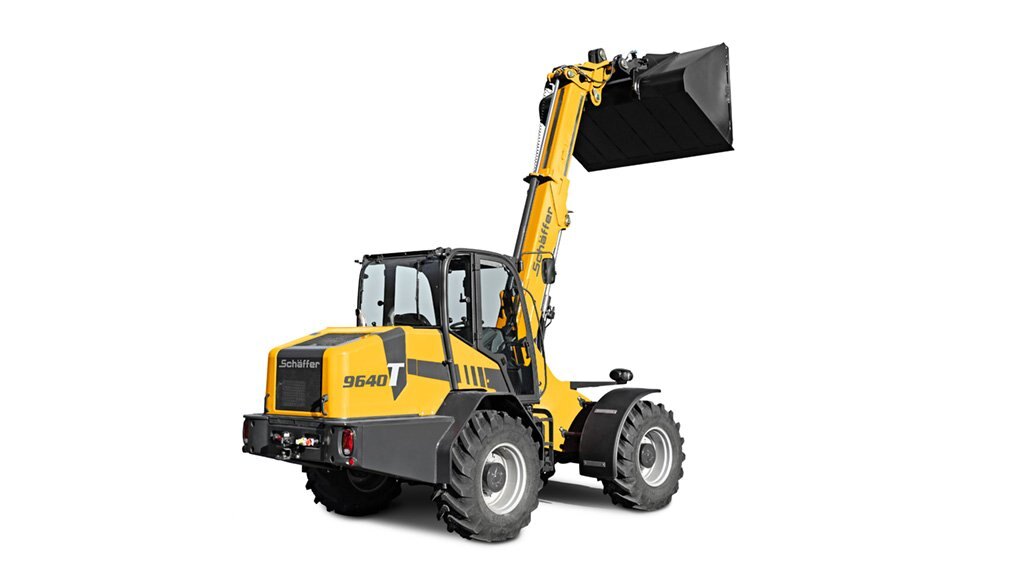

Schaffer 9640 T

  • Schaffer 9640 T
  • Schaffer 9640 T
  • Schaffer 9640 T
  • Schaffer 9640 T
  • Schaffer 9640 T
  • Schaffer 9640 T

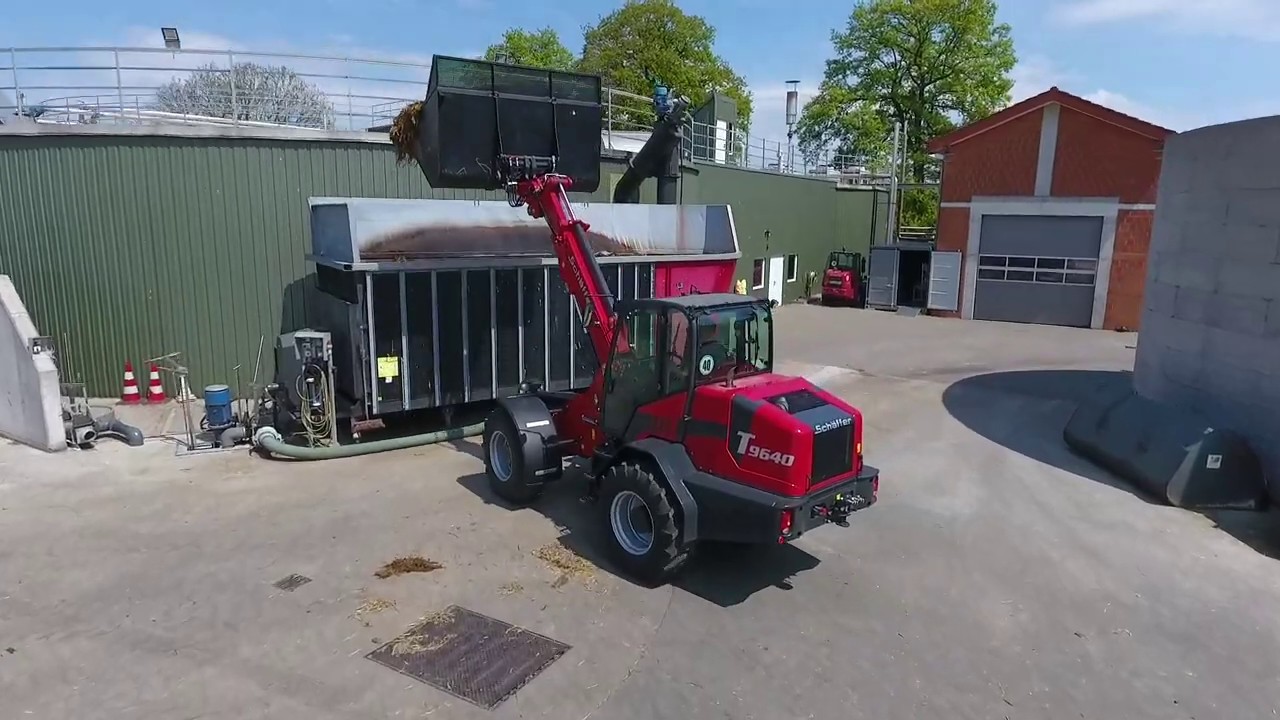

  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Telescopic Wheel loaders
The Schäffer tele wheel loaders were designed specifically for the high demands of construction, landscaping, municipal services and industry. They combine the manoeuvrability and clear visibility of an articulated wheel loader with the high lifting height and range of a conventional telescopic loader. Special attention is paid to the agility, driving comfort and ease of use of the machines. All together this provides the best conditions for long working days.
  Standard equipment
  • Deutz Turbo Intercooler diesel engine, 4 cylinders, water-cooled, 100 kW (136 HP), Tier 4 final
  • DOC and SCR for compliance with Stage IV final emissions standards
  • Hydrostatic four wheel drive with automotive control
  • High-pressure drive HD-plus
  • Tyres 460/70R24 AS, offset -50
  • HTF (High Traction Force)
  • Hydraulic quick gear 20 km/h switchable under load
  • Load-Sensing working hydraulics, 145 l/min.
  • Flow sharing working hydraulics incl. proportional control of the telescopic arm
  • ZF planetary axles (Heavy Duty) with self-locking differentials; (10-hole)
  • Rear pendulum axle
  • Ferro-form sliding elements in the telescopic arm
  • Tool cylinder in the telescopic arm
  • Electric pressure relief of hydraulic couplings
  • Combined oil cooler
  • Hydraulic fan drive
  • SCV-Plus-Cabin (Silence, Comfort, View)
  • Multiple disk brake, maintenance free; service and parking brake
  • Maintenance free articulation joint
  • 2 steering cylinders
  • 2 x working headlights front und 1 x rear
  • Lighting system without ABE (General approval certificate) according to ordinance StVZO
  • Z-bar boom with parallel lift
  • Additional control device electrically switchable on joystick
  • Depressurised return
  • Steering column adjustable in length and angle
  • Operating hours meter, rev counter, fuel and temperature gauge, engine monitoring
  • Adjustable armrest
  • Rear weight end plate and towing hitch
  • Main battery switch
  • Cyclone
  • Headstock type wheel loader with hydraulic tool lock
  HTF
High Traction Force
Automatic thrust regulation, which means that the loader can always deliver the highest level of thrust even at high speed.

Benefits:

  • Even at high speed the maximum thrust is always available, e.g. when driving in muck heaps
  • No need to manually shift down a gear when going up an incline
  • Enhanced driving comfort, faster working
  SPT
Schäffer Power Transmission
Electronically-controlled autodrive: The autodrive adapts to the torque properties of the diesel motor.

Benefits:

  • Lower fuel consumption, reduced operating costs
  • Starting aid makes it is easier to start up on slopes
  • Different parameters for drive characteristics can be set
  • Safety functions: including overheating and over rotation protection of the motor
  • Optional potentiometer performs the job of a cruise control: Machine maintains constant speed regardless of the motor speed, particularly advantageous when working with mulchers, sweepers or salt spreaders (using pedal control on 9640 T and 9660 T)
  Eco Mode
Eco Mode
Automatic reduction of the motor speed, maintaining the same speed.

Benefits:

  • Fuel saving, reduction in operating costs
  • Lower noise level
  • Environmentally-friendly operation
  • No restrictions on performance
  SDCT
Schäffer Dual Clutch Transmission
Dual-clutch gearbox, which combines the benefits of powershift transmission with a purely hydrostatic autodrive. Electronically controlled drive ensures that the machine operates at a high level of efficiency.

Benefits:

  • Huge level of thrust
  • Most jobs can be carried out in a single operation, takes the strain off the clutch and the gearbox and thereby extends their service life
  • Top speed of 40 kph, the best conditions even for usage in different areas throughout your business
  • Fuel economy through increased machine efficiency, reduction in operating costs
Specifications
Model
9640 T
Category Name
Equipment
Year
2020
Sale Type
New
Manufacturer
Schaffer
Width
2330 mm - 2380 mm
Output
100 kW (136 PS)
**Option
low cabin
Height Cabin
2860 mm
Diesel Engine
4 cyl. Deutz Common Rail Turbo with Intercooler, Tier 4 final
Lifting Capacity
4200 kg
Turning Radius Inside
2280 mm
Length With Standard Bucket
6260 mm
Lifting Height (tool Pivot)
5400 mm
Tipping Load Straight, Pallet Fork*
5350 kg
Tipping Height (bottom Edge Of Bucket)
4574 mm
