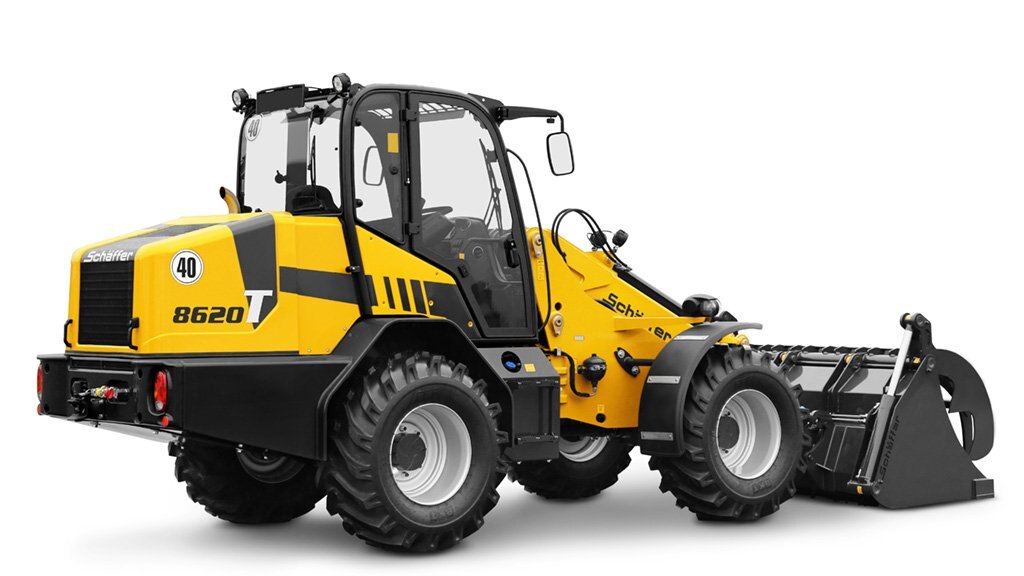

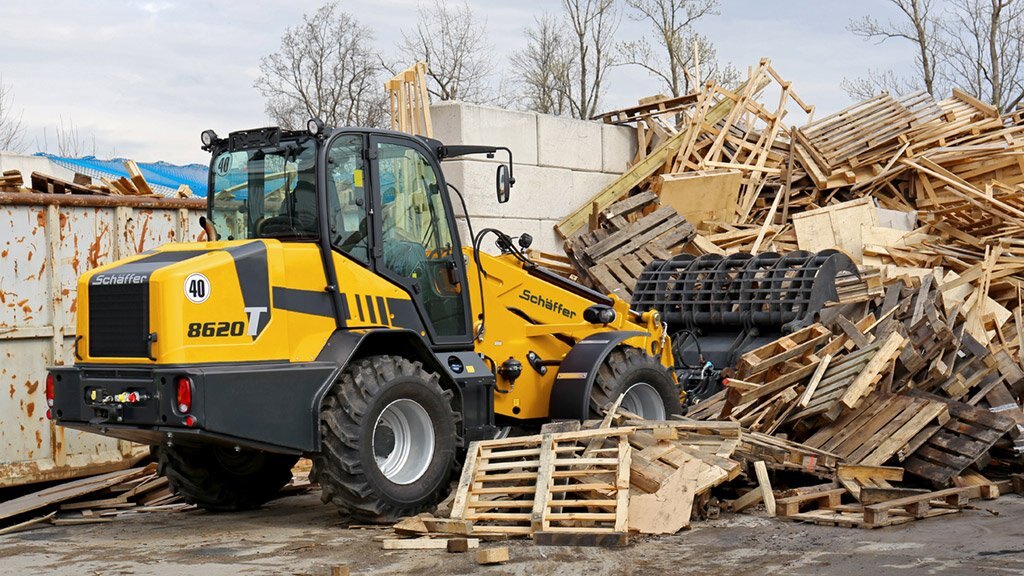

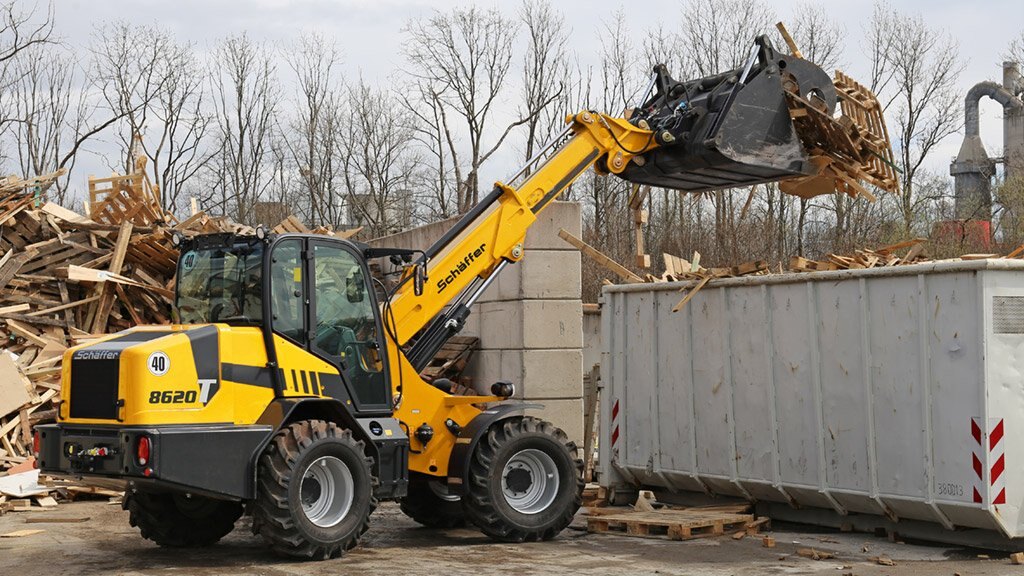

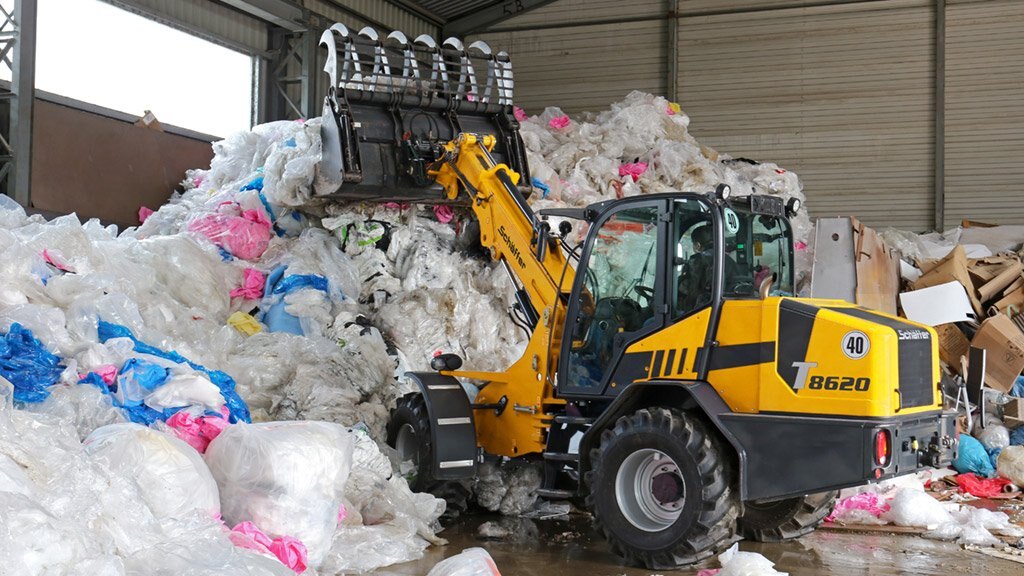

Schaffer 8620 T

  • Schaffer 8620 T
  • Schaffer 8620 T
  • Schaffer 8620 T
  • Schaffer 8620 T
  • Schaffer 8620 T
  • Schaffer 8620 T
  • Schaffer 8620 T
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Telescopic Wheel loaders
The Schäffer tele wheel loaders were designed specifically for the high demands of construction, landscaping, municipal services and industry. They combine the manoeuvrability and clear visibility of an articulated wheel loader with the high lifting height and range of a conventional telescopic loader. Special attention is paid to the agility, driving comfort and ease of use of the machines. All together this provides the best conditions for long working days.
  Standard equipment
  • Deutz Turbo Intercooler diesel engine, 4 cylinders, water-cooled, 75 kW (102 HP) / 90 kW (122 HP) / 100 kW (136 HP), Tier 4 final
  • DOC and SCR for compliance with Stage IV final emissions standards
  • Hydrostatic four wheel drive with automotive control
  • High-pressure drive HD-plus
  • Tyres 18-22.5 MP590, offset -50
  • HTF (High Traction Force)
  • SPT (Schäffer Power Transmission)
  • Hydraulic quick gear 20 km/h switchable under load
  • Flow sharing working hydraulics, 105 l/min., proportional control of the telescopic arm
  • Planetary axles HD with limited slip differentials; (8-hole)
  • Rear pendulum axle
  • Ferro-form sliding elements in the telescopic arm
  • Tool cylinder in the telescopic arm
  • Electric pressure relief of hydraulic couplings
  • Combined oil cooler
  • Hydraulic fan drive

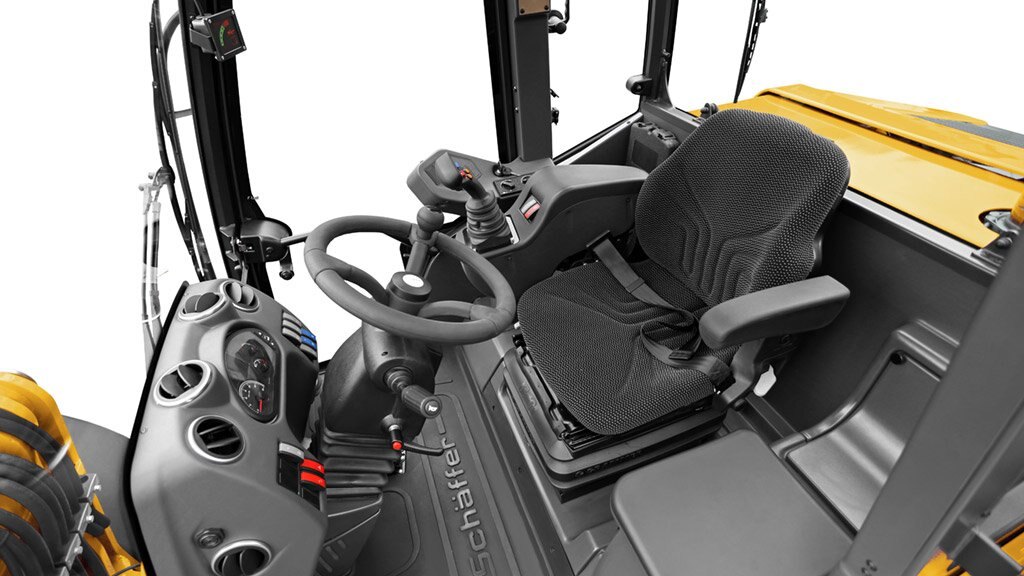

  • SCV-Plus-Cabin (Silence, Comfort, View)
  • Multiple disk brake, maintenance free; service and parking brake
  • Maintenance free articulation joint
  • 2 steering cylinders
  • 2 x working headlights front und 1 x rear
  • Lighting system without ABE (General approval certificate) according to ordinance StVZO
  • Z-bar boom with parallel lift
  • Additional control device electrically switchable on joystick
  • Depressurised return
  • Steering column adjustable in length and angle
  • Operating hours meter, rev counter, fuel and temperature gauge, engine monitoring
  • Adjustable armrest
  • Rear weight end plate and towing hitch
  • Main battery switch
  • Cyclone
  • Headstock type wheel loader with hydraulic tool lock
  HTF
High Traction Force
Automatic thrust regulation, which means that the loader can always deliver the highest level of thrust even at high speed.

Benefits:

  • Even at high speed the maximum thrust is always available, e.g. when driving in muck heaps
  • No need to manually shift down a gear when going up an incline
  • Enhanced driving comfort, faster working
  SPT
Schäffer Power Transmission
Electronically-controlled autodrive: The autodrive adapts to the torque properties of the diesel motor.

Benefits:

  • Lower fuel consumption, reduced operating costs
  • Starting aid makes it is easier to start up on slopes
  • Different parameters for drive characteristics can be set
  • Safety functions: including overheating and over rotation protection of the motor
  • Optional potentiometer performs the job of a cruise control: Machine maintains constant speed regardless of the motor speed, particularly advantageous when working with mulchers, sweepers or salt spreaders (using pedal control on 9640 T and 9660 T)
  Eco Mode
Eco Mode
Automatic reduction of the motor speed, maintaining the same speed.

Benefits:

  • Fuel saving, reduction in operating costs
  • Lower noise level
  • Environmentally-friendly operation
  • No restrictions on performance
Specifications
Model
8620 T
Category Name
Equipment
Year
2020
Sale Type
New
Manufacturer
Schaffer
Width
2030 mm - 2180 mm
Height
2770 mm / 2670 mm**
Output
75 / 90 / 100 kW (102 / 122 / 136 HP)***
**Option
low cabin
***Option
more powerful engine
Diesel Engine
4 cyl. Deutz Common Rail Turbo with Intercooler, Tier 4 final
Lifting Capacity
4200 kg
Length With Standard Bucket
6040 mm
Lifting Height (tool Pivot)
5200 mm
Tipping Load Straight, Pallet Fork*
4640 kg
