ID # 14130198

Schaffer 6680 T

  • Schaffer 6680 T
  • Schaffer 6680 T
  • Schaffer 6680 T
  • Schaffer 6680 T
  • Schaffer 6680 T
  • Schaffer 6680 T
  • Video Button Hqdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Telescopic Wheel loaders

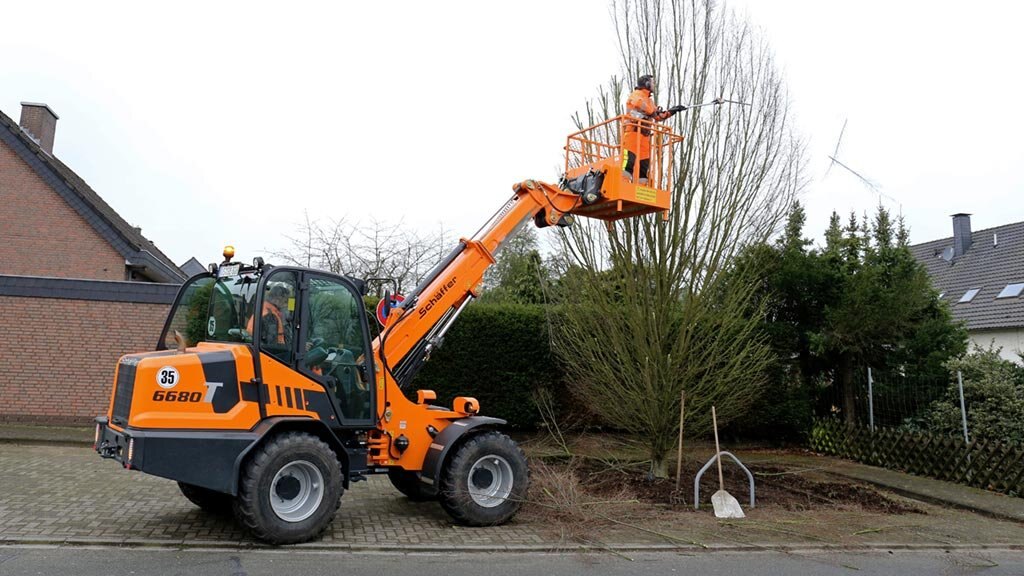

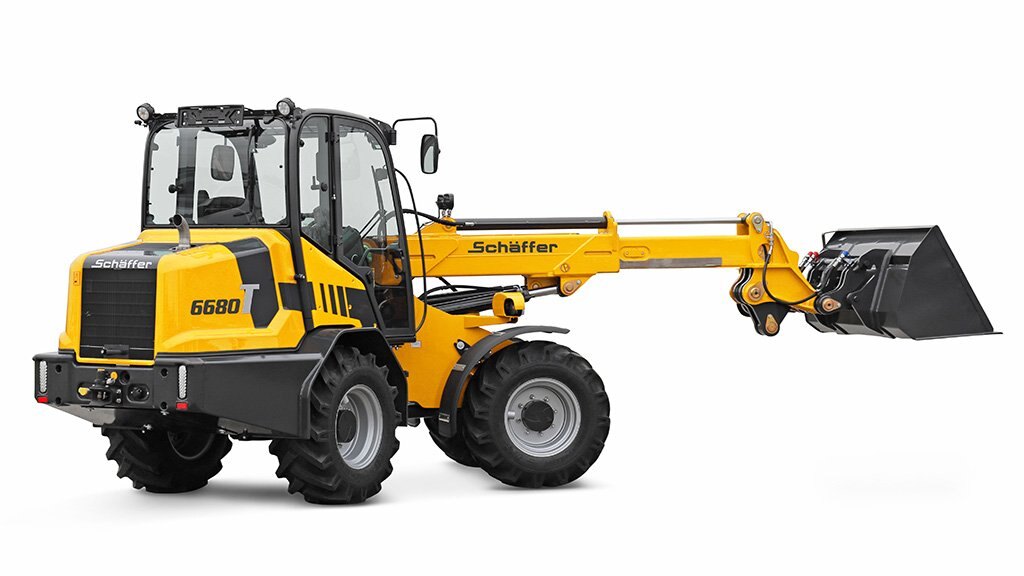

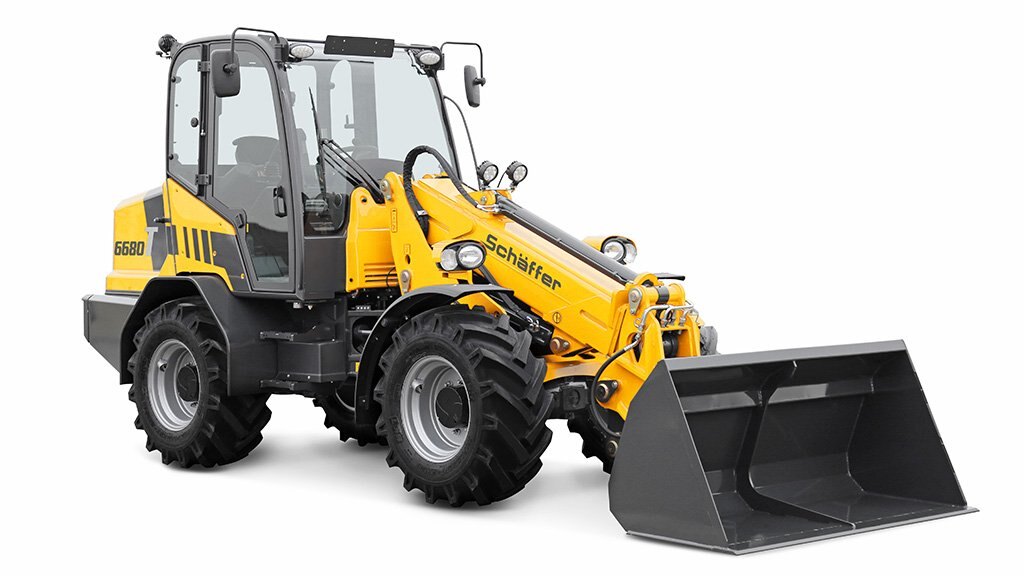

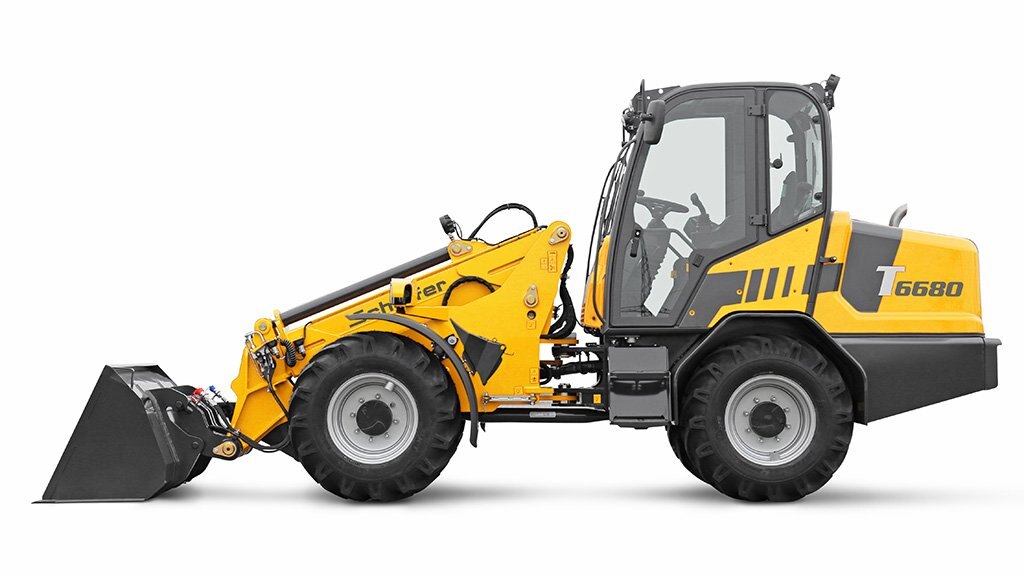

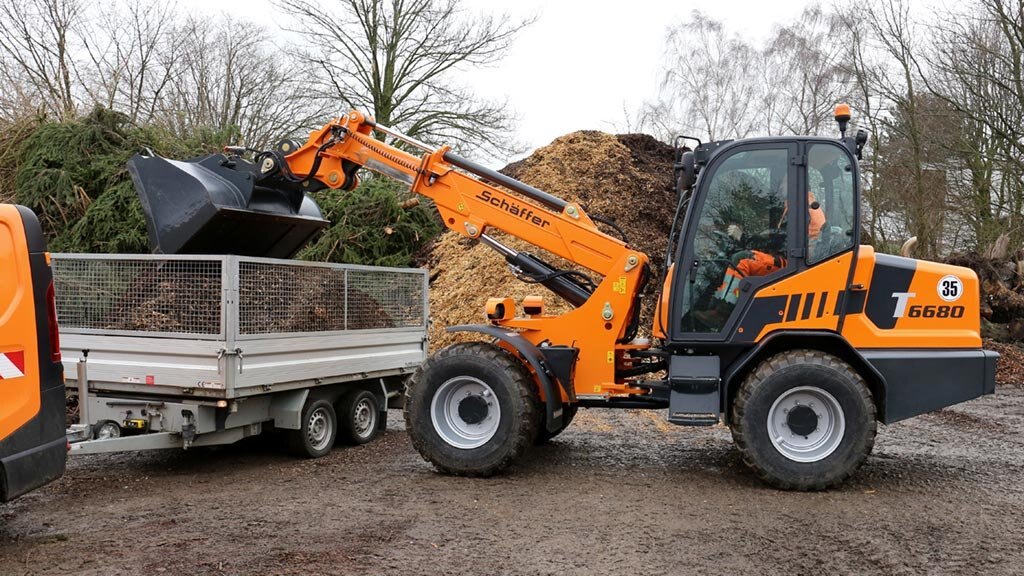

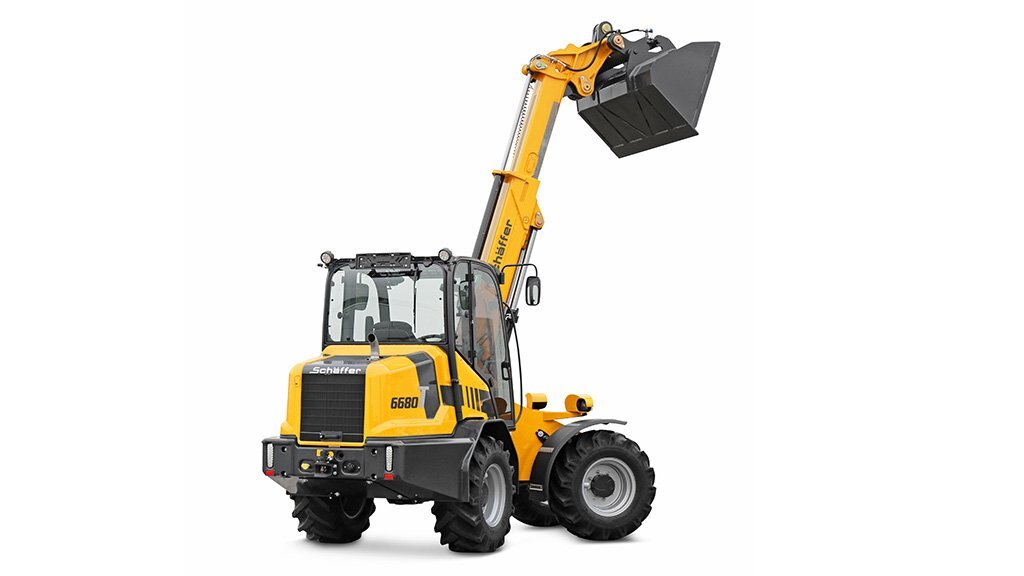

The Schäffer tele wheel loaders were designed specifically for the high demands of construction, landscaping, municipal services and industry. They combine the manoeuvrability and clear visibility of an articulated wheel loader with the high lifting height and range of a conventional telescopic loader. Special attention is paid to the agility, driving comfort and ease of use of the machines. All together this provides the best conditions for long working days.
  Standard equipment
  • Deutz Turbo Intercooler diesel engine, 4 cylinders, water-cooled, 100 kW (136 HP), Tier 4 final
  • DOC and SCR for compliance with Stage IV final emissions standards
  • Hydrostatic four wheel drive with automotive control
  • Tyres 460/70R24 AS, offset -50
  • HTF (High Traction Force)
  • Hydraulic quick gear 20 km/h switchable under load
  • Load-Sensing working hydraulics, 145 l/min.
  • Flow sharing working hydraulics incl. proportional control of the telescopic arm
  • ZF planetary axles (Heavy Duty) with self-locking differentials
  • Rear pendulum axle
  • Ferro-form sliding elements in the telescopic arm
  • Tool cylinder in the telescopic arm
  • Electric pressure relief of hydraulic couplings
  • Combined oil cooler
  • Hydraulic fan drive
  • SCV-Plus-Cabin (Silence, Comfort, View)
  • Multiple disk brake, maintenance free; service and parking brake
  • Maintenance free articulation joint
  • 2 steering cylinders
  • 2 x working headlights front und 1 x rear
  • Lighting system without ABE (General approval certificate) according to ordinance StVZO
  • Z-bar boom with parallel lift
  • Additional control device electrically switchable on joystick
  • Depressurised return
  • Steering column adjustable in length and angle
  • Operating hours meter, rev counter, fuel and temperature gauge, engine monitoring
  • Adjustable armrest
  • Rear weight end plate and towing hitch
  • Main battery switch
  • Cyclone
  • Headstock type wheel loader with hydraulic tool lock
  HTF
High Traction Force

Automatic thrust regulation, which means that the loader can always deliver the highest level of thrust even at high speed.

Benefits:

  • Even at high speed the maximum thrust is always available, e.g. when driving in muck heaps
  • No need to manually shift down a gear when going up an incline
  • Enhanced driving comfort, faster working
Specifications
Model
6680 T
Category Name
Equipment
Year
2020
Sale Type
New
Manufacturer
Schaffer
Width
1710 mm - 2050 mm
Output
55 kW (75 HP)
**Option
low cabin
Height Cabin
2630 mm / 2460 mm**
Diesel Engine
4 cyl. Deutz Common Rail Turbo with Intercoooler
Lifting Capacity
3100 kg
Turning Radius Inside
1750 mm
Working Weight Cabin
5800 kg - 6300 kg
Length With Standard Bucket
5780 mm
Lifting Height (tool Pivot)
4950 mm
Tipping Load Straight, Pallet Fork*
3820 kg
Tipping Height (bottom Edge Of Bucket)
3980 mm
