  Back
ID # 14130187

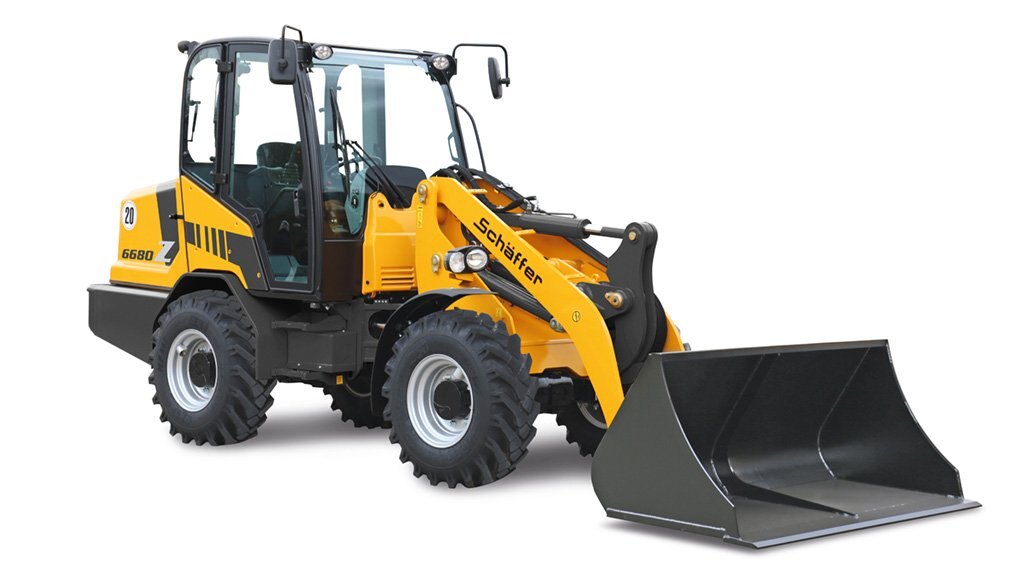

Schaffer 6680 Z

  • Schaffer 6680 Z
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Wheel loaders

Compact dimensions, perfect manoeuvrability and convincing lifting and traction forces – that is what a Schäffer wheel loader stands for. The machine is very simple and intuitive. The view of the attachments is excellent. The comfortable seating position guarantees relaxed and productive work at all times for the driver – maximum driving fun included.
  Standard equipment
  • Deutz Turbo diesel engine, 4 cylinders, water-cooled, 55 kW (75 HP)
  • DOC and DPF for compliance with Stage V emissions standards
  • Hydrostatic four wheel drive with automotive control
  • Tyres 400/70-20 AS, offset 0
  • HTF (High Traction Force)
  • SPT (Schäffer Power Transmission)
  • Hydraulic quick gear 20 km/h switchable under load
  • HD planetary axles with self-locking differentials; (8-hole)
  • Rear pendulum axle
  • Combined oil cooler
  • Hydraulic fan drive
  • SCV-cabin (Silence, Comfort, View)
  • Multiple disk brake, maintenance free; service and parking brake
  • Maintenance free articulation joint
  • 2 x working headlights front und 1 x rear
  • Lighting system without ABE (General approval certificate) according to ordinance StVZO
  • Z-bar boom with parallel lift
  • Working hydraulics: 74 l/min, optional 88 l/min.
  • Steering column adjustable in length and angle
  • Hour meter, rev, counter, fuel control lamp and temperature indicator
  • Adjustable armrest
  • Rear weight end plate and towing hitch
  • Main battery switch
  • Cyclone
  • Headstock type wheel loader with hydraulic tool lock
  HTF
High Traction Force

Automatic thrust regulation, which means that the loader can always deliver the highest level of thrust even at high speed.

Benefits:

  • Even at high speed the maximum thrust is always available, e.g. when driving in muck heaps
  • No need to manually shift down a gear when going up an incline
  • Enhanced driving comfort, faster working
Specifications
Model
6680 Z
Category Name
Equipment
Year
2018
Sale Type
New
Manufacturer
Schaffer
Diesel Engine
Deutz Turbo, 4 cylinders water-cooled
Output
55 kW (75 HP)
Width
1710 mm - 2050 mm
Lifting Capacity
3300 kg
Length With Standard Bucket
5450 mm
Lifting Height (tool Pivot)
3400 mm
Turning Radius Inside
1750 mm
Tipping Height (bottom Edge Of Bucket)
2700 mm
Height Cabin
2630 mm / 2460 mm***
Tipping Load Straight, Pallet Fork*
3325 kg - 3677 kg
***Option
high cabin
Bucket Capacity**
1.00 m³
