ID # 14130185

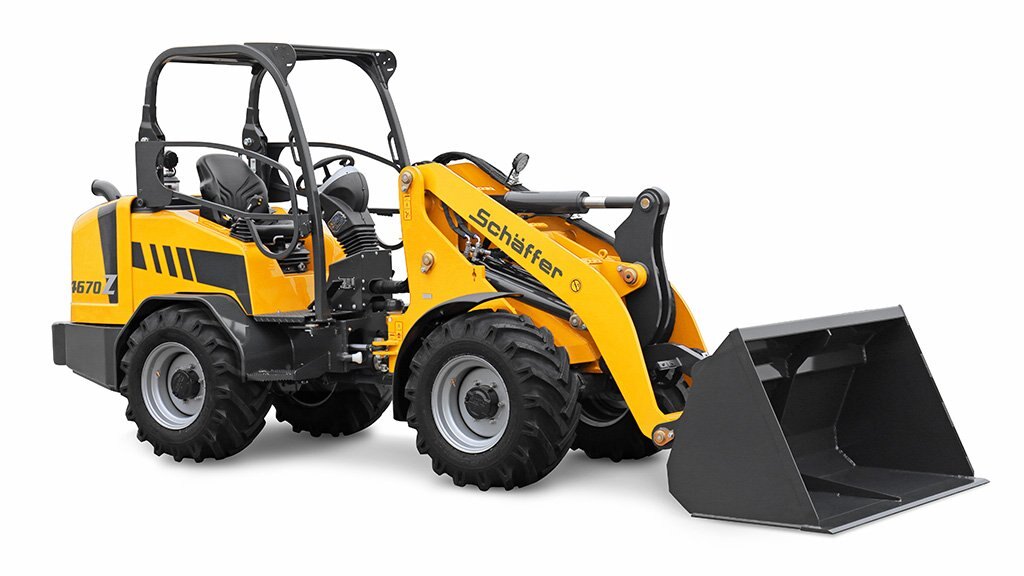

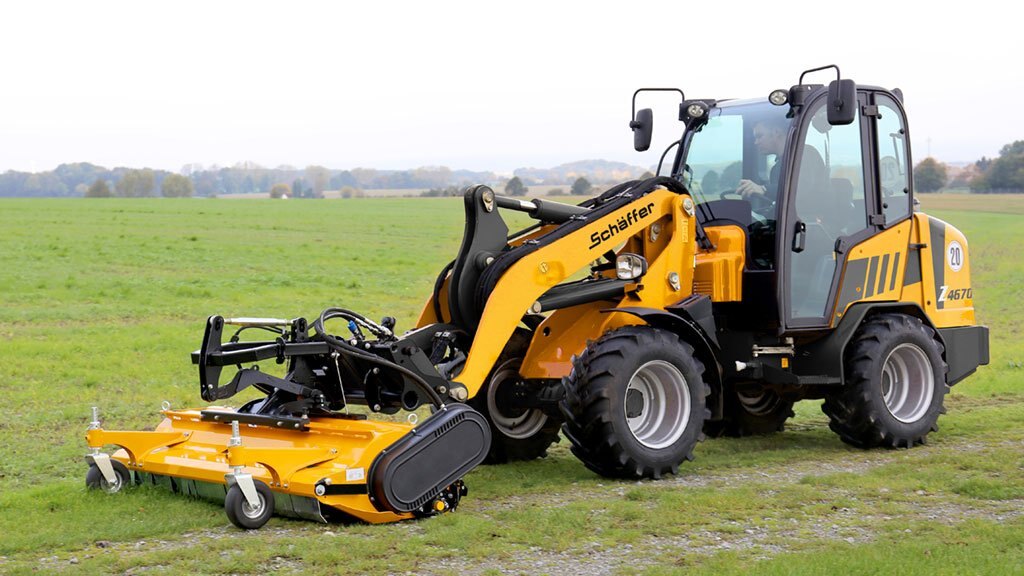

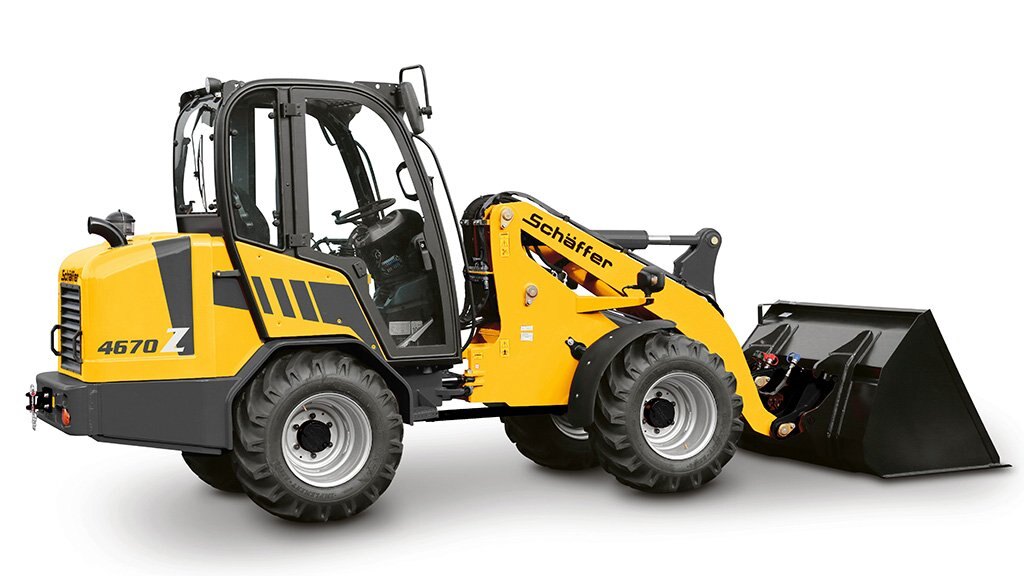

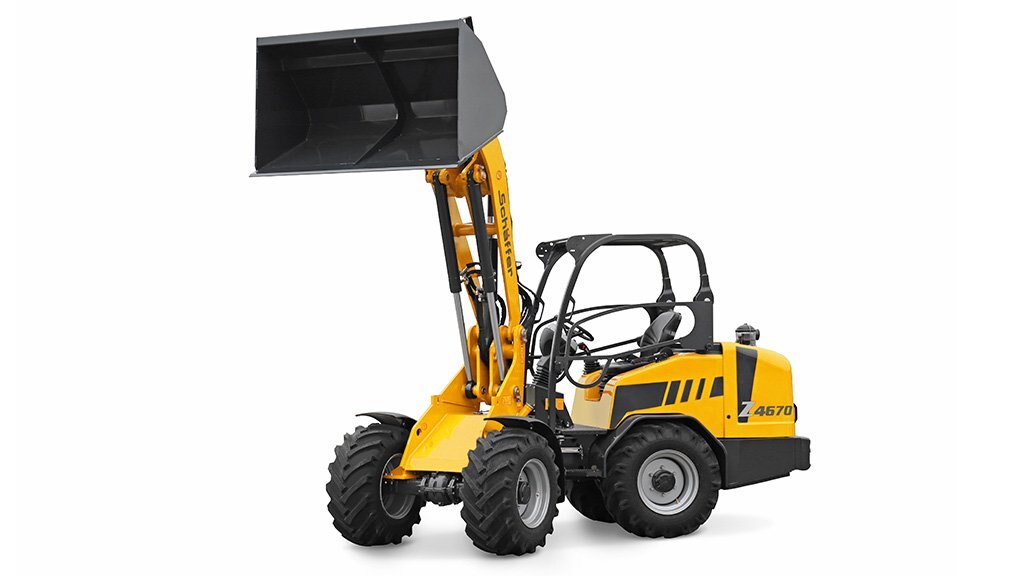

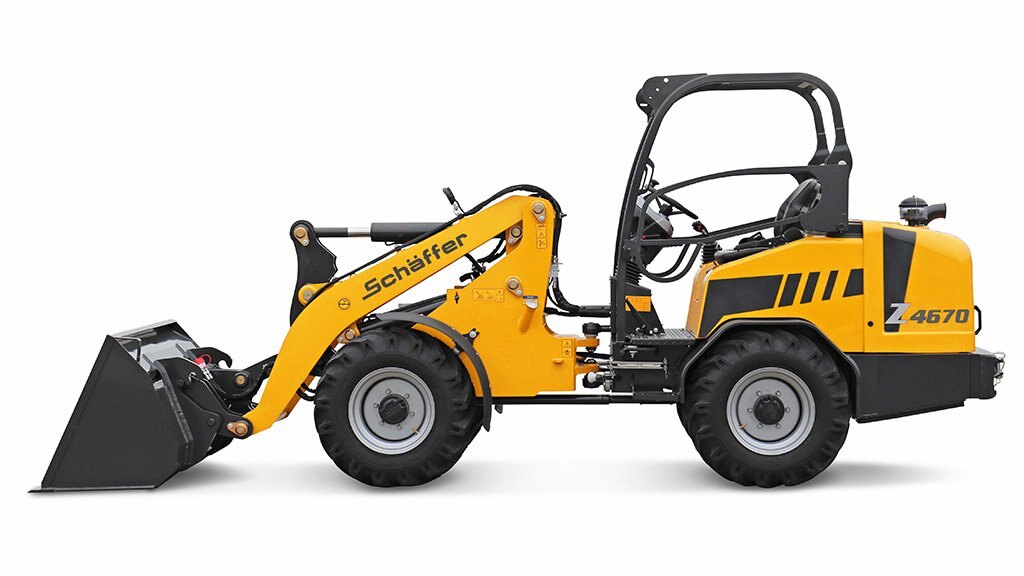

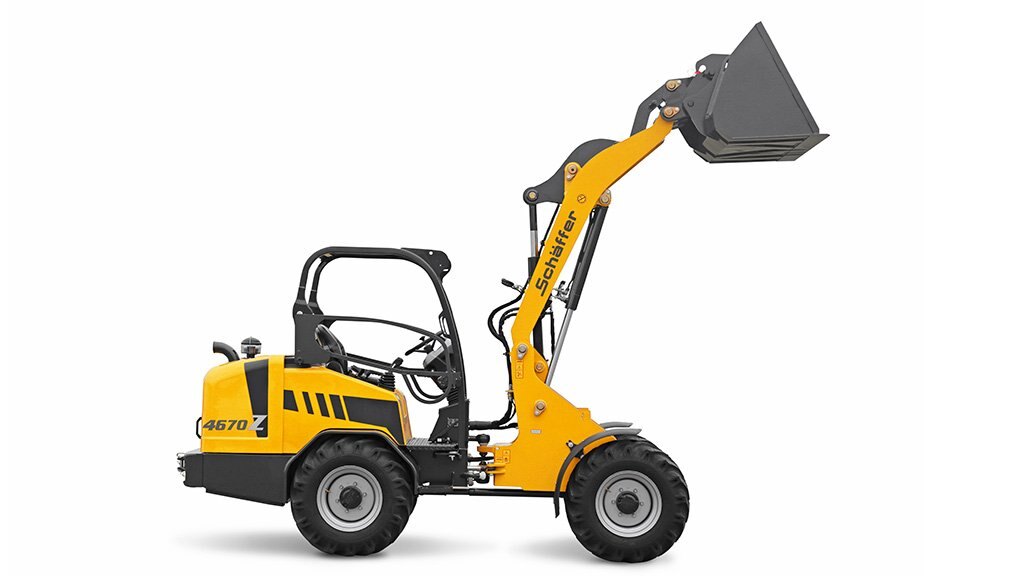

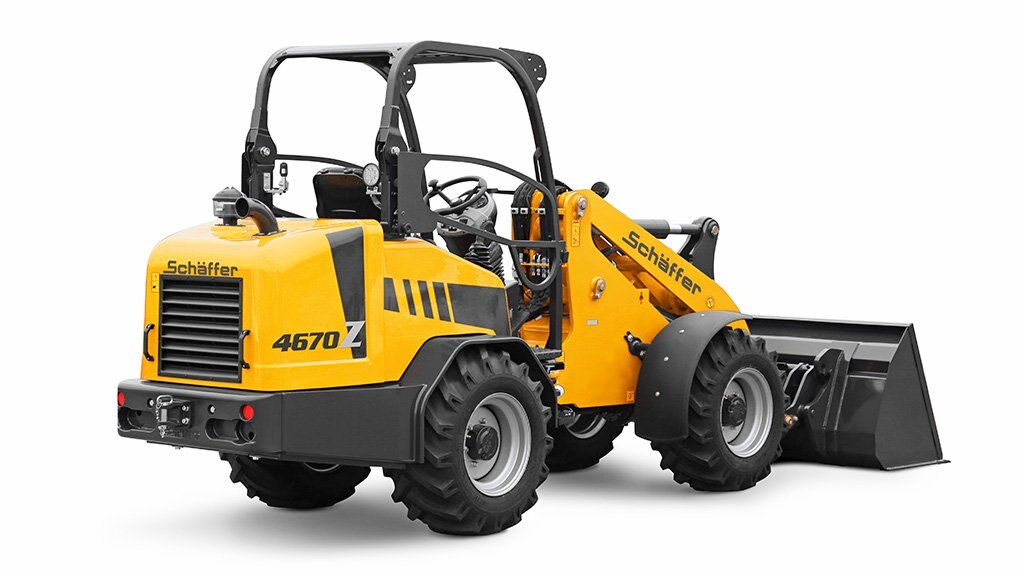

Schaffer 4670 Z

  • Schaffer 4670 Z
  • Schaffer 4670 Z
  • Schaffer 4670 Z
  • Schaffer 4670 Z
  • Schaffer 4670 Z
  • Schaffer 4670 Z
  • Schaffer 4670 Z
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Wheel loaders
Compact dimensions, perfect manoeuvrability and convincing lifting and traction forces – that is what a Schäffer wheel loader stands for. The machine is very simple and intuitive. The view of the attachments is excellent. The comfortable seating position guarantees relaxed and productive work at all times for the driver – maximum driving fun included.
  Standard equipment
  • Kubota diesel engine, 4 cylinders, water-cooled, 37,4 kW  (51 HP) / 48,6 kW (66 HP)
  • DOC and DPF for compliance with Stage V emissions standards
  • Headstock type wheel loader with hydraulic tool lock
  • Hydrostatic four wheel drive with automotive control
  • Tyres 11.5/80-15.3 AS, offset +40
  • HTF (High Traction Force)
  • SPT (Schäffer Power Transmission)
  • Hydraulic quick gear 20 km/h switchable under load
  • Original Schäffer planetary axles with self-locking differentials, wide design
  • Combined oil cooler
  • Multiple disk brake, maintenance free; service and parking brake
  • Maintenance free articulated pendulum joint
  • Restraining system for protection roof
  • Working headlights on protection roof version: 1 x LED on the boom; cabin version, halogen: 2 x front, 1 x rear
  • Z-bar boom with parallel lift
  • Electric control of third hydraulic function at joystick; Working hydraulics: 68 l/min
  • Adjustable steering column
  • Hour meter, rev, counter, fuel control lamp and temperature indicator
  • Armrest right hand side
  • Rear weight end plate
  • Wide chassis
  HTF
High Traction Force

Automatic thrust regulation, which means that the loader can always deliver the highest level of thrust even at high speed.

Benefits:

  • Even at high speed the maximum thrust is always available, e.g. when driving in muck heaps
  • No need to manually shift down a gear when going up an incline
  • Enhanced driving comfort, faster working
  SPT
Schäffer Power Transmission
Electronically-controlled autodrive: The autodrive adapts to the torque properties of the diesel motor.

Benefits:

  • Lower fuel consumption, reduced operating costs
  • Starting aid makes it is easier to start up on slopes
  • Different parameters for drive characteristics can be set
  • Safety functions: including overheating and over rotation protection of the motor
  • Optional potentiometer performs the job of a cruise control: Machine maintains constant speed regardless of the motor speed, particularly advantageous when working with feed dosing units, straw spreaders or mulchers (using pedal control on 9640 T and 9660 T)
Specifications
Model
4670 Z
Category Name
Equipment
Year
2020
Sale Type
New
Manufacturer
Schaffer
Width
1420 mm - 1730 mm
Output
37.4 kW (51 HP) / 48.6 kW (66 HP)
Height Cabin
2270 mm
Diesel Engine
4 Cyl., Kubota, electr. regulated drive (SPT)
Lifting Capacity
2400 kg
Turning Radius Inside
1450 mm
Height Protective Roof
2270 mm
Length With Standard Bucket
4760 mm
Lifting Height (tool Pivot)
3260 mm
Working Weight Protection Roof
3400 kg
Tipping Load Straight, Pallet Fork*
1823 kg - 2149 kg
