ID # 14128926

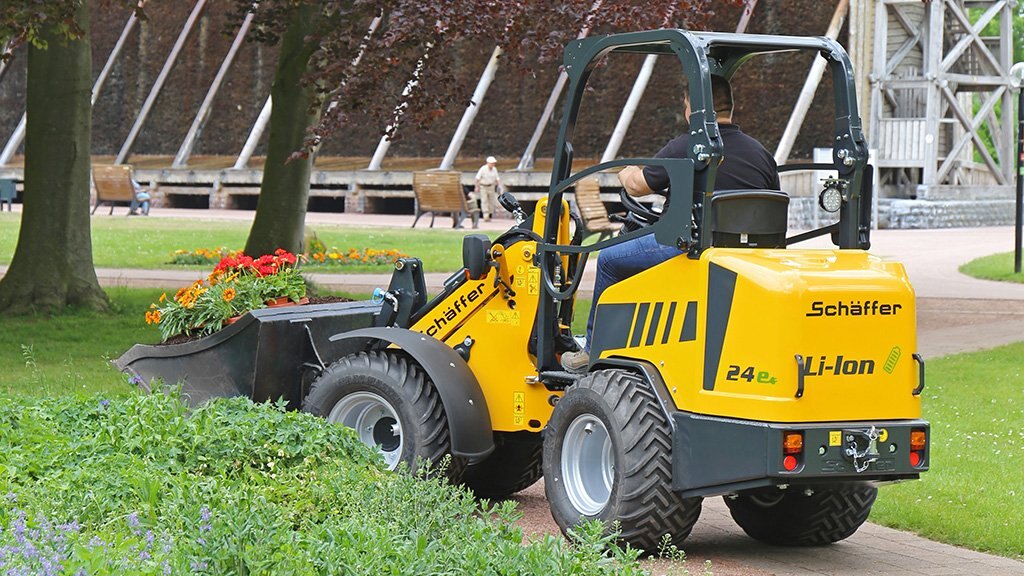

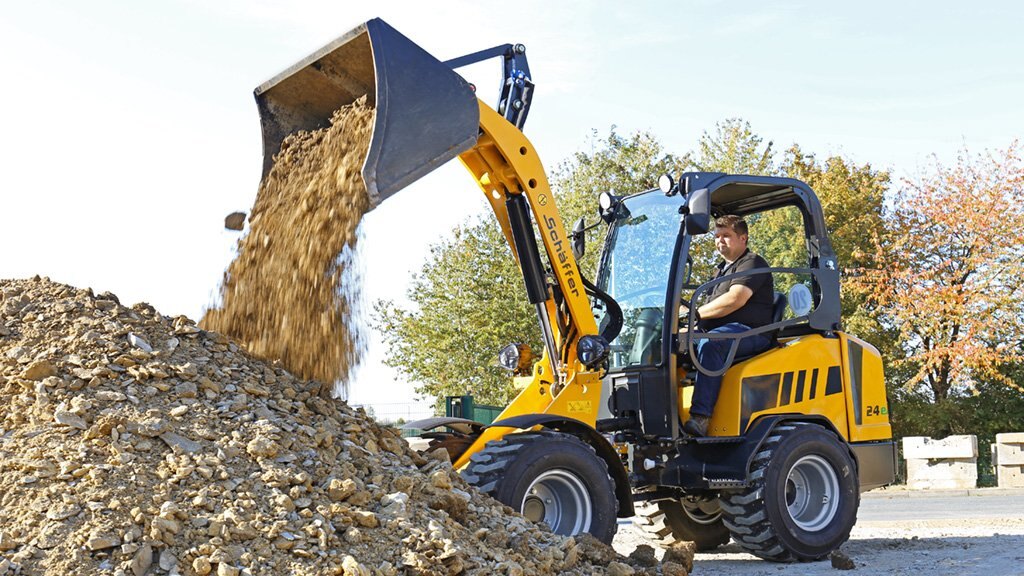

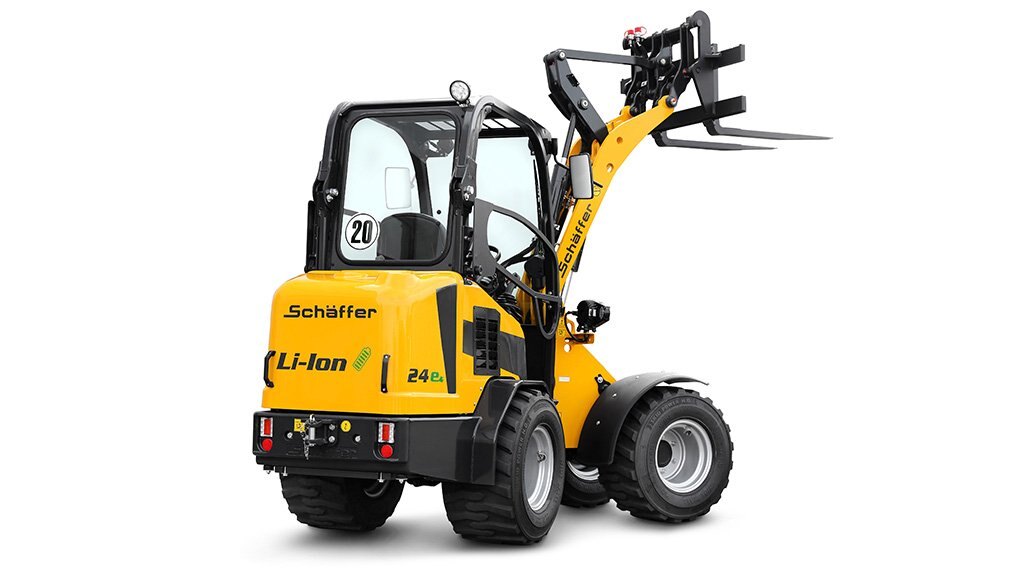

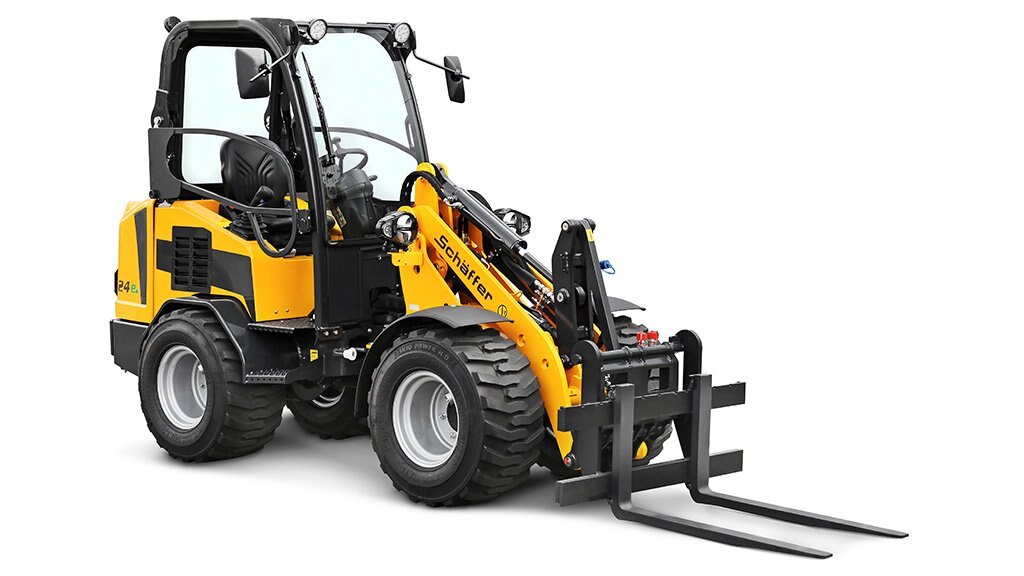

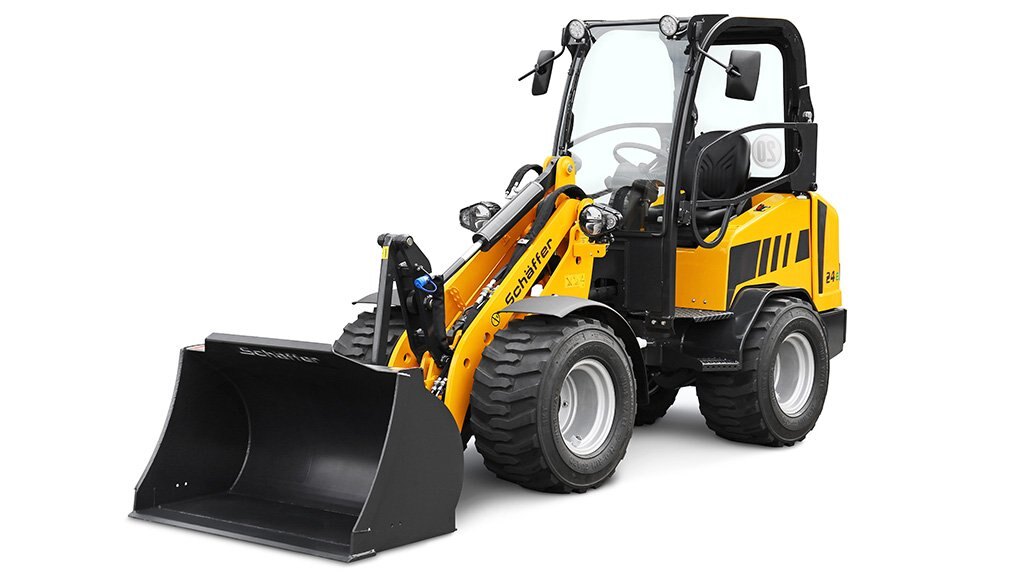

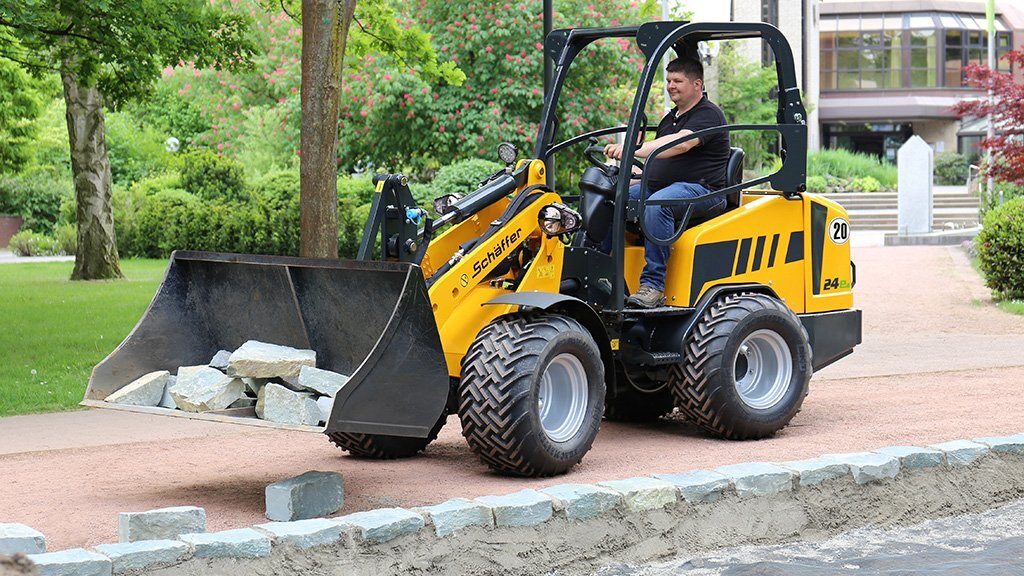

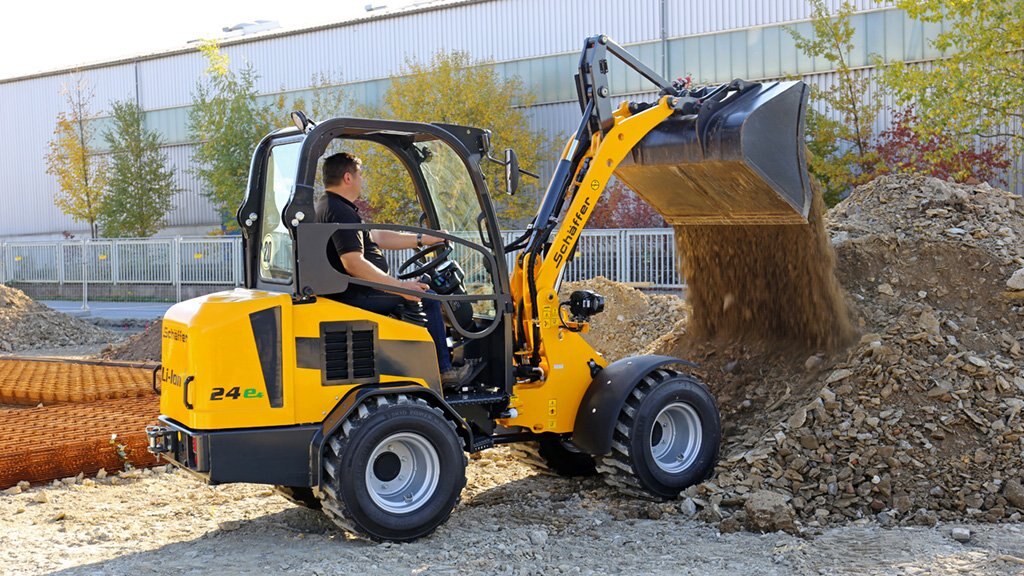

Schaffer 24e

  • Schaffer 24e
  • Schaffer 24e
  • Schaffer 24e
  • Schaffer 24e
  • Schaffer 24e
  • Schaffer 24e
  • Schaffer 24e
  • Schaffer 24e
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Wheel loaders
The compact class is one of the most successful series ever built by Schäffer. They have been specifically developed for use in confined spaces. No compromises were, however, made as regards reliability and ergonomics. A wide range of equipment and attachments made the machines extremely versatile.
  Standard equipment
  • Electric motor driving hydraulics: 21 kW; electric motor working hydraulics: 9,7 kW
  • Low version front carriage for best lifting force
  • Electric four wheel drive with cardan shaft
  • On board charging device 3 kW / 230 V / 16 A
  • Battery management system
  • Energy recuperation
  • Hill-Hold funktion: ’start up assistant’ to make hill starts easier
  • Tyres 10.0/75-15.3 MPT, offset +40
  • Quick gear 20 km/h
  • Eco mode to extend the operating time
  • Genuine Schäffer axle
  • Water cooling of electric motors
  • Multiple disk brake, maintenance free; service and parking brake
  • Maintenance free articulated pendulum joint
  • Restraining system for protection roof
  • 1 x LED working headlight front
  • Acoustic reverse warning signal
  • Parallel lift
  • Electronically operated additional controller
  • SilencePlus gear pump, especially quiet
  • Working hydraulics: 42 l/min
  • Adjustable steering column
  • Hour meter, range display and charging status display
  • Counter weight 100 kg mounted under rear chassis
  • Rear weight end plate
  • Main battery switch
  • Quick-change frame SWH with hydraulic tool lock
Specifications
Model
24e
Category Name
Equipment
Year
2020
Sale Type
New
Manufacturer
Schaffer
Width
1020 mm - 1570 mm
Lifting Capacity
1900 kg
Turning Radius Inside
1000 mm
Height Protection Roof
from 2215 mm
Length With Standard Bucket
4045
Lifting Height (tool Pivot)
2500 mm
Tipping Load Straight, Bucket
1690 kg - 1935 kg
Working Weight Protection Roof
2300 kg
Electric Engine Driving Hydraulics
21 kW
Electric Engine Working Hydraulics
9.7 kW
Tipping Load Straight, Pallet Fork*
1610 kg - 1749 kg
Tipping Height (bottom Edge Of Bucket)
1700 mm
