Overview

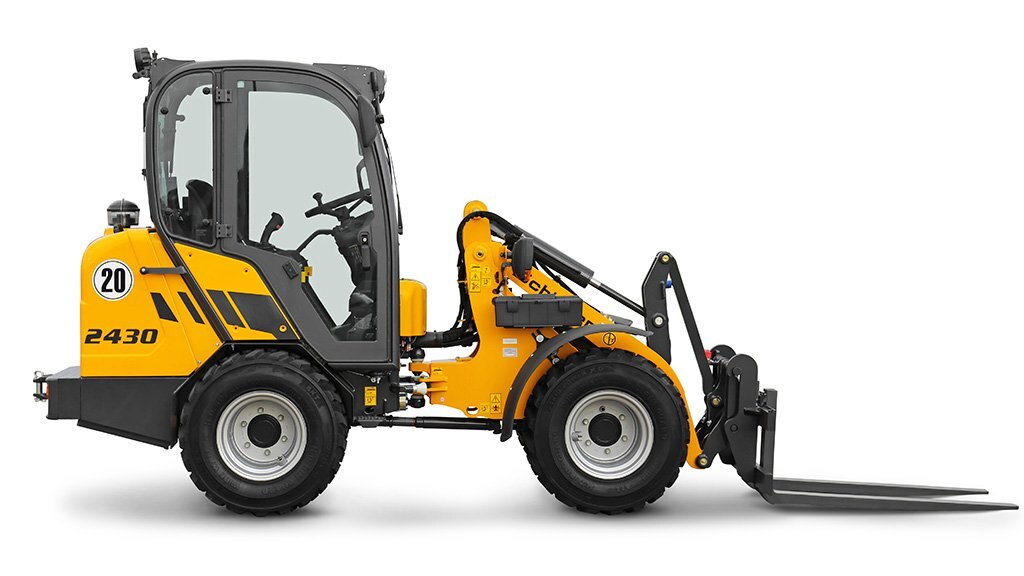

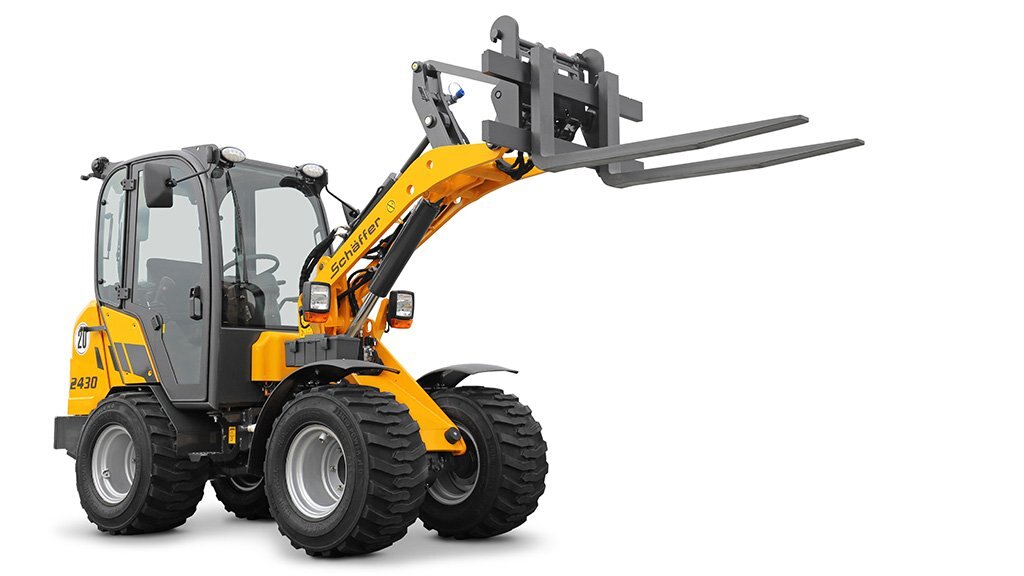

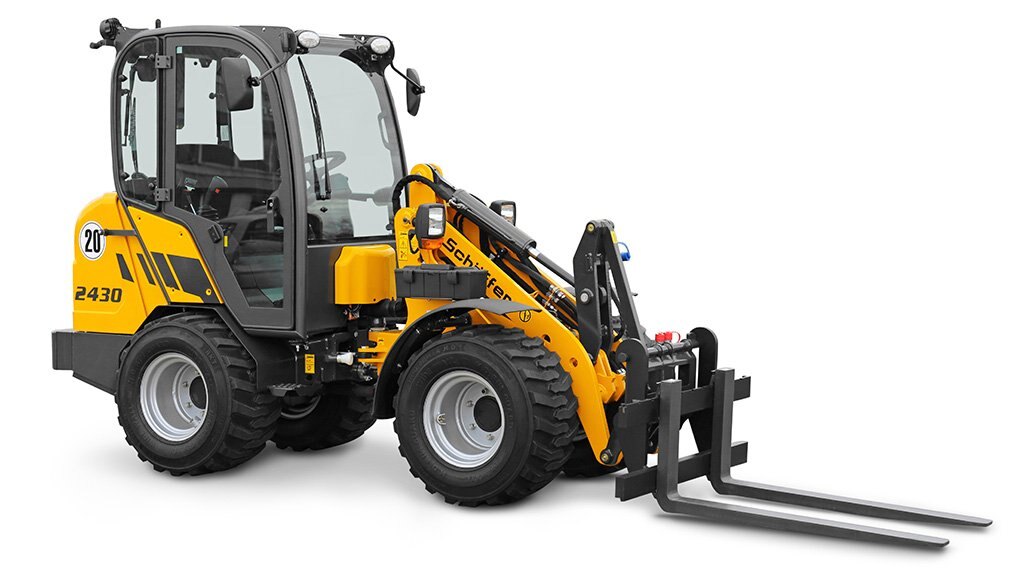

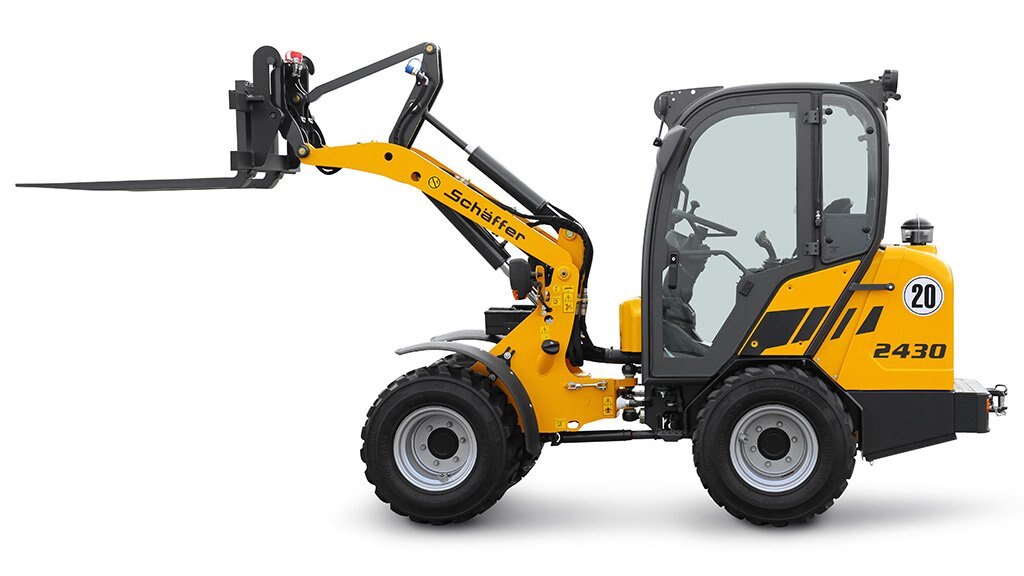

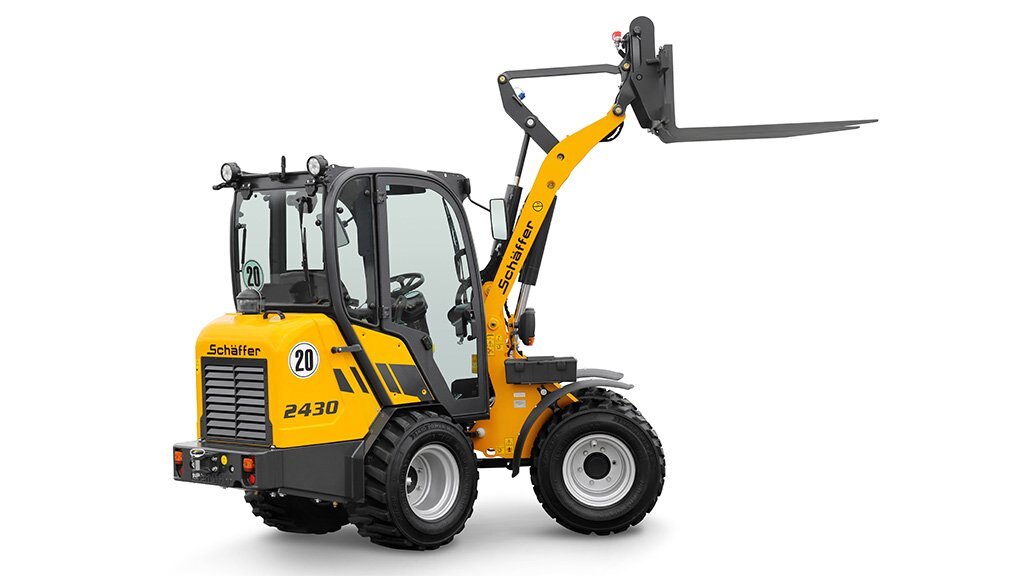

Wheel loaders

Compact dimensions, perfect manoeuvrability and convincing lifting and traction forces – that is what a Schäffer wheel loader stands for. The machine is very simple and intuitive. The view of the attachments is excellent. The comfortable seating position guarantees relaxed and productive work at all times for the driver – maximum driving fun included.
  Standard equipment
  • Kubota diesel engine, 3 cylinders, water-cooled, 18.5 kW (25 HP)
  • Highest torque due to 1.7 l cylinder capacity
  • Low version front carriage for best lifting force
  • Hydrostatic four wheel drive with cardan shaft and automotive control
  • High-pressure drive HD-plus
  • Tyres 10.0/75-15.3 AS, offset +40
  • HTF (High Traction Force)
  • SPT (Schäffer Power Transmission)
  • Hydraulic quick gear 20 km/h
  • Genuine Schäffer axle
  • Combined oil cooler
  • Multiple disk brake, maintenance free; service and parking brake
  • Maintenance free articulated pendulum joint
  • Restraining system for protection roof
  • Working headlights on protection roof version: 1 x LED on the boom; cabin version, halogen: 2 x front, 1 x rear
  • Parallel lift
  • Working hydraulics:  42 l/min.
  • Adjustable steering column
  • Case weight
  • Hour meter, fuel control lamp and temperature indicator
  • Rear weight end plate
  • Tool Box
  • Quick-change frame SWH with hydraulic tool lock
  HTF
High Traction Force
Automatic thrust regulation, which means that the loader can always deliver the highest level of thrust even at high speed.

Benefits:

  • Even at high speed the maximum thrust is always available, e.g. when driving in muck heaps
  • No need to manually shift down a gear when going up an incline
  • Enhanced driving comfort, faster working
  SPT
Schäffer Power Transmission
Electronically-controlled autodrive: The autodrive adapts to the torque properties of the diesel motor.

Benefits:

  • Lower fuel consumption, reduced operating costs
  • Starting aid makes it is easier to start up on slopes
  • Different parameters for drive characteristics can be set
  • Safety functions: including overheating and over rotation protection of the motor
  • Optional potentiometer performs the job of a cruise control: Machine maintains constant speed regardless of the motor speed, particularly advantageous when working with feed dosing units, straw spreaders or mulchers (using pedal control on 9640 T and 9660 T)
Specifications
Model
2430
Category Name
Equipment
Year
2020
Sale Type
New
Manufacturer
Schaffer
Width
1020 mm - 1300 mm
Output
18.5 kW (25 HP)
Height Cabin
2150 mm
Diesel Engine
Kubota, 3 cylinders water-cooled
Lifting Capacity
1900 kg
Turning Radius Inside
960 mm
Height Protection Roof
2220 mm
Length With Standard Bucket
3830 mm
Lifting Height (tool Pivot)
2500 mm
Working Weight Protection Roof
2200 kg
Tipping Height (bottom Edge Of Bucket)
1700 mm
