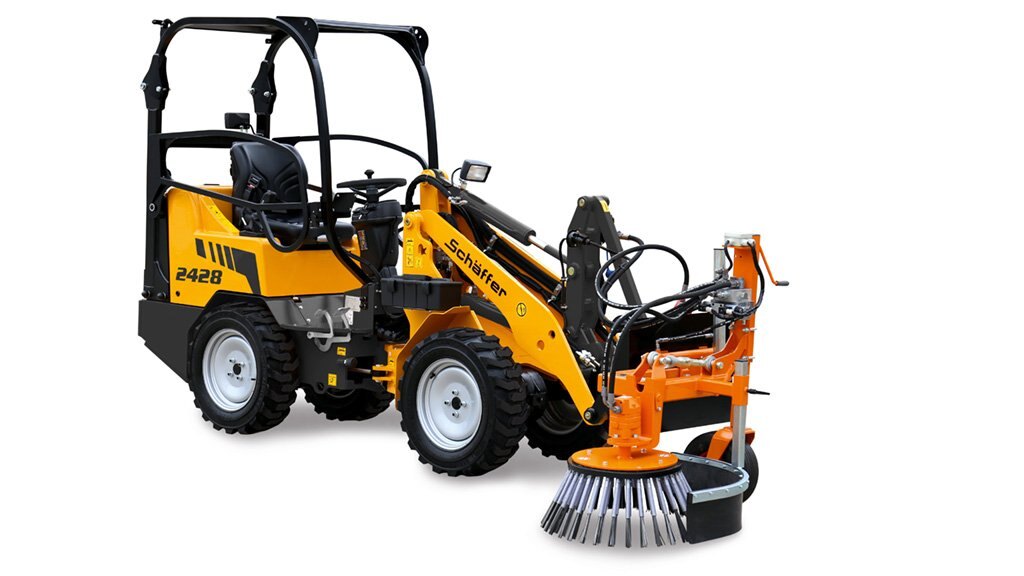

Schaffer 2428

  • Schaffer 2428
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Wheel loaders
Compact dimensions, perfect manoeuvrability and convincing lifting and traction forces – that is what a Schäffer wheel loader stands for. The machine is very simple and intuitive. The view of the attachments is excellent. The comfortable seating position guarantees relaxed and productive work at all times for the driver – maximum driving fun included.
  Standard equipment
  • Kubota diesel engine, 3 cylinders, water-cooled, 18.5 kW = 25 HP
  • Low version front carriage for best lifting force
  • Hydrostatic four wheel drive with automotive control
  • Tyres 27x8.50-15 SKD, offset +30 incl. reversable rims
  • Genuine Schäffer axle
  • Combined oil cooler
  • Drum brake as service and parking brake
  • Maintenance free articulated pendulum joint
  • Restraining system for protection roof
  • 1 x LED working headlight front
  • Parallel lift
  • Working hydraulics: 33 l/min, optional 42 l/min.
  • Adjustable steering column
  • Hour meter, fuel control lamp and temperature indicator
  • Case weight
  • Rear weight end plate
  • Tool Box
  • Quick-change frame SWH with hydraulic tool lock
Specifications
Model
2428
Category Name
Equipment
Year
2020
Sale Type
New
Manufacturer
Schaffer
Width
940 mm - 1240 mm
Output
18.5 kW (25 HP)
Diesel Engine
Kubota, 3 cylinders water-cooled
Working Weight
1820 kg
Lifting Capacity
1700 kg
Lifting Capacity
1700 kg
Bucket Capacity**
0.32 m³
Height Protection Roof
2090 mm
Turning Radius Inside
760 mm
Length With Standard Bucket
3750 mm
Lifting Height (tool Pivot)
2300 mm
Tipping Load Straight, Bucket*
1.218 kg - 1.354 kg
Tipping Load Straight, Pallet Fork*
1.046 kg - 1.222 kg
Tipping Height (bottom Edge Of Bucket)
1450 mm
