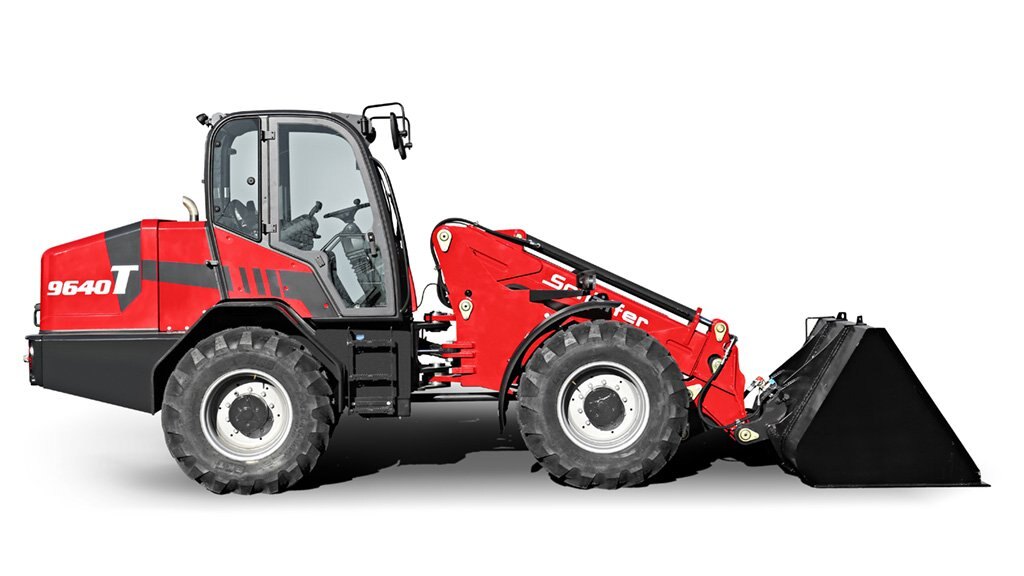

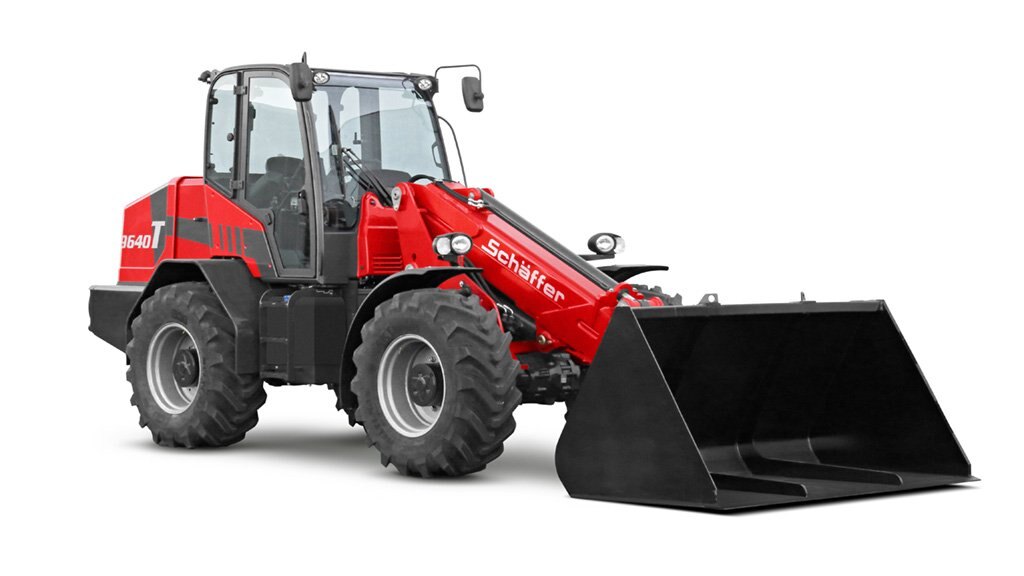

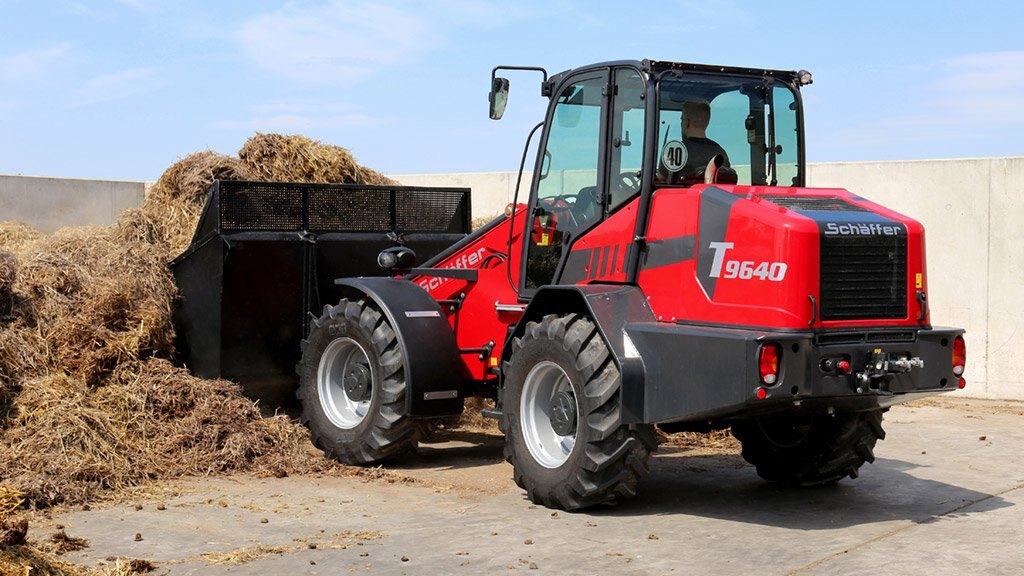

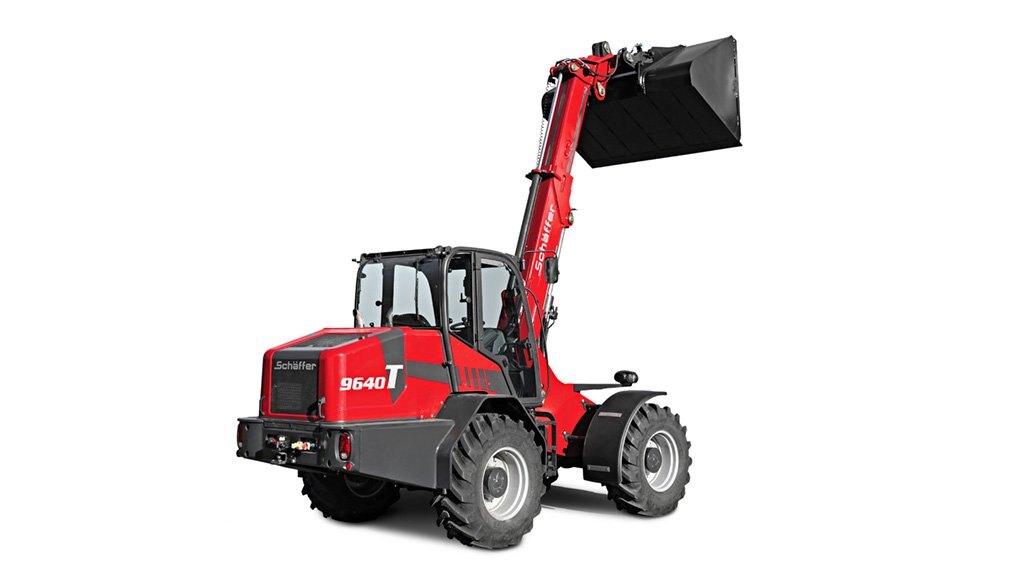

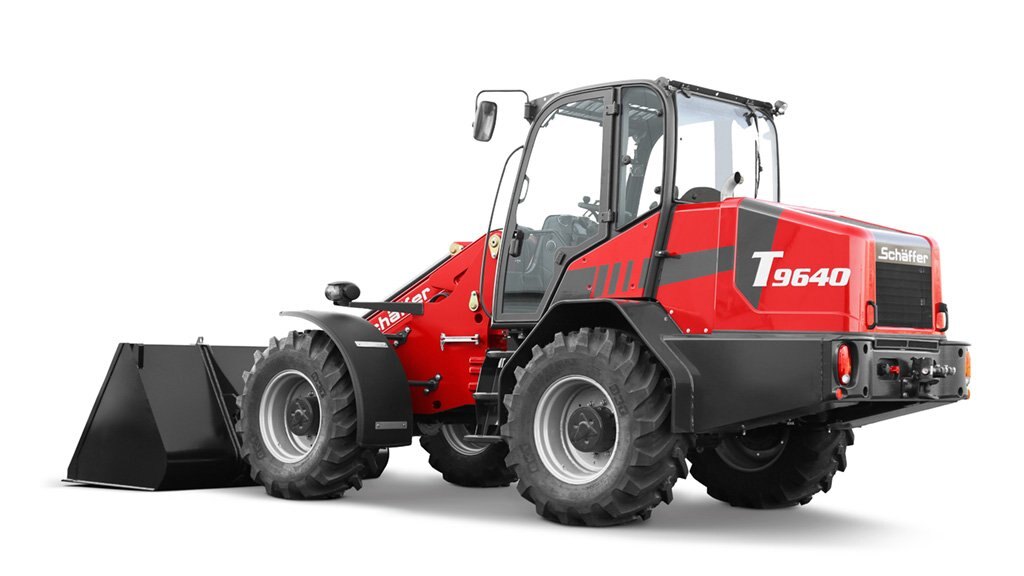

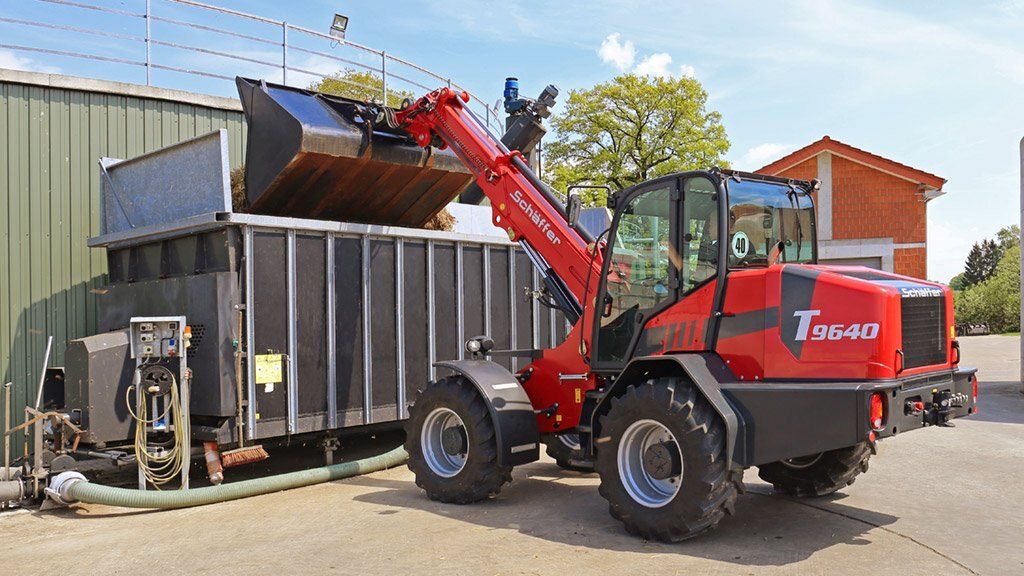

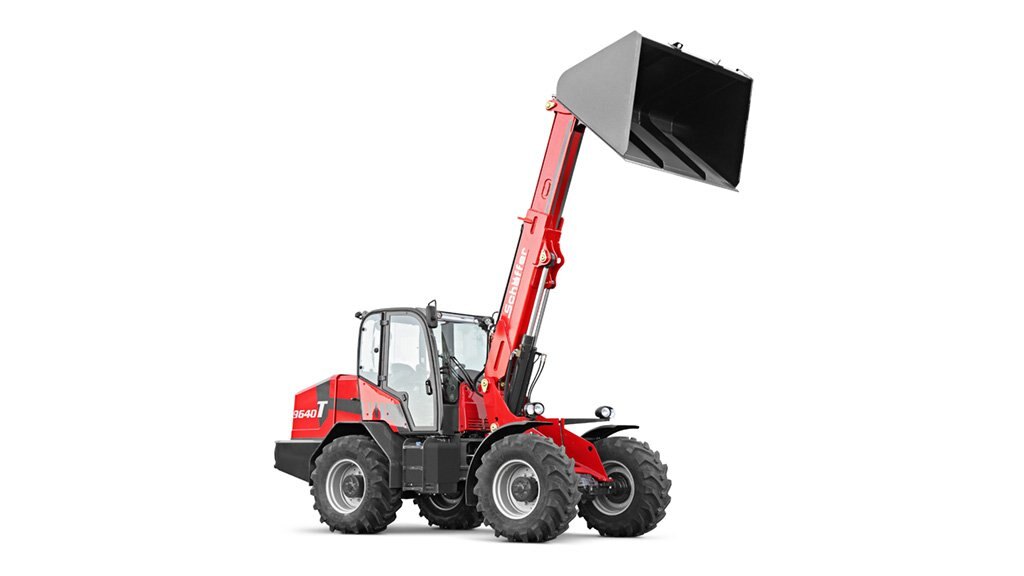

Schaffer 9640 T

  • Schaffer 9640 T
  • Schaffer 9640 T
  • Schaffer 9640 T
  • Schaffer 9640 T
  • Schaffer 9640 T
  • Schaffer 9640 T
  • Schaffer 9640 T
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Telescopic wheel loaders

Safely work at high lifting heights in uneven terrain or confined spaces. Schäffer telescopic wheel loaders are amongst the most successful of their class. The vehicles boast essential characteristics that make them unique, such as the rear swing axle (from 5670 T) or the telescopic arm to accommodate and protect the tool cylinder.
  Standard equipment
  • Deutz Turbo Intercooler diesel engine, 4 cylinders, water-cooled, 100 kW (136 HP), Tier 4 final
  • DOC and SCR for compliance with Stage IV final emissions standards
  • Hydrostatic four wheel drive with automotive control
  • HTF (High Traction Force)
  • Hydraulic quick gear 20 km/h switchable under load
  • Load-Sensing working hydraulics, 145 l/min.
  • Flow sharing working hydraulics incl. proportional control of the telescopic arm
  • ZF planetary axles (Heavy Duty) with self-locking differentials
  • Rear pendulum axle
  • Ferro-form sliding elements in the telescopic arm
  • Tool cylinder in the telescopic arm
  • Electric pressure relief of hydraulic couplings
  • Combined oil cooler
  • Hydraulic fan drive
  • SCV-Plus-Cabin (Silence, Comfort, View)
  • Multiple disk brake, maintenance free; service and parking brake
  • Maintenance free articulation joint
  • 2 steering cylinders
  • 2 x working headlights front und 1 x rear
  • Lighting system without ABE (General approval certificate) according to ordinance StVZO
  • Z-bar boom with parallel lift
  • Additional control device electrically switchable on joystick
  • Depressurised return
  • Steering column adjustable in length and angle
  • Operating hours meter, rev counter, fuel and temperature gauge, engine monitoring
  • Adjustable armrest
  • Rear weight end plate and towing hitch
  • Main battery switch
  • Cyclone
  • Headstock type wheel loader with hydraulic tool lock
  HTF
High Traction Force

Automatic thrust regulation, which means that the loader can always deliver the highest level of thrust even at high speed.

Benefits:

  • Even at high speed the maximum thrust is always available, e.g. when driving in muck heaps
  • No need to manually shift down a gear when going up an incline
  • Enhanced driving comfort, faster working
  SPT
Schäffer Power Transmission

Electronically-controlled autodrive: The autodrive adapts to the torque properties of the diesel motor.

Benefits:

  • Lower fuel consumption, reduced operating costs
  • Starting aid makes it is easier to start up on slopes
  • Different parameters for drive characteristics can be set
  • Safety functions: including overheating and over rotation protection of the motor
  • Optional potentiometer performs the job of a cruise control: Machine maintains constant speed regardless of the motor speed, particularly advantageous when working with mulchers, sweepers or salt spreaders (using pedal control on 9640 T and 9660 T)
  Eco Mode
Eco Mode

Automatic reduction of the motor speed, maintaining the same speed.

Benefits:

  • Fuel saving, reduction in operating costs
  • Lower noise level
  • Environmentally-friendly operation
  • No restrictions on performance
Specifications
Model
9640 T
Category Name
Agriculture
Year
2018
Sale Type
New
Manufacturer
Schaffer
Diesel Engine
4 cyl. Deutz Common Rail Turbo with Intercooler, Tier 4 final
Output
100 kW (136 PS)
Width
2330 mm - 2380 mm
Lifting Capacity
4200 kg
Length With Standard Bucket
6260 mm
Lifting Height (tool Pivot)
5400 mm
Turning Radius Inside
2280 mm
Tipping Height (bottom Edge Of Bucket)
4574 mm
Height Cabin
2860 mm/2760 mm**
Tipping Load Straight, Pallet Fork*
5350 kg
