Safely work at high lifting heights in uneven terrain or confined spaces. Schäffer telescopic wheel loaders are amongst the most successful of their class. The vehicles boast essential characteristics that make them unique, such as the rear swing axle (from 5670 T) or the telescopic arm to accommodate and protect the tool cylinder.
DOC and SCR for compliance with Stage IV final emissions standards
Hydrostatic four wheel drive with automotive control
Tyres 18-22.5 MP590, offset -50
HTF (High Traction Force)
SPT (Schäffer Power Transmission)
Hydraulic quick gear 20 km/h switchable under load
Flow sharing working hydraulics, 105 l/min., proportional control of the telescopic arm
Planetary axles HD with limited slip differentials
Rear pendulum axle
Ferro-form sliding elements in the telescopic arm
Tool cylinder in the telescopic arm
Electric pressure relief of hydraulic couplings
Combined oil cooler
Hydraulic fan drive

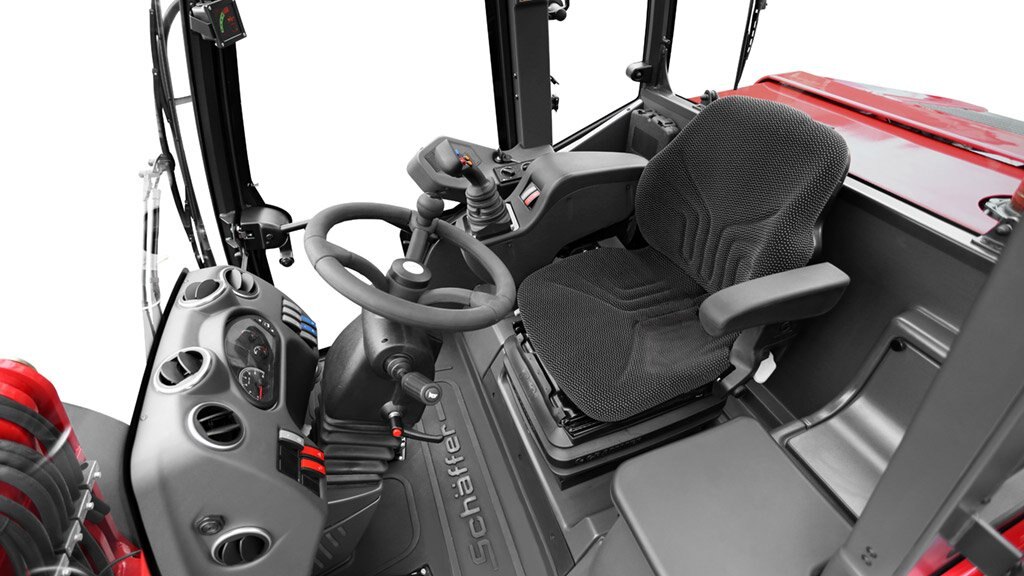

SCV-Plus-Cabin (Silence, Comfort, View)
Multiple disk brake, maintenance free; service and parking brake
Maintenance free articulation joint
2 steering cylinders
2 x working headlights front und 1 x rear
Lighting system without ABE (General approval certificate) according to ordinance StVZO
Z-bar boom with parallel lift
Additional control device electrically switchable on joystick
Depressurised return
Steering column adjustable in length and angle
Operating hours meter, rev counter, fuel and temperature gauge, engine monitoring
Adjustable armrest
Rear weight end plate and towing hitch
Main battery switch
Cyclone
Headstock type wheel loader with hydraulic tool lock
HTF
High Traction Force
Automatic thrust regulation, which means that the loader can always deliver the highest level of thrust even at high speed.
Benefits:
Even at high speed the maximum thrust is always available, e.g. when driving in muck heaps
No need to manually shift down a gear when going up an incline
Enhanced driving comfort, faster working
SPT
Schäffer Power Transmission
Electronically-controlled autodrive: The autodrive adapts to the torque properties of the diesel motor.
Benefits:
Lower fuel consumption, reduced operating costs
Starting aid makes it is easier to start up on slopes
Different parameters for drive characteristics can be set
Safety functions: including overheating and over rotation protection of the motor
Optional potentiometer performs the job of a cruise control: Machine maintains constant speed regardless of the motor speed, particularly advantageous when working with mulchers, sweepers or salt spreaders (using pedal control on 9640 T and 9660 T)
Eco Mode
Eco Mode
Automatic reduction of the motor speed, maintaining the same speed.
