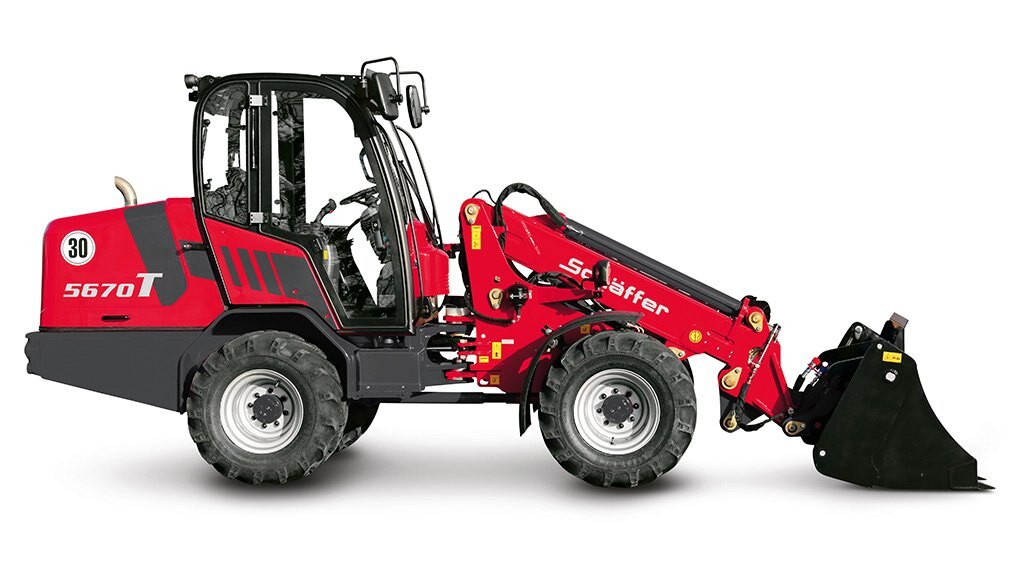

Schaffer 5670 T

  • Schaffer 5670 T
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Telescopic wheel loaders

Safely work at high lifting heights in uneven terrain or confined spaces. Schäffer telescopic wheel loaders are amongst the most successful of their class. The vehicles boast essential characteristics that make them unique, such as the rear swing axle (from 5670 T) or the telescopic arm to accommodate and protect the tool cylinder.
  Standard equipment
  • Deutz Turbo diesel engine, 4 cylinders, water-cooled, 50 kW (68 HP)
  • DOC and DPF for compliance with Stage V emissions standards
  • Hydrostatic four wheel drive with automotive control
  • Tyres 15.5/60-18 AT-621, offset +40
  • HTF (High Traction Force)
  • SPT (Schäffer Power Transmission)
  • Hydraulic quick gear 20 km/h switchable under load
  • HD planetary axles with self-locking differentials; (8-hole)
  • Rear pendulum axle
  • Ferro-form sliding elements in the telescopic arm
  • Tool cylinder in the telescopic arm
  • Electric pressure relief of hydraulic couplings
  • Combined oil cooler
  • Multiple disk brake, maintenance free; service and parking brake
  • Maintenance free articulation joint
  • Working headlights on protection roof version: 1 x LED on the boom; cabin version, halogen: 2 x front, 1 x rear
  • Lighting system without ABE (General approval certificate) according to ordinance StVZO
  • Z-bar boom with parallel lift
  • Working hydraulics: 64 l/min, optional 74 l/min.
  • Depressurised return
  • Adjustable steering column
  • Hour meter, rev, counter, fuel control lamp and temperature indicator
  • Rear weight end plate and towing hitch
  • Main battery switch
  • Water filling with anti freeze in tyres at rear axle
  • Cyclone
  • Headstock type wheel loader with hydraulic tool lock

  HTF
High Traction Force

Automatic thrust regulation, which means that the loader can always deliver the highest level of thrust even at high speed.

Benefits:

  • Even at high speed the maximum thrust is always available, e.g. when driving in muck heaps
  • No need to manually shift down a gear when going up an incline
  • Enhanced driving comfort, faster working

  SPT
Schäffer Power Transmission

Electronically-controlled autodrive: The autodrive adapts to the torque properties of the diesel motor.

Benefits:

  • Lower fuel consumption, reduced operating costs
  • Starting aid makes it is easier to start up on slopes
  • Different parameters for drive characteristics can be set
  • Safety functions: including overheating and over rotation protection of the motor
  • Optional potentiometer performs the job of a cruise control: Machine maintains constant speed regardless of the motor speed, particularly advantageous when working with feed dosing units, straw spreaders or mulchers (using pedal control on 9640 T and 9660 T)
Specifications
Model
5670 T
Category Name
Agriculture
Year
2018
Sale Type
New
Manufacturer
Schaffer
Diesel Engine
4 cyl. Deutz Common Rail Turbo with Intercooler
Output
50 kW (68 HP)
Width
1610 mm - 1800 mm
Lifting Capacity
2400 kg
Height Protection Roof
2380 mm
Length With Standard Bucket
5432 mm
Lifting Height (tool Pivot)
4740 mm
Working Weight Protection Roof
4640 kg
Turning Radius Inside
1570 mm
Tipping Height (bottom Edge Of Bucket)
3862 mm
Tipping Load Straight, Pallet Fork*
2660 kg
