ID # 14128786

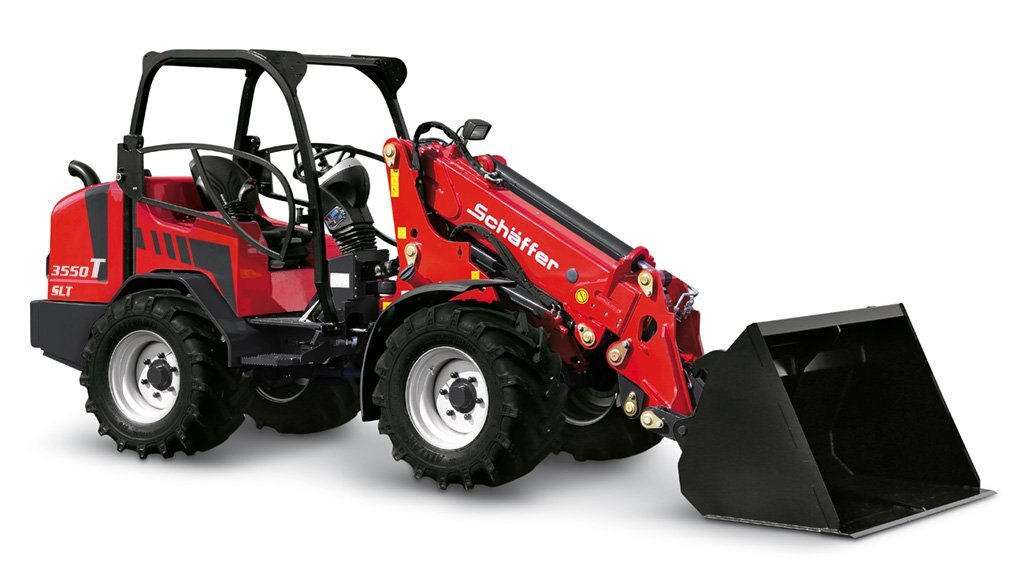

Schaffer 3550 T SLT

  • Schaffer 3550 T SLT
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Telescopic wheel loaders

Safely work at high lifting heights in uneven terrain or confined spaces. Schäffer telescopic wheel loaders are amongst the most successful of their class. The vehicles boast essential characteristics that make them unique, such as the rear swing axle (from 5670 T) or the telescopic arm to accommodate and protect the tool cylinder.
  Standard equipment
  • Special low construction design
  • Kubota diesel engine, 4 cylinders, water-cooled, 37 kW (50 HP)
  • Hydrostatic four wheel drive with automotive control
  • Tyres 15.0/55-17 AS, offset +85
  • HTF (High Traction Force)
  • Hydraulic quick gear 20 km/h switchable under load
  • Original Schäffer axles, wide design
  • Ferro-form sliding elements in the telescopic arm
  • Tool cylinder in the telescopic arm
  • Pressure relief 3rd control circuit electrically
  • Combined oil cooler
  • Multiple disk brake, maintenance free; service and parking brake
  • Maintenance free articulated pendulum joint
  • Restraining system for protection roof
  • 1 x LED working headlight front on boom
  • Z-bar boom with parallel lift
  • Working hydraulics: 52 l/min, optional 60 l/min.
  • Adjustable steering column
  • Hour meter, rev, counter, fuel control lamp and temperature indicator
  • Rear weight end plate and towing hitch
  • Counter weight 110 kg mounted under rear chassis
  • Water filling with anti freeze in tyres at rear axle
  • Wide chassis
  • Headstock type wheel loader with hydraulic tool lock
Specifications
Model
3550 T SLT
Category Name
Agriculture
Year
2018
Sale Type
New
Manufacturer
Schaffer
Diesel Engine
Kubota, 4 cylinders, water-cooled
Output
37 kW (50 HP)
Width
1.420 mm - 1.720 mm
Lifting Capacity
1950 kg
Height Protection Roof
from 2020 mm
Length With Standard Bucket
4835 mm
Lifting Height (tool Pivot)
3850 mm
Working Weight Protection Roof
3700 kg
Turning Radius Inside
1230 mm
Tipping Height (bottom Edge Of Bucket)
3150 mm
