ID # 14128771

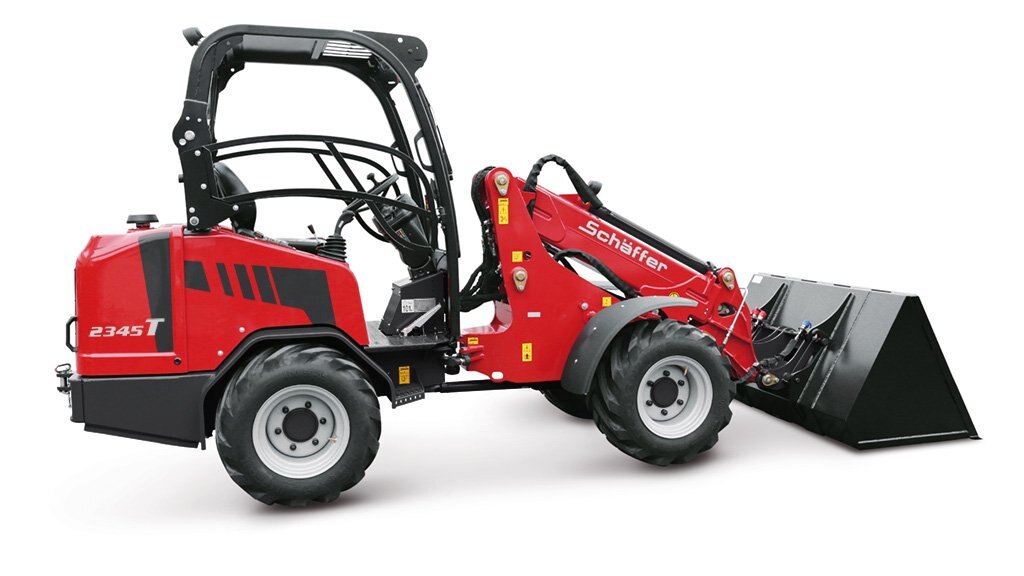

Schaffer 2345 T

  • Schaffer 2345 T
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Telescopic wheel loaders

Safely work at high lifting heights in uneven terrain or confined spaces. Schäffer telescopic wheel loaders are amongst the most successful of their class. The vehicles boast essential characteristics that make them unique, such as the rear swing axle (from 5670 T) or the telescopic arm to accommodate and protect the tool cylinder.
  Standard equipment
  • Kubota Turbo diesel engine, 4 cylinders, water-cooled, 33 kW (45 HP)
  • Hydrostatic four wheel drive with automotive control
  • Tyres 10.0/75-15.3 AS, offset +40
  • HTF (High Traction Force)
  • Hydraulic quick gear 20 km/h switchable under load
  • Original Schäffer axles, wide design
  • Ferro-form sliding elements in the telescopic arm
  • Tool cylinder in the telescopic arm
  • Pressure relief 3rd control circuit electrically
  • Combined oil cooler
  • Multiple disk brake, maintenance free; service and parking brake
  • Maintenance free articulated pendulum joint
  • Restraining system for protection roof
  • Working headlights on protection roof version: 1 x LED on the boom; cabin version, halogen: 2 x front, 1 x rear
  • Z-bar boom with parallel lift
  • Working hydraulics: 42 l/min, optional 51 l/min.
  • Adjustable steering column
  • Hour meter, fuel control lamp and temperature indicator
  • Rear weight end plate and towing hitch
  • Counter weight 100 kg mounted under rear chassis
  • Water filling with anti freeze in tyres at rear axle
  • Wider fender
  • Quick-change frame SWH with hydraulic tool lock

  HTF
High Traction Force

Automatic thrust regulation, which means that the loader can always deliver the highest level of thrust even at high speed.

Benefits:

  • Even at high speed the maximum thrust is always available, e.g. when driving in muck heaps
  • No need to manually shift down a gear when going up an incline
  • Enhanced driving comfort, faster working
Specifications
Model
2345 T
Category Name
Agriculture
Year
2018
Sale Type
New
Manufacturer
Schaffer
Diesel Engine
Kubota, 4 cylinders, water-cooled/Kubota turbo kit
Output
33 kW (45 HP)
Width
1.280 mm - 1.570 mm
Lifting Capacity
1900 kg
Height Protection Roof
2215 mm
Length With Standard Bucket
4520 mm
Lifting Height (tool Pivot)
3750 mm
Working Weight Protection Roof
2850 kg
Turning Radius Inside
950 mm
Tipping Height (bottom Edge Of Bucket)
3010 mm
