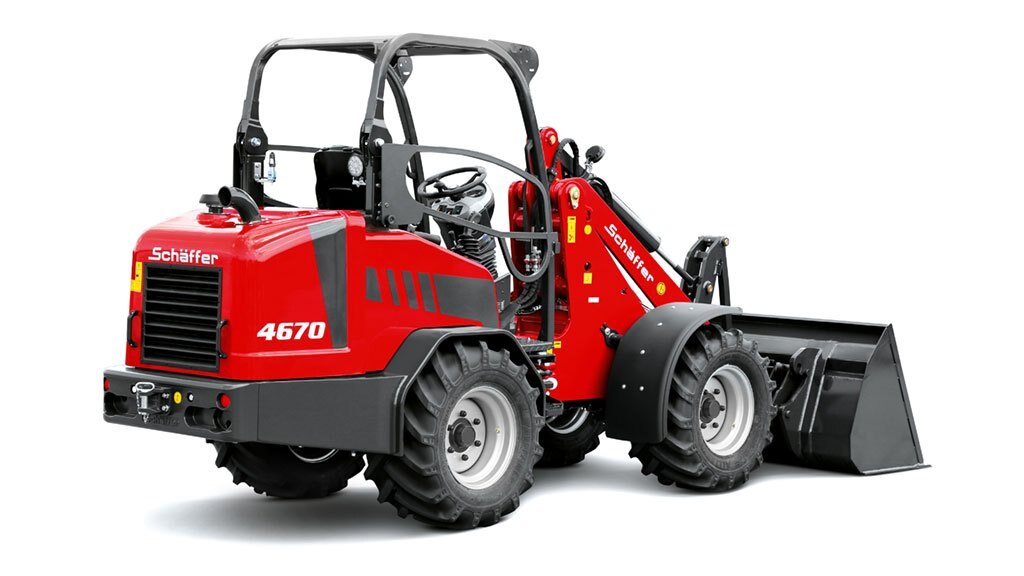

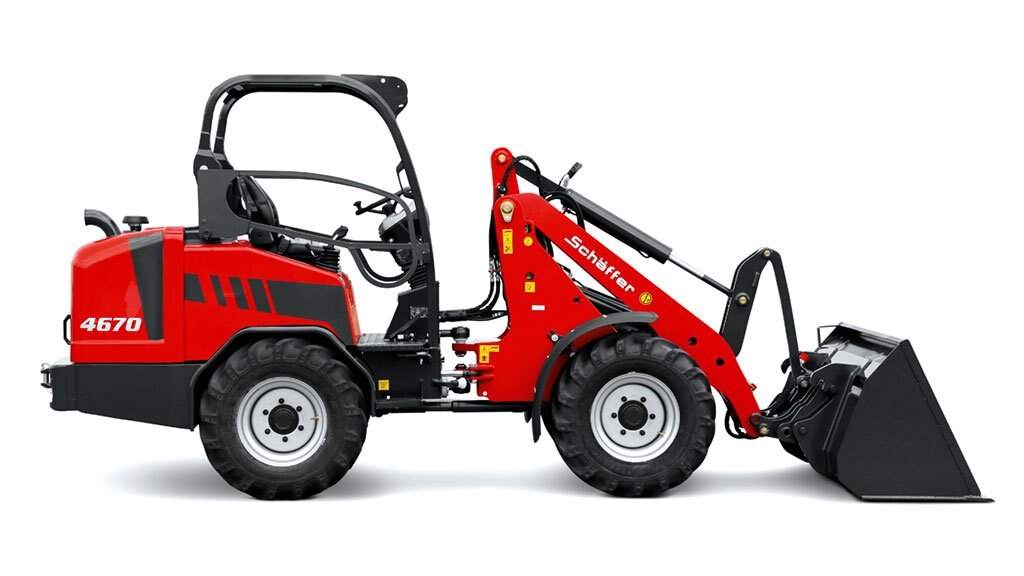

Compact loaders The compact class is one of the most successful series ever built by Schäffer. They have been specifically developed for use in confined spaces. No compromises were, however, made as regards reliability and ergonomics. A wide range of equipment and attachments made the machines extremely versatile.
DOC and DPF for compliance with Stage V emissions standards
Hydrostatic four wheel drive with automotive control
High-pressure drive HD-plus
Tyres 11.5/80-15.3 AS, offset -40
HTF (High Traction Force)
SPT (Schäffer Power Transmission)
Hydraulic quick gear 20 km/h switchable under load
Genuine Schäffer axle
Combined oil cooler
Multiple disk brake, maintenance free; service and parking brake
Maintenance free articulated pendulum joint
Restraining system for protection roof
Working headlights on protection roof version: 1 x LED on the boom; cabin version, halogen: 2 x front, 1 x rear

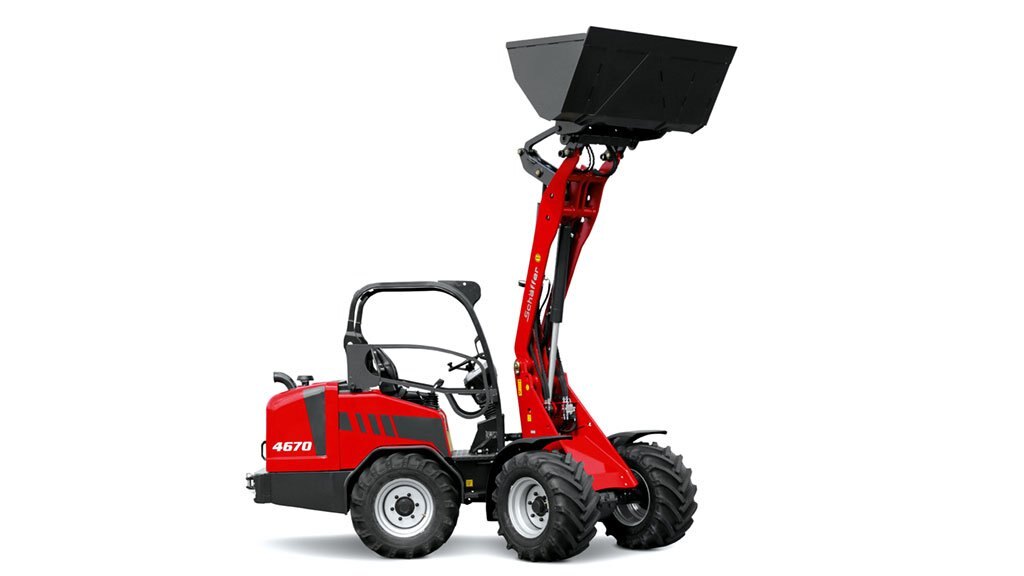

Parallel lift
Working hydraulics: 52 l/min, optional 60 l/min.
Adjustable steering column
Hour meter, rev, counter, fuel control lamp and temperature indicator
Rear weight end plate
Quick-change frame SWH with hydraulic tool lock
HTF
High Traction Force Automatic thrust regulation, which means that the loader can always deliver the highest level of thrust even at high speed.
Benefits:

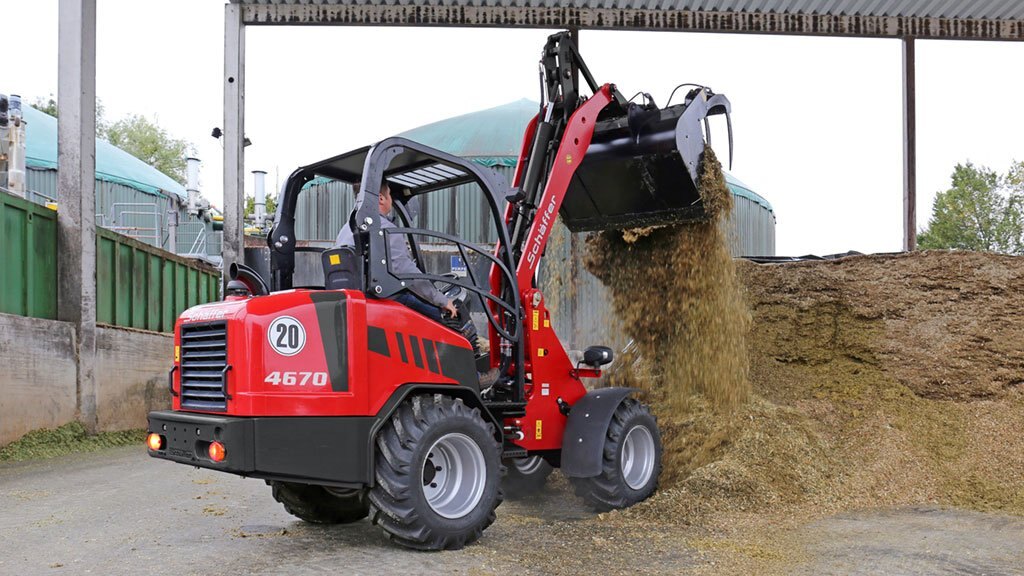

Even at high speed the maximum thrust is always available, e.g. when driving in muck heaps
No need to manually shift down a gear when going up an incline
Enhanced driving comfort, faster working
SPT
Schäffer Power Transmission
Electronically-controlled autodrive: The autodrive adapts to the torque properties of the diesel motor.
Benefits:
Lower fuel consumption, reduced operating costs
Starting aid makes it is easier to start up on slopes
Different parameters for drive characteristics can be set
Safety functions: including overheating and over rotation protection of the motor
Optional potentiometer performs the job of a cruise control: Machine maintains constant speed regardless of the motor speed, particularly advantageous when working with feed dosing units, straw spreaders or mulchers (using pedal control on 9640 T and 9660 T)
