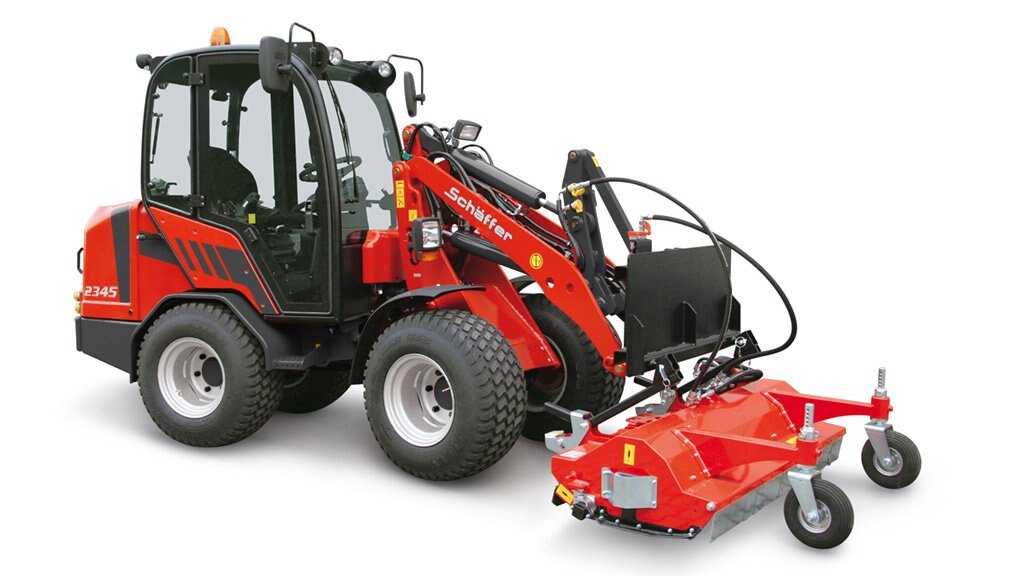

Schaffer 2345

  • Schaffer 2345
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Compact loaders

The compact class is one of the most successful series ever built by Schäffer. They have been specifically developed for use in confined spaces. No compromises were, however, made as regards reliability and ergonomics. A wide range of equipment and attachments made the machines extremely versatile.
  Standard equipment
  • Kubota Turbo diesel engine, 4 cylinders, water-cooled, 33 kW (45 HP)
  • Hydrostatic four wheel drive with automotive control
  • Tyres 10.0/75-15.3 AS, offset +40
  • HTF (High Traction Force)
  • Hydraulic quick gear 20 km/h switchable under load
  • Genuine Schäffer axle
  • Combined oil cooler
  • Multiple disk brake, maintenance free; service and parking brake
  • Maintenance free articulated pendulum joint
  • Restraining system for protection roof
  • Working headlights on protection roof version: 1 x LED on the boom; cabin version, halogen: 2 x front, 1 x rear
  • Parallel lift
  • Working hydraulics: 42 l/min, optional 51 l/min.
  • Adjustable steering column
  • Hour meter, fuel control lamp and temperature indicator
  • Rear weight end plate
  • Quick-change frame SWH with hydraulic tool lock

  HTF
High Traction Force

Automatic thrust regulation, which means that the loader can always deliver the highest level of thrust even at high speed.

Benefits:

  • Even at high speed the maximum thrust is always available, e.g. when driving in muck heaps
  • No need to manually shift down a gear when going up an incline
  • Enhanced driving comfort, faster working
Specifications
Model
2345
Category Name
Equipment
Year
2018
Sale Type
New
Manufacturer
Schaffer
Diesel Engine
Kubota diesel engine, 4 cylinders, water-cooled
Output
33 kW (45 HP)
Width
1020 mm - 1570 mm
Lifting Capacity
1700 kg
Height Protection Roof
from 2215 mm
Length With Standard Bucket
3880 mm
Lifting Height (tool Pivot)
2880 mm / 3110 mm**
Working Weight Protection Roof
2350 kg
Turning Radius Inside
835 mm
**Option
high lift version
Tipping Height (bottom Edge Of Bucket)
2045 mm / 2300 mm**
