ID # 14128745

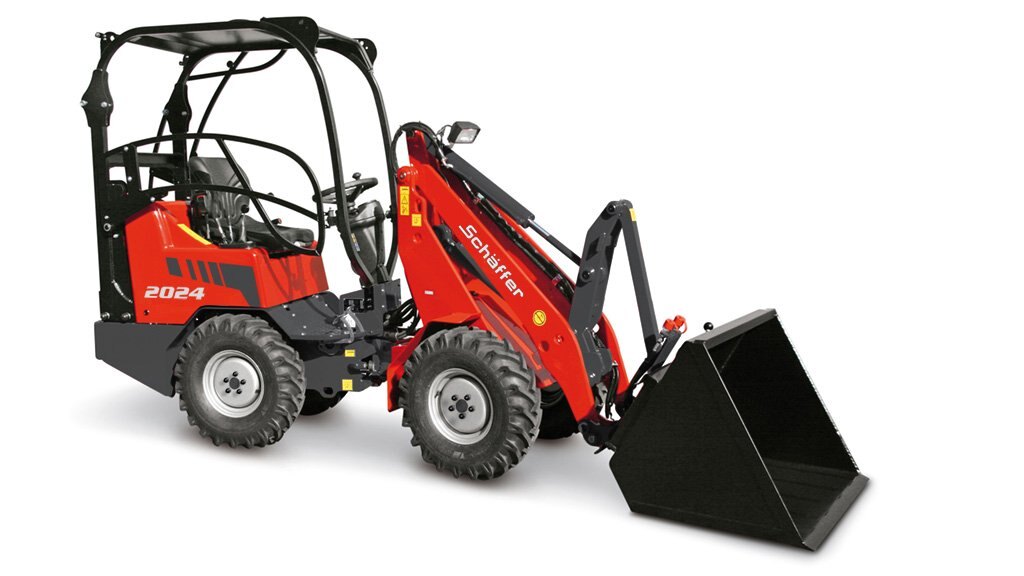

Schaffer 2024

  • Schaffer 2024
  • Video Button Hqdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Compact loaders

The compact class is one of the most successful series ever built by Schäffer. They have been specifically developed for use in confined spaces. No compromises were, however, made as regards reliability and ergonomics. A wide range of equipment and attachments made the machines extremely versatile.
  Standard equipment
  • Kubota diesel engine, 3 cylinders, water-cooled, 18.5 kW (25 HP)
  • Hydraulic four wheel drive with foot pedal control
  • Tyres 7.00-12 AS, offset +45 incl. reversable rims
  • Genuine Schäffer axle
  • Drum brake as service and parking brake
  • Maintenance free articulated pendulum joint
  • Restraining system for protection roof
  • 1 x LED working headlight front
  • Parallel lift
  • Working hydraulics: 33 l/min
  • Adjustable steering column
  • Hour meter, fuel control lamp and temperature indicator
  • Quick-change frame SWH with hydraulic tool lock
Specifications
Model
2024
Category Name
Equipment
Year
2020
Sale Type
New
Manufacturer
Schaffer
Width
895 mm - 1250 mm
Output
18.5 kW (25 HP)
**Option
high lift version
Diesel Engine
Kubota diesel engine, 3 cylinders, water-cooled
Lifting Capacity
1400 kg
Turning Radius Inside
660 mm
Height Protection Roof
2090 mm
Length With Standard Bucket
3530 mm
Lifting Height (tool Pivot)
2800 mm / 3060 mm**
Tipping Load Straight, Bucket
829 kg - 973 kg
Working Weight Protection Roof
1700 kg
Tipping Load Straight, Pallet Fork
622 kg - 786 kg
Tipping Height (bottom Edge Of Bucket)
1965 mm / 2265 mm**
