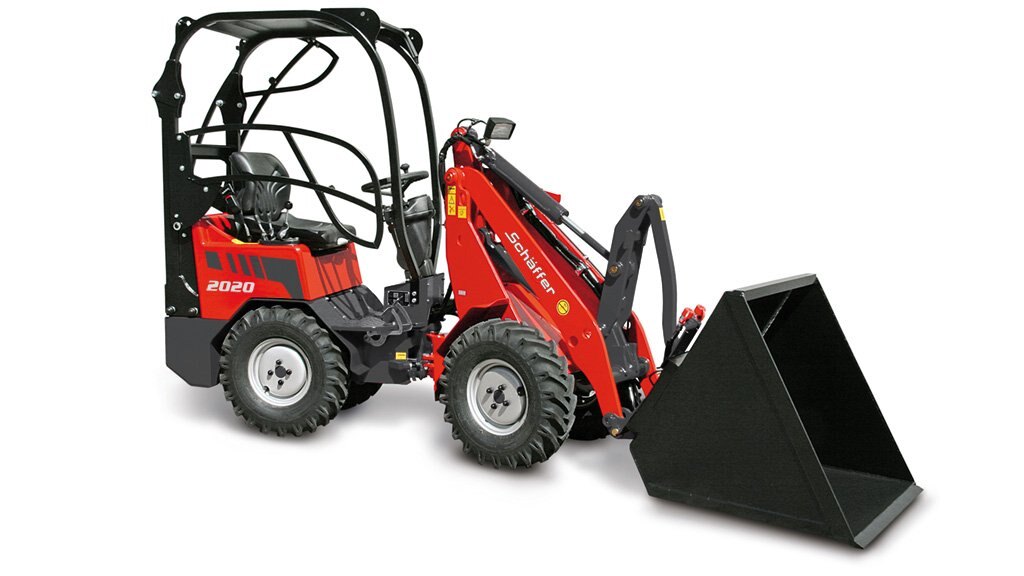

Compact loaders

The compact class is one of the most successful series ever built by Schäffer. They have been specifically developed for use in confined spaces. No compromises were, however, made as regards reliability and ergonomics. A wide range of equipment and attachments made the machines extremely versatile.
  Standard equipment
  • Kubota diesel engine, 3 cylinders, water-cooled, 15 kW (20 HP)
  • Hydraulic four wheel drive with foot pedal control
  • Tyres 7.00-12 AS, offset +45 incl. reversable rims
  • Drum brake as service and parking brake
  • Maintenance free articulated pendulum joint
  • Restraining system for protection roof
  • 1 x LED working headlight front
  • Parallel lift
  • Working hydraulics: 31 l/min
  • Adjustable steering column
  • Hour meter, fuel control lamp and temperature indicator
  • Quick hitch
Specifications
Model
2020
Category Name
Equipment
Year
2020
Sale Type
New
Manufacturer
Schaffer
Width
795 mm - 1000 mm
Output
15 kW (20 HP)
Diesel Engine
Kubota diesel engine, 3 cylinders, water-cooled
Lifting Capacity
1200 kg
Turning Radius Inside
530 mm
Height Protection Roof
2070 mm
Length With Standard Bucket
3330 mm
Lifting Height (tool Pivot)
2470 mm
Working Weight Protection Roof
1400 kg
