Cummins Diesel QSK38-Series

  • Cummins Diesel QSK38 Series
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Controlled high performance power.

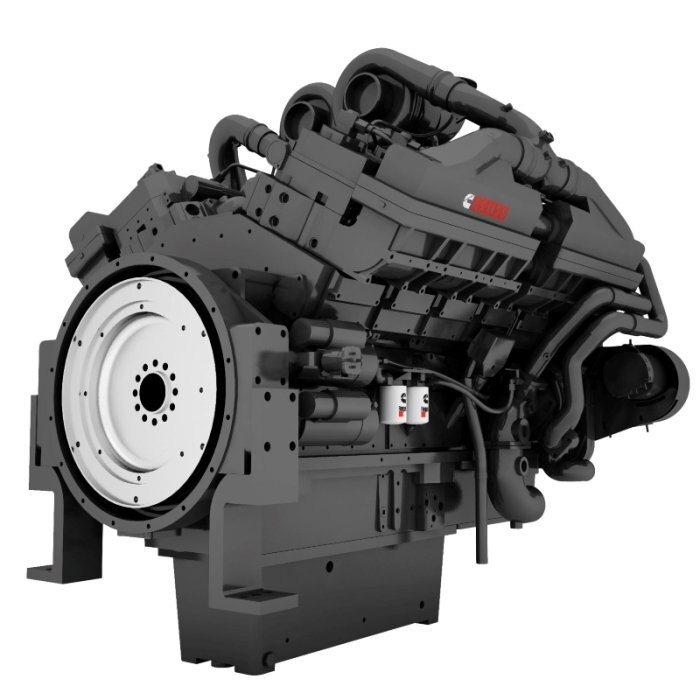

The QSK38 is a V12 cylinder engine with a 38 litre displacement. This Quantum series utilizes sophisticated electronics and premium engineering to provide outstanding performance levels, reliability and versatility for Standby, Prime and Continuous Power applications.
Specifications
Model
Diesel QSK38-Series
Category Name
Generators
Year
2023
Sale Type
New
Manufacturer
Cummins
ratings & spec sheets
Generator Model Hz Prime kVA / kW Standby kVA / kW RPM Fuel Type Certification Spec Sheet
QSK38-G5 60 1211 / 969 1452 / 1162 1800 Diesel EPA Tier 2 Spec Sheet
QSK38-G4 60 1408 / 1126 1563 / 1251 1800 Diesel EPA Tier 2 Spec Sheet
QSK38-G1 50 1000 / 800 1101 / 880 1500 Diesel EPA Tier 2 Spec Sheet
QSK38-G2 50 1135 / 908 1250 / 1000 1500 Diesel EPA Tier 2 Spec Sheet
QSK38-G3 50 1276 / 1021 1400 / 1120 1500 Diesel EPA Tier 2 Spec Sheet
QSK38-G5 50 1276 / 1020 1401 / 1121 1500 Diesel EPA Tier 2 Spec Sheet
features

High pressure fuel pump, Modular Common Rail fuel System (MCRS) and state of the art integrated electronic control system provide superior performance, efficiency and diagnostics. The electronic fuel pumps deliver up to 1600 bar injection pressure and eliminate mechanical linkage adjustments.The new MCRS utilizes an electric priming pump which is integrated with the off-engine stage-1 fuel filter head and is controlled and powered by the engine ECM. The stage-2 fuel filters are mounted on-engine.

CTT (Cummins Turbo Technologies) HX82/HX83/HE851 turbo-charging utilizes exhaust energy with greater efficiency for improved emissions and fuel consumption.

Low Temperature After-cooling - Two-pump Two-loop (2P2L) Ferrous Cast Ductile Iron (FCD) Pistons - High strength design delivers superior durability.

G-Drive Integrated Design - Each component has been specifically developed and rigorously tested for G-Drive products, ensuring high performance, durability and reliability.

Service and Support - G-Drive products are backed by an uncompromising level of technical support and after sales service, delivered through a world class service network.
