ID # 27501268

Cummins KTA38 Series

  • Cummins KTA38 Series
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

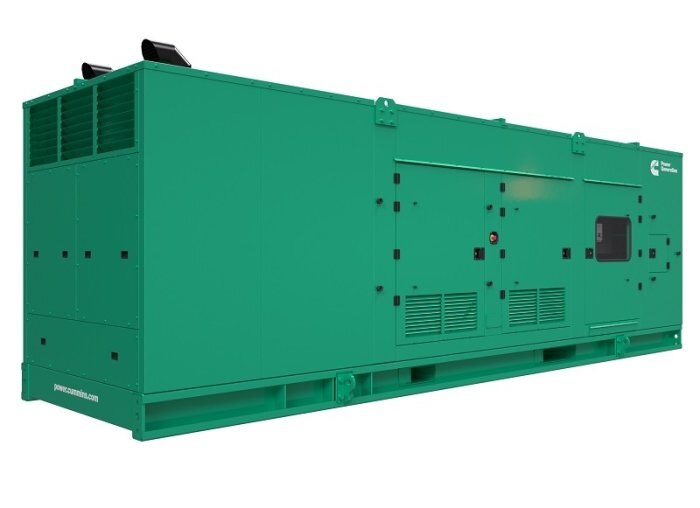

  • This Cummins commercial generator set is a fully integrated power generation system, providing optimum performance, reliability, and versatility for stationary Standby and Prime Power.
Specifications
Model
KTA38 Series
Category Name
Generators
Year
2023
Sale Type
New
Manufacturer
Cummins
EMS Compatibility
EN61000-4-6/EN61000-6-2
Frequency Regulation
Isochronous
Random Voltage Variation
+/- 0.5%
Governor Regulation Class
ISO 8528
Random Frequency Variation
+/- 0.25%
Voltage Regulation, No Load To Full Load
+/- 0.5%
ratings & spec sheets
Generator Model Engine Model Hz Prime kVA / kW Standby kVA / kW Fuel Type Spec Sheet
C1100D5B KTA38 50 1029 / 823 1132 / 906 Diesel SS15-CPGK-DC50
C1000D6B KTA38 60 1160 / 928 1276 / 1020 Diesel SS15-CPGK-DC60
C1000D5B KTA38 50 900 / 720 1000 / 800 Diesel SS15-CPGK-DC50
C900D6B KTA38 60 1013 / 810 1125 / 900 Diesel SS15-CPGK-DC60
C1250D5AB KTA38 50 1125 / 900 1250 / 1000 Diesel SS15-CPGK
features
  • Cummins heavy-duty engine - Rugged 4-cycle industrial diesel delivers reliable power, low emissions and fast response to load changes.
  • Permanent Magnet Generator (PMG) - Offers enhanced motor starting and fault clearing short circuit capability.
  • Alternator - Several alternator sizes offer selectable motor starting capability with low reactance 2/3 pitch windings; low waveform distortion with non-linear loads, fault clearing short-circuits capability, and class H insulation.
  • Cooling system - Standard integral set- mounted radiator system, designed and tested for rated ambient temperatures, simplifies facility design requirements for rejected heat.
  • Control system - Standard PowerCommand® electronic control provides total system integration including remote start/stop, precise frequency and voltage regulation, alarm and status message display, AmpSentryTM protection, output metering, auto-shutdown.
  • Enclosures - Optional sound attenuated enclosure is available.
  • Motorized circuit breaker - Optional 3 or 4 pole motorized circuit breaker available.
  • Warranty - Backed by a comprehensive warranty and worldwide distributor network.
  • ISO 8528-5 G3 Capable – Refer to factory for site and configuration specific transient performance classification
