ID # 23960615

Kverneland 9471 S Vario - 9471 S Evo flexible double Rakes

  • Kverneland 9471 S Vario 9471 S Evo flexible double Rakes
  • Kverneland 9471 S Vario 9471 S Evo flexible double Rakes
  • Kverneland 9471 S Vario 9471 S Evo flexible double Rakes
  • Kverneland 9471 S Vario 9471 S Evo flexible double Rakes
  • Kverneland 9471 S Vario 9471 S Evo flexible double Rakes
  • Kverneland 9471 S Vario 9471 S Evo flexible double Rakes
  • Kverneland 9471 S Vario 9471 S Evo flexible double Rakes
  • Kverneland 9471 S Vario 9471 S Evo flexible double Rakes
  • Kverneland 9471 S Vario 9471 S Evo flexible double Rakes
  • Kverneland 9471 S Vario 9471 S Evo flexible double Rakes
  • Kverneland 9471 S Vario 9471 S Evo flexible double Rakes
  • Kverneland 9471 S Vario 9471 S Evo flexible double Rakes
  • Kverneland 9471 S Vario 9471 S Evo flexible double Rakes
  • Kverneland 9471 S Vario 9471 S Evo flexible double Rakes
  • Kverneland 9471 S Vario 9471 S Evo flexible double Rakes
  • Kverneland 9471 S Vario 9471 S Evo flexible double Rakes
  • Kverneland 9471 S Vario 9471 S Evo flexible double Rakes
  • Kverneland 9471 S Vario 9471 S Evo flexible double Rakes
  • Kverneland 9471 S Vario 9471 S Evo flexible double Rakes
  • Kverneland 9471 S Vario 9471 S Evo flexible double Rakes
  • Kverneland 9471 S Vario 9471 S Evo flexible double Rakes
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

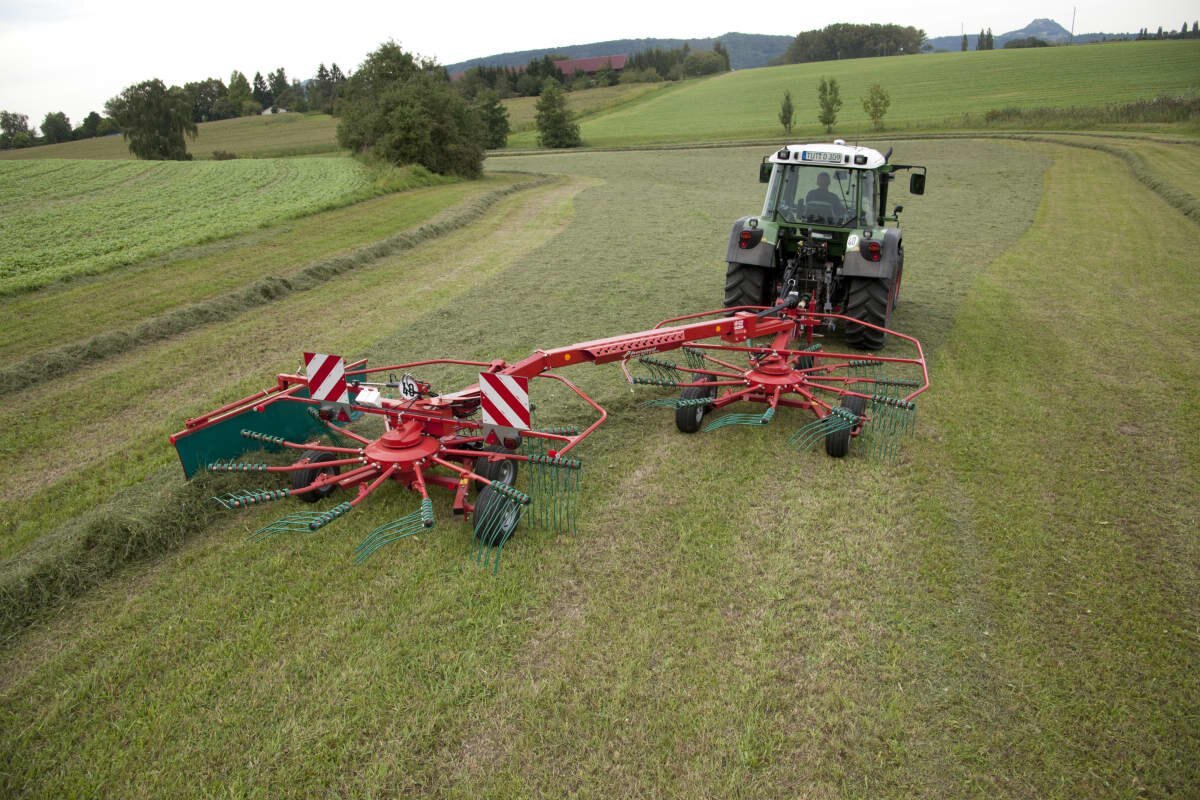

Side delivery rakes for the flexible solution with 7.10m working width

Flexible Raking Solutions:

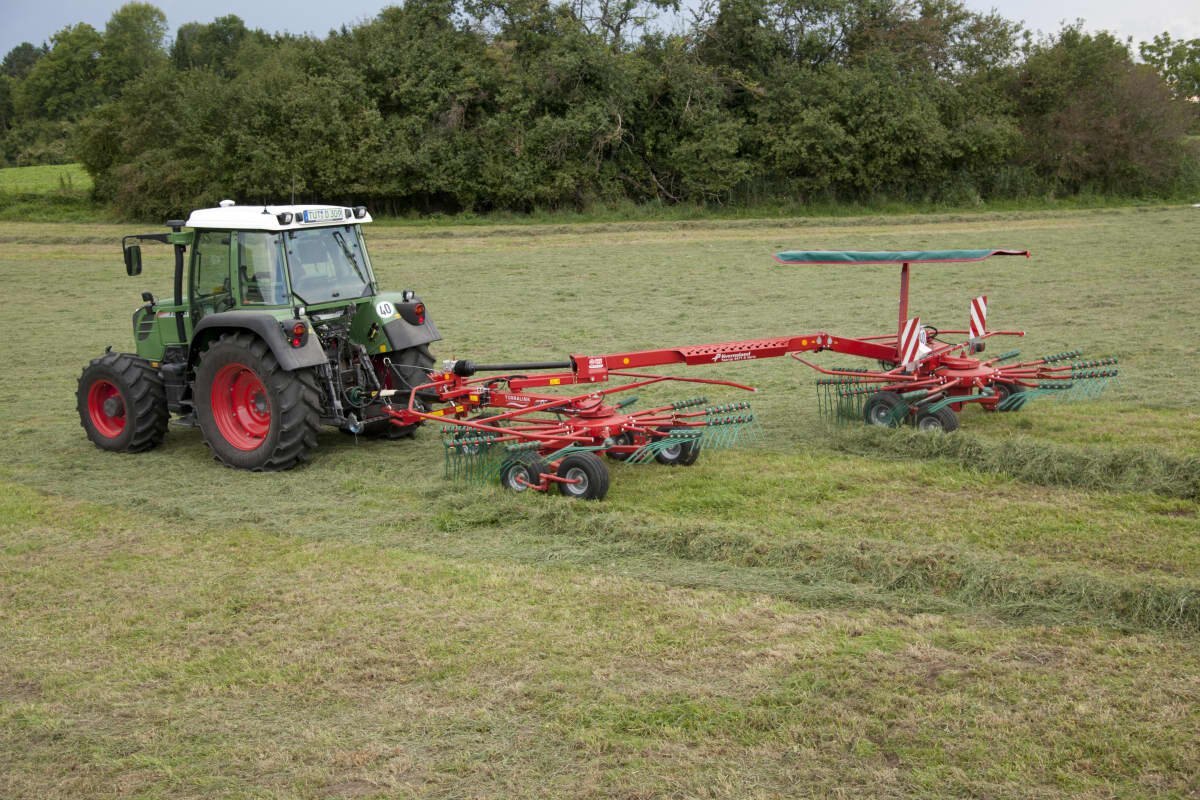

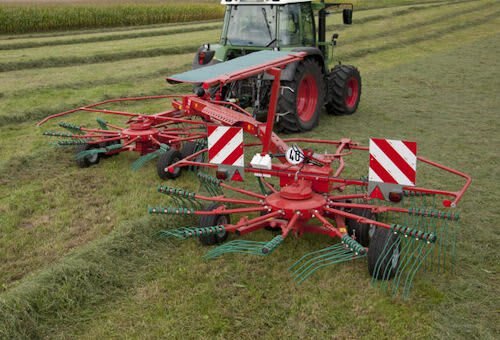

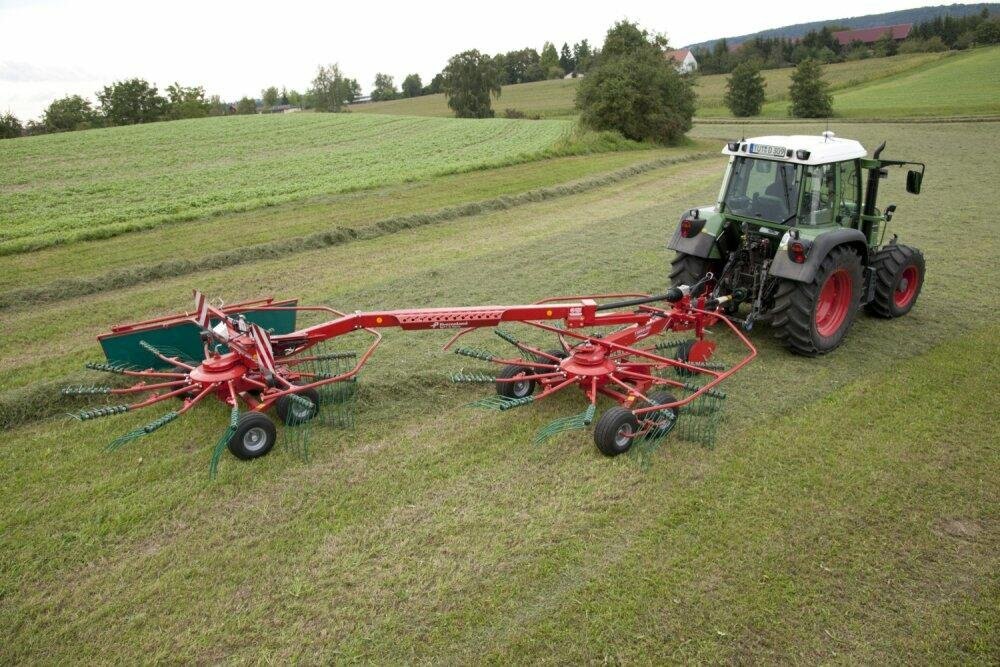

The Kverneland 9471 S Vario and the Kverneland 9471 S Evo are designed for maximum flexibility, for raking in a variety of conditions. The twin rotors work independently, from each other, making it possible to collect either one large swath or two smaller night swaths. These rakes can place two large swaths into one, allowing a total of up to 12.50m crop to be gathered into one swath.

Kverneland SideShift

The Vario version also offers the patented SideShift system as an option, which comprises electro-hydraulic control of all functions. A special feature on the Kverneland 9471 S Vario is the possibility to operate both rotors – front and rear – in an offset position from the tractor cab.
Specifications
Model
9471 S Vario - 9471 S Evo flexible double Rakes
Category Name
Agriculture
Year
2023
Sale Type
New
Manufacturer
Kverneland
technical specifications


Working Width

No of Tine Arms

Weight

9471 S Vario

6.60/7.10m

11/12

1400kg

9471 S Evo

6.60/7.10m

11/12

1350kg
features

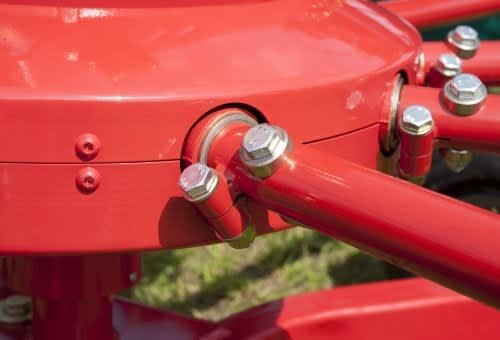

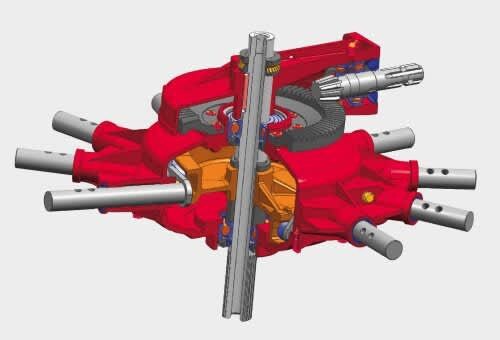

CompactLine Gearbox

  • The Kverneland CompactLine rakes feature oil-immersed cam discs and guide rollers.
  • Tine arm bearings are fully lubricated, and hence absolutely maintenance-free.
  • High-tensile tine arm holders and two bearings on either side of the driveshaft, provide the compact unit with strength and dependability.
  • Kverneland-developed cam tracks are specifically tailored to individual rotor diameters, for optimum raking at any working width and on any model.

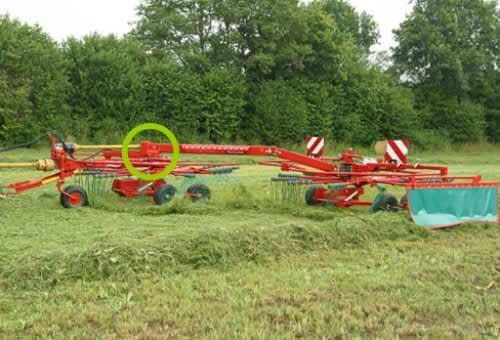

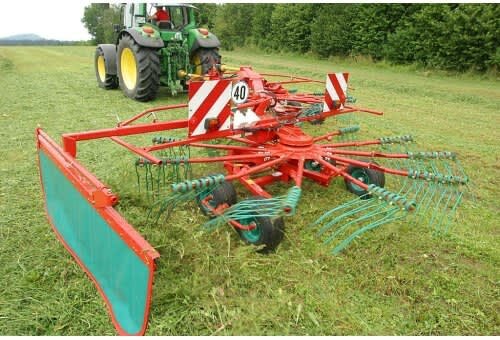

SideShift

  • The Vario version also offers the patented SideShift system as an option, which comprises electro-hydraulic control of all functions.
  • A special feature on the Kverneland 9471 S Vario is the possibility to operate both rotors – front and rear – in an offset position from the tractor cab.
  • With this patented system, raking along field boundaries or around trees is no problem – as the tractor can run at a safe distance from the obstacles.
  • It is also possible to run on raked fields while having the rake offset to the left side.

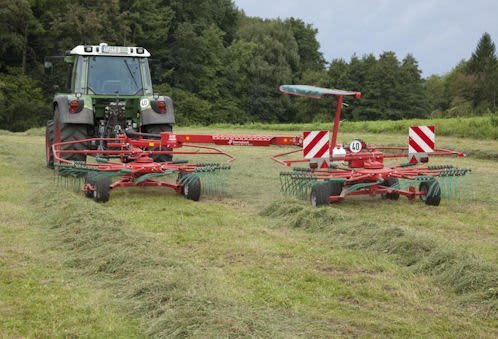

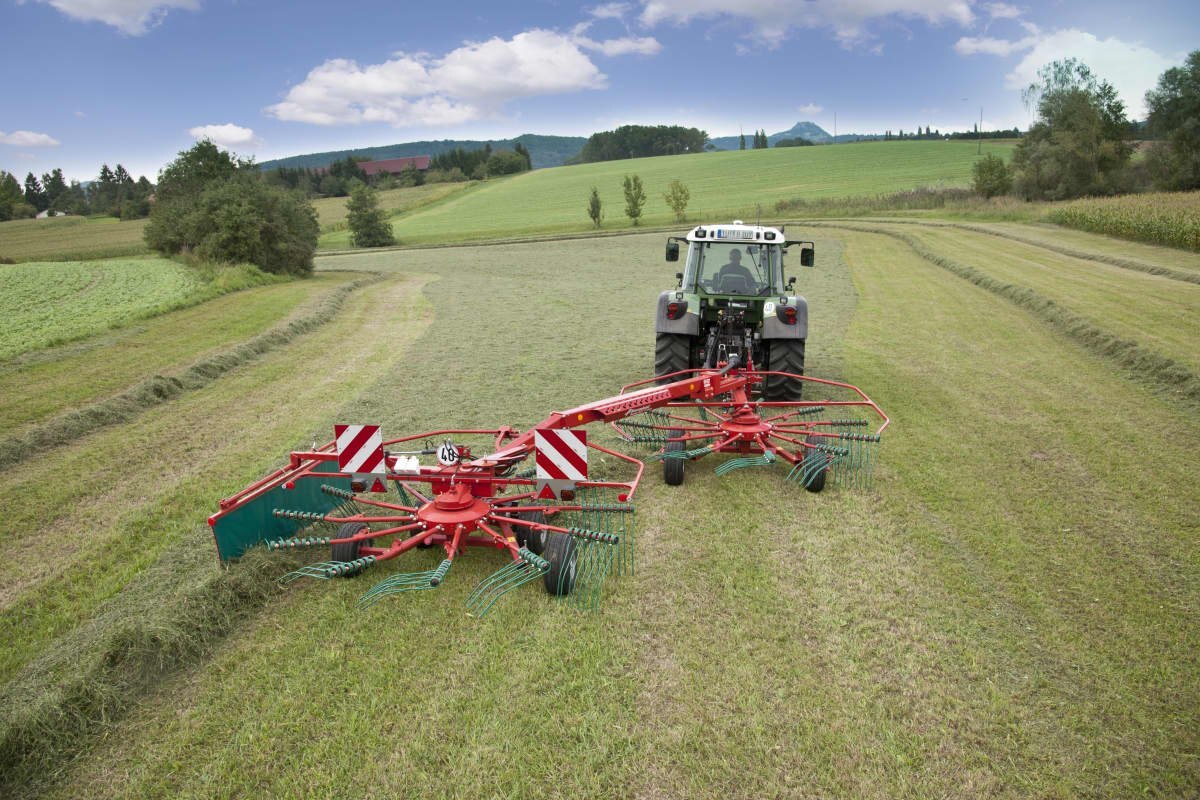

Kverneland 9471 S Vario 9471 S Evo flexible double Rakes 2 Swath Options

  • It is possble to collect either one large swath or two smaller swaths.
  • Both 9471 S models can place two large swaths into one, allowing a total of up  to 12.50m crop to be gathered into one swath.
  • 9670S Vario can also place two large swaths into one, allowing a total of up to 13.0 m crop to be gathered into one swath.
  • It is also possible to place two small night swaths for hay crops.

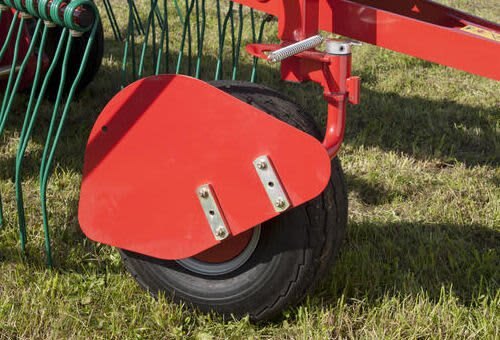

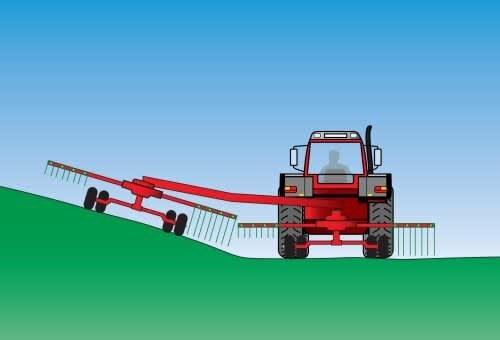

Kverneland 9471 S Vario 9471 S Evo flexible double Rakes TerraLink

  • Completely maintenance- and wear-free.
  • Quiet machine running due to automatic dampening
  • Wide track boogies with large wheels provide perfect ground contour following
  • Trailed axle configuration enhances quiet running and reduces tractor input power
  • Superb tracking in road transport

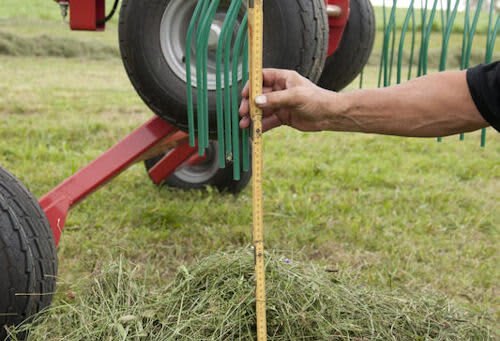

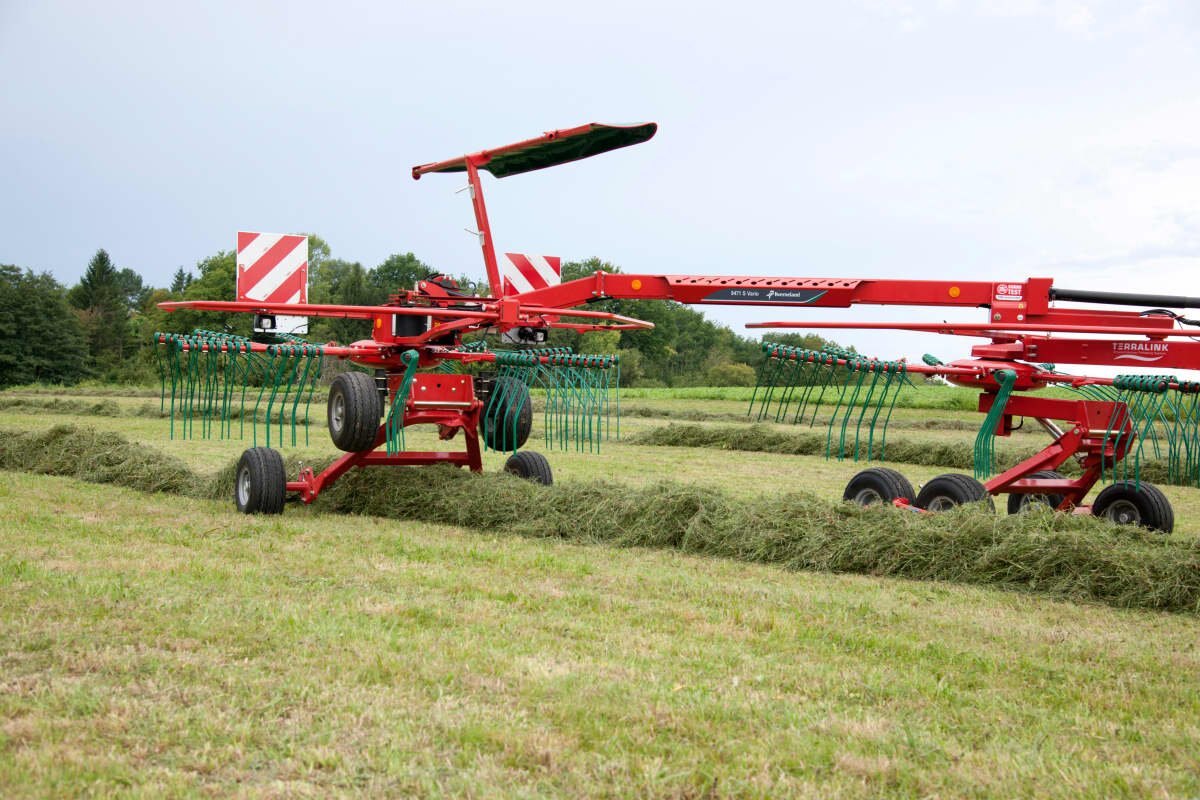

QuickLift

  • Kverneland 9471 S is equipped with the QuickLift system as standard.
  • This ensures a lifting height of 50cm to easily over cross existing swathes. Furthermore the axles are pulled
  • Rotors are lifted using only a single acting valve.

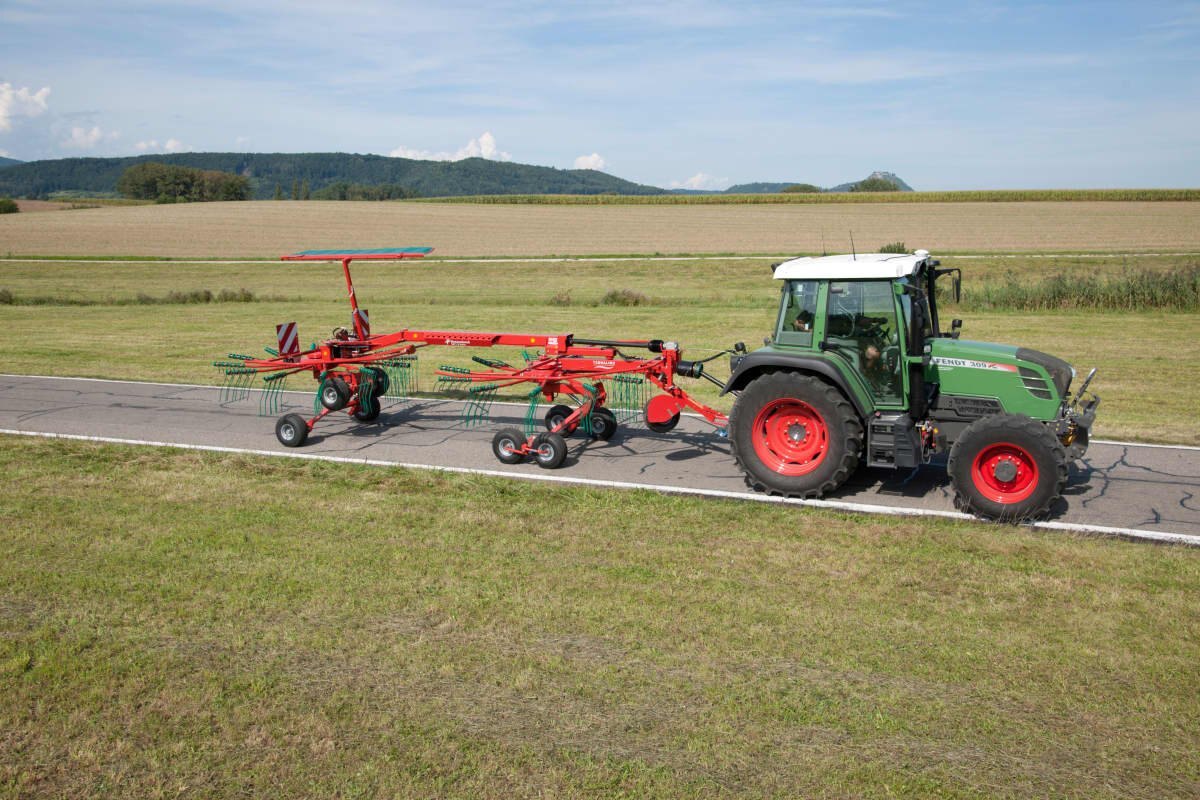

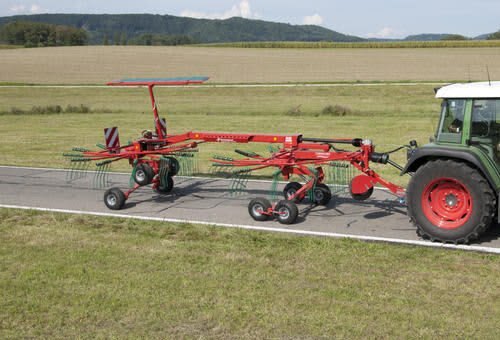

  • During transport the swath board automatically fold clear. Transport width is below 3m (2.45m with tine arms removed).
highlights
CompactLine Gearbox With Fully Oil Bath Design
Collect The Crop Into One Swath From Up To 12.5m
QuickLift – Drive Over The Swaths Without Damaging
Unique Feature SideSift - Avoid Damages On The Tractor
