ID # 23956597

Kverneland 8446-8452 Tedders

  • Kverneland 8446 8452 Tedders
  • Kverneland 8446 8452 Tedders
  • Kverneland 8446 8452 Tedders
  • Kverneland 8446 8452 Tedders
  • Kverneland 8446 8452 Tedders
  • Kverneland 8446 8452 Tedders
  • Kverneland 8446 8452 Tedders
  • Kverneland 8446 8452 Tedders
  • Kverneland 8446 8452 Tedders
  • Kverneland 8446 8452 Tedders
  • Kverneland 8446 8452 Tedders
  • Kverneland 8446 8452 Tedders
  • Kverneland 8446 8452 Tedders
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

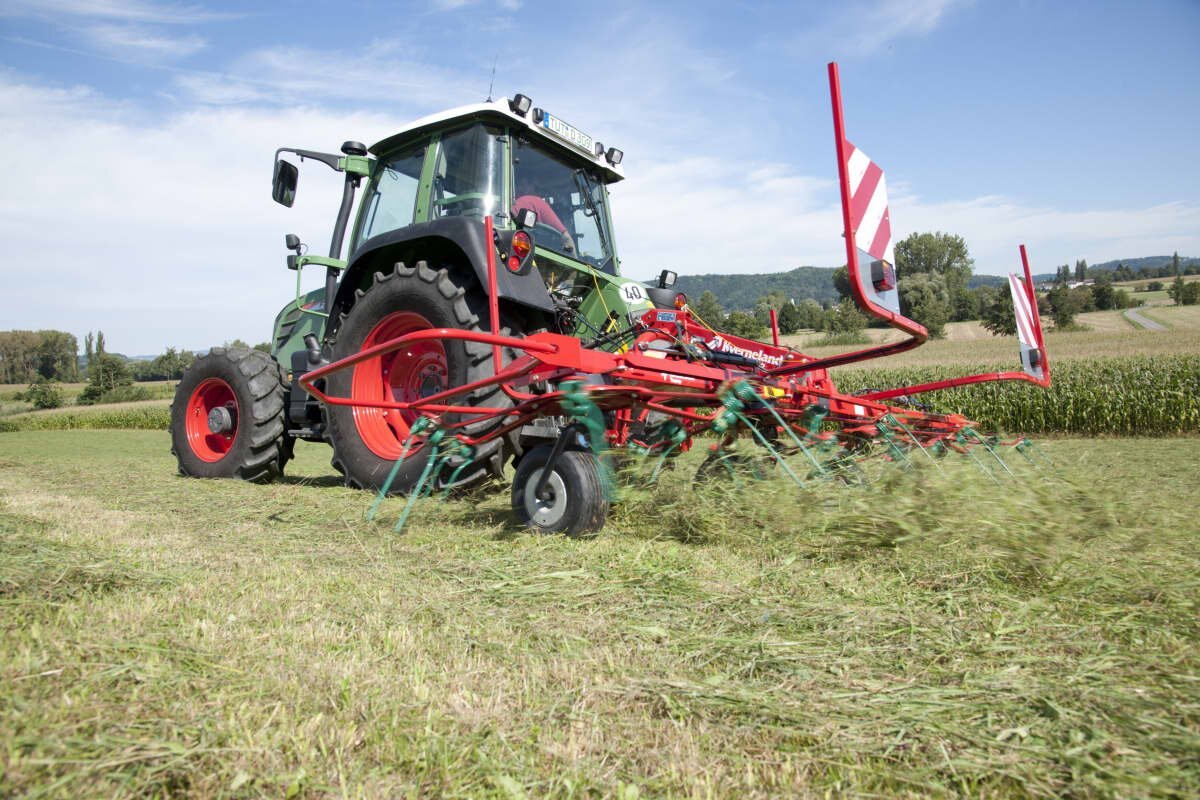

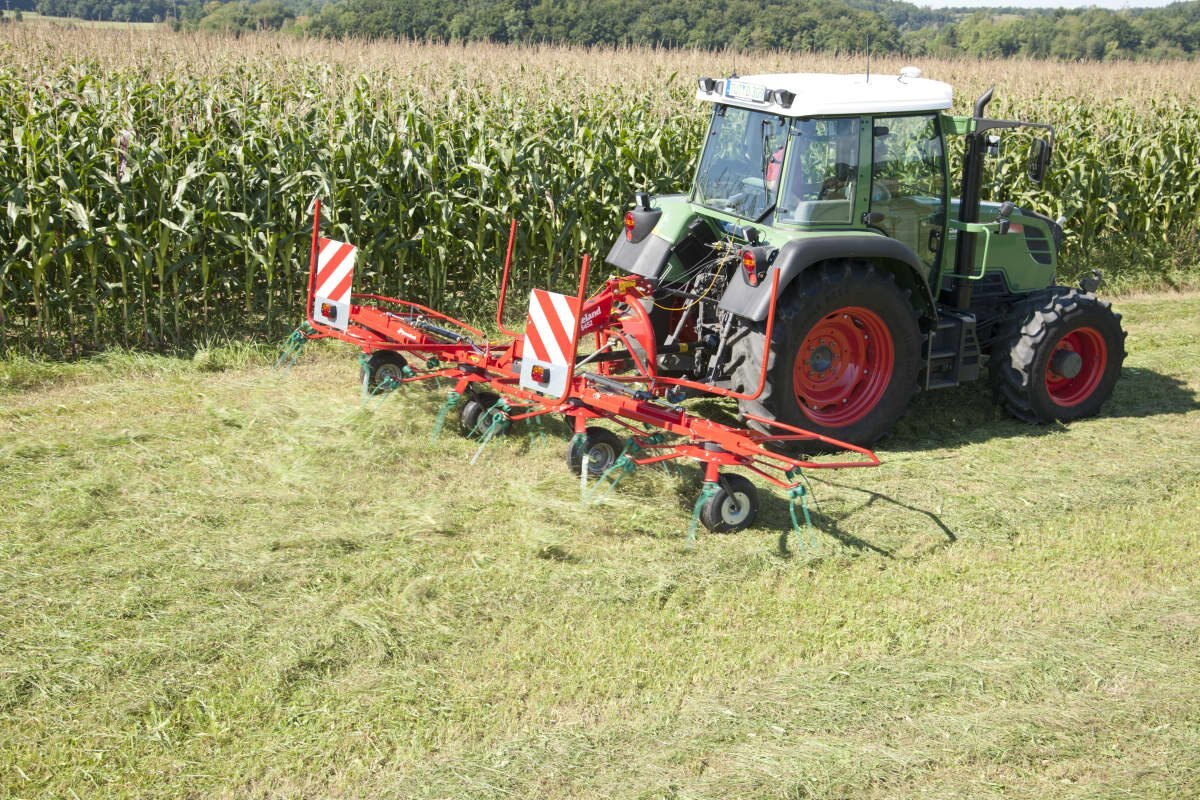

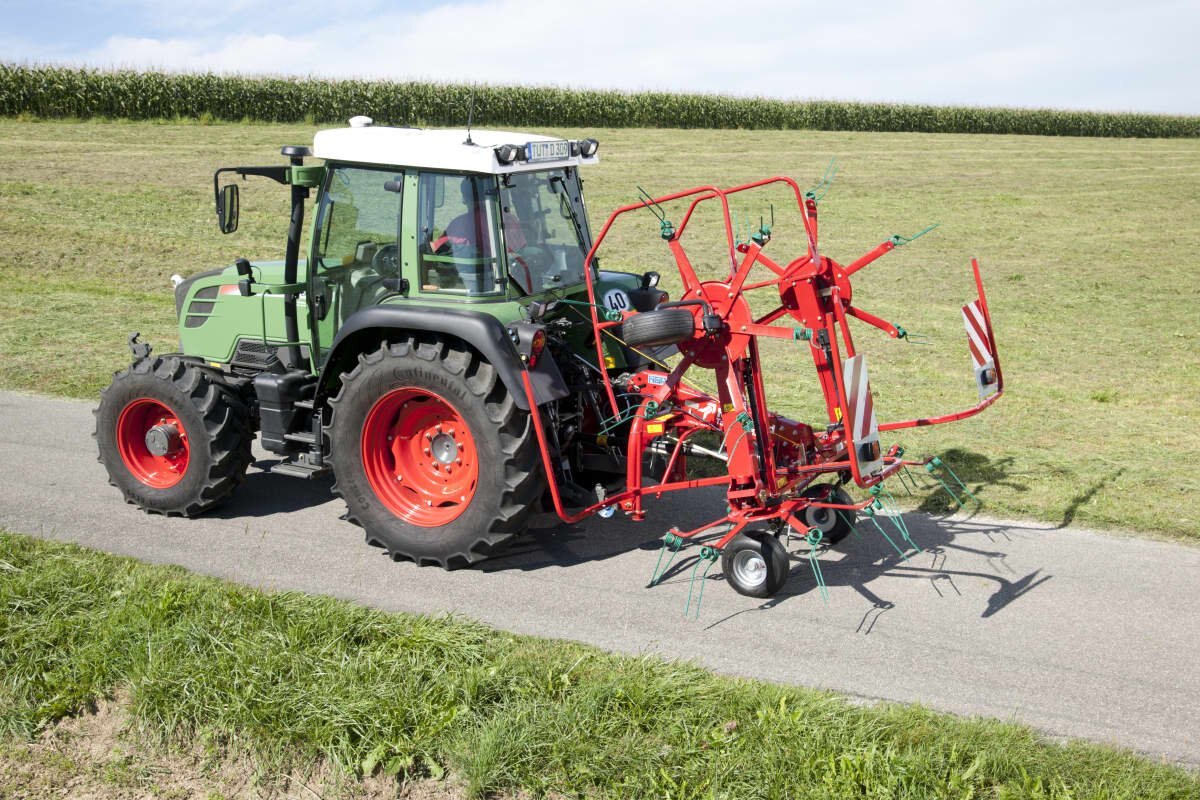

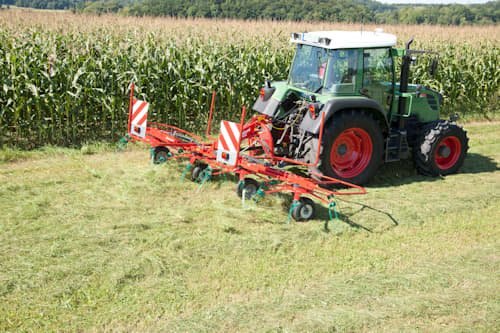

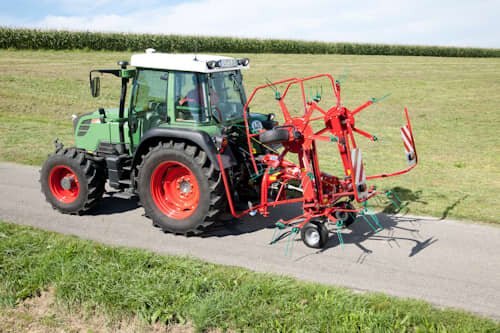

Compact tedders with low maintenance and 4.60-5.20m working width

Compact and Robust Design

Kverneland offers 2 versions of compact tedders with low maintenance requirements and a working-width ranging from 4.60 to 5.20m. Maintenance-friendly features include 500 mm rotor plates and an easy-to-maintain gearbox. Both tedders can be adjusted centrally to move the tedder to the desired position for border tedding.

The Advantages

  • Low maintenance CompactLine gearbox with only one grease nipple.
  • Compact tedders with low weight and power requirements.
  • Rotor plate dimension of 500m
  • Double bearings from pinion to crown wheel guarantee maximum longevity of the driveline.

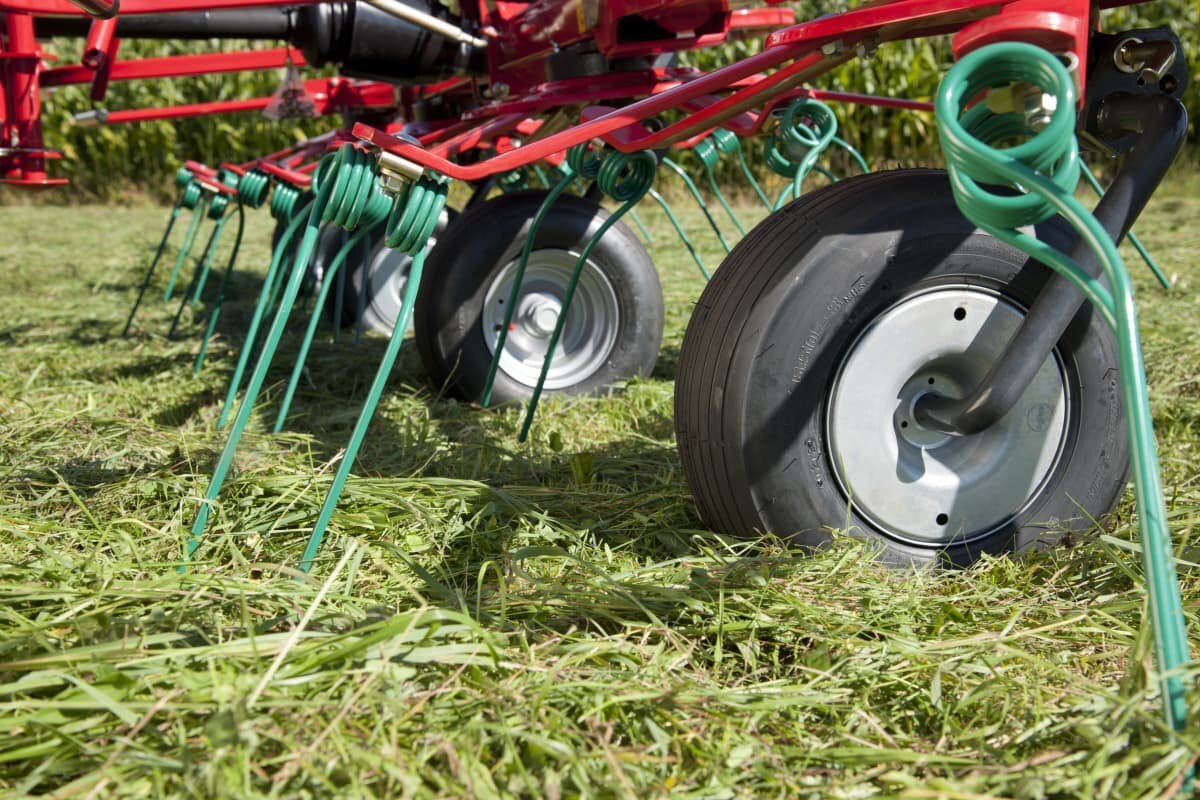

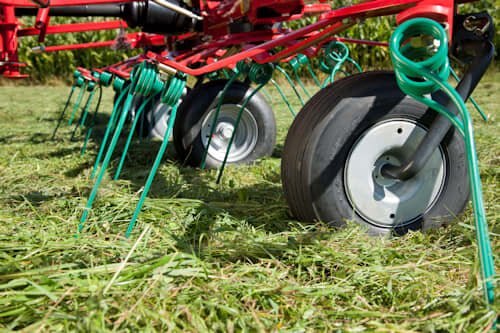

  • Super-C tines with large spring coil diameter for added service life.
  • Easy setting of spreading angle through simple three-way adjustment of wheel height.
Specifications
Model
8446-8452 Tedders
Category Name
Agriculture
Year
2023
Sale Type
New
Manufacturer
Kverneland
technical specifications

Models

Working Width

Rotors/Tines

Weight

8446

4.60m

4/5

495kg

8452

5.20m

4/6

520kg
features

Large Dimensions

  • The box type frame of the Kverneland 8000 series is an extremely solid construction. It is composed of two U-sections fitted into each other and securely welded together. The frame is totally enclosed at the top for maximum strength.

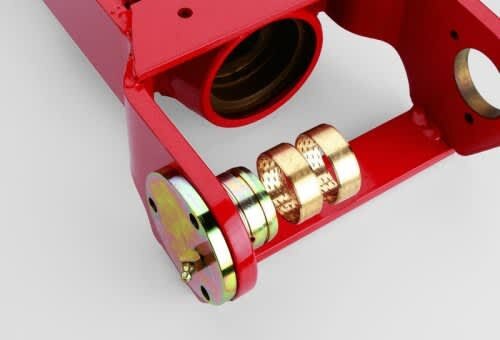

  • All tedders have greasable pivoting points with an extra large diameter, making it a very strong and reliable construction.
  • Made from flat steel, the tine arms form a very compact unit with the rotor plate. This makes the tedders by far more resistant to any type of load.

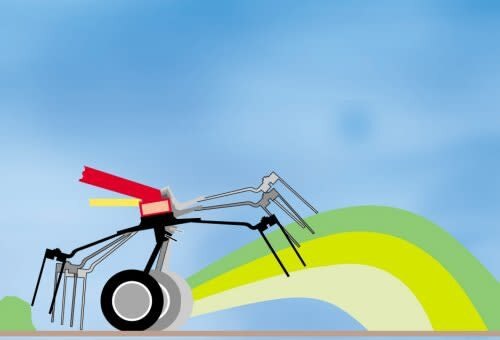

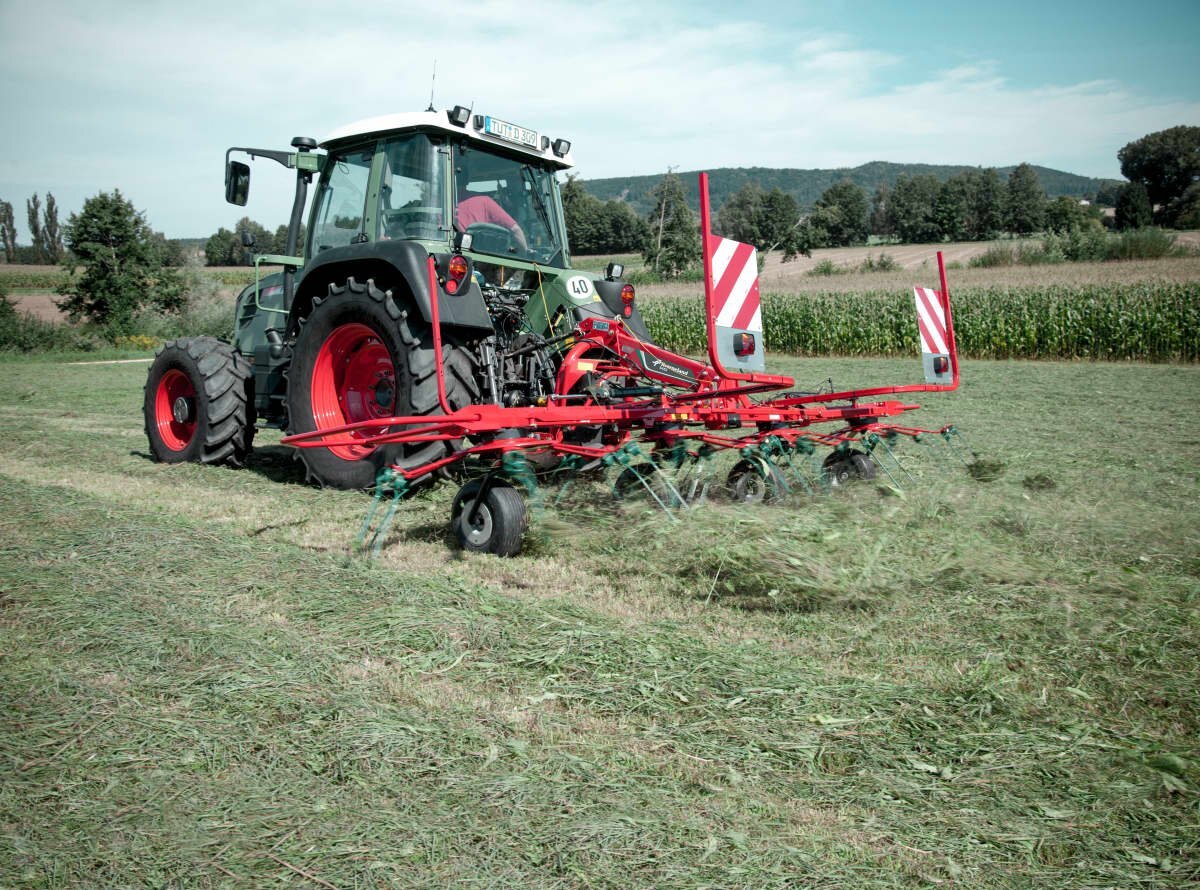

Spreading Angle

  • High-quality forage allows the optimum spreading angle to be achieved according to crop conditions, helping you to produce high quality forage.
  • Setting the rotors to the right spreading angle will considerably improve the spreading action, and speed up the drying process.
  • The mower swaths are neatly lifted by the tines and evenly spread over the full width.
  • Tines glide in a more uniform frequency over the stubble, so the risk of dirt being lifted by the tines is minimized.
highlights
Rotor Plate Dimension Of 500mm
Easy Setting Of Spreading Angle

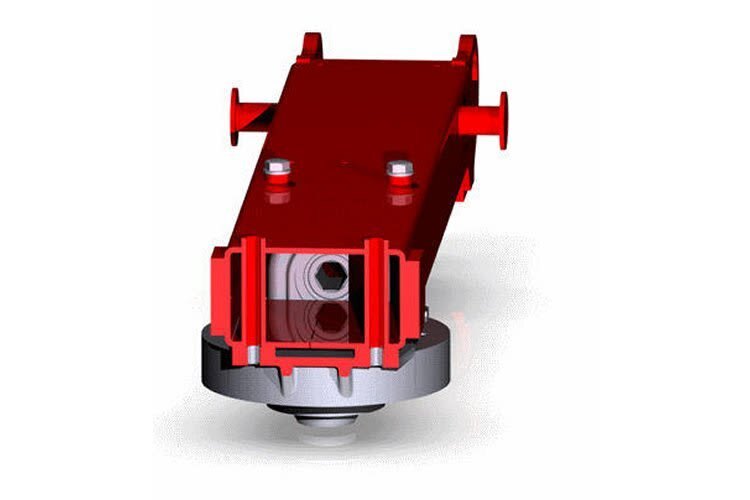

Low Maintenance CompactLine Gearbox
Double Bearings From Pinion To Crown Wheel
Compact Tedder - Low Weight And Power Requirement
