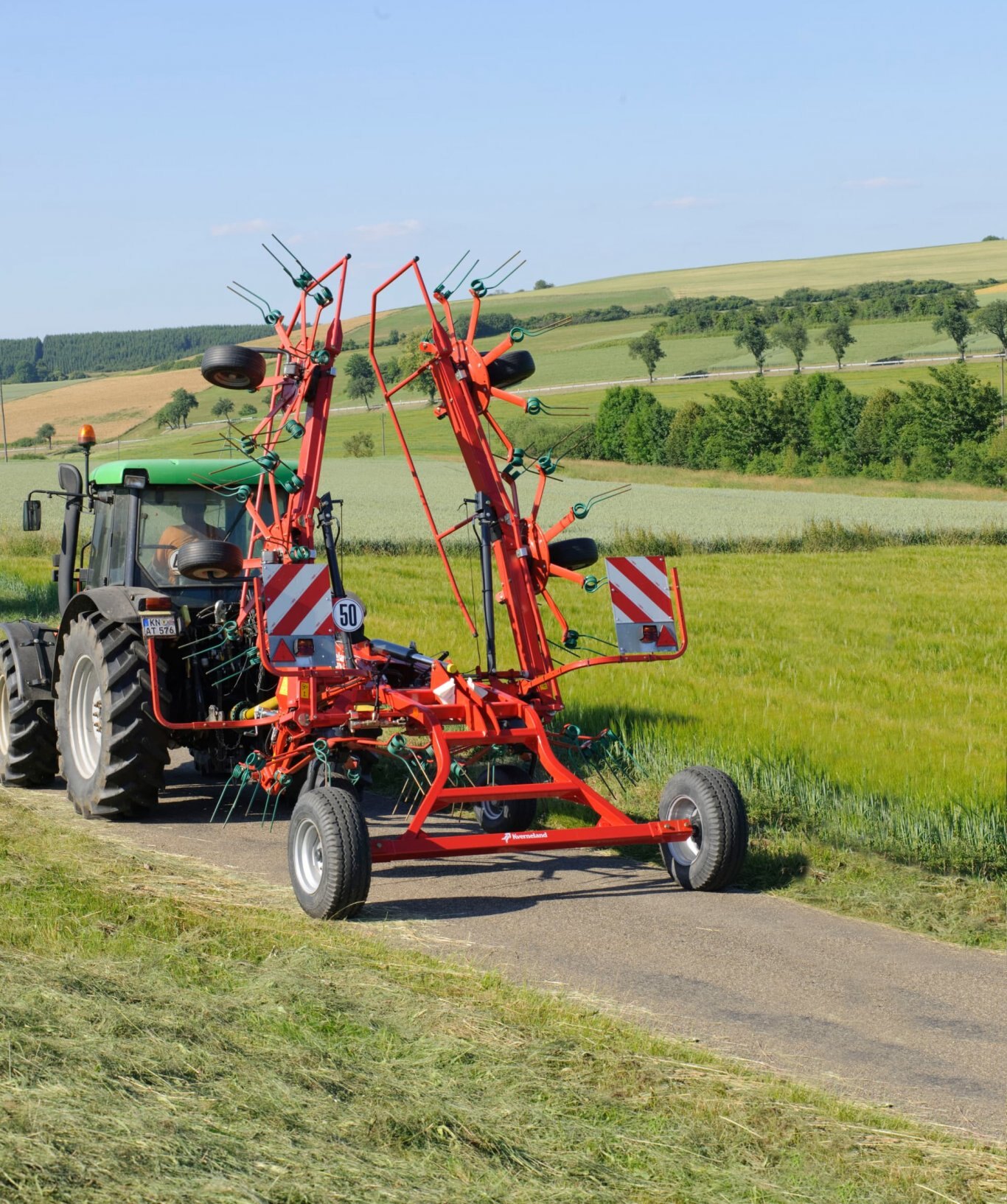

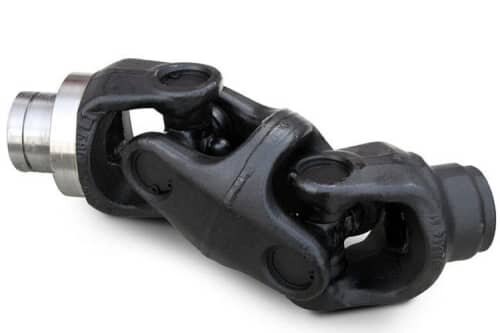

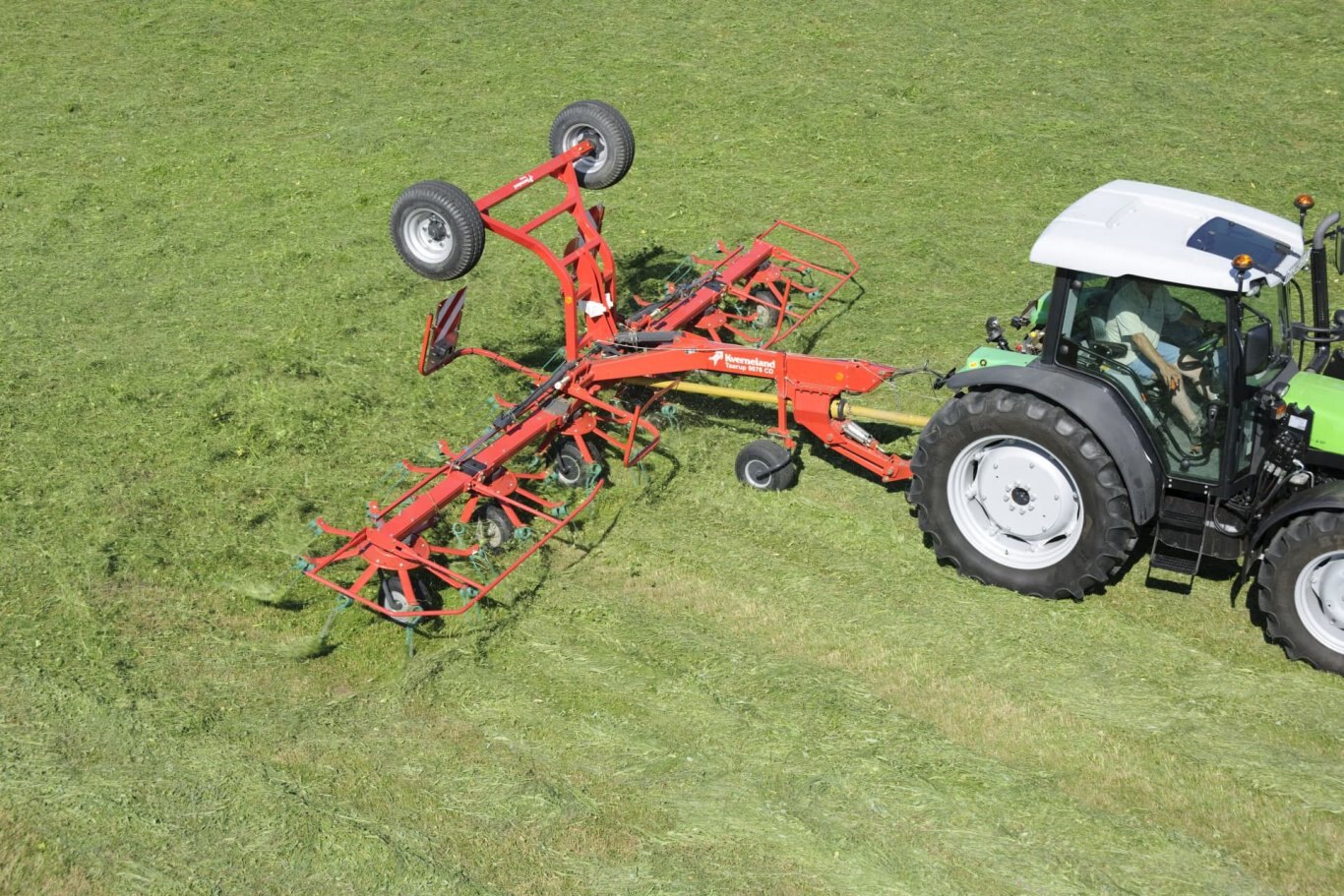

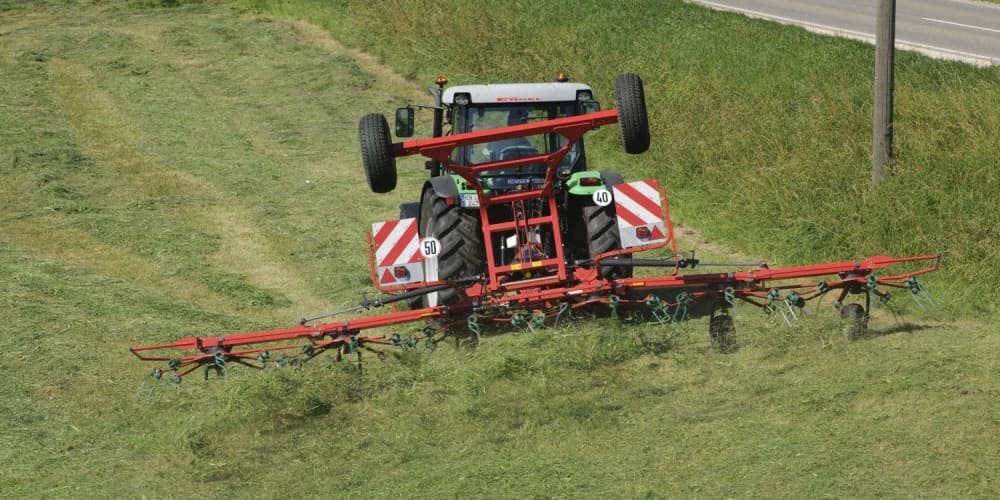

The Kverneland Taarup 8076 C/CD and 8090 C/CD are designed for low horsepower/low liftpower tractors. The standard specification includes a hydraulic border tedding system for your convenience. In road transport, tedder weight rests on the running gear, rather than on the tractor’s rear axle. The optimized oil-immersed driveline makes for a low input requirement, so you can easily use a small tractor and still work a wide working width - the ideal solution that saves fuel and running costs.
The Advantages:
Maintenance-free ProLine gearbox.
Transport running gear for use with low horsepower tractors.
Central adjustment for border tedding – all set from the tractor cab.
Box type frame composed of two U-sections for extremely solid construction.
Strong design of the central unit allows high transport speed.
Largely dimensioned oscillation dampers for excellent running characteristics.
10mm strong tines with 80mm coil diameter.
XXL rotor plate with a diameter of no less than 500mm.
Fast adjustment of spreading angle without the use of tools.
Technical Specifications
Working Width
Rotors/Tines
Weight
8076 C
7.60m
6/7
1350kg
8090 C
9.00m
8/6
1440kg
Highlights

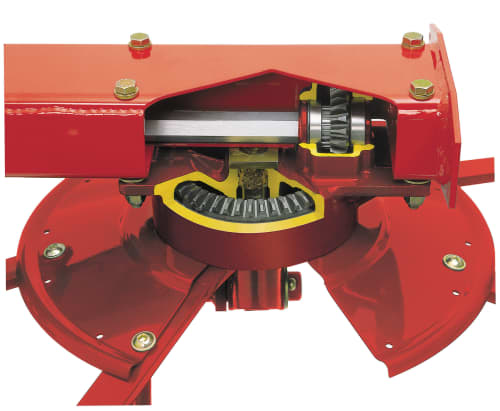

ProLine Gearbox
The ProLine gearbox is a strong and reliable construction, and is not fitted to the main frame.
Shock-protected: The enclosed system is not affected by chassis or tine arm vibrations.
Constant lubrication: Enclosed and oil-immersed, the gearbox components enjoy extended longevity over systems that require manual lubrication.
Reduced maintenance: There is no need for daily lubrication.
Environmental protection: No lubrication means no leakage - hence higher-quality forage.
No corrosion: No ingress of dust and water, not even during pressure washing.

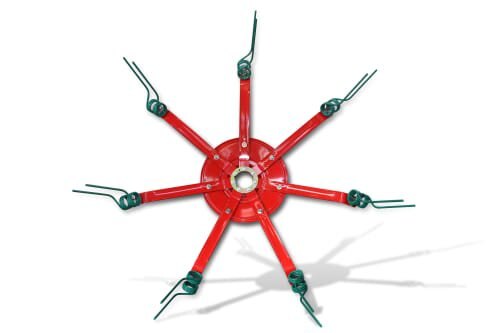

Super-C Tines
The Super-C tine can be locked in three positions to customize the pickup angle to different conditions. For heavy silages the angle can be set more aggressive and for fragile crop a gentler angle can be chosen.
Made from flat steel, the tine arms form a very compact unit with the rotor plate and utilize the force of the rotor plate for higher durability of the time arm. This makes a Kverneland tine arm by far more resistant to any type of load.
Super-C tine with symmetric spring tines ensures efficient pick-up and turning of the crop. Tines with same lengths has the added advantage that load is spread evenly on both tines, providing longer life time.
Made from 10mm shot-peened spring steel and a coil diameter of 80mm, Super-C tines add up to the most durable and flexible tine in the market.

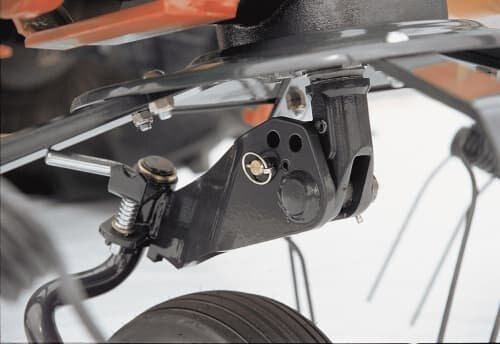

Spreading Angle
High-quality forage allows the optimum spreading angle to be achieved according to crop conditions, helping you to produce high quality forage.
Setting the rotors to the right spreading angle will considerably improve the spreading action, and speed up the drying process.

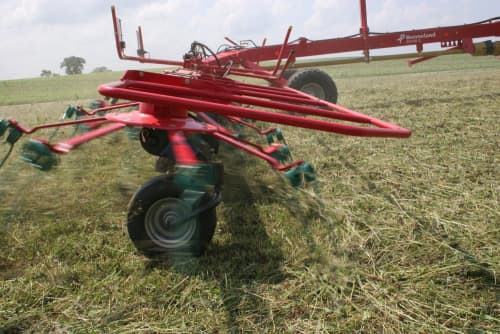

The mower swaths are neatly lifted by the tines and evenly spread over the full width.
Tines glide in a more uniform frequency over the stubble, so the risk of dirt being lifted by the tines is minimized.
Large Dimensions
The box type frame of the Kverneland Taarup 8000 series is an extremely solid construction. It is composed of two U-sections fitted into each other and securely welded together. The frame is totally enclosed at the top for maximum strength.

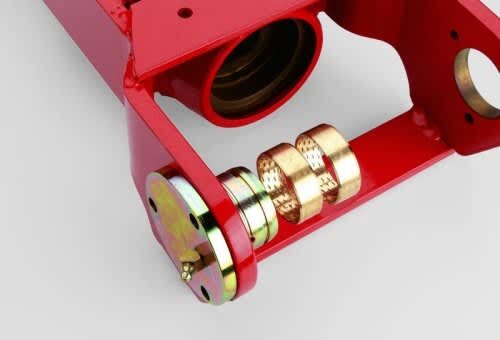

All tedders have greasable pivoting points with an extra large diameter, making it a very strong and reliable construction.
Made from flat steel, the tine arms form a very compact unit with the rotor plate. This makes the tedders by far more resistant to any type of load.
