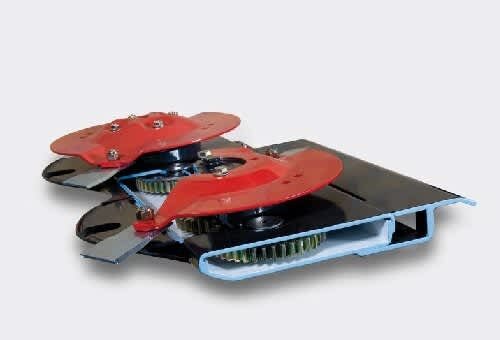

Cutterbar with Round Discs

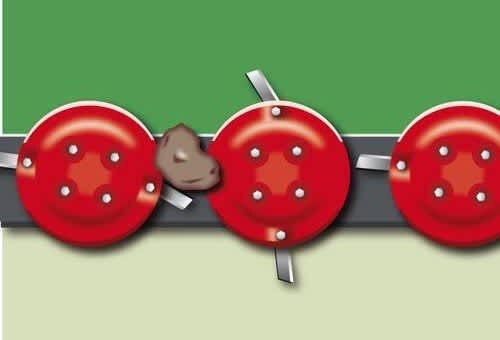

• Kverneland uses round discs. Round discs are less susceptible to stone impact, and reduce shock loads in the transmission.
• Stones are expelled immediately, before they have any chance of becoming jammed. The benefits are lower repair and maintenance costs - at the same time as a clean and aggressive cut.
• The cutterbar has a high oil capacity, ensuring a very low working temperature. This ensures an efficient oil cooling and lubrication of the entire cutterbar.

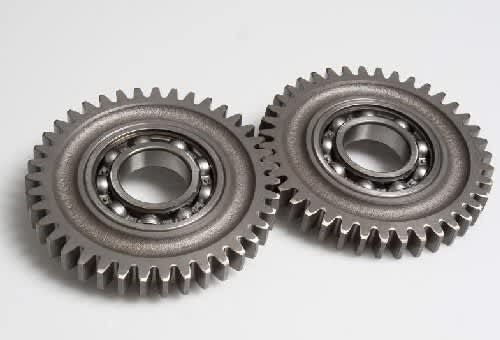

• The long curved gear wheels running in oil provides a very quiet and reliable power transmission.
• The fully welded cutterbar gives a very stiff and strong design for high durability.

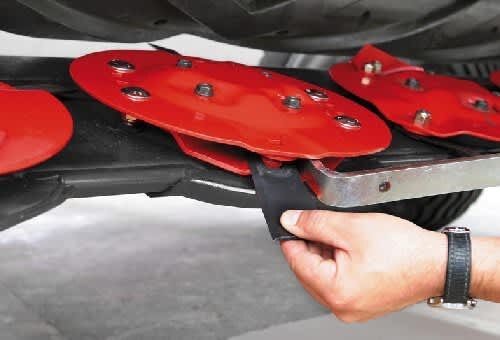

• With the ProFit quick knife change system, maintenance of the cutting ability is easy. The knives are changed by one simple operation using the special lever.

  750/1000 rpm Gearbox

• Standard PTO speed is 1000 rpm. However by simply switching driveline pulleys, 750 rpm for reduced fuel consumption can be achieved.
• This makes it possible to maintain the correct PTO speed, but using reduced engine revs, creating an opportunity for lower fuel consumption – an innovative solution to the problem of front PTO systems not offering an Economy speed.

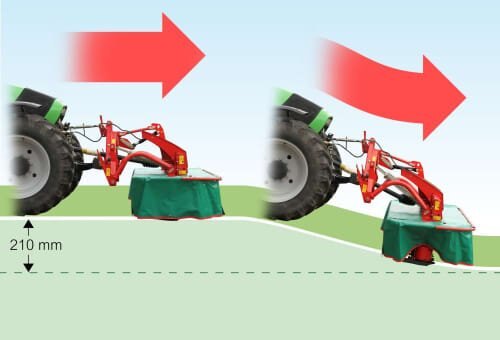

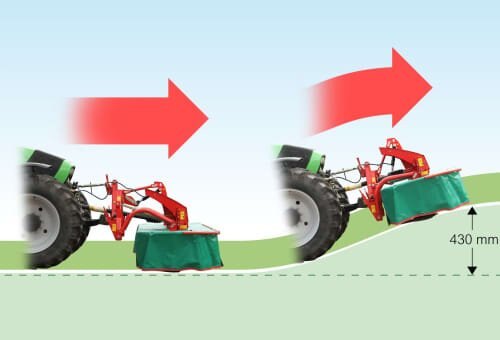

  Ground Adaptation

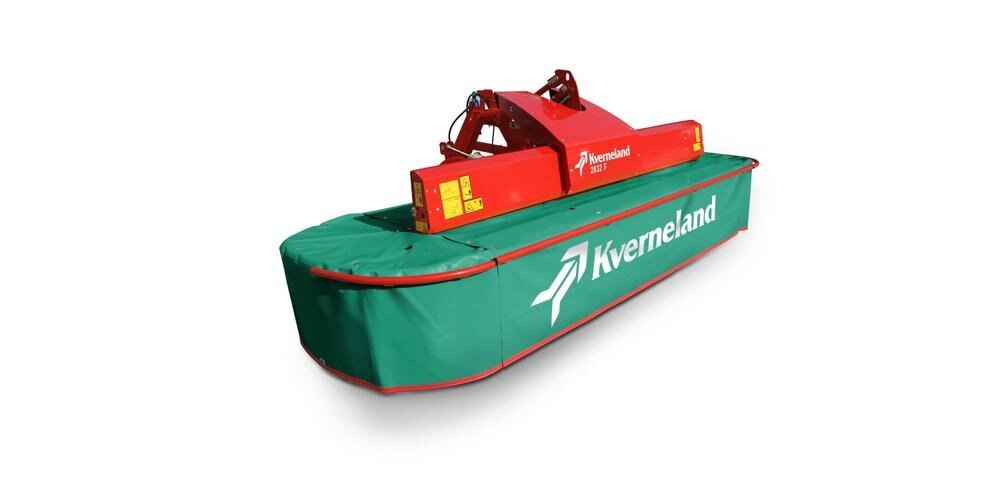

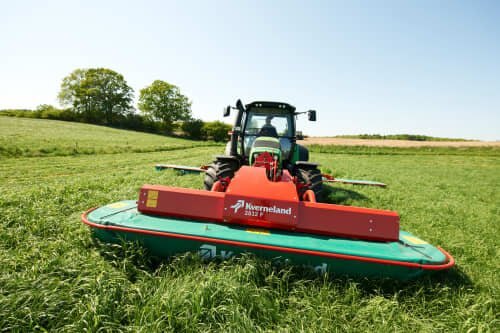

• The 2832 FS, 2828 F and 2832 F are characterized by excellent cutting performance and ground following ability in all terrain. The design does not require a flexible front linkage, as the movement is build into the machine.
• To ensure best possible pattern of movement, the mowing unit moves independently from the front linkage.
• The mower design allows a transverse adaptation of up to 17°.
