Are You Ready for A New iXperience?

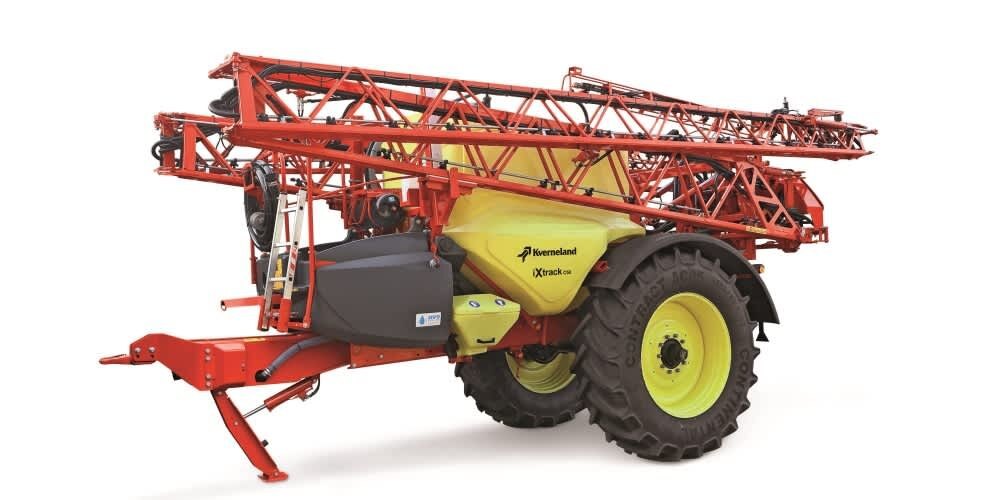

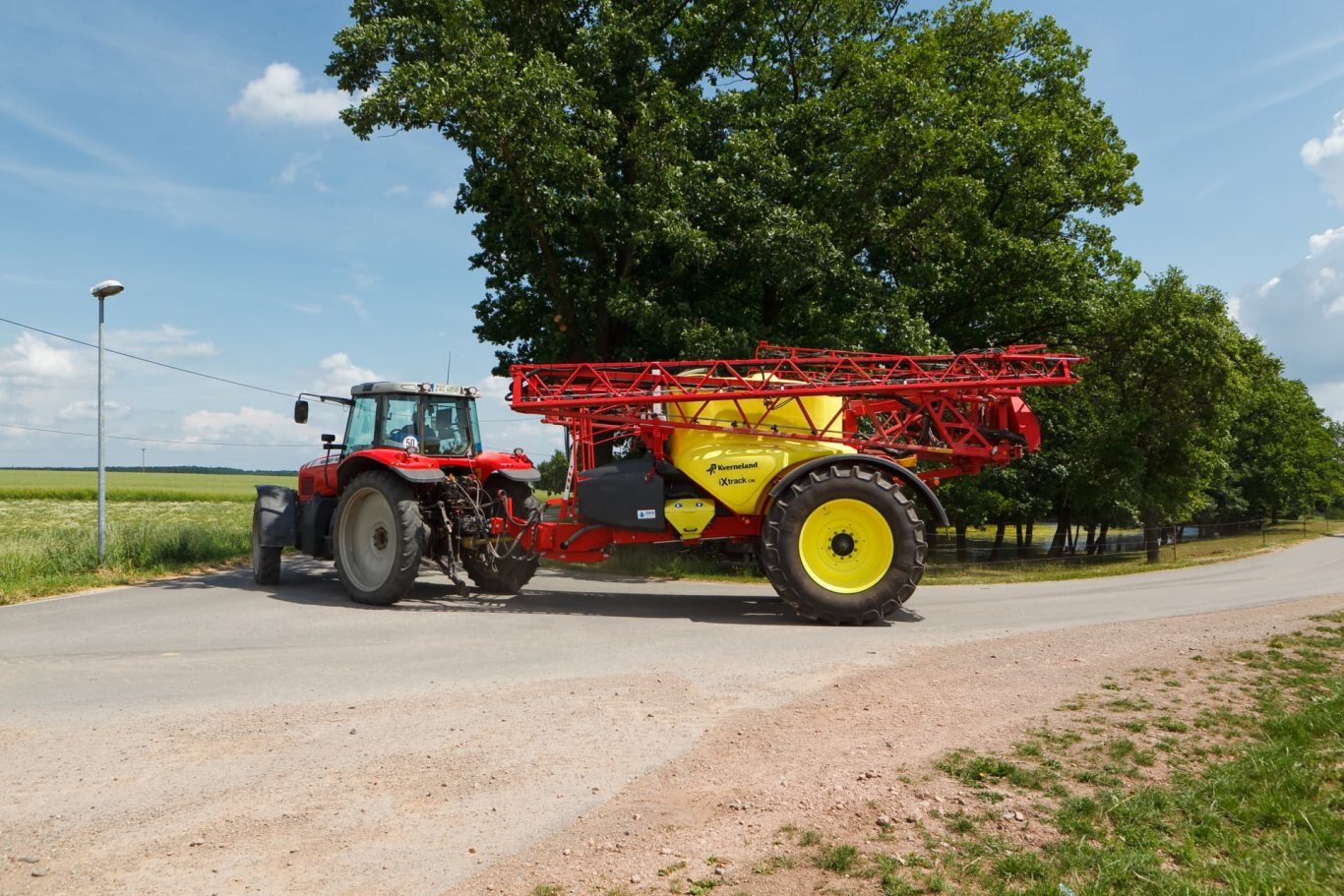

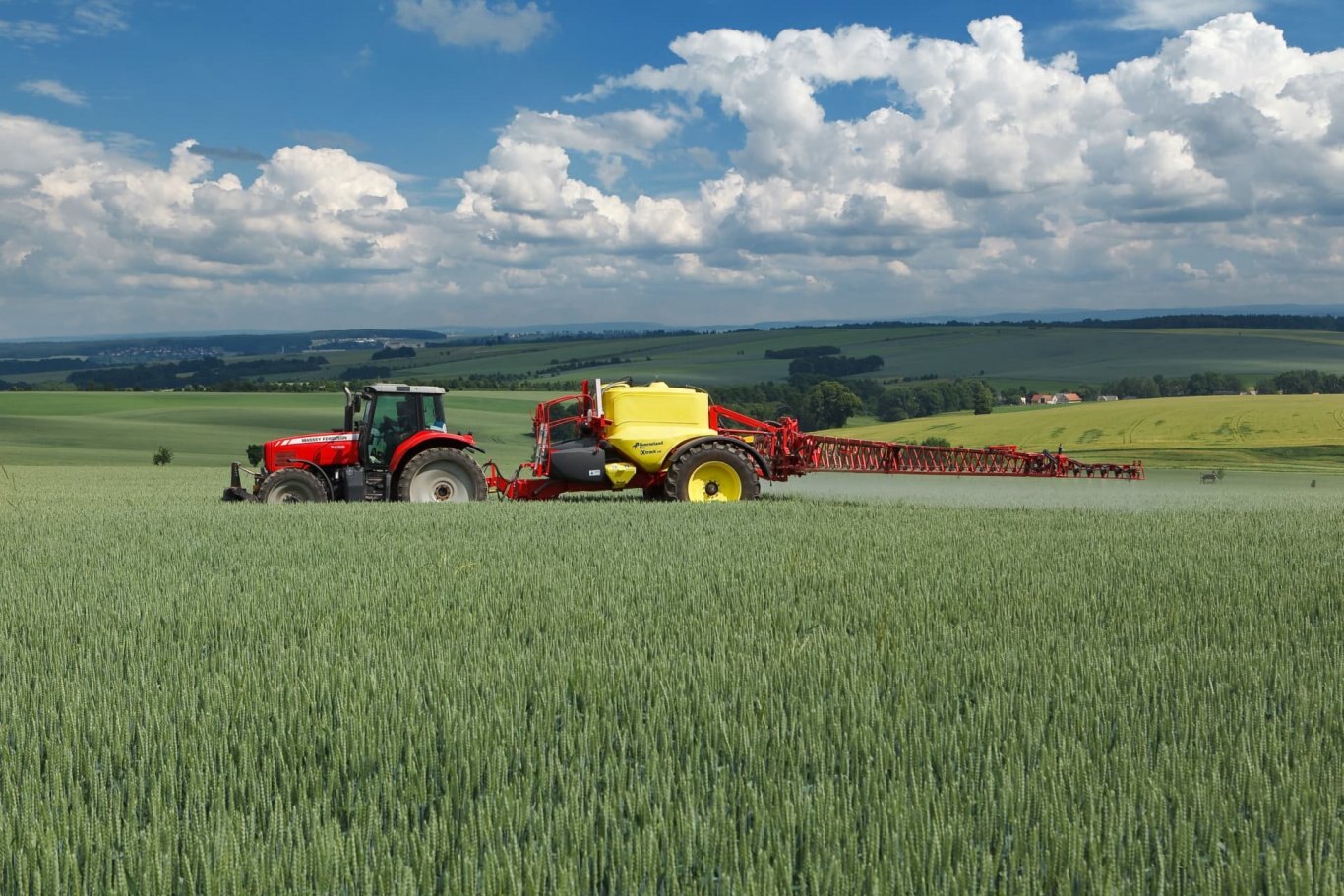

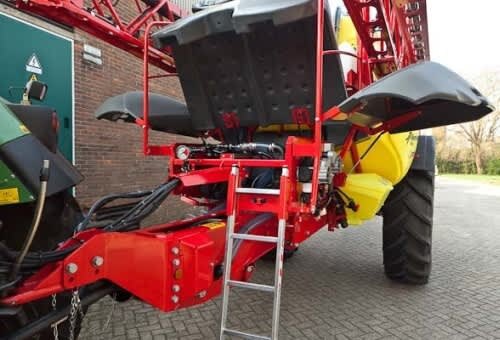

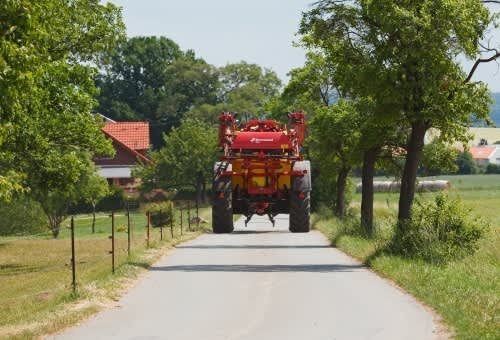

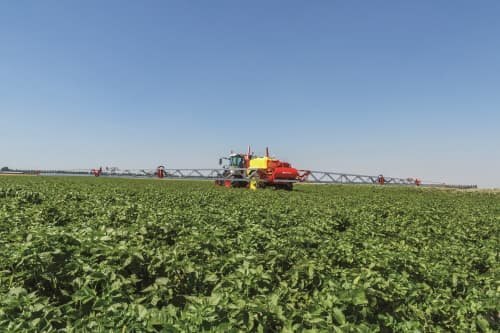

The iXtrack sprayer range is developed with big focus on operator comfort and environmental protection. iXtrack C offers tank volumes of 3000, 4000 and 5000 litres in combination with HSS 18-36 metre steel booms (18-30m 2-part folded and 27-36m 3-part folded) or HSA 24-33 metre aluminium booms. The third available boom range is the HBWP boom with 39-45 metre boom widths. It has a low centre of gravity and compact dimensions for higher working speeds and easy transportation on the road. The iXtrack C is also available with ISOBUS intelligence for features like the IsoMatch Tellus terminal, IsoMatch GEOCONTROL, Ergodrive head land management and Boom Guide spray height control system. iXclean Comfort or iXclean Pro will give you even more operator comfort as functions like filling, spraying, rinsing and so on can be controlled out of the tractor cabin!

The Advantages:

• HSS or HBWP side folding or HSA high tech aluminium spray booms

• Wheel axle options to fulfil your requirements

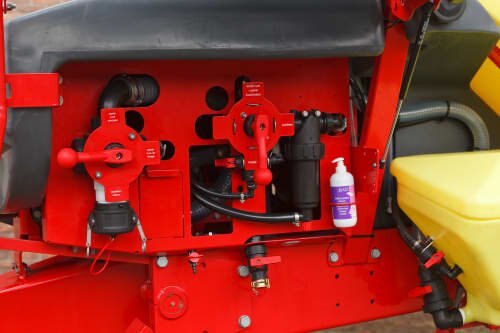

• Easy operation, including Easy Set control panel

• Non ISOBUS or ISOBUS compatible regulation systems

• iXclean: every litre counts!

• Possible in combination with IsoMatch GEOCONTRO

  Spray Booms

HSS 18-20-21-24-27-28-30-32-33-34-36-38-39-40 m Compact Folding Steel Boom

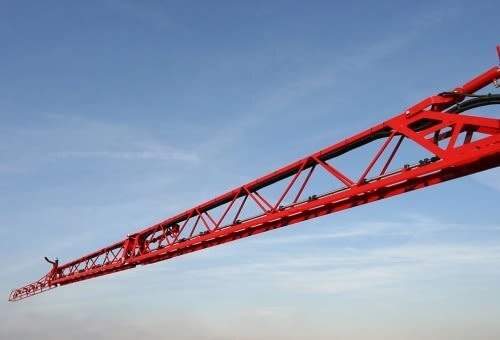

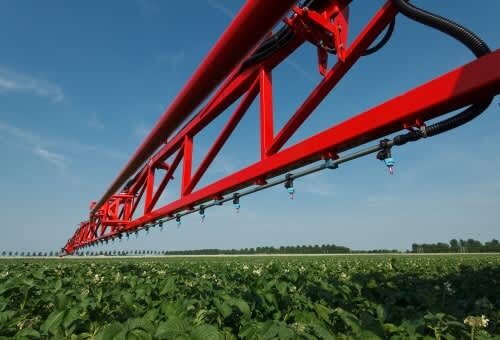

// The HSS boom range is designed for professional use. The special HSS profile combines a minimum of weight with maximum strength and stability. Computer assisted design, use of laboratory and field tests, special hardened Domex steel contribute to the legendary reputation of this long lasting heavy duty high quality booms. The HSS boom consists out of a range of 2-part folding (18-30m) and 3-part folding (27-40m) spray booms.

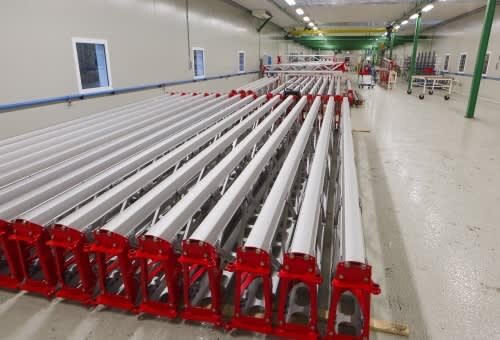

HSA 24-27-30-32-33 m High Tech Side Folding Aluminium Boom

// Efficient protection of the nozzle holders within the bottom profile of the boom. This profile is designed for easy cleaning. With no sharp angles, no liquid and residues can be trapped. The anodised surface protects against corrosion and scratches. Aluminium bonding instead of welding provides a weight saving and remarkable strength. Patented aerospace technology has consistently proven itself.

HBWP 45 m Compact Side Folding Steel Boom (fits only on iXtrack C)

// Perfect boom guiding in hilly or flatland position through a professional double trapezium balancing system. In flatland position the boom is perfectly levelled out and compensates a wrong position of the sprayer compared to the field shape. In hilly conditions the HBWP boom is following automatically the inclination of the sprayer.

  Wheel Axles

Select Your Wheel Axle:

• Adjustable suspended axle, sliding 1.75 - 2.25m, TwinFlex suspension
• Suspended axle: track adjustment by rims 1.8 - 2.25m, TwinFlex suspension

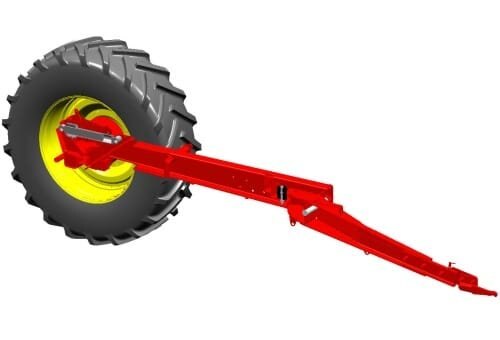

• Suspended steering axle: track adjustment by rims 1.8 - 2.25m, TwinFlex suspension, Autrotrac steering
• All wheel axles can receive hydraulic or pneumatic brakes as an option.
• Autotrac steering axle system

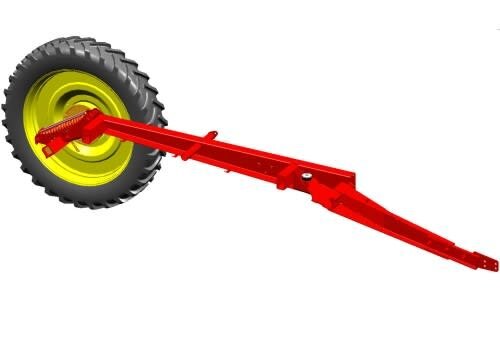

• The Autotrac computer assisted steering axle provides you track following for minimal crop damage. It ensures a smooth reaction of the boom when turning and has an automatic or manual mode to bring the sprayer back into track when crabbing.

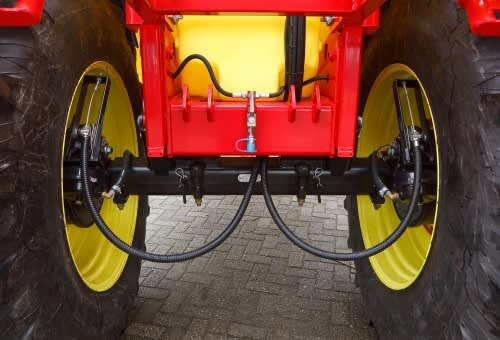

• TwinFlex axle suspension
• The iXtrack C is standard equipped with a hydraulic suspension system to ensure smooth suspension, but only small height variations aiding booms stability and constant nozzle height. It is a dynamic system: stiff suspension with full tank and smooth suspension with an empty tank.

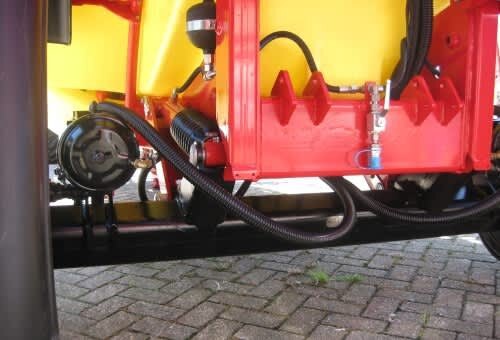

• HydroFlex drawbar suspension
• The drawbar suspension system with rubber shock absorbers is protecting the machine during high speed spraying and transport.

  Control Systems - NON ISOBUS

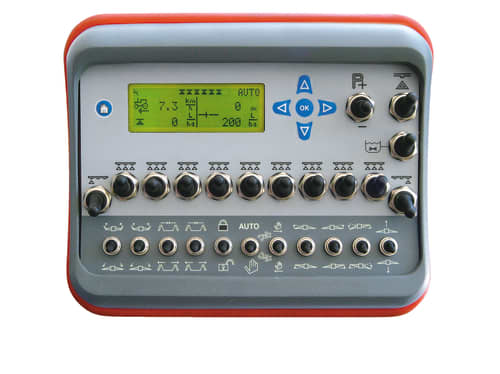

FlowMate Control FMC: Basic Spray Computer

• Extremely simple to operate
• Very compact by integration of all spraying and hydraulic functions
• Integrated nozzle advice
• Field memory for 25 different fields

  iXclean : Every Litre Counts

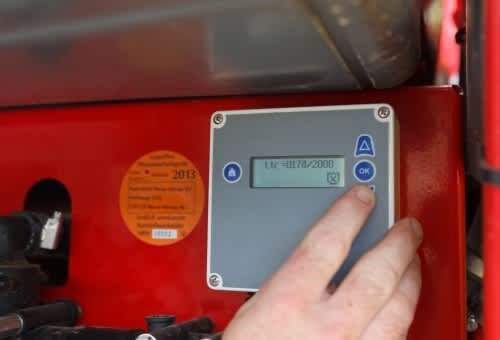

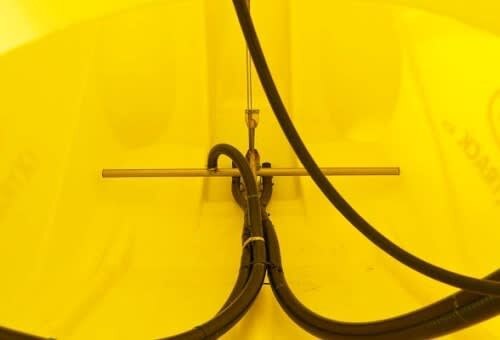

• Electrical Level Indicator
  An electrical level indicator provides actual tank volume to a spraying computer as well as via the external display on the Easy Set control panel.
• iXclean Comfort

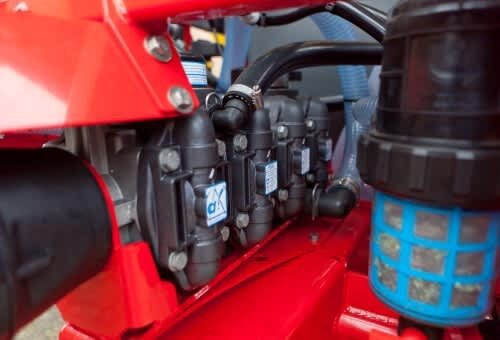

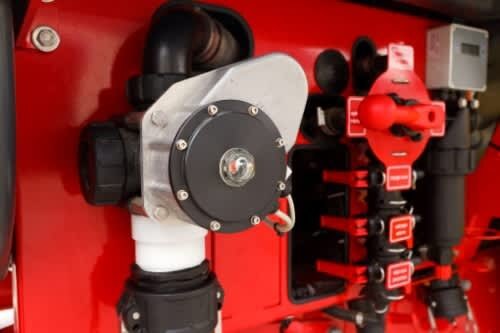

  iXclean Comfort is a semi automatic valve control system. The combination of an electrical level indicator and suction valve provides operator comfort and accuracy: automatic fill stop when the programmed level is reached and remote control of all ENFO rinsing and priming functions out of your tractor cabin! Simply prime the spray lines before you start and rinse them afterwards or even during an unexpected weather break, without stepping out of your cabin!
• iXclean Pro

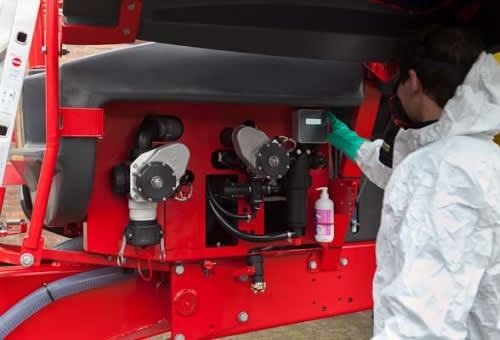

  Advanced solutions come from iXclean Pro, with fully automatic, electric valve management on ISOBUS sprayers. It means all functions can be controlled from the cab. Switching between filling, agitation, spraying, diluting, priming, rinsing and tank cleaning is extremely easy: just push the button! In addition to auto filling, iXclean Pro offers also a fully automatic multi-step rinsing and cleaning program for the entire sprayer. Pushing one button a comprehensive cleaning process including all lines too starts, that takes just a few minutes and uses minimal amounts of clean water. It is so thorough, that residue levels after automated cleaning, are below 1%. iXclean Pro for filling or cleaning: making every litre count!
• ENvironmental FOcus (ENFO)
  ENFO priming and rinsing is standard on all our spray computers. This smart technology optimizes filling and cleaning of the spray lines. Accurate application, no waste of chemicals and saving water are the benefits for you and your environment.

  Sprayer Features iXtrack

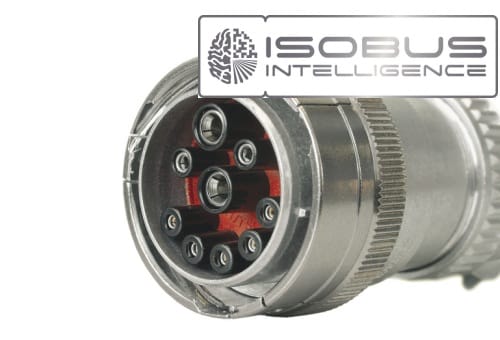

• ISOBUS intelligence (FMA regulater only)
  You are ensured of the ISOBUS compatibiliy from tractor to the sprayer and sprayer to tractor, meaning that all data collection from your machine(s) is centralised and can be easily transferred to your Terminal (e.g. IsoMatch Tellus) in your tractor cabin.
• iXflow Spray Line Recirculation
  iXflow is our sophisticated spray line recirculation system with pneumatic nozzle control. In combination with the iXtrack sprayer this combination creates a robus and fast-reacting spraying system, better suited to higher spraying speeds and automatic functions with GPS. iXflow is an air operated system. This means immediate nozzle reaction for start/stop spraying with GPS section control. It also has a continuous flow, so no risk of sedimentation or setting in the spray lines.

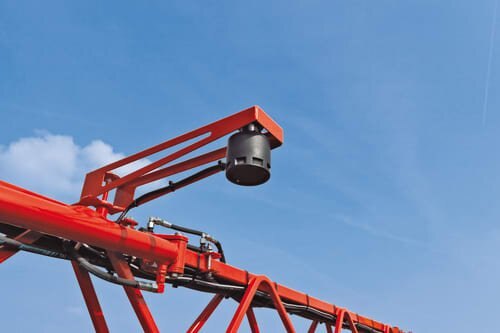

• Boom Guide Basic
  Two ultrasonics sensors on the boom can control the spray height via the central slope correction and boom lift functions. This cost effective system is suited to gentle slopes and uneven crop conditions.
• Boom Guide Pro
  This advanced system used three ultrasonic sensors to control left- and right-hand boom sections independently for the ultimate guidance in the most challenging field conditions. It can deliver positive and negative lateral movement on each side of the boom to follow the contours in every condition!
• ErgoDrive: Headland Management System ErgoDrive headland management system assists you on the headland turns. Activated by simply switching spraying ON or OFF. The ErgoDrive controls all the necessary actions, while you can focus on safe driving.
• Starguide III: Automatic GPS section control and guidance by D-GPS
  Those who have used it will never go back. Starguide III will change your spraying days forever: spray around the headland and the Starguide III will control the spray sections automatically as you can cover the remainder of the field.

Please note that the features above are only possible in combination with iXtrack B and C (and not with iXtrack A), except the Starguide III.
