The Power of Technology

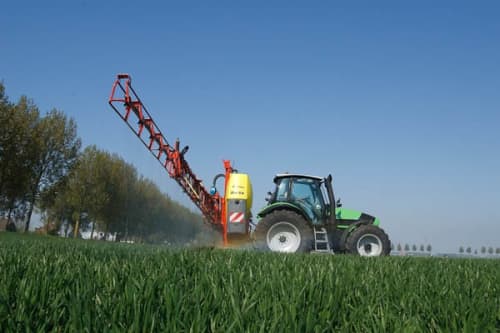

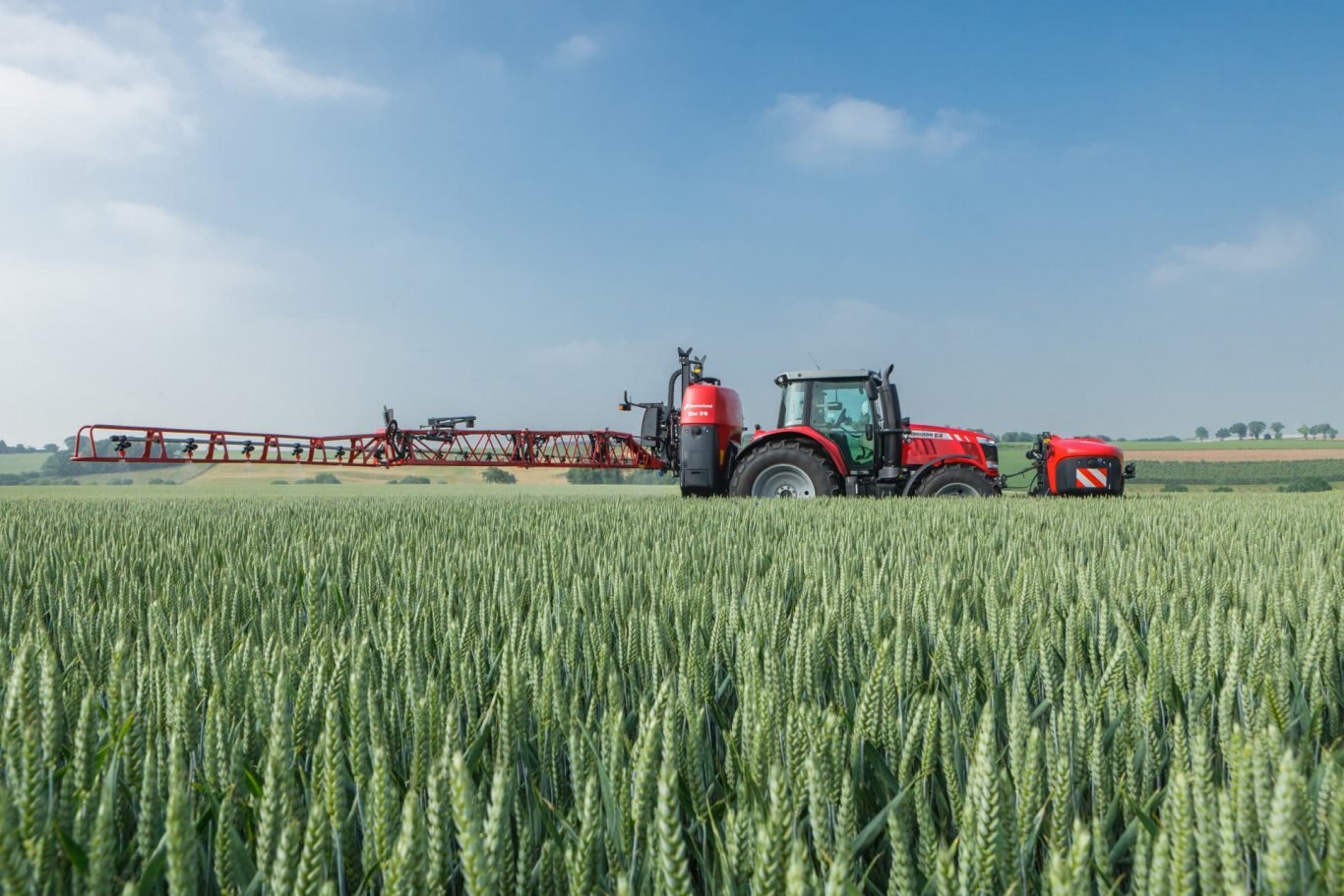

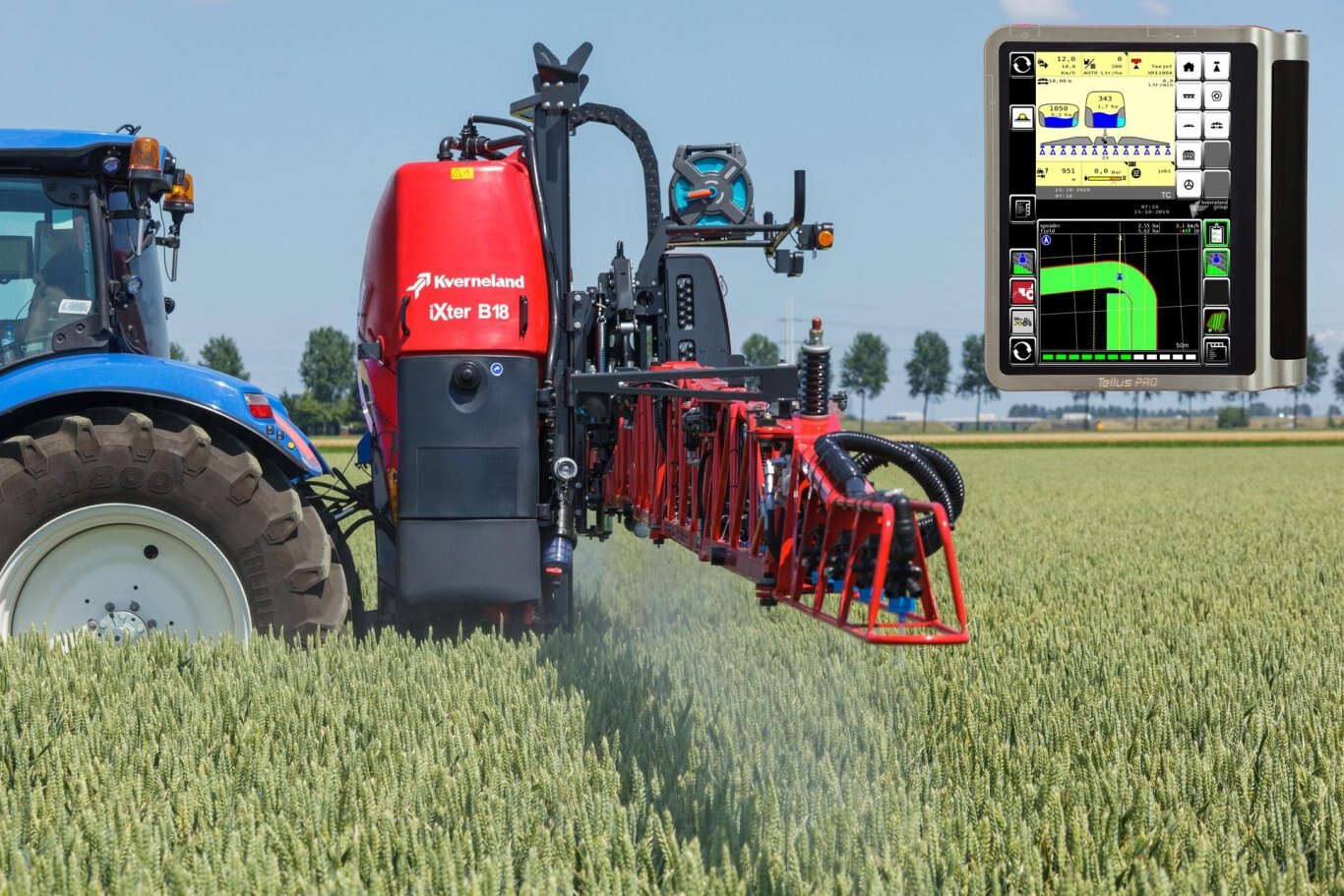

The Kverneland iXter B mounted sprayer is the fruit of years of research and development in close collaboration with farmers: this is today the most advanced mounted sprayer range with focus on user friendliness and environmental protection. The iXter B range is available with four different tank volumes from 1000 up to 1800 litres and two boom alternatives (HOSA, HC) from 15 to 30m. Pumps are available with capacities of 150, 200 and 260 l/min. Liquid fertiliser resistant and capable of running dry without damage. Due to the Easy Hitch quick hitch, the gravity point of the sprayer is extremely close to the tractor for a maximum weight transfer. However, the hitching operation remains quick and easy. High tech features like iXclean, IsoMatch Tellus, IsoMatch Tellus GO, IsoMatch GEOCONTROL, Boom Guide and a lot more features are available for more operator comfort.

The Advantages:

• HC steel booms or HOSA aluminium spray boom available

• Fully integrated concept, including Easy Set control panel

• ISOBUS or non ISOBUS compatible regulations systems

• iXclean: every litre counts!

• Possible in combination with IsoMatch GEOCONTROL

• Possible in combination with the iXtra front tank

Technical Specifications

  Spray Booms

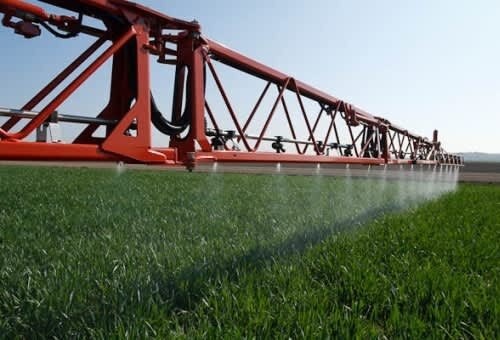

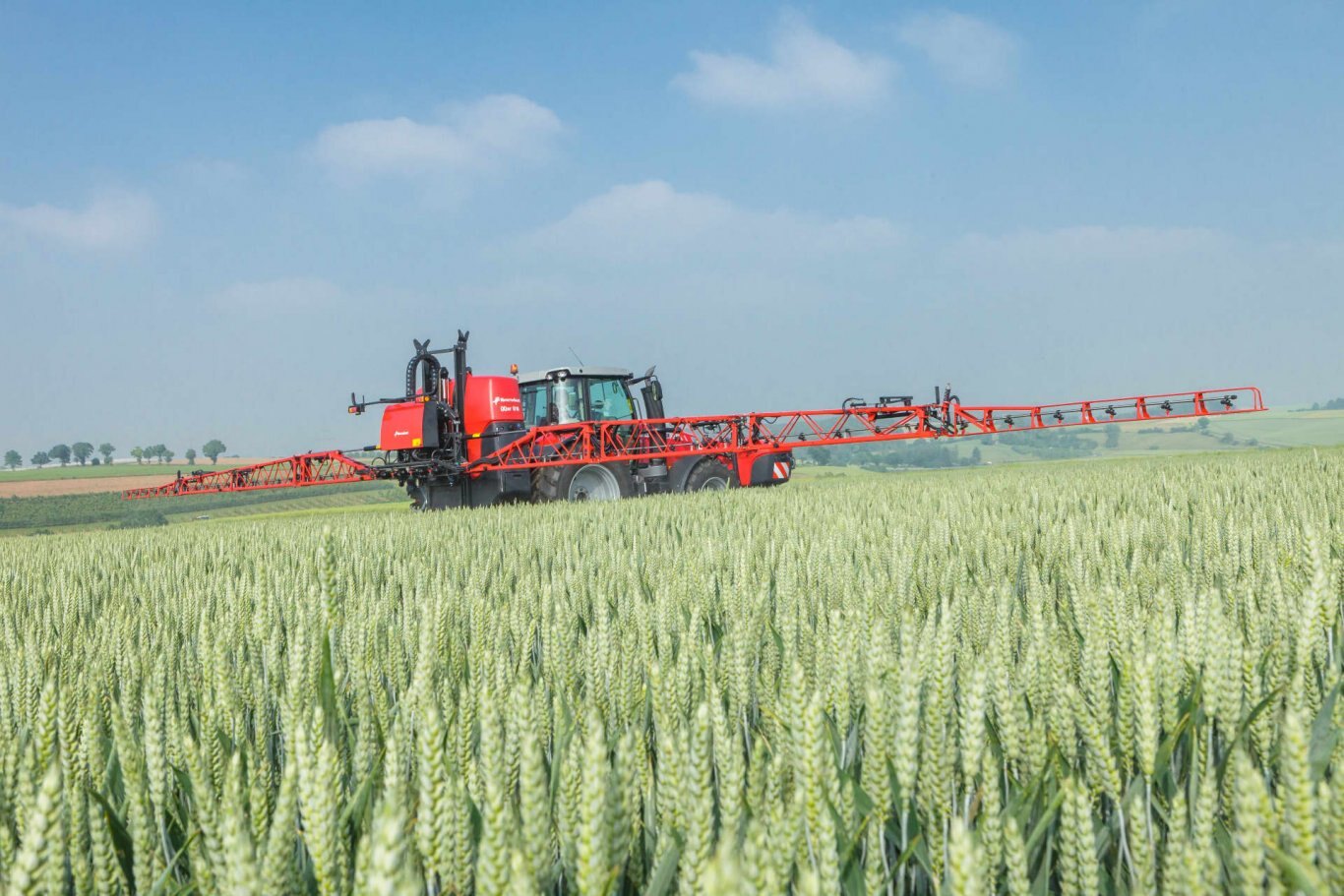

HC 18-20-21-24-27-28-30m Vertical Folding Steel Boom

• The HC boom is the multi-talented boom in the steel boom range. The triangular steel construction and the unique anti yaw system allow high speed even in very difficult conditions. The HC boom is giving you the functionalities for one side folding, symmetrical reduction and asymmetrical reduction depending of the choice for the electric hydraulic command.

HOSA 15m "Z" Folding Aluminium Boom

• The HOSA spray boom is an unique boom of the aluminium boom family having an advanced Z-folding principle: the lateral movement enables you to quickly reduce boom width and pass obstacles in the field. The aluminium profile is desinged for maximum resistance. No welding provides remarkable strength, the anodised hardened surface protects against scratches and corrosion.

  Fully Integrated Concept

• Full Integration Concept
  Nobody would expect all these functions so easily to hand. Better protection and integration is simply not possible. iXter B is setting a new standard!
• Easy Set Control Panel
  The Easy Set control panel makes life easy by its intuitive operation. The controls are separated to a suction and pressure side. The valves are well protected behind the door: this keeps your operational area free of dirt and pesticides.
• Easy Hitch Makes Life Easy
  There is enough space to connect the PTO shaft and the hydraulic and electric cables. An ingenious locking system secures the machine and shows the operator it has connected correctly.
• Easy Operation
  The graduated chemical inductor with a capacity of 20 litres is mounted on rails and fully integrated in the frame. In storage position the inductor is sealed against the top plate and no cover is needed. The rotating canister cleaning nozzle releases the water when pushed downwards. The circular rinsing system is no add on: it is part of the design! The standard return flow agitation with its unique agitation tube keeps the tank mixture agitated. The turbo agitation system (optional) allows powerful mixing during preparation of the mixture. This is especially helpful when powders are used or after sedimentation during a longer period of interruption.

  Control Systems - NON ISOBUS

Remote Control EC: All in One Remote Control

• Spraying on/off functions including up to 7 sections
• Agitation shut off
• Pressure control
• Pre select hydraulic boom functions

FlowMate Control FMC: Basic Spray Computer

• Extremely simple to operate
• Very compact by integration of all spraying and hydraulic functions
• Integrated nozzle advice
• Field memory for 25 different fields

  iXclean: Every Litre Counts

• Electrical Level Indicator
  An electrical level indicator provides actual tank volume to a spraying computer as well as via the external display on the Easy Set control panel.
• iXclean Comfort
  iXclean Comfort is a semi automatic valve control system. The combination of an electrical level indicator and suction valve provides operator comfort and accuracy: automatic fill stop when the programmed level is reached and remote control of all ENFO rinsing and priming functions out of your tractor cab! Simply prime the spray lines before you start and rinse them afterwards or even during an unexpected weather break, without stepping out of your cab!

  Other Sprayer Features

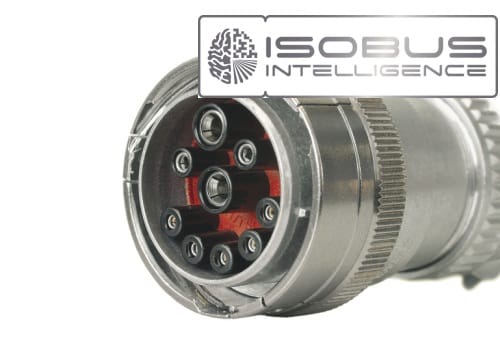

• ISOBUS intelligence (FMA regulater only)
  You are ensured of the ISOBUS compatibiliy from tractor to the sprayer and sprayer to tractor, meaning that all data collection from your machine(s) is centralised and can be easily transferred to your Terminal (e.g. IsoMatch Tellus) in your tractor cabin. Easy plug and play!

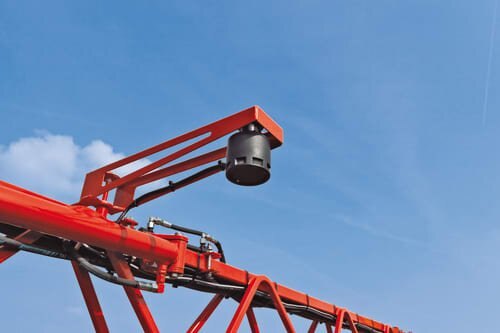

• Boom Guide Comfort
  Two ultrasonics sensors on the boom can control the spray height via the central slope correction and boom lift functions. This cost effective system is suited to gentle slopes and uneven crop conditions.
• Boom Guide Pro
  This advanced system used three ultrasonic sensors to control left- and right-hand boom sections independently for the ultimate guidance in the most challenging field conditions. It can deliver positive and negative lateral movement on each side of the boom to follow the contours in every condition!

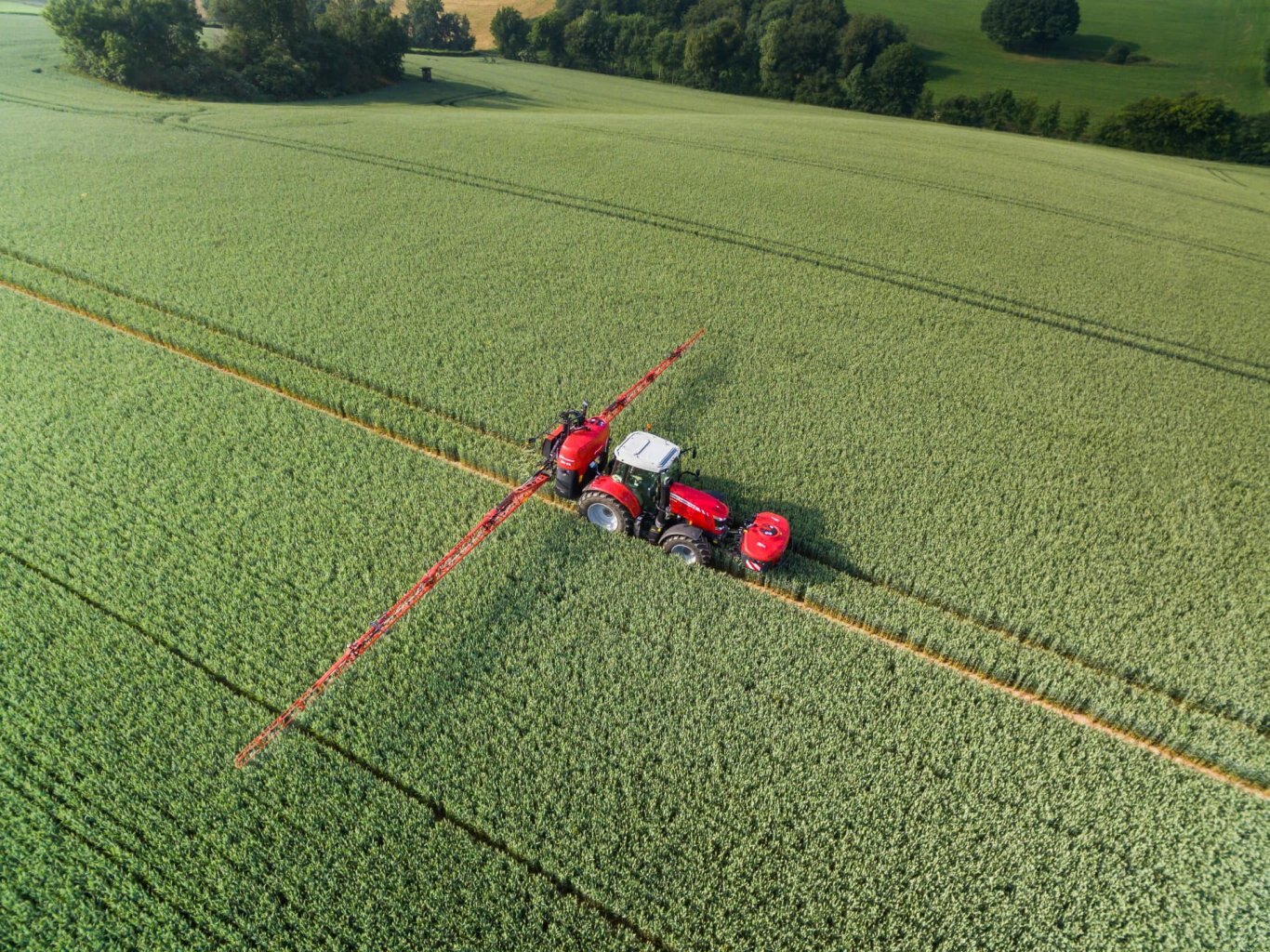

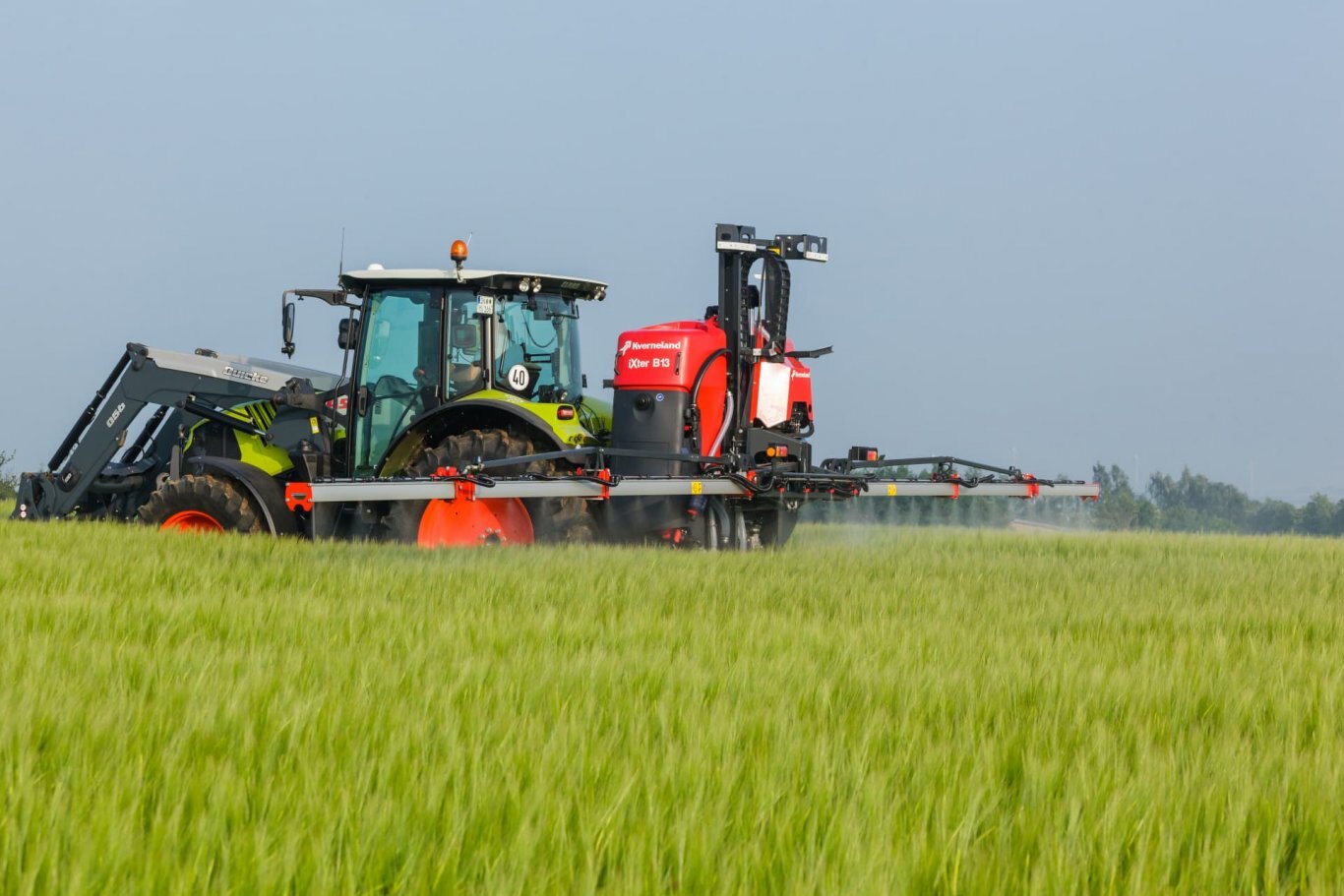

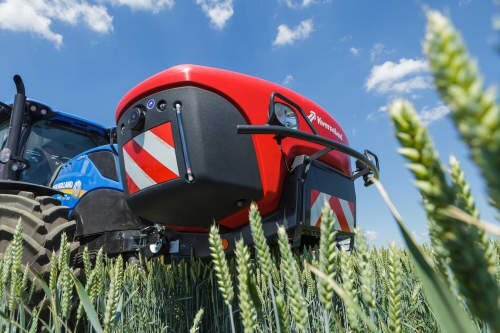

  iXtra Front Tank

Dual Tank Strategy

The innovative iXtra concept offers much more than just extra tank volume. In combination with the iXter B mounted sprayer, the iXtra front tank provides a total volume of around 3000 litres, making the iXter-iXtra combination a serious alternative to a self propelled sprayer. With tractors able to carry much higher loads on their rear linkages, the need for ballast weight on the front of the tractor is essential. With a nominal volume of more than 1100 litres, the iXtra is that front end weight, adding stability to your tractor, but only when needed!

• One-tank approach: filled with spray liquid it boosts overall tank capacity by 60%.

• Two-tank approach: filled with two different tank mixes, the front and rear tanks can be used as two independent spray tanks.

• Reservoir approach: filled with clean water the iXtra front tank can be used as a reservoir for later use, for example in another field or crop.

• Easy to Fit, Simple to Unhitch

  The iXtra front tank used the functions of the iXter sprayer when filling and spraying. This avoids the need for a separate induction hopper or spray pump for the front tank. Without a front PTO shaft or hydraulic hoses, hitching and unhitching the iXtra is extremely simple: it uses only two hoses with KAMlock connections and an electric cable - it really is that simple!
