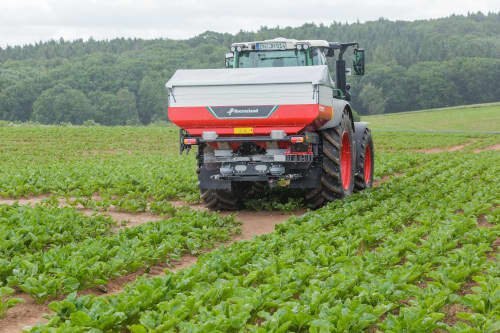

The Kverneland Exacta HL with volumes up to 3.900 litres and with a maximum spreading width of 54 metres is the perfect spreader for more capacity. With dual PTO input shafts on the centre gearbox, it is easier to always drive at the desired speed and in combination with the ‘slow rotating’ agitator system, the Kverneland Exacta HL spreader can spread with high disc speeds to get a very even spreading pattern. The Kverneland Exacta HL spreader can be operated hydraulically or electrically. The electric controlled spreader can be operated from the tractor cab via the Exacta Remote II computer.
The Advantages:
CentreFlow spreading system
EasySet for quick and easy adjustment
Border spreading is easy!
Standard and optional equipment available to fulfil your requirements
Exacta Remote Control II to operate the spreader from the closed tractor cab
Technical Specifications
Exacta HL (narrow)
HL 1500
HL 2150
HL 2800
HL 3450
Hopper capacity (l)
1500
2150
2800
3450
Filling height (cm)
110
129
148
167
Width (cm)
275
275
275
275
Filling width (cm)
269
269
269
269
Empty weight (kg)
495
525
555
585
Spread width (m)
12 - 54*
12 - 54*
12 - 54*
12 - 54*
Output (kg/min)
10 - 320
10 - 320
10 - 320
10 - 320
* Depending on fertiliser type and type of vanes.
Exacta HL (wide)
HL 1875
HL 2550
HL 3225
HL 3900
Hopper capacity (l)
1875
2550
3225
3900
Filling height (cm)
120
139
158
177
Width (cm)
290
290
290
290
Filling width (cm)
284
284
284
284
Empty weight (kg)
530
565
595
625
Spread width (m)
12 - 54*
12 - 54*
12 - 54*
12 - 54*
Output (kg/min)
10 - 320
10 - 320
10 - 320
10 - 320

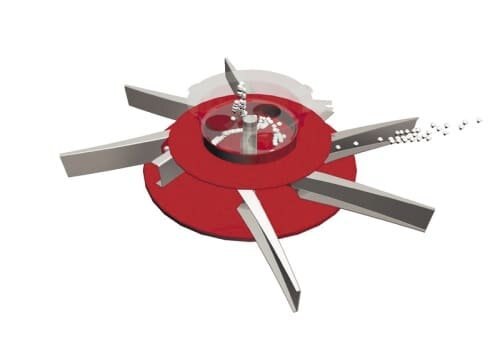

CentreFlow Principle
CentreFlow Spreading System

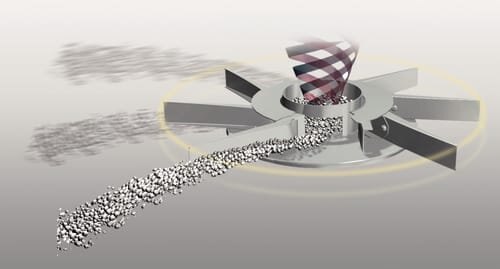

No impact, no fragmentation, no dust: Central release point, smooth acceleration and centrifugal force accelerates fertiliser up to disc speed before it reaches the vane.
Accurate spreading pattern: A double overlap spreading pattern gives unrivalled accuracy. The 8 vanes per discs are ensuring a continous flow of fertiliser to the field. This is important for high capacity spreading and forward speed.
Minimal wind influence, maximum tolerance: Flat discs and a horizontal flow of fertiliser give a symmetrical spreading pattern.

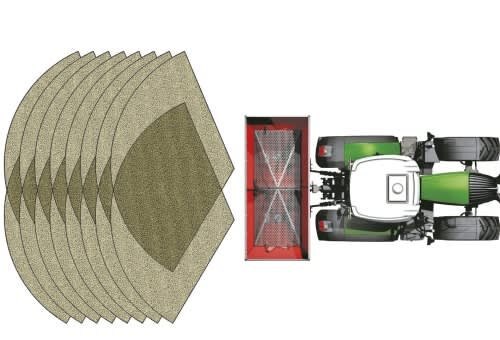

Consistent spreading pattern: Eight vanes per disc, eight sectors per revolution give an equal distribution. Double overlap spreading pattern.

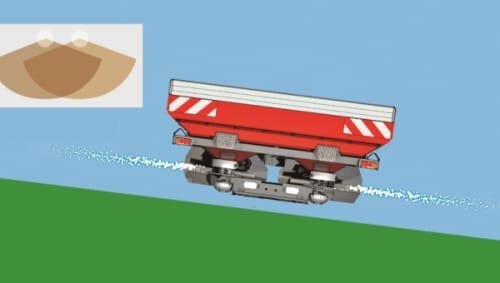

Guaranteed accuracy on slopes: guaranteed accuracy on slopes. The fertiliser always contacts the vanes at the same point, also on slopes and travels the complete length of the vane.
EasySet

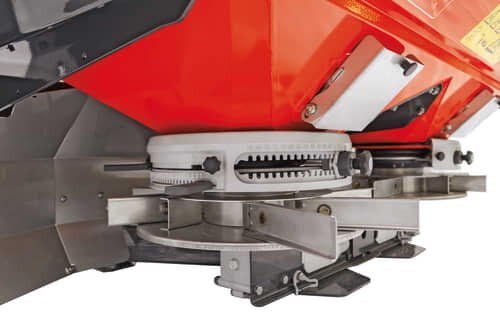

EasySet: Easy Setting and Adjustment
The compact EasySet 'dashboard' gives you considerably simplified accurate setting and adjustment of application rates. Two hydraulically operated metering plates, each with three discharge openings ensure an equal fertiliser flow from the hopper to the spreading discs.

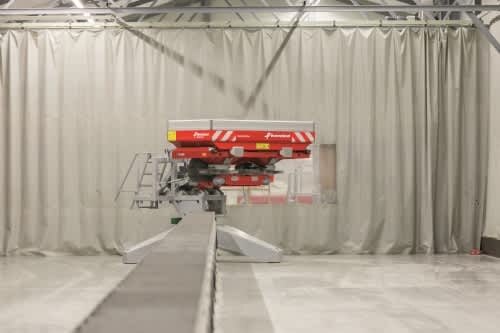

The development department of Kvernelands spreader R&D team has its own spreader competence centre in order to allow continuous testing throughout the year. All test are carried out according to the strictest international standards and quality requirements.

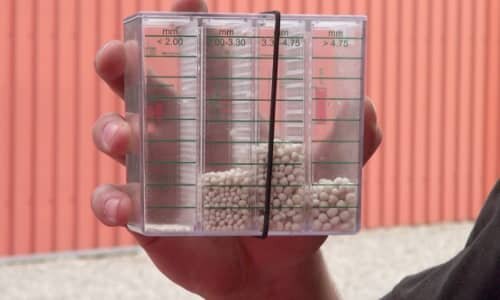

The key to accurate spreading is matching fertiliser quality and litre weight with the spreading charts as close as possible. The Kverneland Exacta checklist helps you to ensure consistent accuracy in all field conditions 1. Select fertiliser type 2. Determine granule size and distribution 3. Determine litre weight

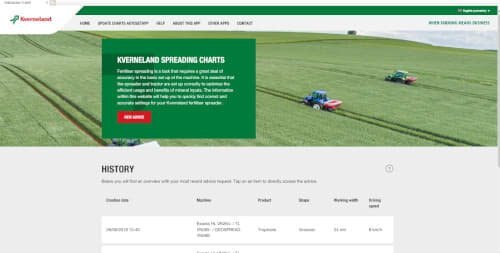

Direct access to the most recent test results at: www.kvernelandspreadingcharts.com or download the spreading charts Application via the App Store or get it on Google Play
Border Spreading
Border Spreading
Kverneland offers the ExactLine system or manual/hydraulic border spreading plate for border spreading. The ExactLine can be accurately set for all types of fertiliser and for all working widths. Operation is easy, no need to leave the tractor seat. For the HL, TL and TLX models the ExactLine can even be fitted on the left and right hand side of the spreader.

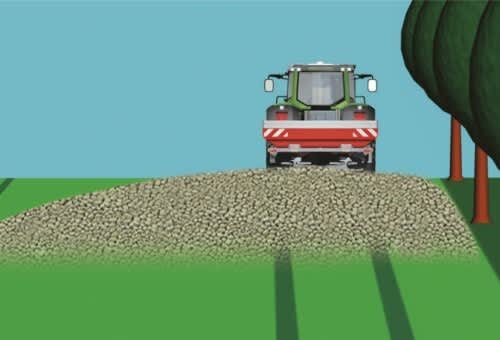

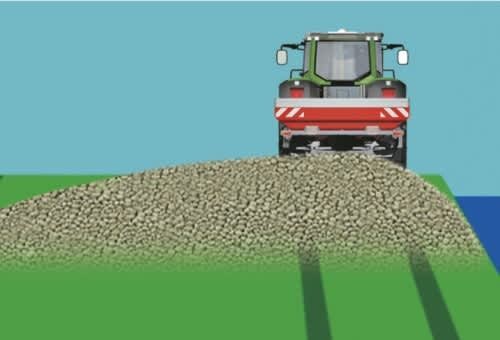

With one-side boundary spreading the tractor is driven approximately 2 metres from the field border.
With boundary track spreading the tractor is driving in the first tramline and is spreading to the border. The distance to the border is the half of the working width.

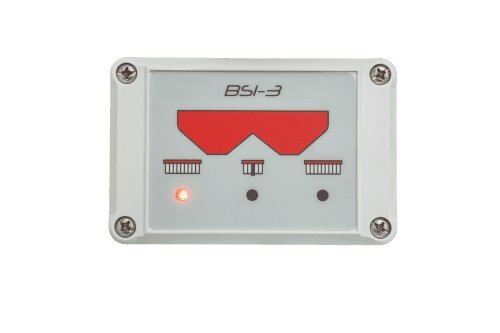

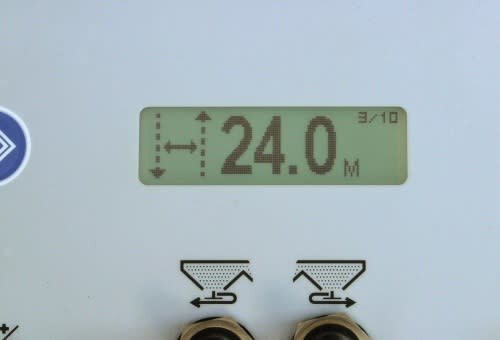

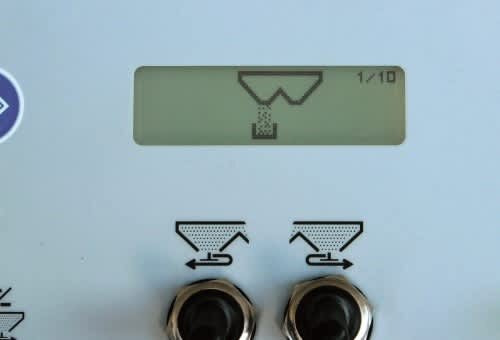

The Border Spreading Indicator (BSI), indicates which border spreading device is active.
Equipment
Standard and Optional Equipment

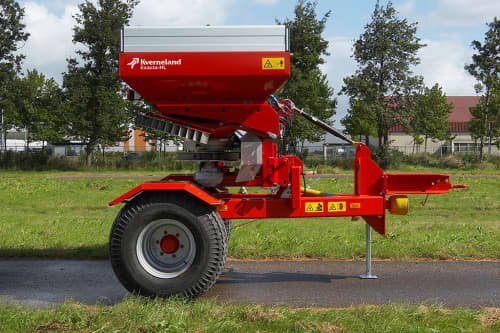

The Exacta HL/TL(X) spreaders are also available mounted on a trailer frame.

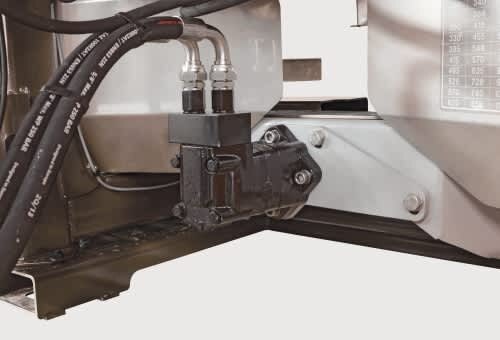

Central Hydraulic Drive as option available for the HL/TL(GEOSPREAD).
Easy to assemble aluminium hopper extensions are available to increase hopper capacity.

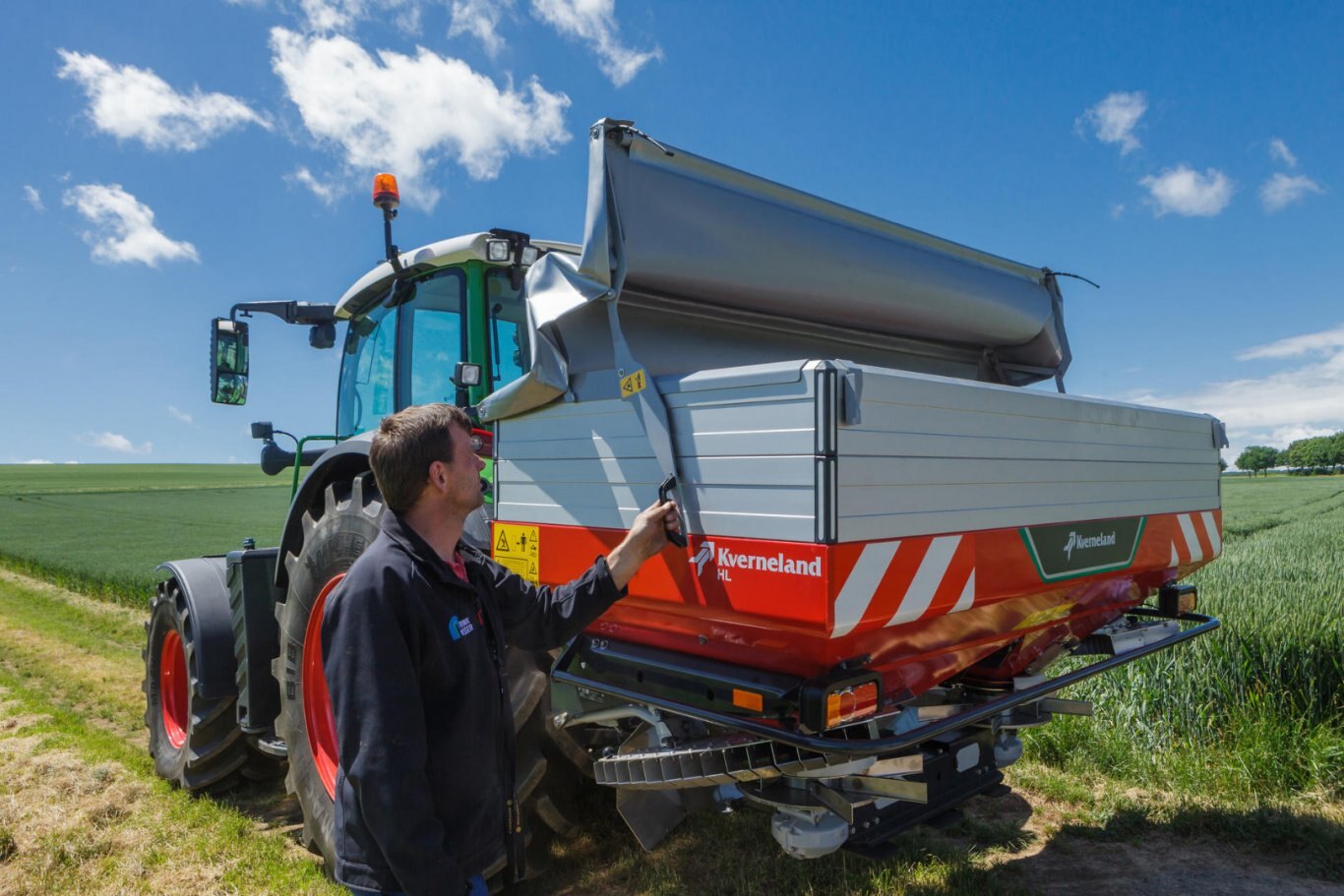

An easy to fold in and out hopper cover is as option available. Simple to fit! This can be the manual hopper cover or with the electrical version controlled via the tractor cab.
Left/right shut off valve for spreading at half working widths is optional available.
To ensure a consistent flow when spreading low quantities, the CentreFlow system is equipped with a fine application kit. Ideal for spreading low quantities, seeds and slug pellets.
Delta shaped heavy duty grids are standard equipment of the Exacta HL/TL(X) spreader.
Centre gear box with 2 input shafts for high and low disc speed settings is standard equipment of the HL/TL(X) spreader.
Hopper emptying kit is optional available to easy get the last fertiliser out of your hopper.

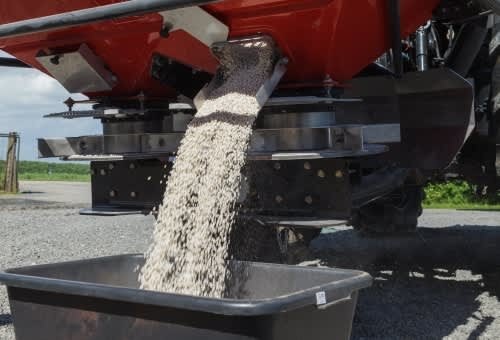

Easy calibration is done with the optional calibration container.

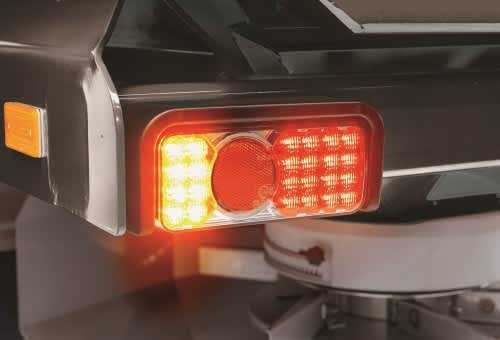

Long lifetime LED lighting set, is optional for the EL, CL and CL-EW. For the HL, TL and TL(X) GEOSPREAD spreader is this standard equipment.

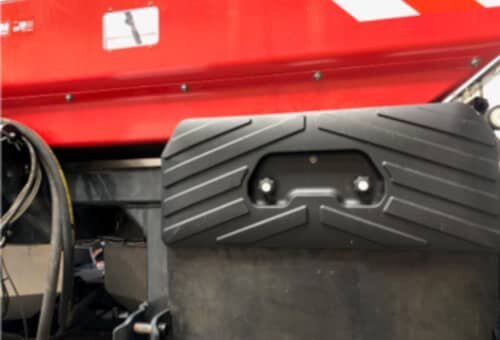

The mud guards (option) protect the spreading disc against mud, water etc.
Exacta Remote Control

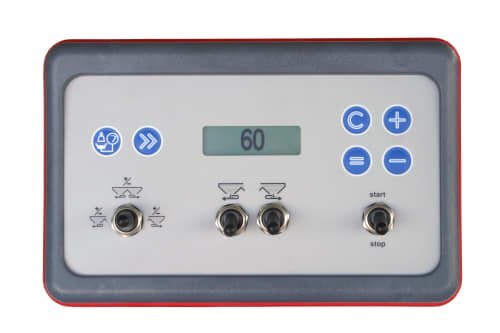

Exacta Remote Control II
With Exacta Remote II, you can operate the spreader from the closed tractor cab!

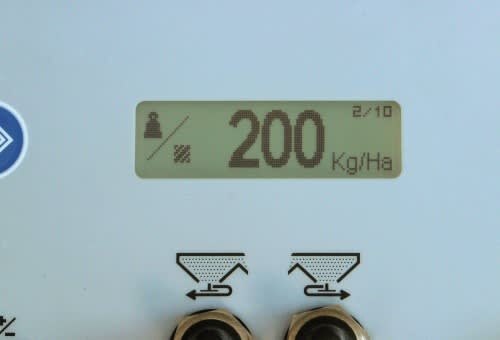

The operating panel provides all the functions to start and stop the spreader, to set the right application rate and to increase and decrease the application rate on the move. The latest settings are retained in the memory function.
Both discs can be shut off independently to spread half working width.

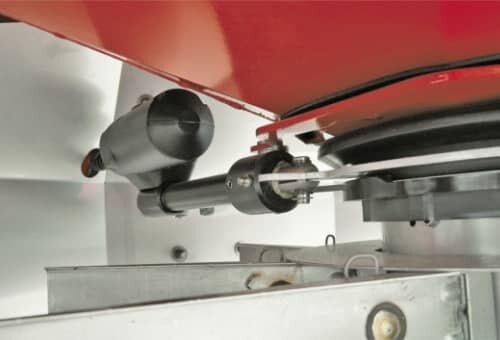

Specially sealed actuators are used to cope with corrosive conditions.
