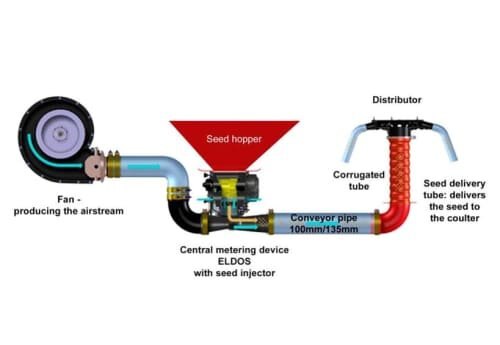

Pneumatic System - ELDOS

1- The metering device ELDOS accurately measures the required volume of seed by the distinctive rotor and discharges it into the seed injector where is is mixed with the air stream and then conveyed through the diffusor tube and the seed delivery hoses to the coulters.

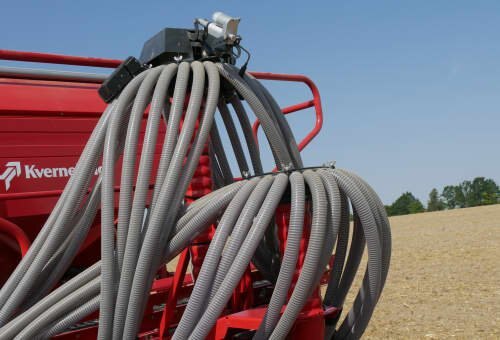

2- The distribution head is mounted in a protected position inside the seed hopper.

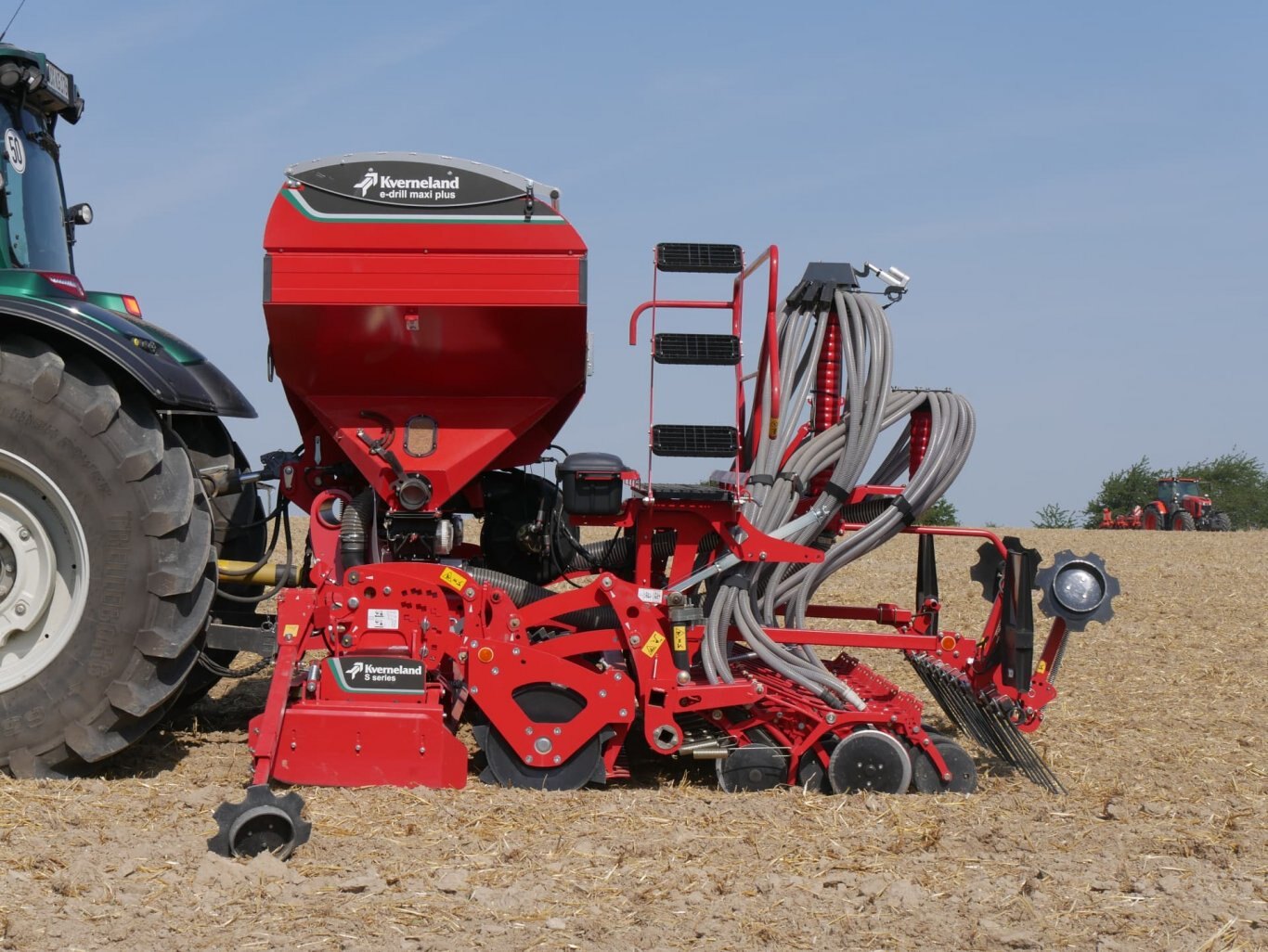

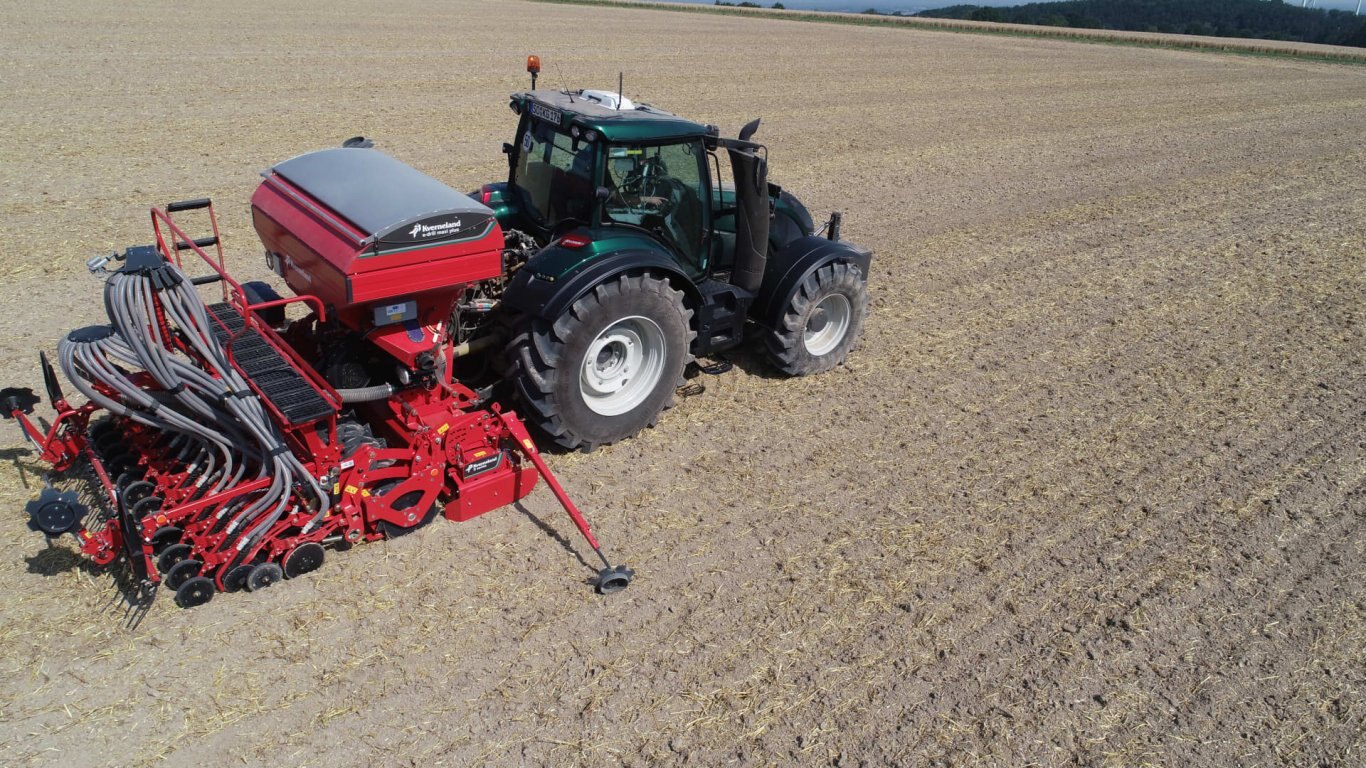

  e-drill maxi plus - Hopper

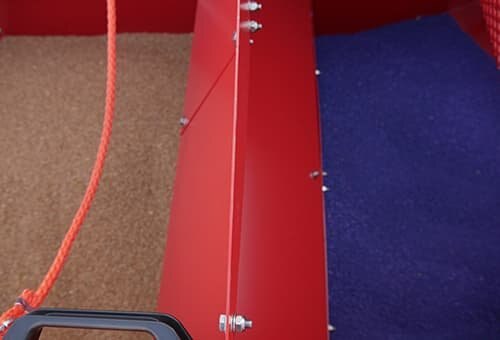

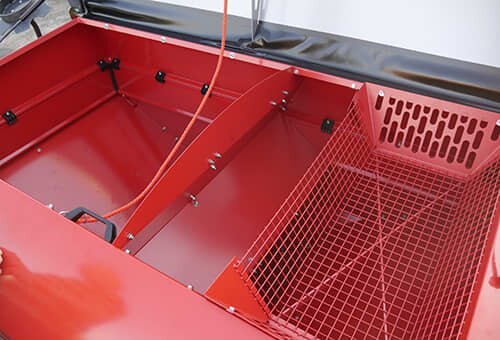

Adjustable hopper capacity offers extra flexibility

The e-drill maxi plus is offered with a hopper capacity of max. 2,100 litres which is divided into an adjustable hopper ratio of 60:40, 70:30 or 100:0 with two independently working metering devices positioned either side.  Two electronic low-level sensors, adjustable from outside, monitor small quantities of rape as well as larger quantities of beans. The full hopper volume can be used when sowing one sort of seed only.

  e-drill maxi plus - seed and fertilizer application

Various alternatives are possible with the e-drill maxi plus:

The application of

1- two types of seeds,

2- one type of seed and one type of fertiliser or

3- one type of seed combined with e.g. slug pellets

4- one type of seed.

An extra second outlet does the fertiliser or second seed application in the seeding row in just one working pass. The fertiliser is applied in mixture with the seeds.

  e-drill - Electronic Control

For the electronic control of the e-drill, a whole range of steering systems is available

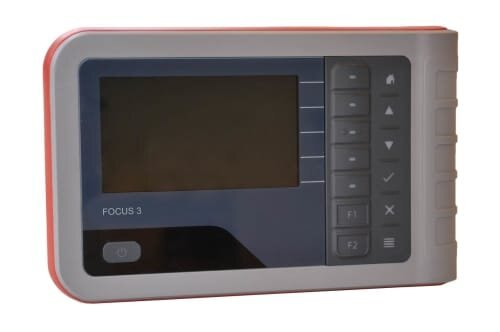

Focus 3
Focus 3 is the new terminal steering the e-bas system which features hopper low level sensor, various tramline systems, information about ha, km/h monitoring of fan speed, pre-emergence marker, seed rate adjustments. Focus 3 is not ISOBUS compatible.

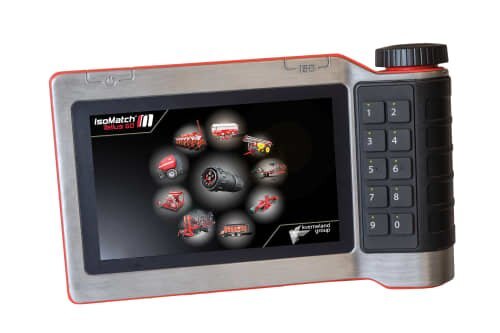

IsoMatch Tellus GO
The multifunctional one-screen terminal has been developed for fast and simple control of all ISOBUS implements, giving the farmer a ‘customer made’ experience as it suits all needs for plain and efficient handling of farming machinery and tasks. IsoMatch Tellus GO is the farmer’s first step into Precision Farming. With the easy to use application, IsoMatch GEOCONTROL, it is possible to boost efficiency and save time and costs. The application includes Manual Guidance, Section Control and Variable Rate.

IsoMatch Tellus PRO

IsoMatch Tellus PRO is the centre for connecting all ISOBUS machines and a platform for running precision farming applications. It offers everything a farmer needs to get the maximum out of his machines and crops, as well as cost savings in fertiliser, chemicals and seeds by using automatic section control and variable rate control. With the unique dual screen functionality it gives the farmer the opportunity to view and control two machines and processes simultaneously.

With this new terminal you can work all the way as a PRO. The maximum working range for the task controller IsoMatch GEOCONTROL is increased from 2 km to maximum 10 km from the starting point. Thus even extremely big fields are handled in a full professional way. The new high brightness screen increases operator comfort. Visibility is increased during the day and dimmed to just a glowing display in dark conditions.

  ELDOS - the metering device

• ELDOS is electric driven by e-com and is fully ISOBUS compatible.
• GEOCONTROL by GPS signal is possible which avoids double seeding.
• Special sensors ensure functionality from the tractor cab.

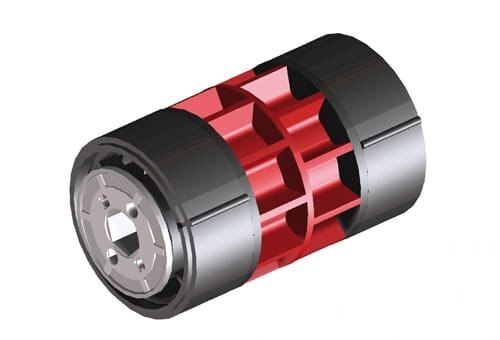

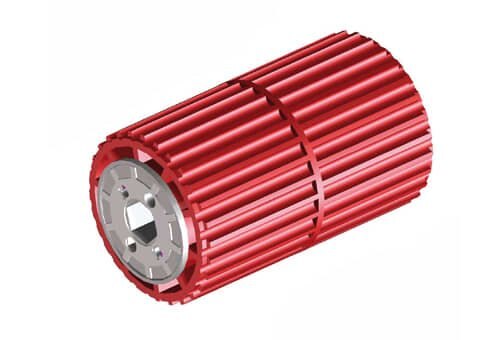

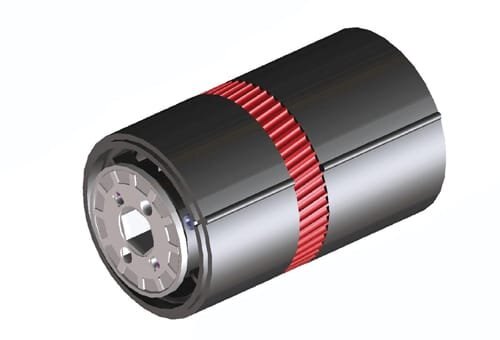

• Five standard rotors are delivered: for fine and large seeds or fertiliser.
• The exchange of the rotors is quickly and easily done without any tools.
• Application rates from 1 to 400kg/ha are possible (depending on working speed and width).
• The metering device is always easily accessible.

Calibration

• Very simple calibration test due to the separate seed guidance.
• A remote control allows the driver to operate the calibration process at the metering device.
• No gear has to be adjusted. The driver simply enters the desired values into the terminal, presses one button to start at the metering device and that’s it.
• The calibration is done automatically.
• A calibration flap with an integrated gate prevents any seed from dropping into the hose.
