ID # 13332334

Kverneland 7730

  • Kverneland 7730
  • Kverneland 7730
  • Kverneland 7730
  • Kverneland 7730
  • Kverneland 7730
  • Kverneland 7730
  • Kverneland 7730
  • Kverneland 7730
  • Kverneland 7730
  • Kverneland 7730
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

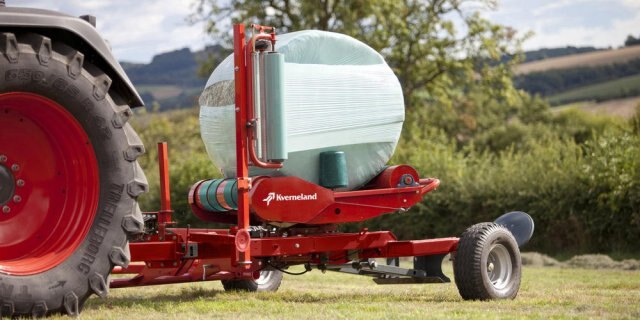

The Kverneland 7730 is a trailed wrapper designed for smaller tractors. The machine is very easy to operate; even the mechanical version offers fully automatic cut and tie of film.
The hydraulically operated loading arm is positioned on the right hand side and can handle bales from 47" up to 59"(1.20m up to 1.50m) diameter.
 The Advantages:
  • Trailed turntable wrapper
  • Self-loading mechanism
  • Mechanical film cutter.
  • Able to handle round bales up to 2646 lbs(1200kg).
  • Kverneland 7730 M is cable controlled and fitted as standard with a bale and wrap counter with AutoStop function.
  • Kverneland 7730 J is a joystick controlled version, with semi-automatic operation
Technical Specifications
  Max Bale Size Max Bale Weight Control System
7730 M 47" x 59" (1.20x150m) 2646 lbs (1200kg) Manual Cable Control (M)
7730 J 47" x 59" (1.20x1.50m) 2646 (1200kg) Joystick Control (J)
Highlights

Hydraulic Film Cutter

  • On the Kverneland 7710, 7730 and 7740 a hydraulically operated film cutter cuts and holds the film in position ready to wrap the next bale.
  • An easy to use solution without the need to manually control the operation.

The Pre-Stretcher

  • Kverneland pre-stretchers provide even film stretch throughout the roll, are easy to operate and require low maintenance.
  • The unique pre-stretch roller profile keeps the stretched film at its optimum width and results in fewer problems with film tear.
  • The rollers are made of aluminium which avoids the build-up of tack from the film, which can result in overstretch of film and film tear.
  • Specially profiled rollers help to disperse air and water as the film is being stretched.

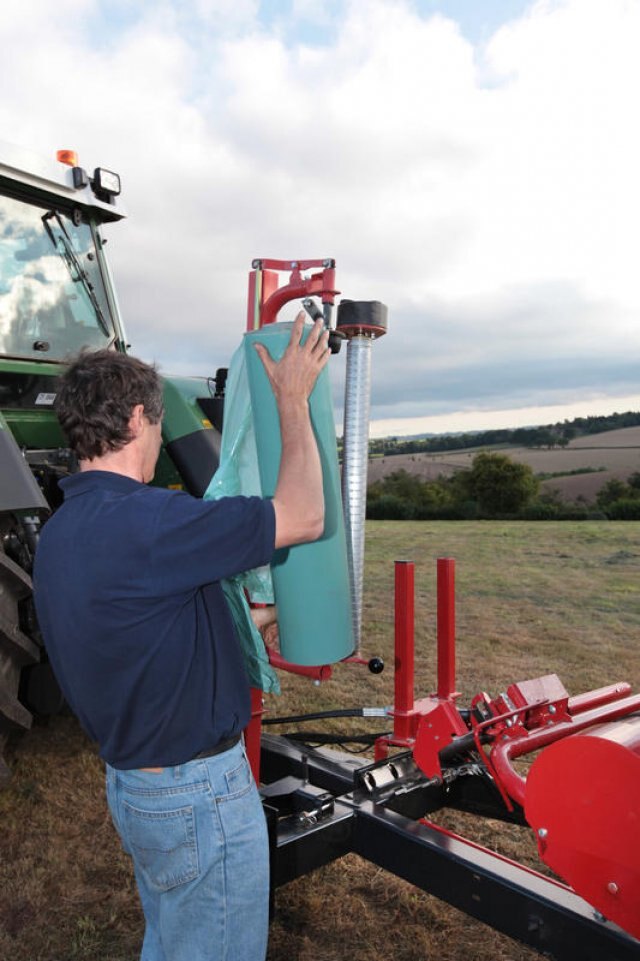

  • Change of film roll is quick and easy with Kverneland pre-stretchers. The empty core is released by pushing down a single lever with one hand.
  • Low lifting height of the film rolls is achieved thanks to the low profile design of all Kverneland bale wrappers.

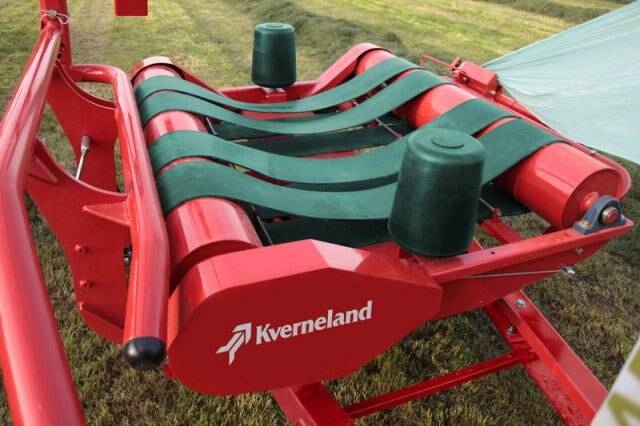

Turntable Principle

KV_7730 0005.jpg
  • Two large diameter rollers, both of which are driven, ensure bale rotation even in the most difficult conditions.
  • Four endless belts carry and rotate the bale evenly during wrapping with no risk of film damage.
  • The two large diameter conical side support rollers ensure that the bale is kept in a central position on the rotating table during wrapping operation.

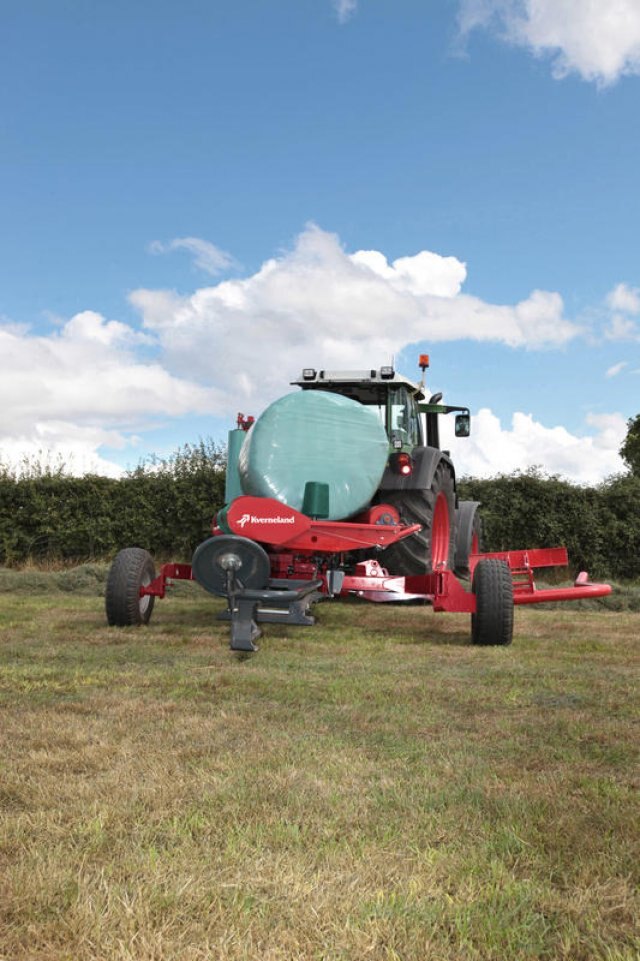

Low Profile Design

  • The Kverneland 7730 and7740 are designed with a low table height and wheels located at the very rear of the machine.
  • The position of rear wheels ensures a low table height provide low loading and unloading height.
  • The low slung chassis combined with a short lifting height, provides fast transfer of the bale from arm to turntable.
  • 1) The low mounted table design allows higher rotation speed an.
  • 2) The short lifting height provides fast transfer of bale from arm to turntable.

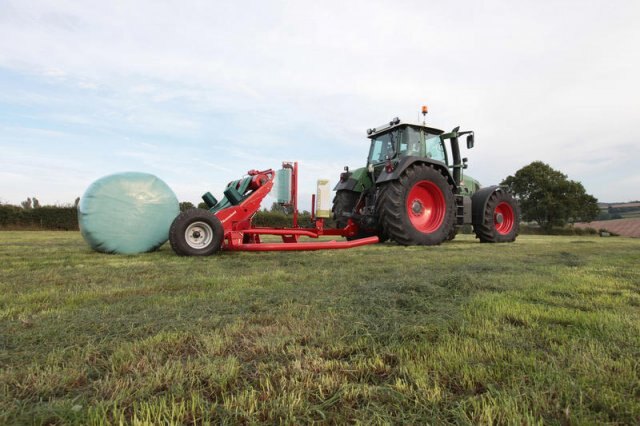

  • 3) It ensures vast and gentle on-the-move unloading with no need for a fall damper.

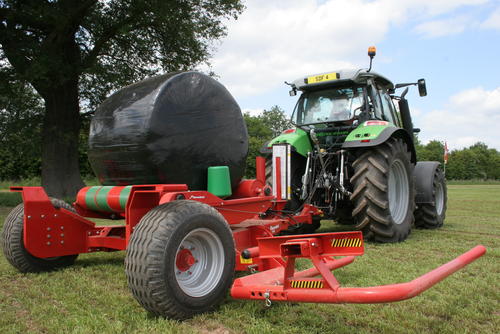

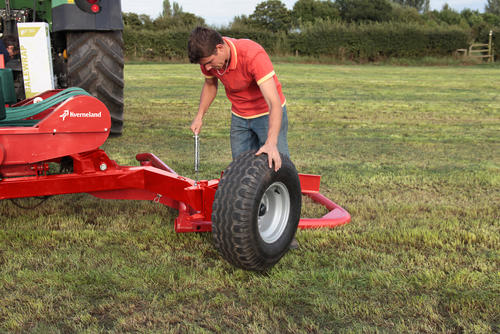

Clever Transport Solution

KV_7730 0004.jpg
  • The clever design of the frame with its extendable wheel arm on the right hand side allows an increase in track width on the field for maximum stability during loading of bales.
  • This allows bales up to 1 ton to be loaded without any counter weights on the machine.
  • For narrow transport width, the right hand wheel is turned to the inside of the support arm.

Control Options

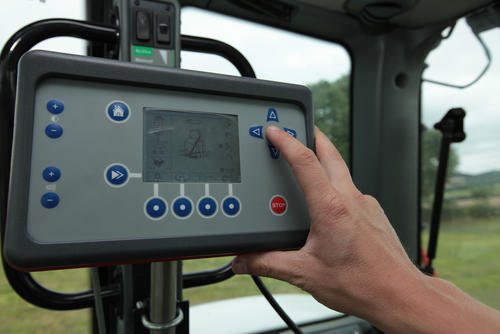

Computer Control (C)

Computer Control
  • The computer controlled Model C turns the wrapper into a fully automatic machine offering either a fully automatic operation or a choice of manual override or function by function operation.
  • Choose for example that you want the bale to wrap automatically off. One operator does the entire process of loading, wrapping and stacking when loaded, but remain on the wrapping
  • table until you confirm that you want to offload.

Remote Control (R)

  • An advanced remote controlled version is available as an option (standard on Kverneland 7710 C). Place the bale on the wrapper, press one key on the remote control, and the wrapping process starts.
  • The previously wrapped bale is stacked and the next one picked up while the machine continues wrapping.
  • Press another key when wrapping is completed and the bale is tipped off. One operator does the entire process of loading, wrapping and stacking.

Joystick Control (J)

  • The semi-automatic Joystick model has a handy electric joystick combined with a control box which is showing you the operations running at any time.
  • Functions like bale and wrap counter and automatic table stop when reach ing pre-set number of table revolutions are included as standard.

Mechanical Cable Control (M)

  • The manual versions (M) are controlled with manual cable control with levers.
  • A wrap and bale counter is fitted for easier control of film layers, as well as number of bales wrapped.
  • An automatic table stop that is controlled by the wrap-and-bale counter is fitted as standard.
  • This converts the wrapper from manual to semi-automatic, as it allows the wrapping function to stop automatically at the set number of table revolutions.



Specifications
Model
7730
Category Name
Agriculture
Year
2015
Sale Type
New
Manufacturer
Kverneland
