ID # 13332313

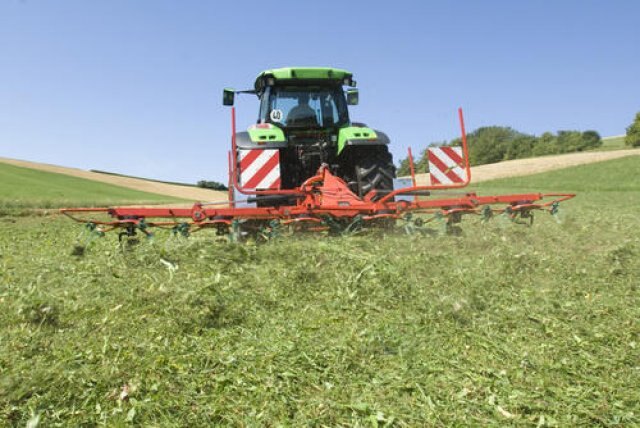

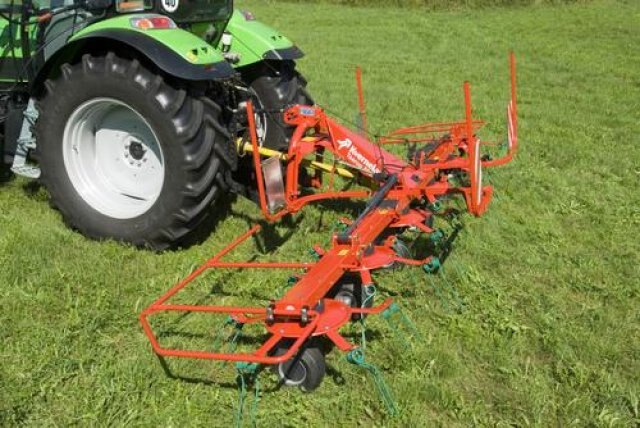

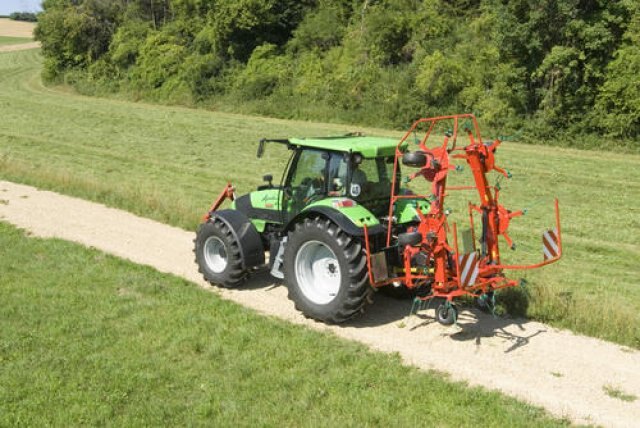

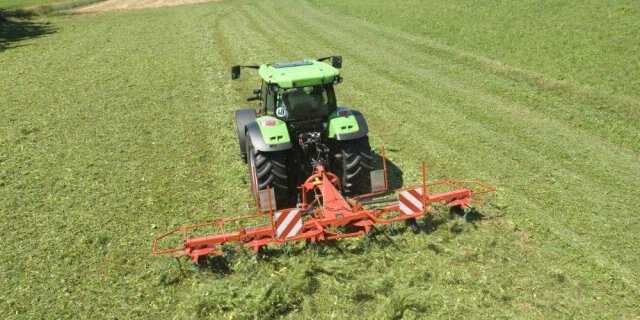

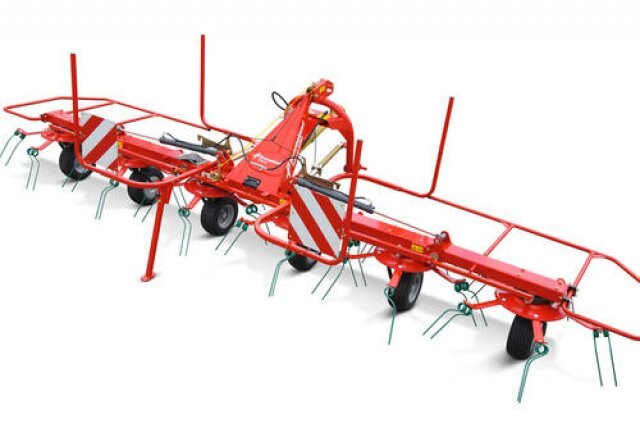

Kverneland Taarup 8046-8052(T)-8460

  • Kverneland Taarup 8046 8052(T) 8460
  • Kverneland Taarup 8046 8052(T) 8460
  • Kverneland Taarup 8046 8052(T) 8460
  • Kverneland Taarup 8046 8052(T) 8460
  • Kverneland Taarup 8046 8052(T) 8460
  • Kverneland Taarup 8046 8052(T) 8460
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Compact and Robust Design

Kverneland Taarup offers 4 versions of compact tedders with low maintenance requirements and a working-width ranging from 15'1" to 19'9" (4.6 to 6.05m). Maintenance-friendly features include 500 mm rotor plates and an easy-to- maintain gearbox. All tedders can be adjusted centrally to move the tedder to the desired position for border tedding.
 The Advantages:
  • Low maintenance CompactLine gearbox with only one grease nipple.
  • Compact tedders with low weight and power requirements.
  • Rotor plate dimension of 500m
  • Double bearings from pinion to crown wheel guarantee maximum longevity of the driveline.
  • Super-C tines with large spring coil diameter for added service life.
  • Easy setting of spreading angle through simple three-way adjustment of wheel height.
  • 8460 standard fitted with vibration damper and strong central unit.
Technical Specifications
  Working Width Rotors/Tines Weight
8046 15'1" (4.60m) 4/6 1102 lbs (500kg)
8052 17'1" (5.20m) 4/6 1170 lbs (530kg)
8052 T 17'1" (5.20m) 4/6 904 lbs (410kg)
8460 19'9" (6.05m) 6/5 1411 lbs (655kg)
Highlights

Large Dimensions

KvT 8090 005
  • The box type frame of the Kverneland Taarup 8000 series is an extremely solid construction. It is composed of two U-sections fitted into each other and securely welded together. The frame is totally enclosed at the top for maximum strength.
  • All tedders have greasable pivoting points with an extra large diameter, making it a very strong and reliable construction.
  • Made from flat steel, the tine arms form a very compact unit with the rotor plate. This makes the tedders by far more resistant to any type of load.

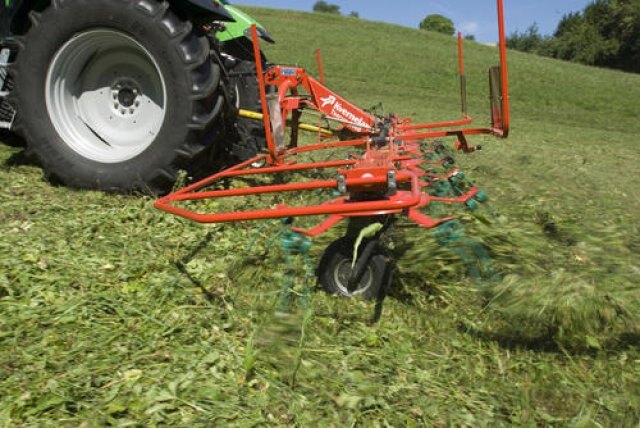

Super-C Tines

KvT Tedder Rotor 001.jpg
  • The Super-C tine can be locked in three positions to customize the pickup angle to different conditions. For heavy silages the angle can be set more aggressive and for fragile crop a gentler angle can be chosen.
  • Made from flat steel, the tine arms form a very compact unit with the rotor plate and utilize the force of the rotor plate for higher durability of the time arm. This makes a Kverneland tine arm by far more resistant to any type of load.
  • Super-C tine with symmetric spring tines ensures efficient pick-up and turning of the crop. Tines with same lengths has the added advantage that load is spread evenly on both tines, providing longer life time.
  • Made from 10mm shot-peened spring steel and a coil diameter of 80mm, Super-C tines add up to the most durable and flexible tine in the market.

Spreading Angle

  • High-quality forage allows the optimum spreading angle to be achieved according to crop conditions, helping you to produce high quality forage.
  • Setting the rotors to the right spreading angle will considerably improve the spreading action, and speed up the drying process.
  • The mower swaths are neatly lifted by the tines and evenly spread over the full width.
  • Tines glide in a more uniform frequency over the stubble, so the risk of dirt being lifted by the tines is minimized.



Specifications
Model
Taarup 8046-8052(T)-8460
Category Name
Agriculture
Year
2015
Sale Type
New
Manufacturer
Kverneland
