ID # 13332312

Kverneland Taarup 95150 C

  • Kverneland Taarup 95150 C
  • Kverneland Taarup 95150 C
  • Kverneland Taarup 95150 C
  • Kverneland Taarup 95150 C
  • Kverneland Taarup 95150 C
  • Kverneland Taarup 95150 C
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

15 m Working Width

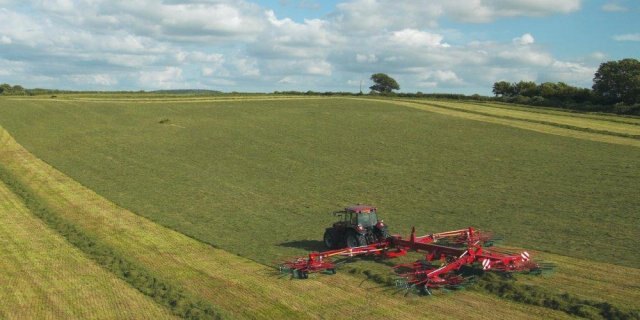

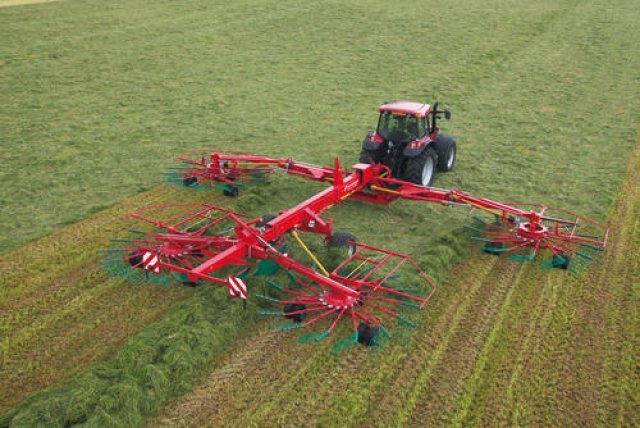

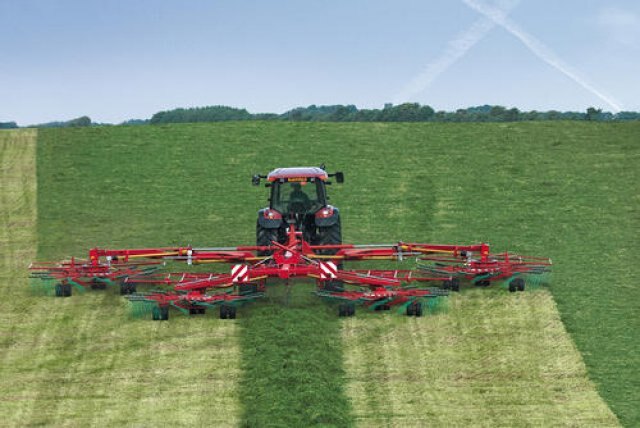

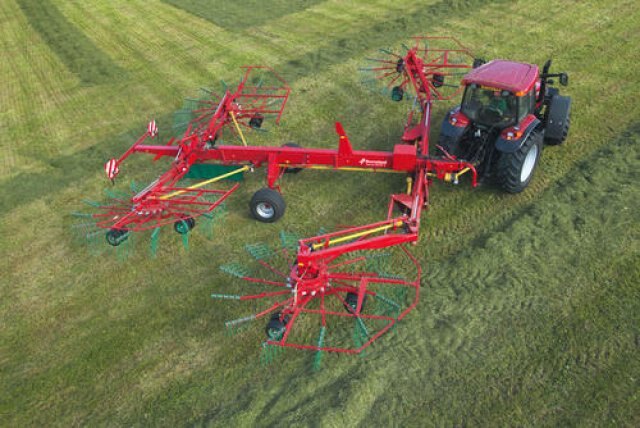

Kverneland Taarup 95150 C, with 49'3" (15m) working width, is a machine designed for high output. It is a heavy duty rake with very substantial capacity and adjustable working and swath width, that can be easily changed during work. Four rotors with up to 15 tine arms ensure a perfect raking performance. 49'3" (15m) working width increases the entire processing of grass, and leaves a huge, even swath for the following machines.
 The Advantages:
  • Maintenance-free ProLine oil bath gearbox.
  • Hydraulic adjustment of working width width between 31'2" and 49'3" (9.5 and 15 m).
  • Hydraulic adjustment of rotor height.
  • Active steering wheel axles for excellent manoeuvrability.
  • Clever folding mechanism, allowing the rake to go below 4.00m without removing tine arms.
  • ISOBUS Control.
Technical Specifications
  Working Width No. of Tine Arms Weight
95150 C 31'2" - 49'3" (9.50 - 15.00m) 2x13/2x15 12566 lbs (5700kg)
Highlights

ProLine Gearbox

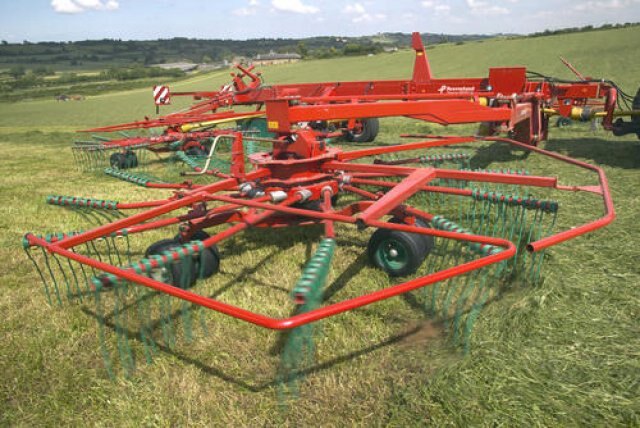

Kverneland 9000 Series ProLine Rotor
  • The ProLine rakes feature a unique drive system which comprises oil-immersed pinion and crown wheels.
  • The fully enclosed design ensures full and permanent lubrication, and makes the entire system absolutely maintenance-free.
  • The hardened cam track is adjustable, and features a flat curve and an extremely large 400mm diameter, providing positive guidance to the steel rollers, and promoting quiet machine running.
  • Aluminium bearing housings, with two integral ball bearings and wide support, provide solid and maintenance-free tine arm mounting.

95150 C Adjustable Working Width


  • Raking width can be continuously varied on the move between 9.5 m and 15 m.
  • Raking width can be matched to the density of crop to obtain an evenly shaped and equally wide swath over the full length.
  • The two outer rotors can be adjusted individually.
  • You can independently steer an outside rotor around an obstacle such as a pole or tree without having to change travel direction with the complete machine.

95150 C Manoeuvrability

  • The 2-pt headstock allows a turning angle up to 90° and the steered wheel axles ensure the 95150 C has unequalled manoeuverability.
  • Despite a total length of 9 m, even narrow gateways or approach lanes to fi elds are easily negotiated.
  • Hydraulic or pneumatic breaks allow  Kverneland Taarup 95150 C to reach high transport speeds, minimizing time spent going from field to field.

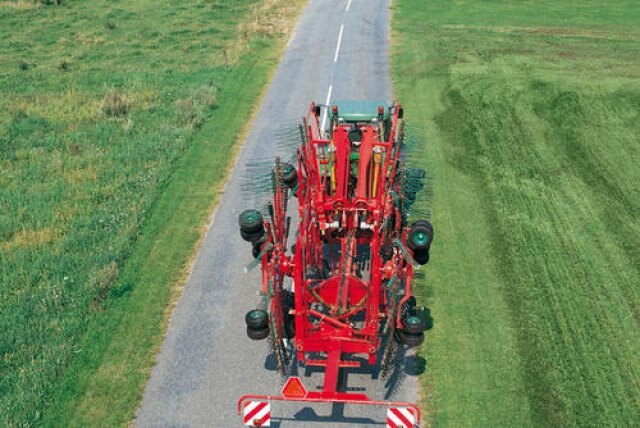

  • During transport the height of the machines  is below 4 m, without removing the tines. Transport width with detached tine arms is only 3.45 m.
  • Conversion from transport to working position is very fast, and is carried out from the tractor cab.

Optimal Ground Pressure

Hydraulic ground pressure control means constant and adjustable pressure on the rotors regardless of their position on the carrier frame.

Free mobililty in three planes combined with six steered twin wheels per rotor give each rake head perfect ground following ability for the cleanest possible raking performance.

Each rotor can be independently set for height by using the hydraulic system.

ISOBUS Control

  • The 95150 C is fully Isobus compatible and available with the Focus or IsoMatch Tellus control terminals.
  • The Focus terminal is an easy to learn and very intuitive control terminal with focus on functionality and operating simplicity.
  • The IsoMatch Tellus is the new virtual terminal, offering 2 interface screens in 1 terminal. The large 12” easily programmable touch screen offers ergonomic use.



Specifications
Model
Taarup 95150 C
Category Name
Agriculture
Year
2015
Sale Type
New
Manufacturer
Kverneland
