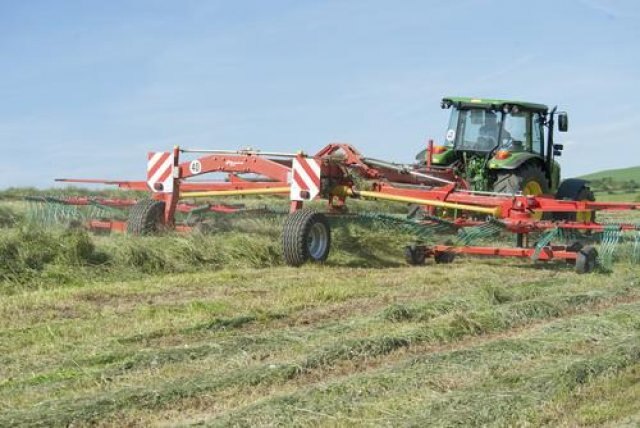

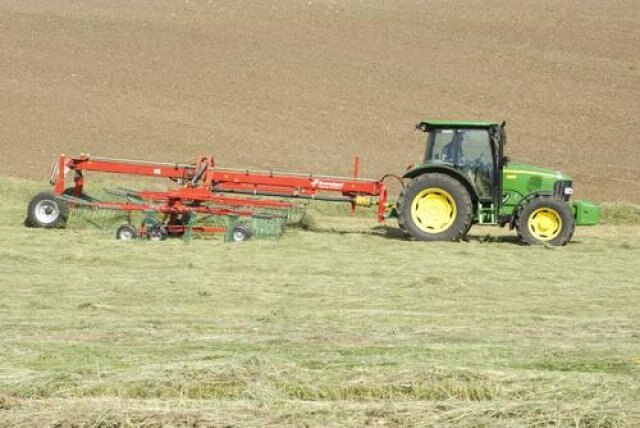

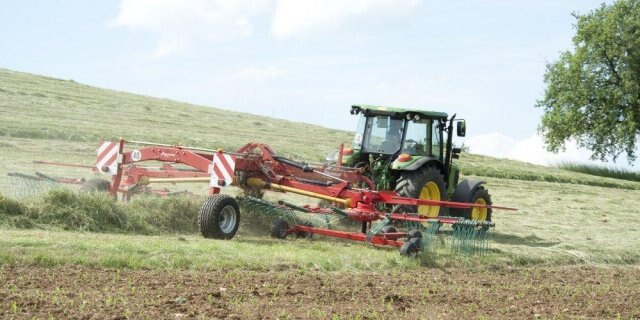

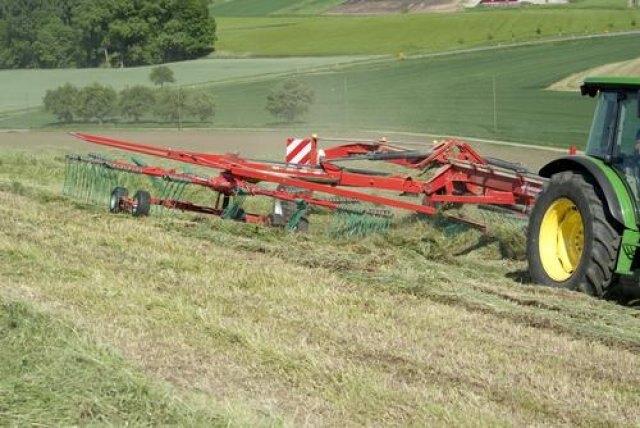

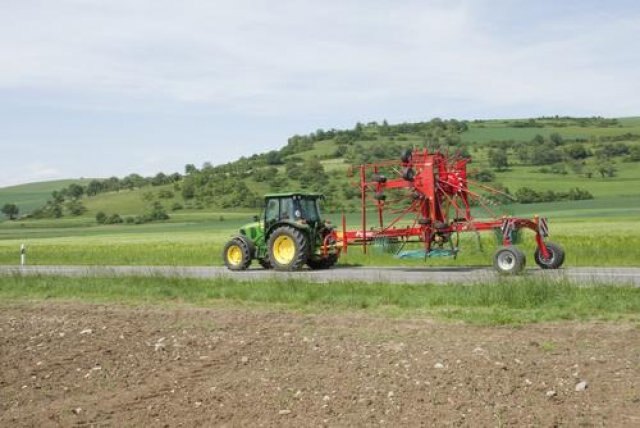

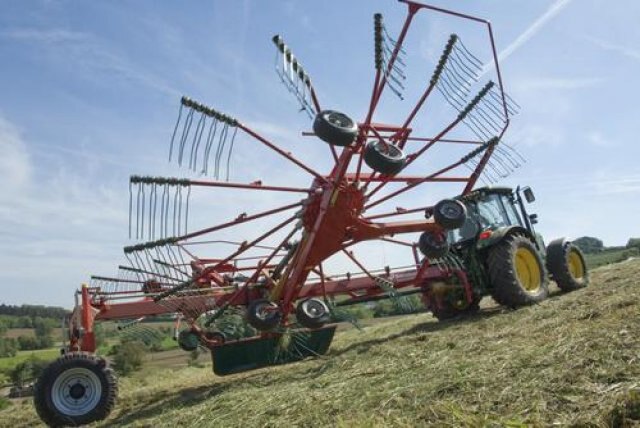

The Kverneland Taarup 95110 C is a twin rotor rake with 10.60 m working width for the high performance segment, normally covered by more expensive four rotor rakes. 95110 C offers easy operation, excellent manoeuvrability and a heavy duty design. Despite the working width of 10.60 m, the rake is still very compact, something very convenient when working in smaller fields. Working widths of 10.9m
The Advantages:
ProLine oilbath gear box.
TerraLink Quattro for perfect ground followings
Hydraulic adjustment of working width width between 30'6" and 34'9" (9.3 and 10.6m).
Hydraulic height adjustment of the rotors.
Active wheel steering, allowing sharp turns on headlands and during transport.
Electronic control of main functions.
Technical Specifications
Working Width
No. of Tine Arms
Weight
91110 C
30'6" - 34'9" (9.30 - 10.60m)
2x15
6316 lbs (2865kg)
Highlights
ProLine Gearbox
The ProLine rakes feature a unique drive system which comprises oil-immersed pinion and crown wheels.
The fully enclosed design ensures full and permanent lubrication, and makes the entire system absolutely maintenance-free.
The hardened cam track is adjustable, and features a flat curve and an extremely large 400mm diameter, providing positive guidance to the steel rollers, and promoting quiet machine running.
Aluminium bearing housings, with two integral ball bearings and wide support, provide solid and maintenance-free tine arm mounting.
Electronic Control Box
The handy control box, placed in the tractor cab, controls the main functions needed during work.
Lift and height adjustment of rotors can be done individually.
Adjustment of working width and swath width.
Transport locking device.
All functions can be pre-selected and then executed by operating the valve on the tractor.
TerraLink Quattro
Kverneland rotary rakes are designed to do well-shaped and clean swaths, achieved by precision in every part of the raking.
The ground contour following ability is important to avoid dirt in the swath - especially in uneven field conditions.
The TerraLink Quattro system controls the rotor in 3 dimensions, with a unique combination of an undercarriage with 4 wheels and a specially designed rotor suspension system. This ensures superb raking performance, even at higher forward speeds.
Maintenance-free system - no pivots or joints to wear out.
