ID # 13332308

Kverneland Taarup 9578 C – 9584 C

  • Kverneland Taarup 9578 C – 9584 C
  • Kverneland Taarup 9578 C – 9584 C
  • Kverneland Taarup 9578 C – 9584 C
  • Kverneland Taarup 9578 C – 9584 C
  • Kverneland Taarup 9578 C – 9584 C
  • Kverneland Taarup 9578 C – 9584 C
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

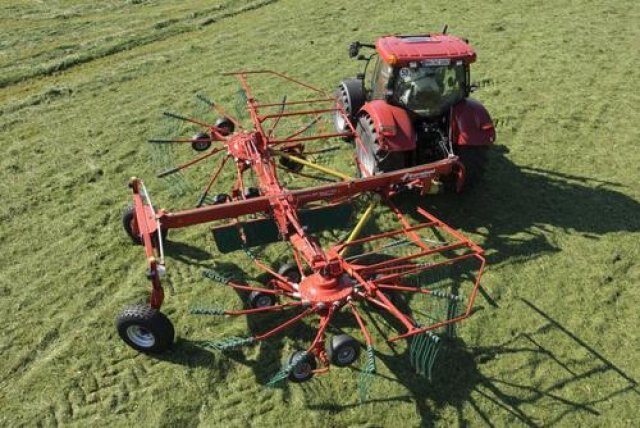

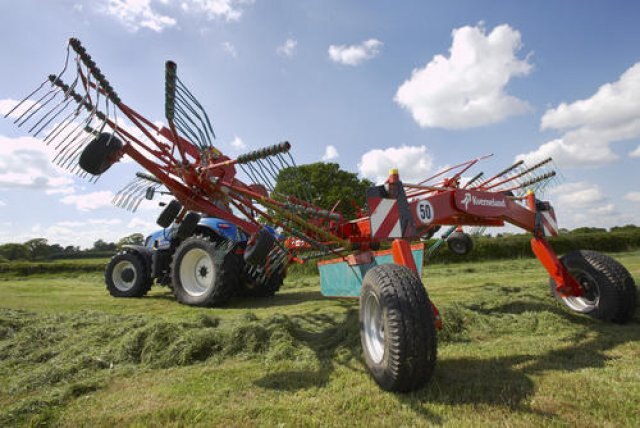

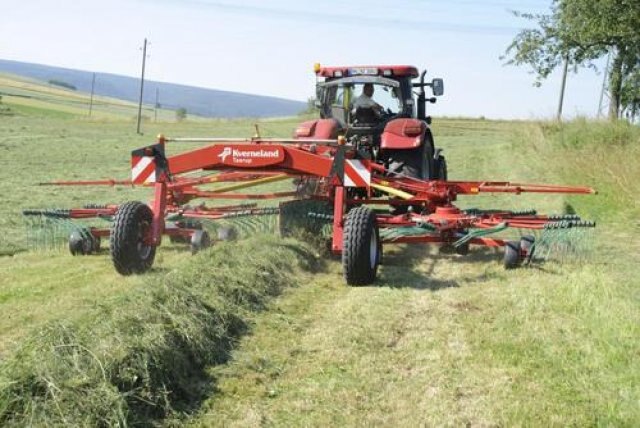

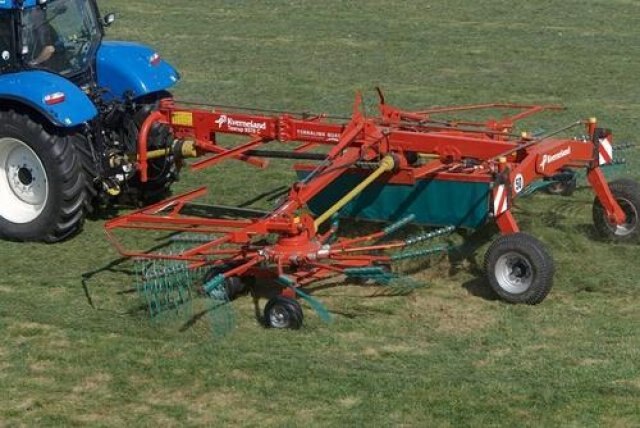

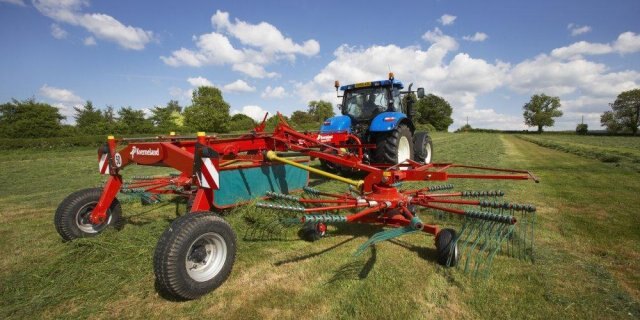

Heavy Duty Centre Swath Rakes

The new Kverneland Taarup 9578 C and 9584 C are heavy duty two-rotor rakes with working widths up to 25'8" and 27'7"(7.8 and 8.4 m). They are designed for the toughest conditions and feature a high performance oil-bath gearbox and a strong carrier frame. The hydraulically adjustable working and swath width and ability to make sharp turns of up to 80° are important features of the Kverneland Taarup 9578 C and 9584 C.
 The Advantages:
  • Working widths of 25'8" and 27'7" (7.8 and 8.4m).
  • ProLine oilbath gearbox.
  • TerraLink Quattro for perfect ground followings
  • Hydraulically adjustable working width between 25' - 27'7" (7.6-8.4m) (9578 C: 23' 25'8" (7.0-7.8m)).
  • Active wheel steering with 80° turning angle for easy manoeuvrability.
Technical Specifications
  Working Width Tine Arms Weight
9578 C 23' - 25'8" (7.00 - 7.80m) 2x11 3858 lbs (1750kg)
9584 C 25' - 27'7" (7.60 - 8.40m) 2x12 4080 lbs (1850kg)
Highlights

ProLine Gearbox

Kverneland 9000 Series ProLine Rotor
  • The ProLine rakes feature a unique drive system which comprises oil-immersed pinion and crown wheels.
  • The fully enclosed design ensures full and permanent lubrication, and makes the entire system absolutely maintenance-free.
  • The hardened cam track is adjustable, and features a flat curve and an extremely large 400mm diameter, providing positive guidance to the steel rollers, and promoting quiet machine running.
  • Aluminium bearing housings, with two integral ball bearings and wide support, provide solid and maintenance-free tine arm mounting.

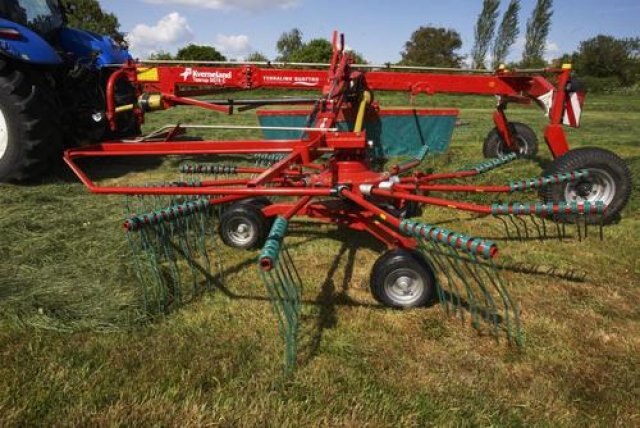

TerraLink Quattro

KV_9472 C_0012.jpg
  • Kverneland rotary rakes are designed to do well-shaped and clean swaths, achieved by precision in every part of the raking.
  • The ground contour following ability is important to avoid dirt in the swath - especially in uneven field conditions.
  • The TerraLink Quattro system controls the rotor in 3 dimensions, with a unique combination of an undercarriage with 4 wheels and a specially designed rotor suspension system. This ensures superb raking performance, even at higher forward speeds.
  • Maintenance-free system - no pivots or joints to wear out.
  • Automatic rotor suspension, ensuring smooth operation.
  • Built-in pressure bias on front wheels prevents lifting and tine bounce.
  • Optimum ground following for clean raking at high forward speeds. All wheels are positioned close to the tines.

Manoueuvrability

  • The rear carrier frame with controlled steering facility allows tight turns on headlands and loss free swathing, even in awkwardly shaped fields.
  • Even if the rotors are lifted on a steep slope, the steering system reliably counteracts any deviation.
  • The ability to make sharp turns up to 80° and the cross stabilizer in the headstock are unique Kverneland features.

Hydraulically Adjustable Working Width

KV_9472 C_0011.jpg
  • The Kverneland Taarup centre swath rakes offer hydraulic adjustable working width.
  • This enables varying swath width, ensuring a perfect match to the pick up width of loader wagons, balers and foragers.
  Working Width Swath Width
9472 C 6.20 - 7.20m 1.20 - 2.20m
9476 C 7.00 - 7.80m 1.20 - 2.20m
9578 C 7.00 - 7.80m 1.20 - 2.20m
9584 C 7.60 - 8.40m 1.30 - 2.10m
9590 C Hydro 8.00 - 9.00m 1.20 - 2.20m
95110 C 9.30 - 11.00m 1.40 - 3.10m



Specifications
Model
Taarup 9578 C – 9584 C
Category Name
Agriculture
Year
2015
Sale Type
New
Manufacturer
Kverneland
