Kverneland Taarup 9472 C – 9476 C

  • Kverneland Taarup 9472 C – 9476 C
  • Kverneland Taarup 9472 C – 9476 C
  • Kverneland Taarup 9472 C – 9476 C
  • Kverneland Taarup 9472 C – 9476 C
  • Kverneland Taarup 9472 C – 9476 C
  • Kverneland Taarup 9472 C – 9476 C
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Cost Effective High Performance Rakes

Kverneland Taarup offers two cost-effective two rotor rakes with strong frames. The rakes produce a nice even centre swath from raking widths of between 20'4" and 25'8" (6.2 and 7.8m). They are mounted on a strong and stable frame, to ensure long lifetime. Features such as actively steered wheels, the TerraLink Quattro system and hydraulically raised rotors are standard.
 The Advantages:
  • Working widths of 24' and 25'8"(7.3 and 7.8m)
  • CompactLine maintenance-friendly gearbox.
  • TerraLink Quattro for perfect ground followings
  • Hydraulic adjustable working width.
  • Active wheel steering with 80° turning angle for easy manoeuvrability.
  • 9472 C Hydro provides a transport height as low as 11'3" (3.45m), even without removing the tine arms
Technical Specifications
  Working Width No of Tines per Rotor Weight
9472 C 20'4" - 24' (6.20 - 7.30m) 2x11 3571 lbs (1620kg)
9476 C 23' - 28'8" (7.00 - 7.80m) 2x11 3638 lbs (1640kg)
Highlights

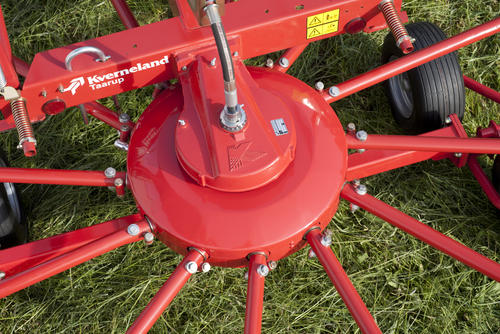

CompactLine Gearbox

KV 9443 0003
  • The Kverneland CompactLine rakes feature oil-immersed cam discs and guide rollers.
  • Tine arm bearings are fully lubricated, and hence absolutely maintenance-free.
  • High-tensile tine arm holders and two bearings on either side of the driveshaft, provide the compact unit with strength and dependability.
  • Kverneland-developed cam tracks are specifically tailored to individual rotor diameters, for optimum raking at any working width and on any model.

TerraLink Quattro

KV_9472 C_0012.jpg
  • Kverneland rotary rakes are designed to do well-shaped and clean swaths, achieved by precision in every part of the raking.
  • The ground contour following ability is important to avoid dirt in the swath - especially in uneven field conditions.
  • The TerraLink Quattro system controls the rotor in 3 dimensions, with a unique combination of an undercarriage with 4 wheels and a specially designed rotor suspension system. This ensures superb raking performance, even at higher forward speeds.
  • Maintenance-free system - no pivots or joints to wear out.
  • Automatic rotor suspension, ensuring smooth operation.
  • Built-in pressure bias on front wheels prevents lifting and tine bounce.
  • Optimum ground following for clean raking at high forward speeds. All wheels are positioned close to the tines.

Manoueuvrability

  • The rear carrier frame with controlled steering facility allows tight turns on headlands and loss free swathing, even in awkwardly shaped fields.
  • Even if the rotors are lifted on a steep slope, the steering system reliably counteracts any deviation.
  • The ability to make sharp turns up to 80° and the cross stabilizer in the headstock are unique Kverneland features.

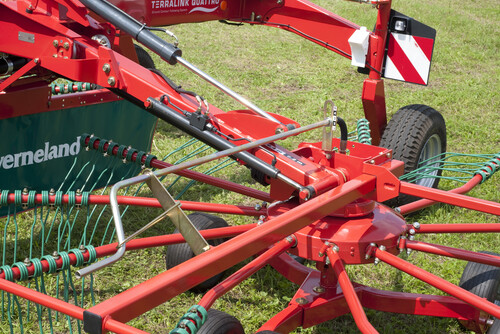

Hydraulically Adjustable Working Width

KV_9472 C_0011.jpg
  • The Kverneland Taarup centre swath rakes offer hydraulic adjustable working width.
  • This enables varying swath width, ensuring a perfect match to the pick up width of loader wagons, balers and foragers.
  Working Width Swath Width
9472 C 6.20 - 7.20m 1.20 - 2.20m
9476 C 7.00 - 7.80m 1.20 - 2.20m
9578 C 7.00 - 7.80m 1.20 - 2.20m
9584 C 7.60 - 8.40m 1.30 - 2.10m
9590 C Hydro 8.00 - 9.00m 1.20 - 2.20m
95110 C 9.30 - 11.00m 1.40 - 3.10m



Specifications
Model
Taarup 9472 C – 9476 C
Category Name
Agriculture
Year
2015
Sale Type
New
Manufacturer
Kverneland
