Overview

Compact Effectiveness

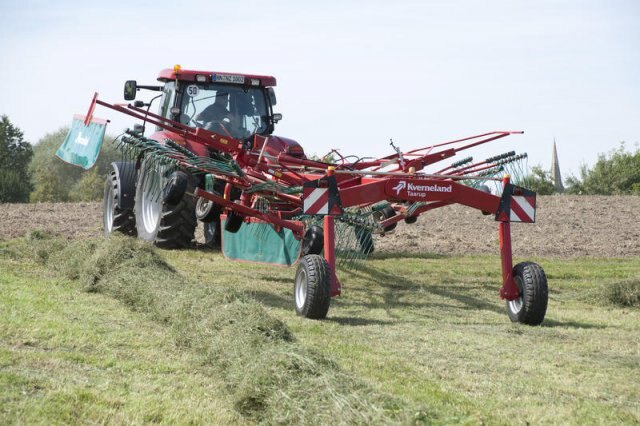

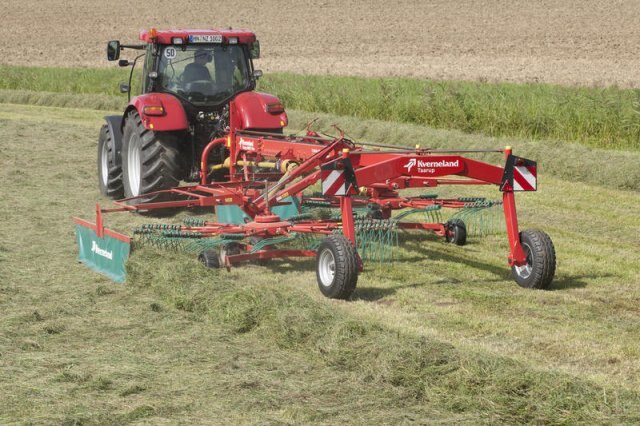

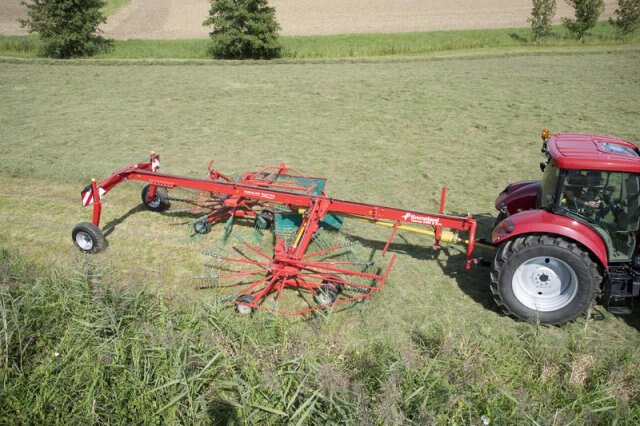

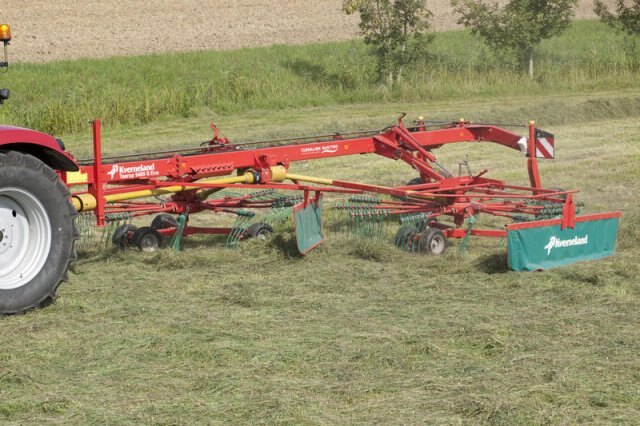

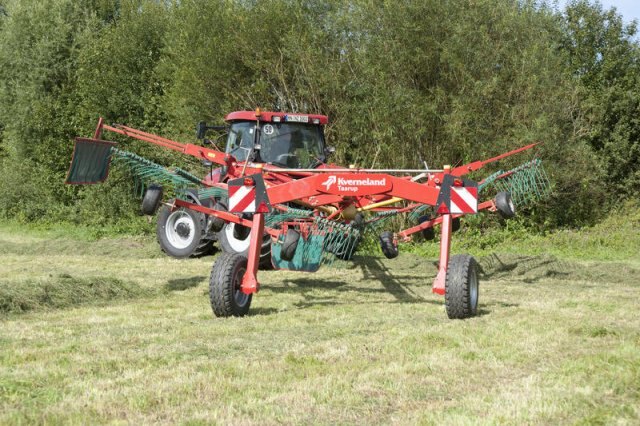

These compact and nimble side delivery rakes feature a sturdy frame and the wellproven TerraLink Quattro ground-following system. With a working width of 22'8" (6.90m), the machines rake up double swaths of up to 43'3" (13.20 m). The VARIO execution offers additionally the possibility of raking up two separate swaths along each of the individual rotors, whereas the EVO Model can do one swath to the side.
 The Advantages:
  • 9469 S EVO working width of 22'8" (6.9m).
  • 9469 S VARIO with working widths of 22'8" or 25'3" (6.9 or 7.7m).
  • VARIO execution with the option of placing two smaller swaths (25'3" working width).
  • CompactLine maintenance-friendly gearbox.
  • TerraLink Quattro for perfect ground followings.
  • Active wheel steering with 80° turning angle for easy manoeuvrability.
  • Generous overlapping of the two rotors leaving no crop behind.
Technical Specifications
  Working Width No of Tine Arms Weight
9469 S EVO 22'8" (6.90m) 11/12 3748 lbs (1700kg)
9469 S VARIO 22'8"/25'3" (6.90/7.70m) 11/12 4189 lbs (1900kg)
Highlights

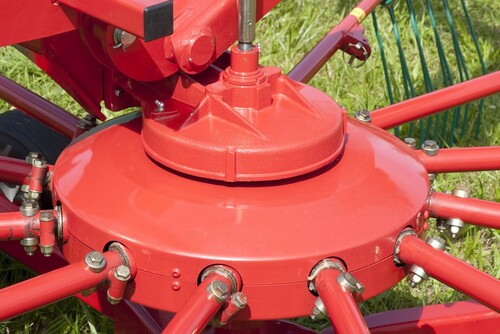

CompactLine Gearbox

KV_9469S EVO_0030.jpg
  • The Kverneland CompactLine rakes feature oil-immersed cam discs and guide rollers.
  • Tine arm bearings are fully lubricated, and hence absolutely maintenance-free.
  • High-tensile tine arm holders and two bearings on either side of the driveshaft, provide the compact unit with strength and dependability.
  • Kverneland-developed cam tracks are specifically tailored to individual rotor diameters, for optimum raking at any working width and on any model.

Manoueuvrability

  • The rear carrier frame with controlled steering facility allows tight turns on headlands and loss free swathing, even in awkwardly shaped fields.
  • Even if the rotors are lifted on a steep slope, the steering system reliably counteracts any deviation.
  • The ability to make sharp turns up to 80° and the cross stabilizer in the headstock are unique Kverneland features.

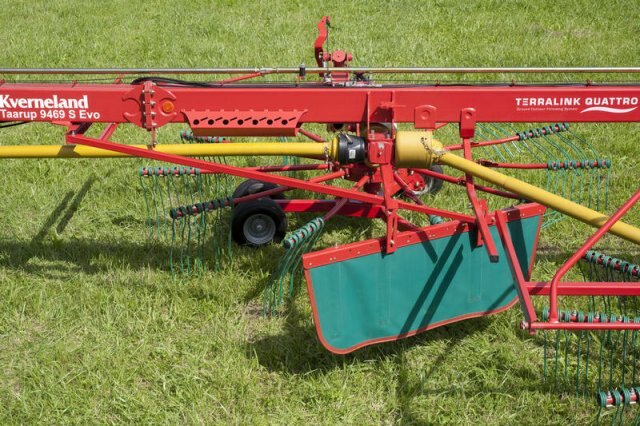

TerraLink Quattro

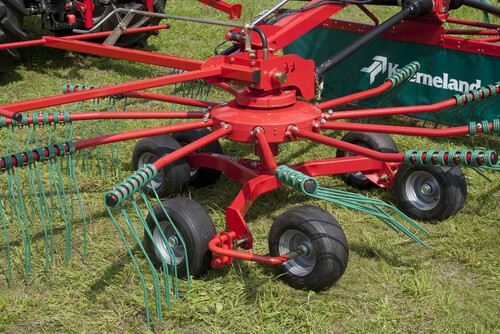

KV_9472 C_0012.jpg
  • Kverneland rotary rakes are designed to do well-shaped and clean swaths, achieved by precision in every part of the raking.
  • The ground contour following ability is important to avoid dirt in the swath - especially in uneven field conditions.
  • The TerraLink Quattro system controls the rotor in 3 dimensions, with a unique combination of an undercarriage with 4 wheels and a specially designed rotor suspension system. This ensures superb raking performance, even at higher forward speeds.
  • Maintenance-free system - no pivots or joints to wear out.
  • Automatic rotor suspension, ensuring smooth operation.
  • Built-in pressure bias on front wheels prevents lifting and tine bounce.
  • Optimum ground following for clean raking at high forward speeds. All wheels are positioned close to the tines.



Specifications
Model
Taarup 9469 S VARIO – 9469 S EVO
Category Name
Agriculture
Year
2015
Sale Type
New
Manufacturer
Kverneland
