Legend 16 WideBody

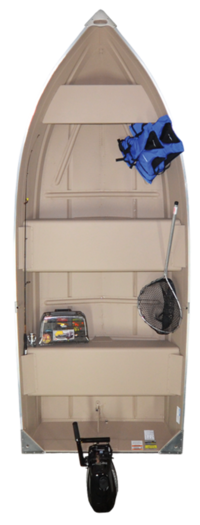

Listing image Listing image Listing image Listing image
Specifications

Model 16 WideBody Category Name Watercraft Year 2014
Sale Type New Manufacturer Legend Bottom Width 56″
Transom Height 15″/20″ Centerline Length 16’2″ Beam 68″
Hull Depth 20″ Inside Depth 20″ Aluminum Thickness 0.1
Maximum Horsepower 40 Maximum Capacity 1100 lbs. Hull Weight 290 lbs.
Full-width Benches – 2 Package Length 18’4″ Package Width 70″
Towing Weight 1092 lbs. Price Contact for price CAD
Description

  Features
Three Row  Spike Drag Harrow
Full-Length Deep-V Hull with Squared Chines

The deep V provides a smooth and comfortable ride while the square chines keep the hull stable so you can move around without it feeling tippy.
Three Row  Spike Drag Harrow

Raised full-width benches

The Ultralite features raised benches for maximum comfort for that all day fishing trip.
Three Row  Spike Drag Harrow

Full-Length Molded Splash Rail

Water is deflected away from the boat interior, providing a dry, comfortable ride. Fishing lines are able to slide along the hull edge smoothly unlike in hull designs where this rail is riveted on.

Three Row  Spike Drag Harrow

Grab and Lift Mooring Handles

Cast aluminum bow and corner caps with integrated grab, lift and mooring handles


  Construction
  • 100 gauge super-thick one-piece aluminum seamless hull bottom
  • Wave-slicing deep-V hull with hard chines and extra-wide bottom
  • Multiple .100 gauge bow ribs for maximum strength
  • .100 gauge full-width bottom ribs
  • 3 full-length .100 gauge keels
  • Full-length molded splash rails
  • Heavy-duty transom knee brace
  • Aluminum bow and corner caps with integrated grab and mooring handles
  • Stainless steel bow eye or lift handle
  • Stainless steel transom eyes or lift handles
  • EZ-grip gunnel
  • Oar locks
  • Level foam floatation
  • Anti-glare and slip-resistant non-skid interior paint
  • High-gloss oven-cured urethane exterior paint
  • 3M highly reflective safety striping
