ID # 14629237

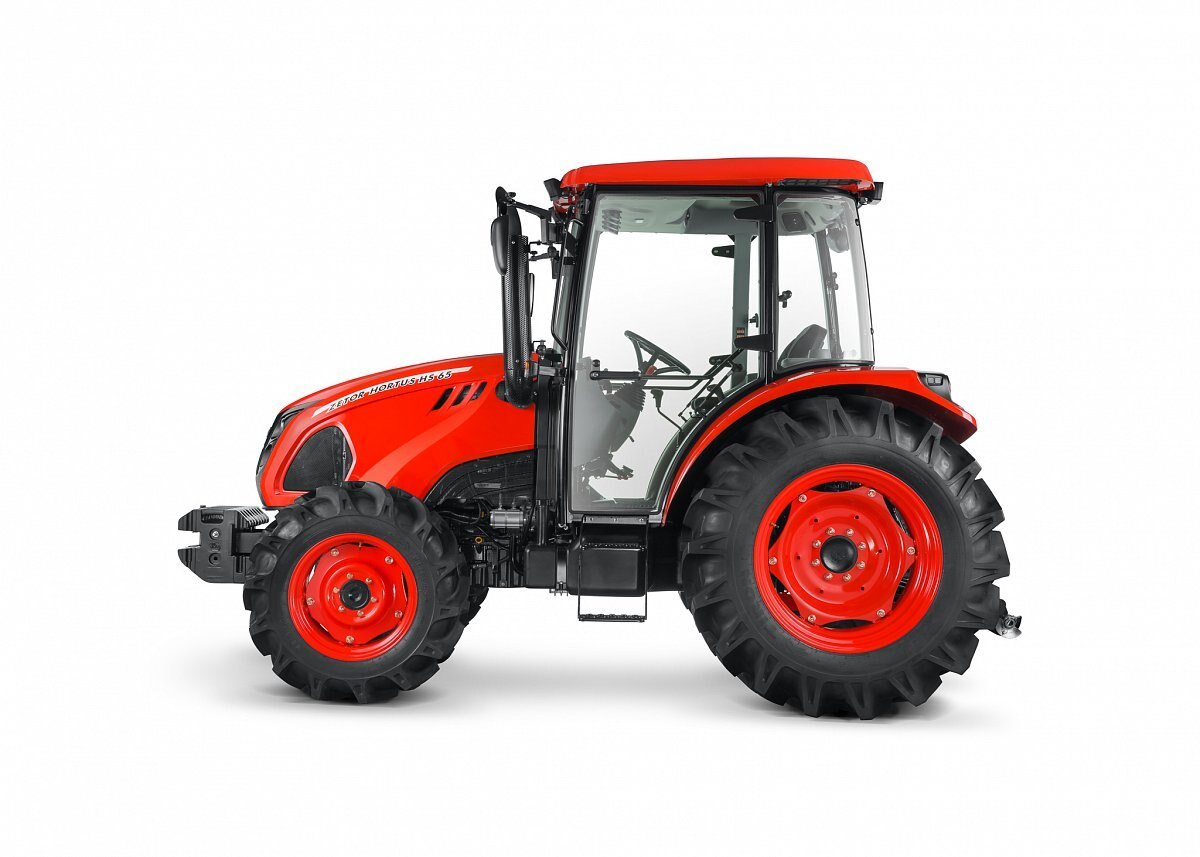

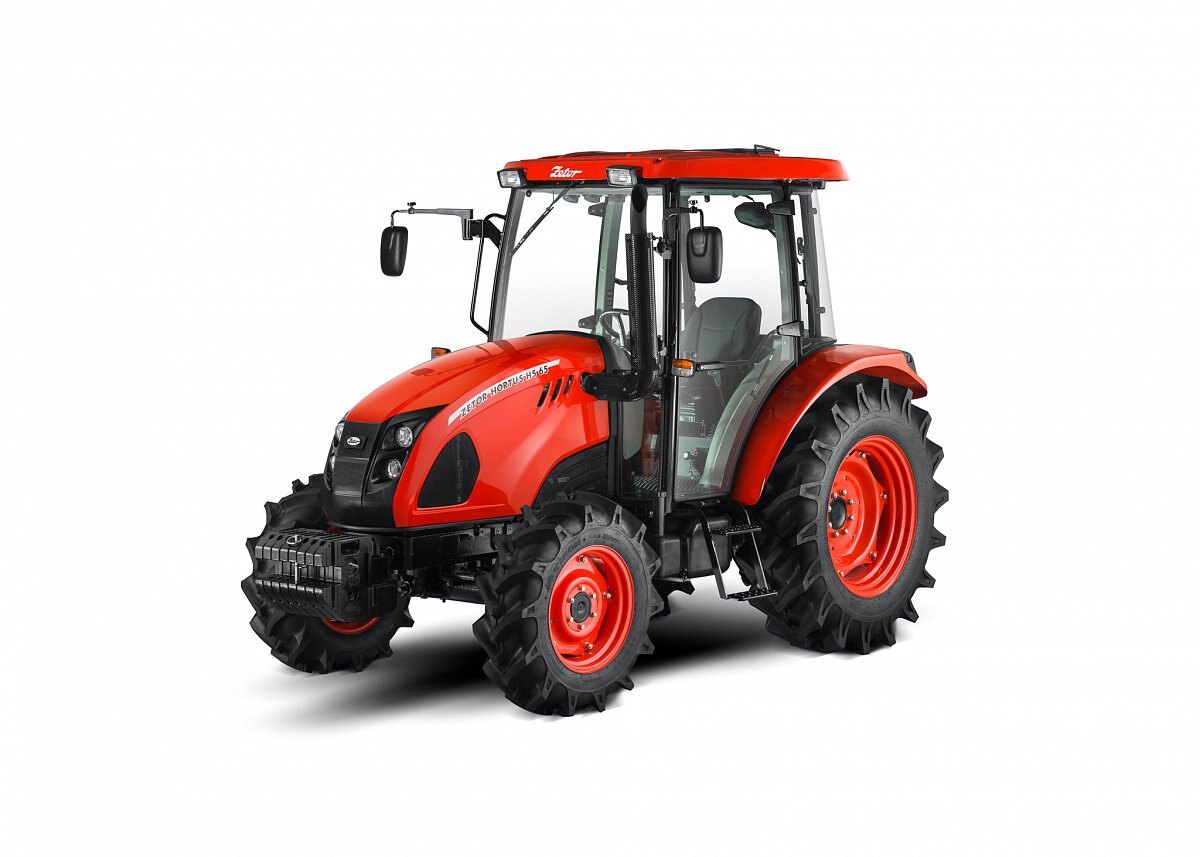

Zetor Hortus

  • Zetor Hortus
  • Zetor Hortus
  • Zetor Hortus
  • Zetor Hortus
  • Zetor Hortus
  • Zetor Hortus
  • Zetor Hortus
  • Zetor Hortus
  • Zetor Hortus
  • Zetor Hortus
  • Zetor Hortus
  • Zetor Hortus
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Power

Zetor Hortus are compact and universal tractors equipped with powerful and economical engines which, together with optimum weight of the tractor, guarantee high power under all conditions.

Robustness

Zetor Hortus models have been designed to offer maximum reliability and meet strict requirements while providing long durability of the tractor.

Effectiveness

The combination of excellent manoeuvrability, low fuel consumption and affordable prices of service make Zetor Hortus tractors effective and universal machines.


Hortus tractors

New Zetor Hortus represents utility tractor which is ideal for Work at small farms, municipality, parks and gardens, sport Facilities and for many other purposes.

 Features
Zetor utilix motor

ENGINE
Well-tried with low consumption

Zetor Hortus is able to fully use its power thanks to the best possible combination of the engine performance and weight. The engine with the power of 67 HP with Common Rail injection system is outstanding for its low fuel consumption, reliability and simple construction. With a 70 liter tank, the Hortus is ready for many hours of use on the field before the next refuel.

TRANSMISSION
Zetor Hortus p?evodovka

High endurance and long life

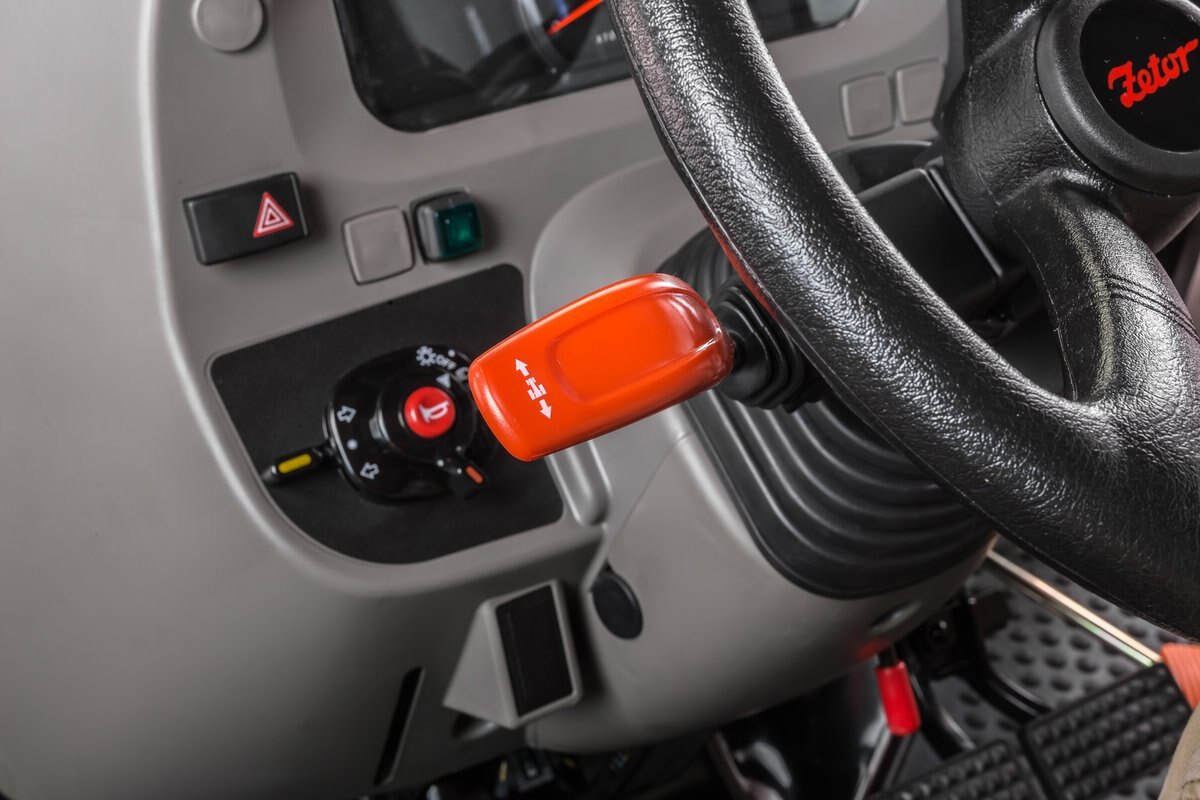

Hortus transmission offers 4 main speeds and 3 ranges with an additional creeper gear for a total of 24 forward and 24 reverse speeds, enabling you to select the right speed for your work needs. Hortus CL offers mechanical reverser, Hortus HS is equipped with hydraulic reverser (Power-Shuttle), which brings better comfort for your daily work.

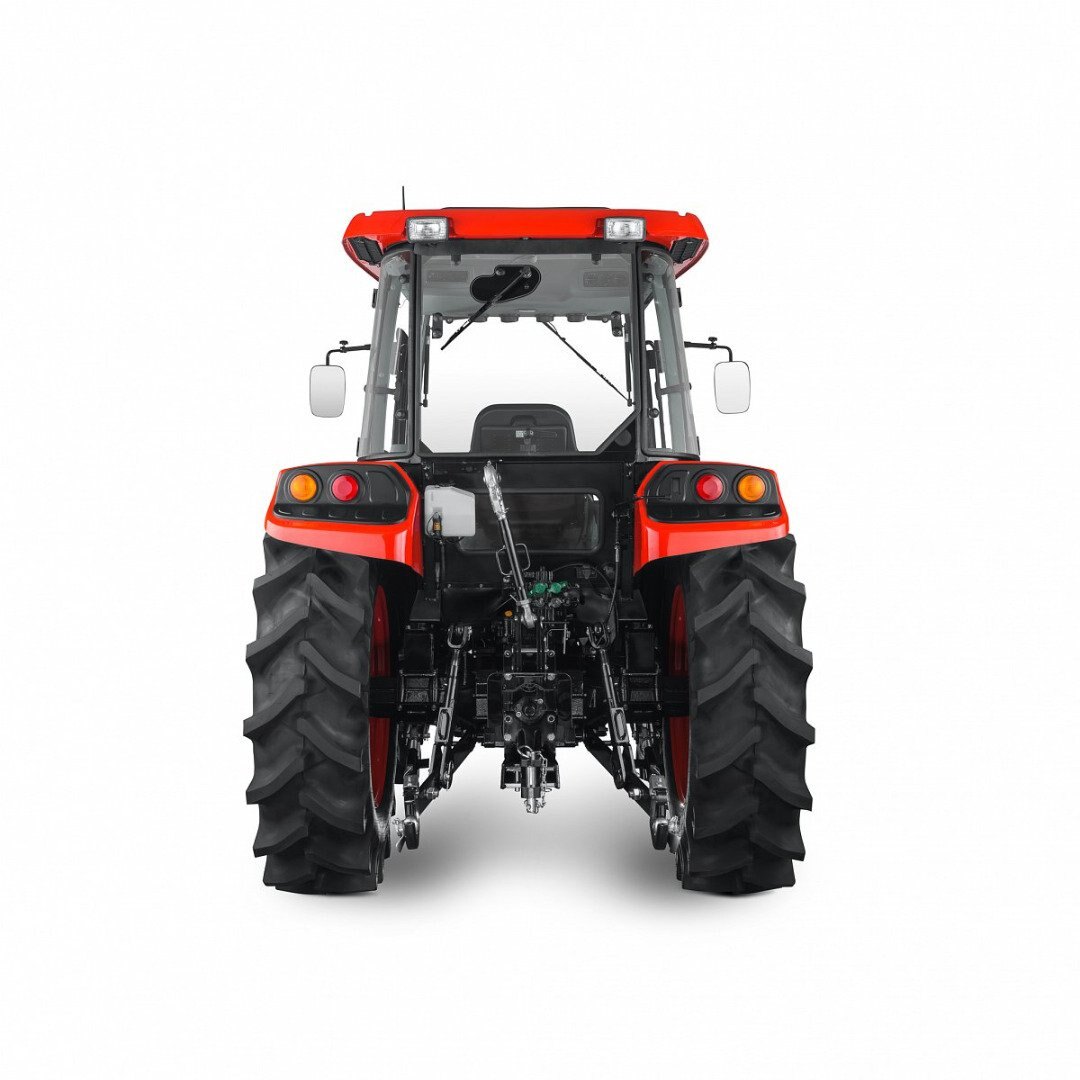

Zetor utilix hydraulika HYDRAULICS AND 3-POINT HITCH

Reliable operation in all directions

Category II hitches with a hitch lift capacity of 1,937 kg and two standard rear remote valves allow Hortus to be equipped with a various assortment of rear implements.
Zetor utilix Kabina

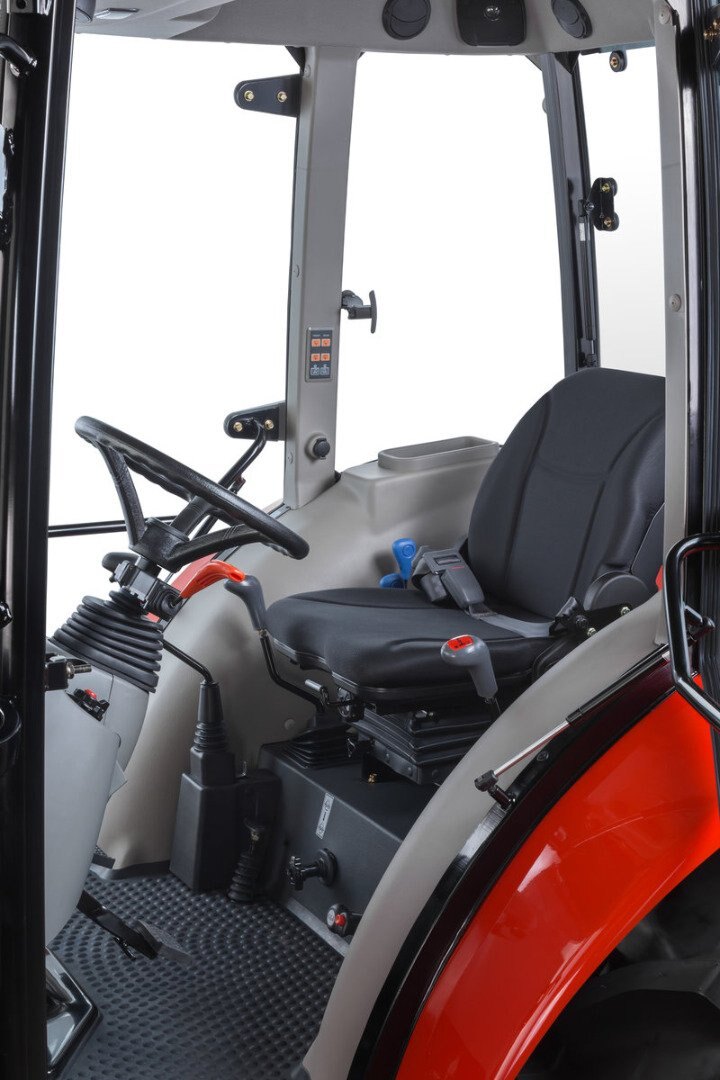

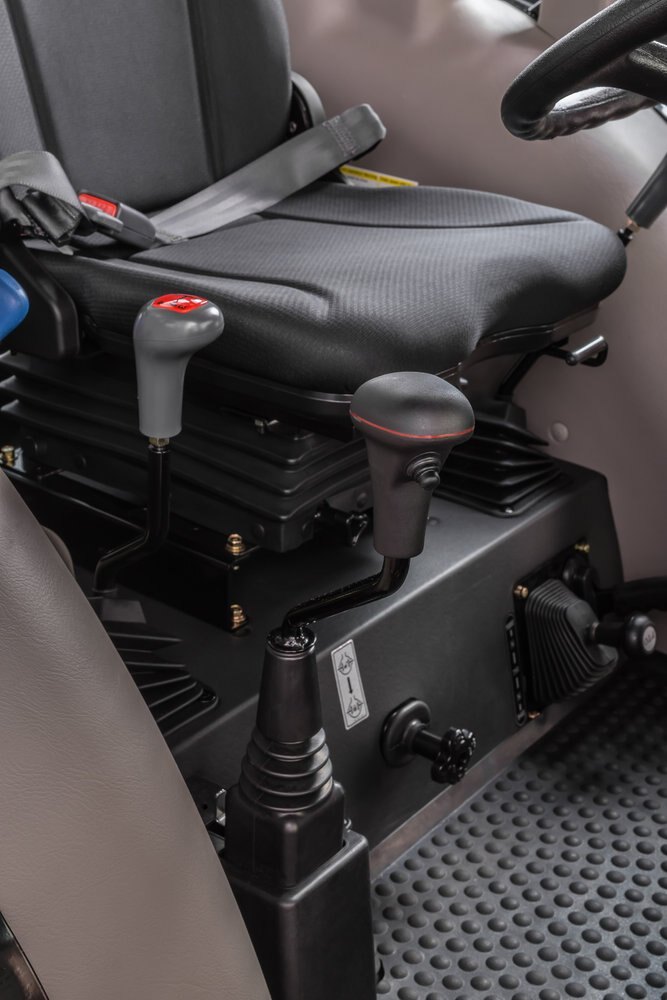

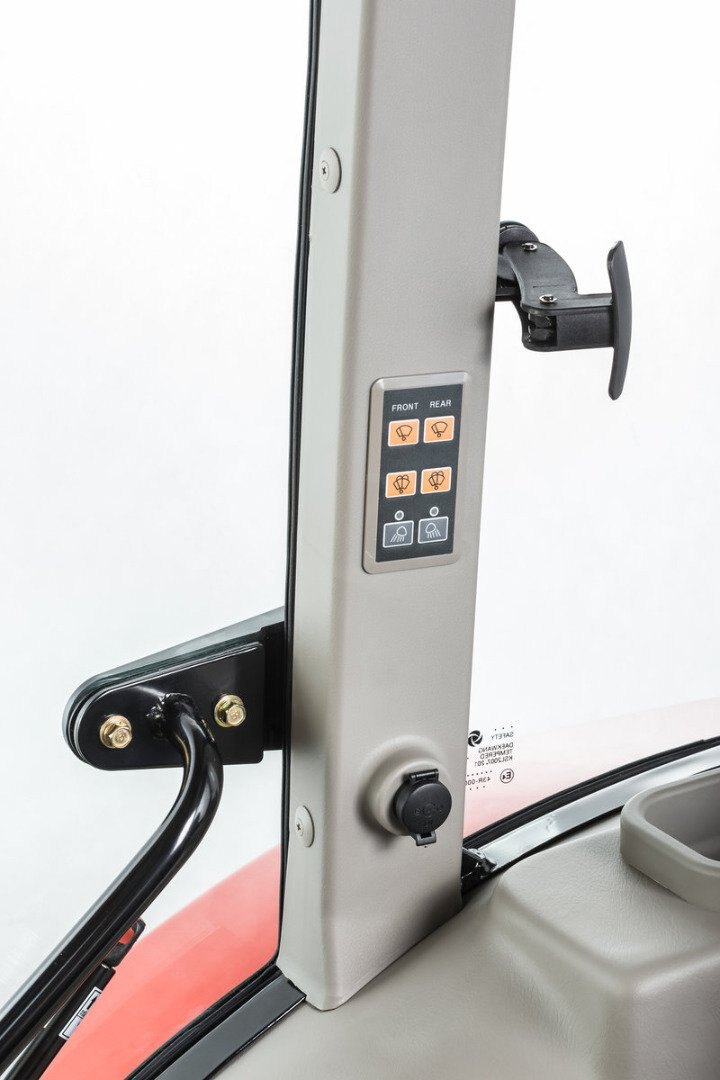

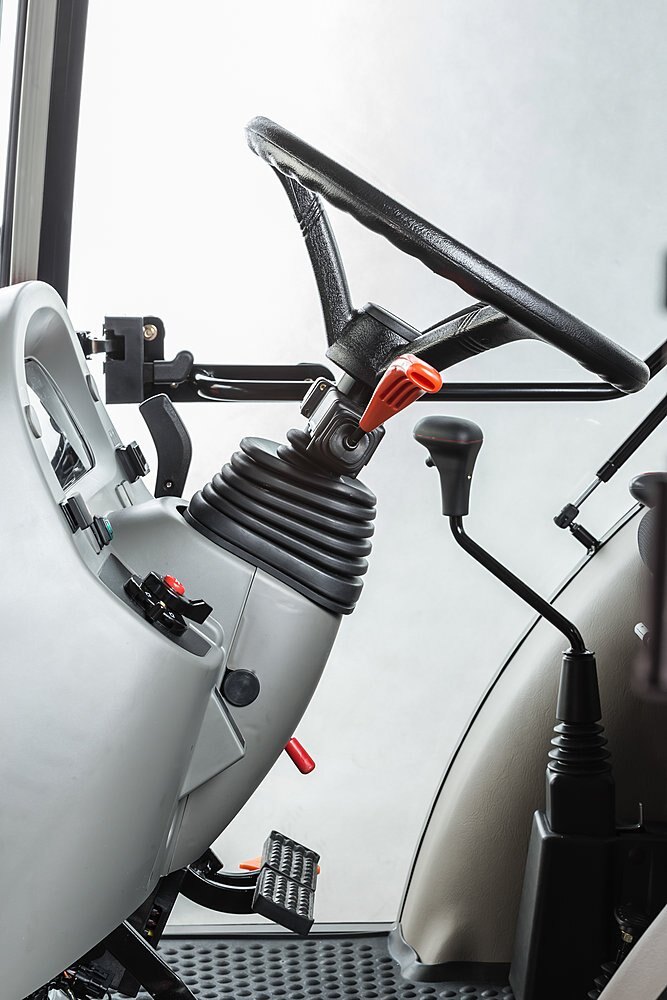

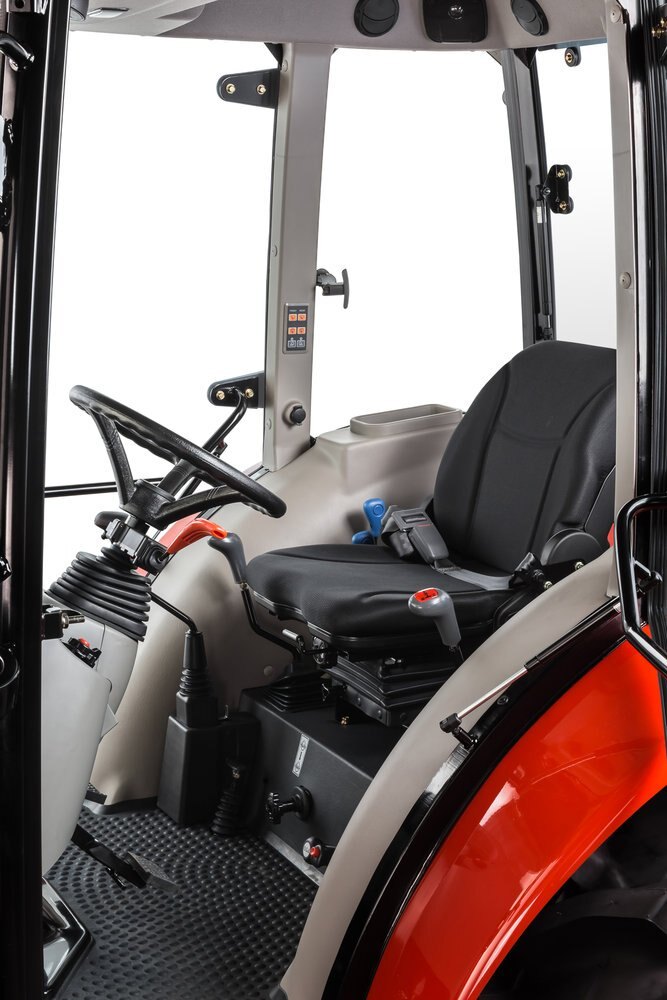

COMFORTABLE CABIN
Driver comfort

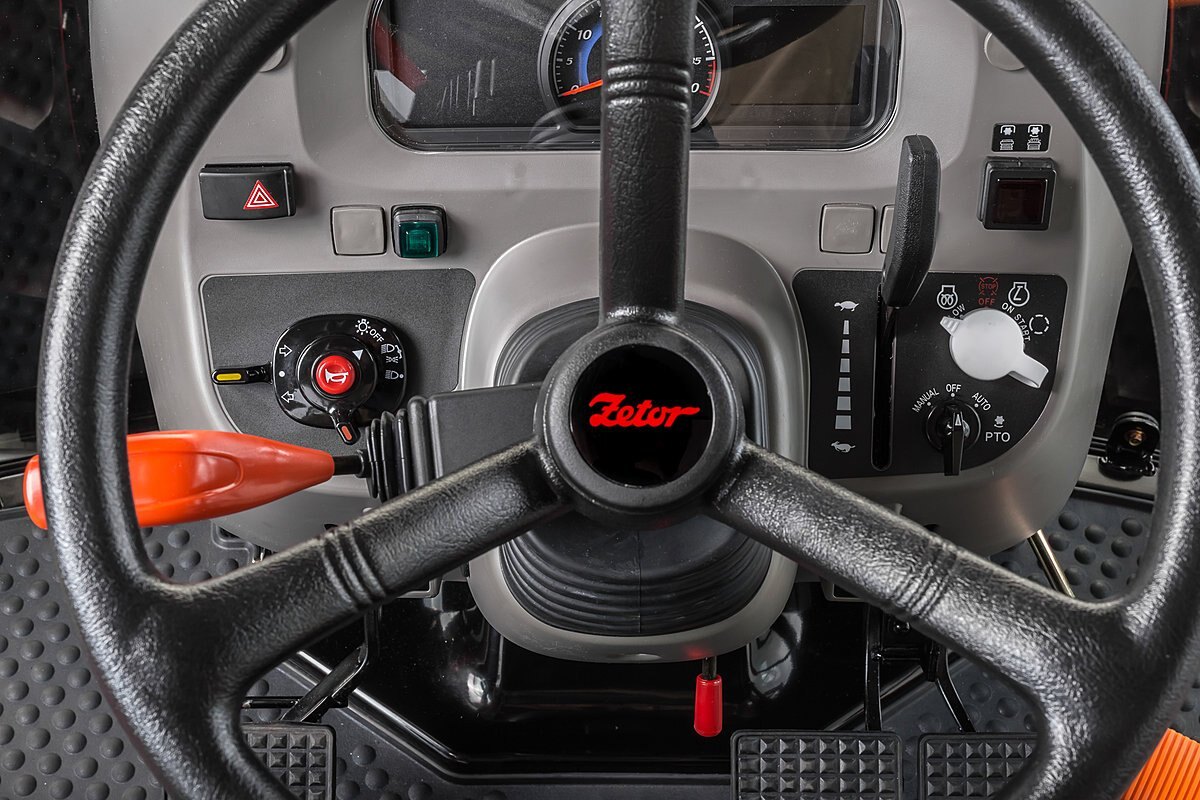

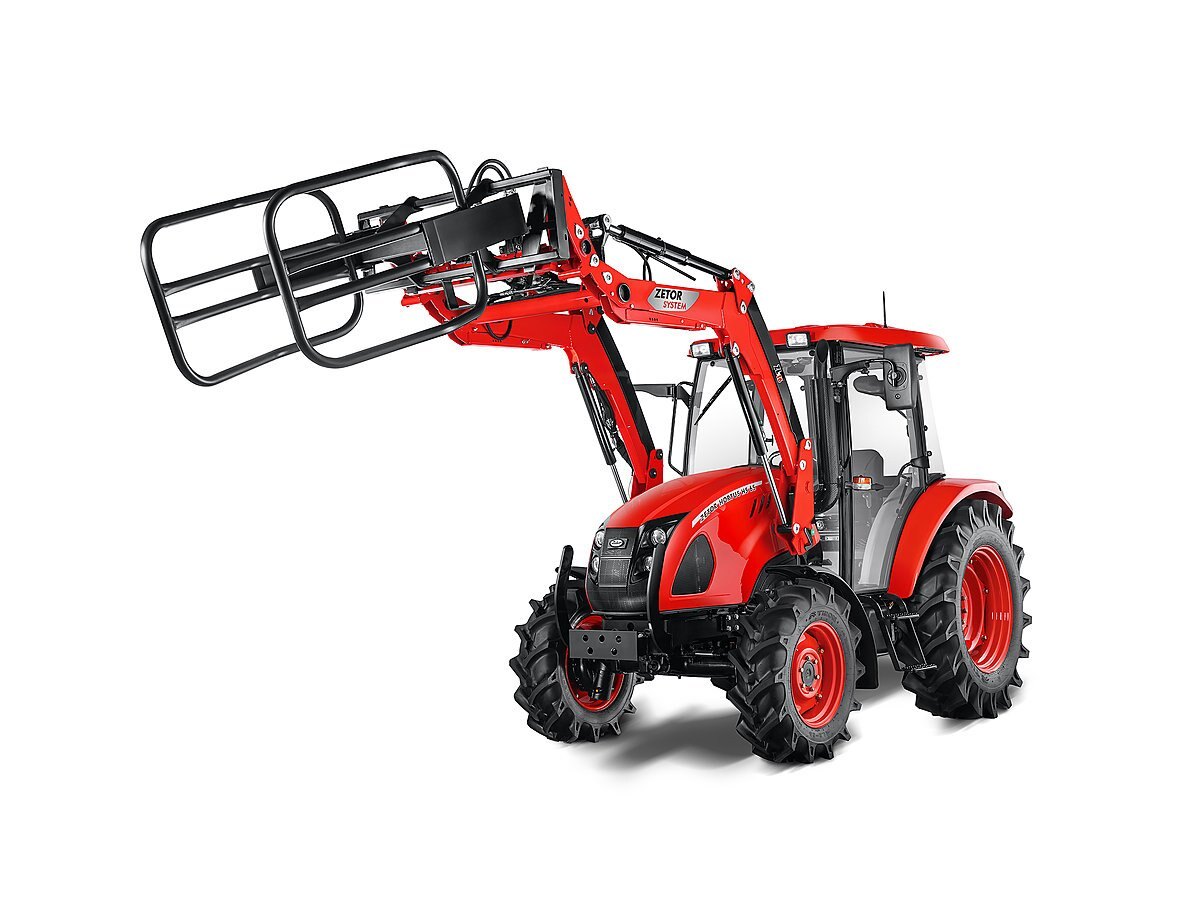

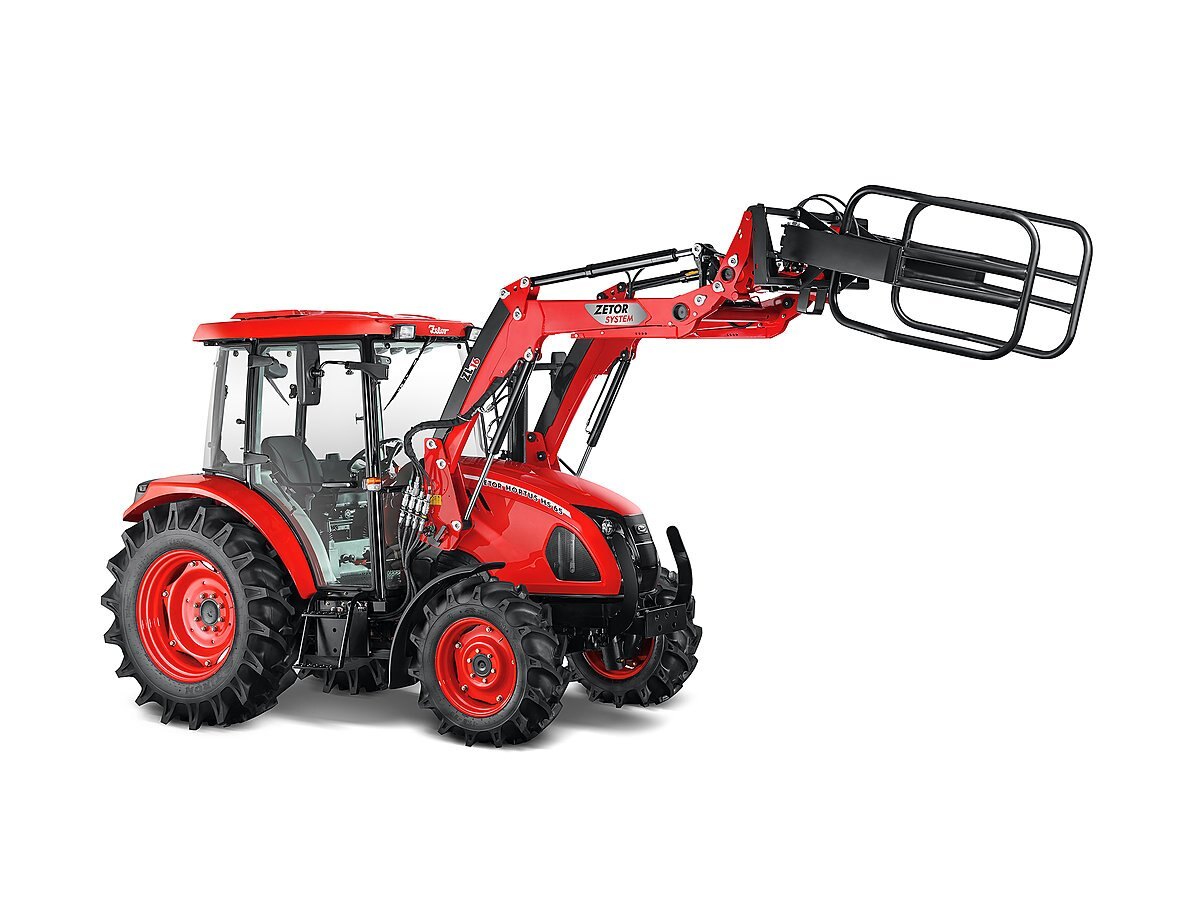

The cabin is both spacious and ergonomic with conveniently located levers, joysticks, and controls. The cabin is equipped with air condition. The digital instrument panel provides a clear display for reported signals, gas usage, as well as speed (rpm). The suspended seat keeps the operator vibrations to a minimum, while providing a comfortable and spacious seating area. Get the full functionality out of your front end loader with an easy to use, conveniently located joystick.
 Specs
MODEL Hortus cl 65 hortus hs 65
ENGINE
Engine type Deutz TCD 2.9 L4
Power (kW) 50
Power (HP) 67
Power PTO (kW / HP) 46.1 / 61.9
Rated Engine Speed 2 200
Number of Cylinders 4
Displacement (cm3) 2 900
TRANSMISSION
Reverser Mechanical Power-Shuttle
Number of Gears (F/R) 24 / 24
Max. Traveling Speed (km/h) 39.15
Brakes Wet Disc
Steering Hydrostatic
Clutch Dry Single Plate
HYDRAULIC SYSTEM
Pump Type Dual Gear Pump
Implement Pump Capacity (l/min) 39.1
Steering Pump Capacity (l/min) 22
Max Total Flow (l/min) 61.1
3 Point Hitch Category II
Hitch lift Capacity (kg) 1,937
At 610 mm behind link ends (kg) 1,430
Lift Control Type Position / Draft / Mech
Joystick Valve Standard
Po?et hydraulických výstup? 2
PTO
PTO Type Independent
PTO Control Electrohydraulic
PTO Rear (rpm) 540 / 540E / 1000
PTO Shaft Diameter (mm) 35
DIMENSIONS
Fuel Tank (l) 70
Overall Length with 3PH (mm) 3,982
Overall Width (mm) 1,869
Wheelbase (mm) 2,155
Overall height (mm) 2,575
Min. Ground Cleareance (mm) 440
Min. Turn Radius (mm) with Brakes 3,590
Min. Turn Radius (mm) w/o brakes 4,120
STANDARD TIRES
Agricultural Front MITAS 280/85 R20
Agricultural Rear MITAS 380/85 R30
ROPS & WEIGHT
Roll Over Protection Standard ROPS
Air Conditioning Standard
FOPS Standard



Specifications
Model
Hortus
Category Name
Tractors
Year
2018
Sale Type
New
Manufacturer
Zetor
