The six-cylinder engine and weight of the Zetor Crystal give the tractor enough power to easily cope with heavy working conditions.
Endurance
In the wind and rain. In winter and summer. In the daytime and at night. Zetor Crystal does not wait for ideal conditions. It supplies the maximum power on every occasion.
Total Cost of Ownership
Every tractor sometimes needs to refuel, but Zetor will surprise you with its low consumption. The spare parts are reasonably priced, and you can get quick and high-quality service all over the world.

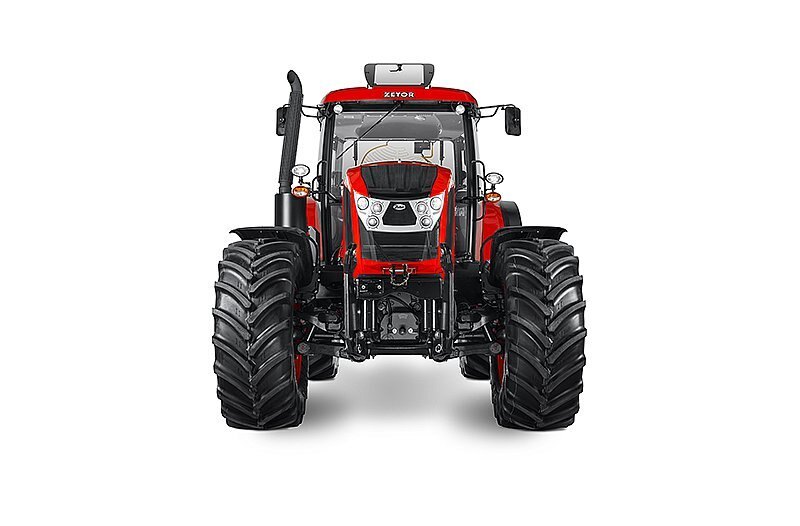

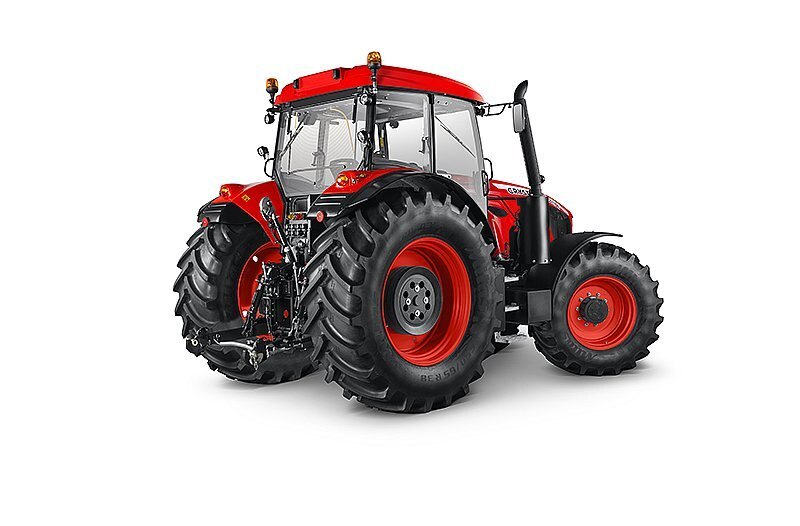

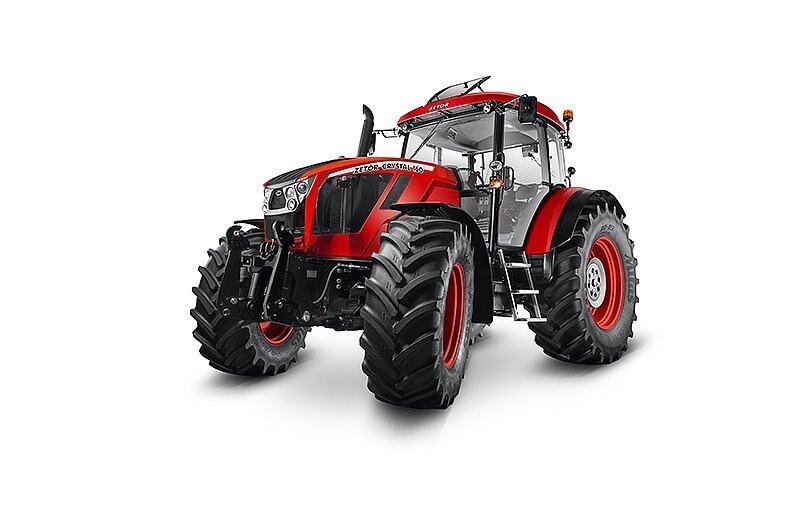

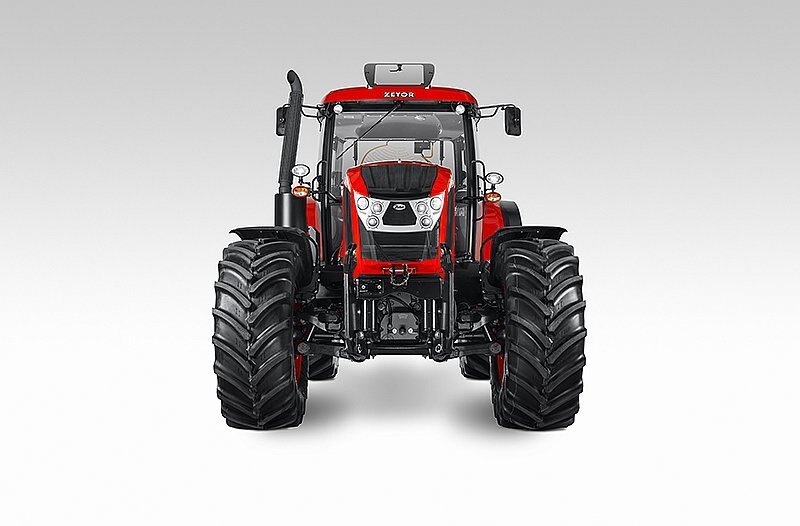

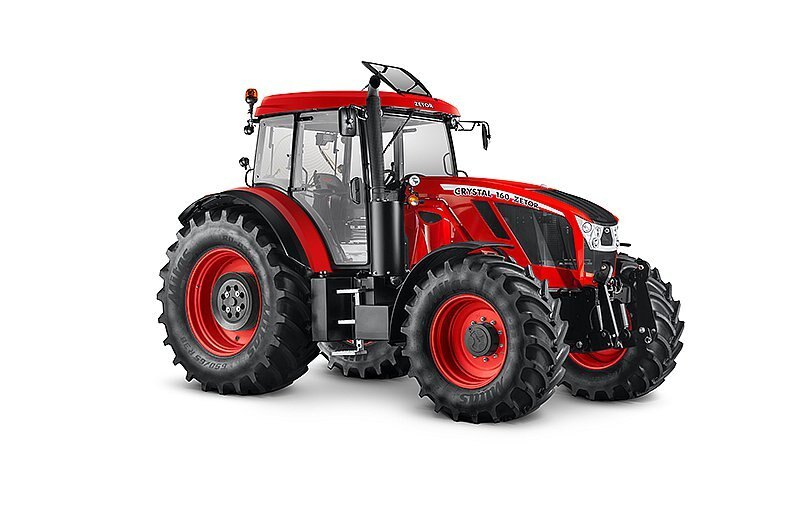

Crystal Tractors

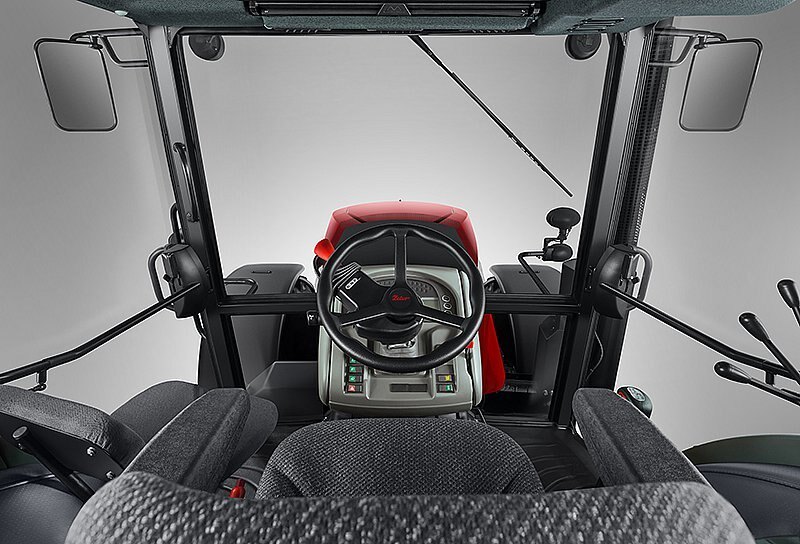

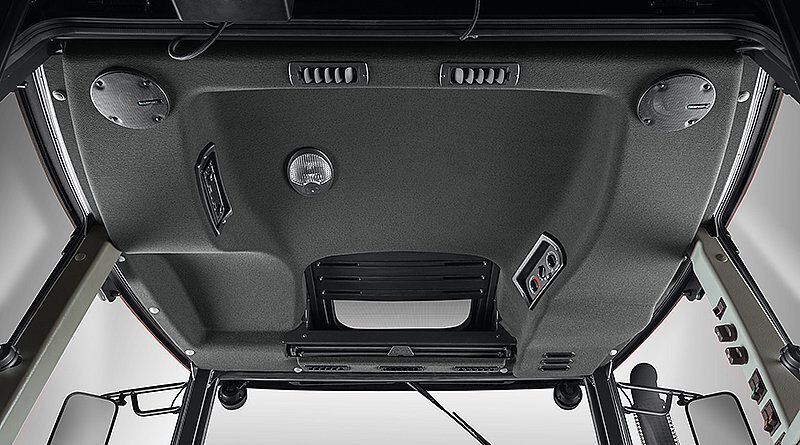

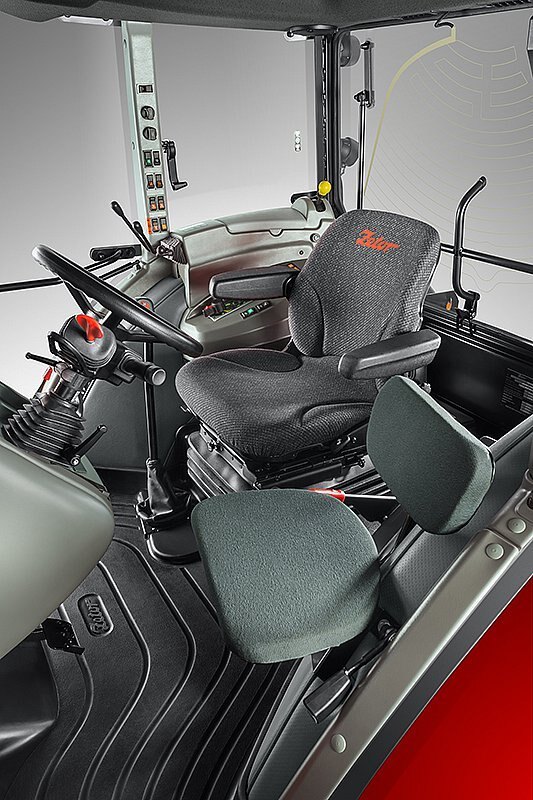

The Crystal – a reliable partner for hard work. Its powerful engine will not let you down. It is easy to operate it. You will feel comfortable and will have a good view from the spacious cab.
Features
ENGINE
Powerful, reliable, ecological
The high-power, six-cylinder engines of 144 hp and 163 hp provide the maximum performance of the tractor. All Crystal tractor engines are based on the tried-and-tested concept of four-stroke, six-cylinder compression-ignition engines equipped with 24 valves and Common Rail injection.

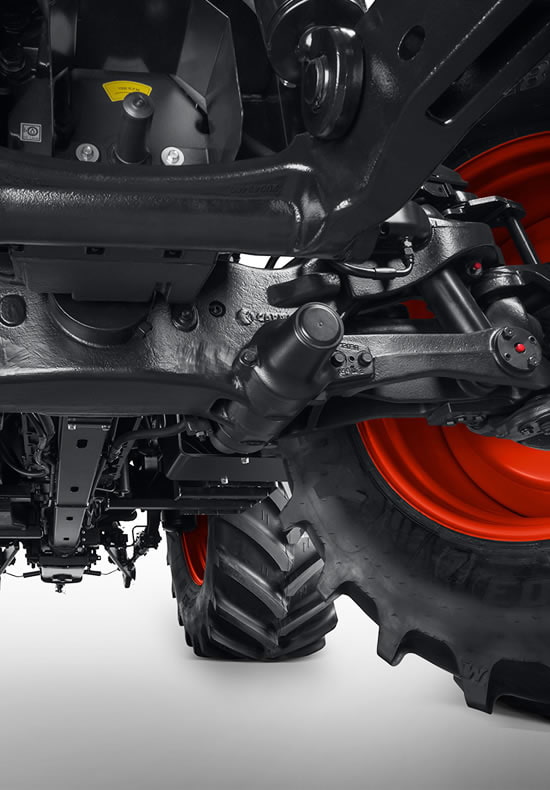

gearbox
Long life and quality
The gearbox is designed with an emphasis on simple operation, logical gear-shifting pattern and low losses in transmitting high power. The long life has been well-proven over many years.
unique

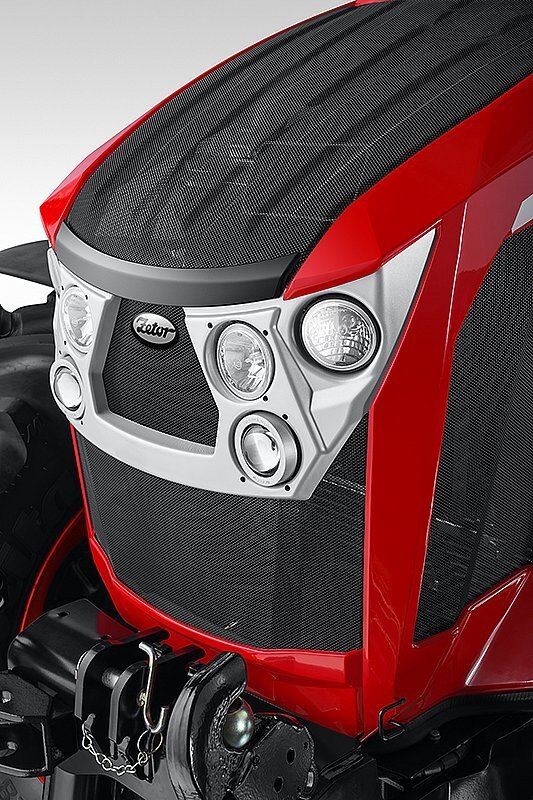

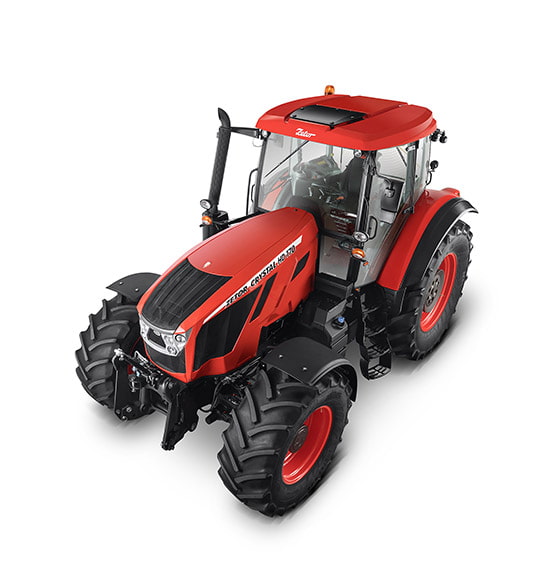

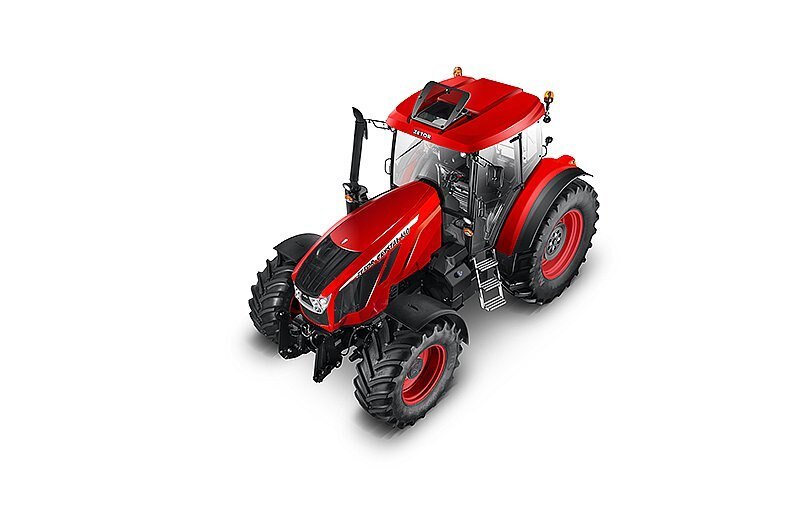

Timeless design
The new Zetor Crystal has been inspired by the sharp edges of the original Crystal, as well as by the regular geometric shapes of real crystals. The most powerful tractor in Zetor's portfolio combines tradition, a rich history and modern trends.
Specs
MODEL
Crystal 150
Crystal 160
ENGINE
Stage III B type
TCD 6.1 L6
Maximum power (2000/25/EC) (kW/HP)
110/150
126/171
Rated Power (2000/25/EC) (kW/HP)
106/144
120/163
Rated speed (rpm)
2 100
Number of Cylindres
6
Number od Valves
24
Aspiration
Turbocharged
Fuel Injection System
Common Rail
Bore/Stroke (mm)
101/126
Displacement (cm3)
6, 057
Cooling
Viscous fan touch
Maximum Torque (2000/25/EC) [Nm]
650
739
Improvement of Torque (2000/25/EC) [%]
38
36
GEARBOX
Type
5 -stage synchro shuttle with automatic 3 - stage multiplier
