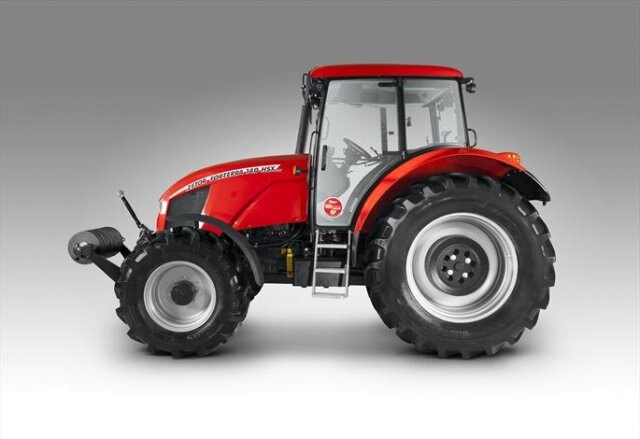

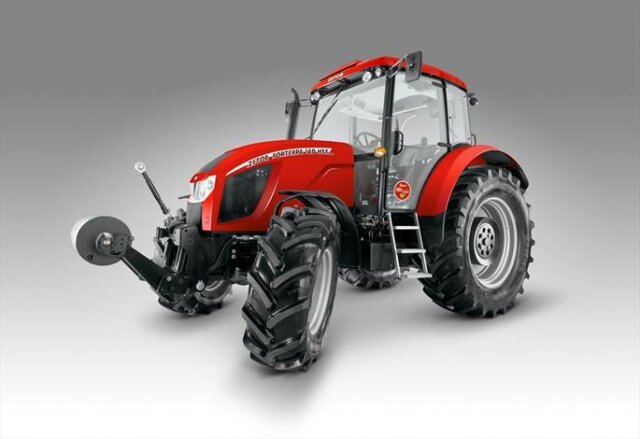

Zetor Forterra & Forterra HSX 130

  • Zetor Forterra & Forterra HSX 130
  • Zetor Forterra & Forterra HSX 130
  • Zetor Forterra & Forterra HSX 130
  • Zetor Forterra & Forterra HSX 130
  • Zetor Forterra & Forterra HSX 130
  • Zetor Forterra & Forterra HSX 130
  • Zetor Forterra & Forterra HSX 130
  • Zetor Forterra & Forterra HSX 130
  • Zetor Forterra & Forterra HSX 130
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
The new Forterra and Forterra HSX are the most advanced tractors we ever built.
Zetor Forterra and Forterra HSX Series combine a variety of state of-the-art features with the traditional Zetor ruggedness and ease of servicing. The series includes eight models, all with four-wheel-drive, in a horsepower range from 98 to 137. Model 2013 is the fourth generation of the popular and proven Zetor Forterra tractors and has been significantly updated in many ways to increase productivity in the field as well as operator’s comfort. At the same time, it requires less maintenance, further reducing operating cost.
Specifications
Model
HSX 130
Category Name
Tractors
Year
2014
Sale Type
New
Manufacturer
Zetor
ENGINE
4-cyl. 254 cu.in turbocharged diesel, water cooled, wet sleeves, 4 valves per cylinder
Maximum Engine Horsepower
128
Rated Engine Speed
2 200 rpm
PTO Horsepower
108
Cold Weather Starting System
Glow plug in each cylinder
Fuel Tank Capacity
63 gal.
CLUTCH
Wet multi-disc clutch
TRANSMISSION
Fully synchronized with electro-hydraulic power shuttle and three speed power shift with manual or automatic shifting

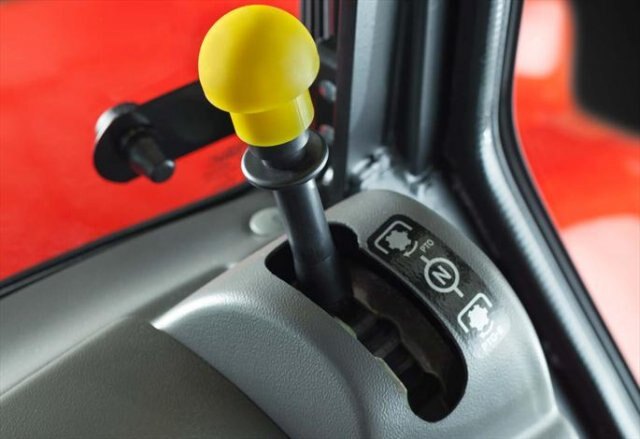

PTO SHAFT
Independent, 540/1000 rpm; electro-hydraulic speed change
BRAKES
Wet disc brake with hydraulic controls
HYDRAULICS
Open center; Electronic control
Flow @ Pressure At Remotes
20 gpm @ 2,900 psi
Total Hydraulic Flow
27 gpm

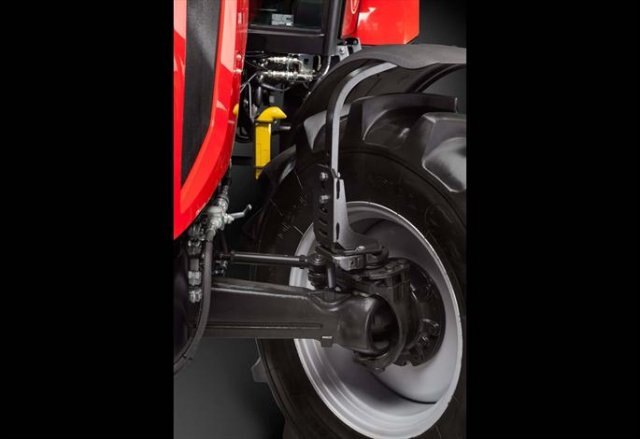

Three Point Hitch
Category II or Category IIIN
Function
Position, draft, mixed, AHC (Adaptive Hitch Control)
Lifting Force @ End Of Lower Links
18 700 lbs.
Front
14.9R-24
Rear
520/70R-38
Wheelbase
102 in.
Length
175 in.
Width
87 in.
Height
109 in.
Weight
10,790 lbs.
STANDARD EQUIPMENT:

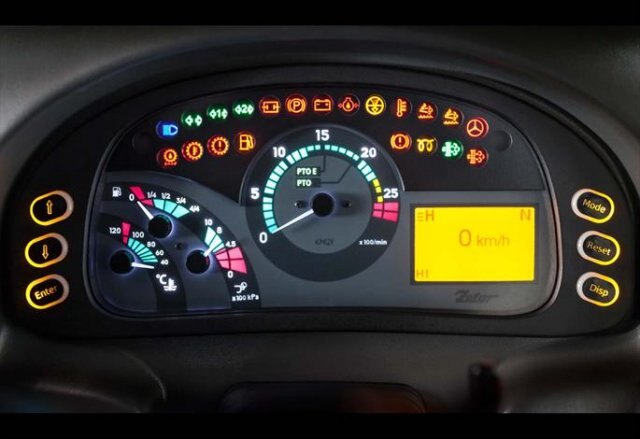

Power rear differential lock and front wheel drive engagement Limited slip front differential Ground speed PTO Telescopic sway bars with fine adjustment Telescopic lower links or lower links with hooks links with hooks Air suspension seat with multiple adjustment and arm rests Instructional seat Tilt and telescoping steering wheel Tinted windows Front and rear wipers Windshield washer Heated rear window Heated rear view mirrors Roller sun blind Sun roof Multi-function digital display dashboard Front fenders Three sets of remote outlets (one set with detented pressure positions, built-in check valve and automatic pressure release); Air conditioning Eight front and four rear halogen lights CD radio with two speakers
