Key Features

• The all-new PW-X3 mid drive motor
• The all-new Interface X exceeds rider demands with intuitive movements to access power assist levels, walk assist and automatic support mode.
• Premium suspension: ROCKSHOX SUPER DELUXE SELECT + rear and ROCKSHOX LYRIK SELECT forks

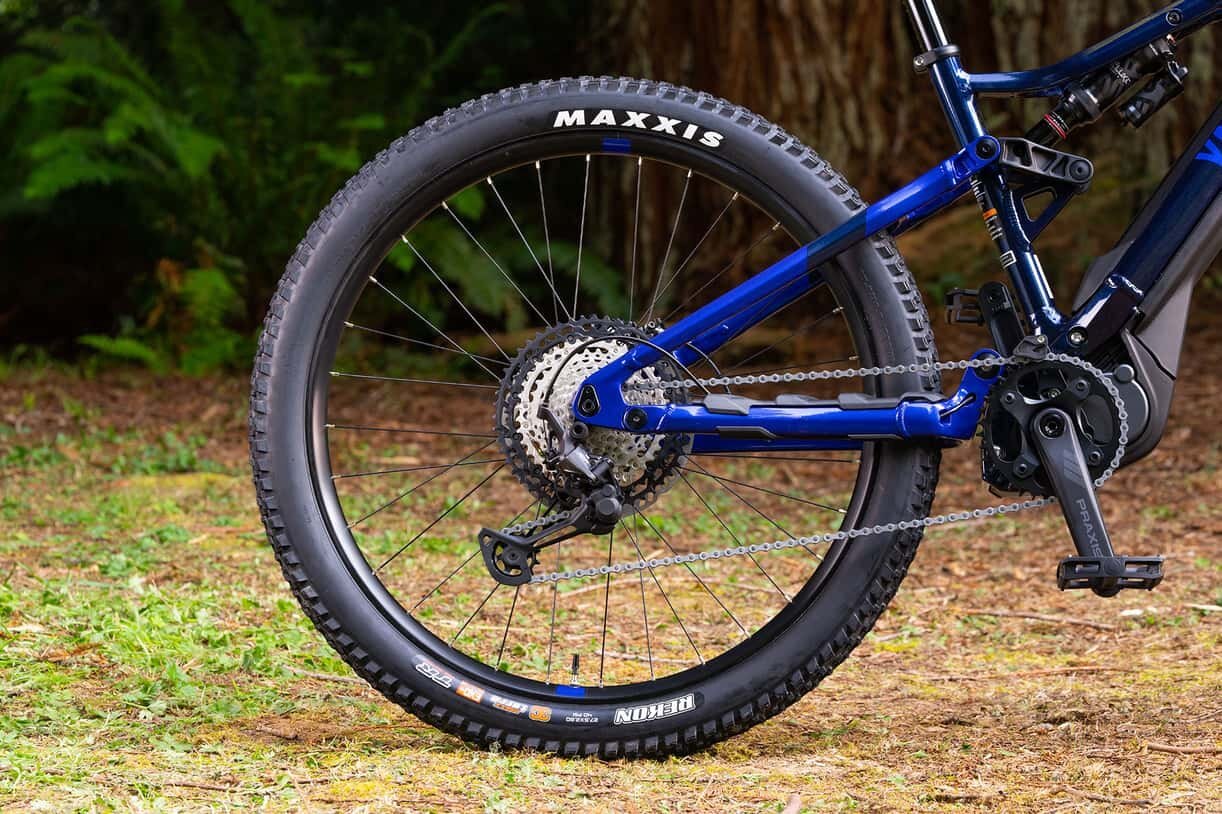

• Increased shifting precision with the Shimano XT RD-M8100-SGS derailleur
• 12-speed Shimano XT CS-M8100-12 cassette
• 4-piston front and rear calipers paired with radial design master cylinders
• Yamaha 500Wh battery with Charge-life indicator and Self-diagnosis display
• YAMAHA 27.5+ Alloy rims with MAXXIS 27.5X2.6 tires for optimized traction

DRIVE TRAIN:

Drive Motor:

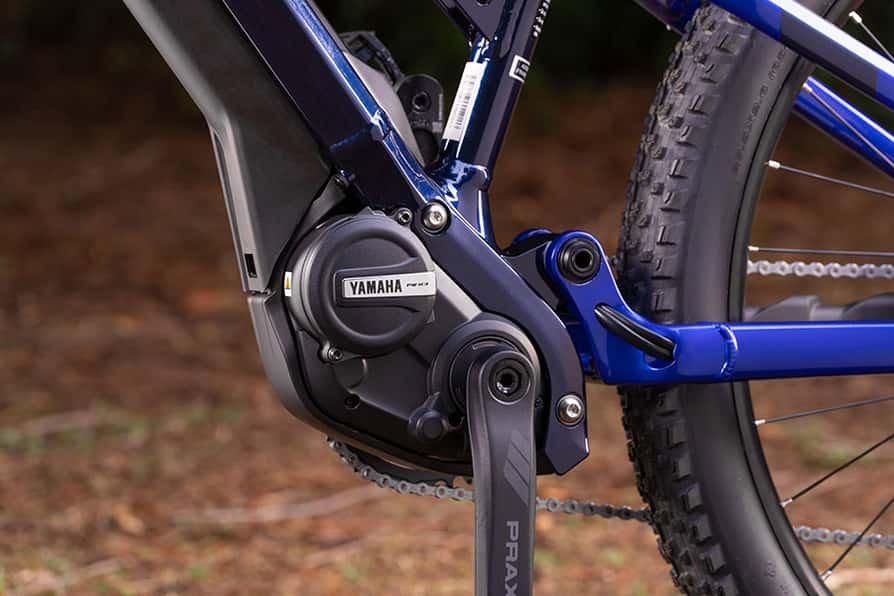

• All-New YAMAHA PW-X3 Class Drive Motor
• PW-X3 mid drive motor is Yamaha’s smallest and lightest to date and ensures the best power-to-weight ratio with jaw-dropping responsiveness and smooth power delivery.
  • Equipped with Yamaha Quad Sensor with:
    • Automatic Support and Walk Assist Modes
    • Rate power: 250W (nominal), 500W (maximum)
    • Max torque: 85Nm
    • Max speed support: 32.2kph (20mph)
    • Support Modes: ECO, Standard, High, MTB, Extra-Power, Automatic, Walk Assist
  • 2-bolt drive unit mount

Drive Line Components:

• Shimano XT RD-M8100-SGS rear derailer
  • Reduced derailer travel and additional gears in the "sweet spot" for riders to find the best balance of power and cadence.
• 12-speed Shimano XT CS-M8100-12 cassette
  • Optimized gears for riders to find the best balance of power and cadence.
• Shimano XT SL-M8100-R shifter boasts razor-sharp shifting

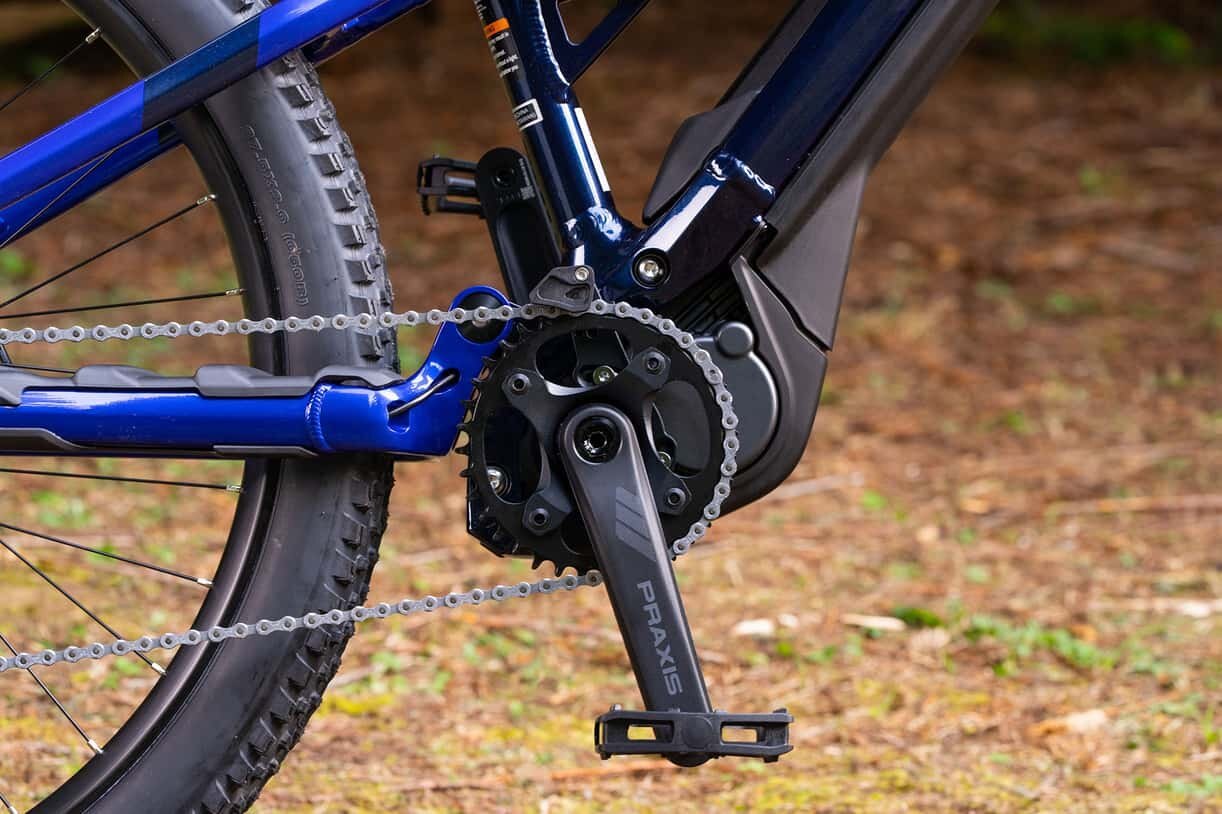

• 165mm Long PRAXIS E-CRANK Arm

CHASSIS:

Frame:

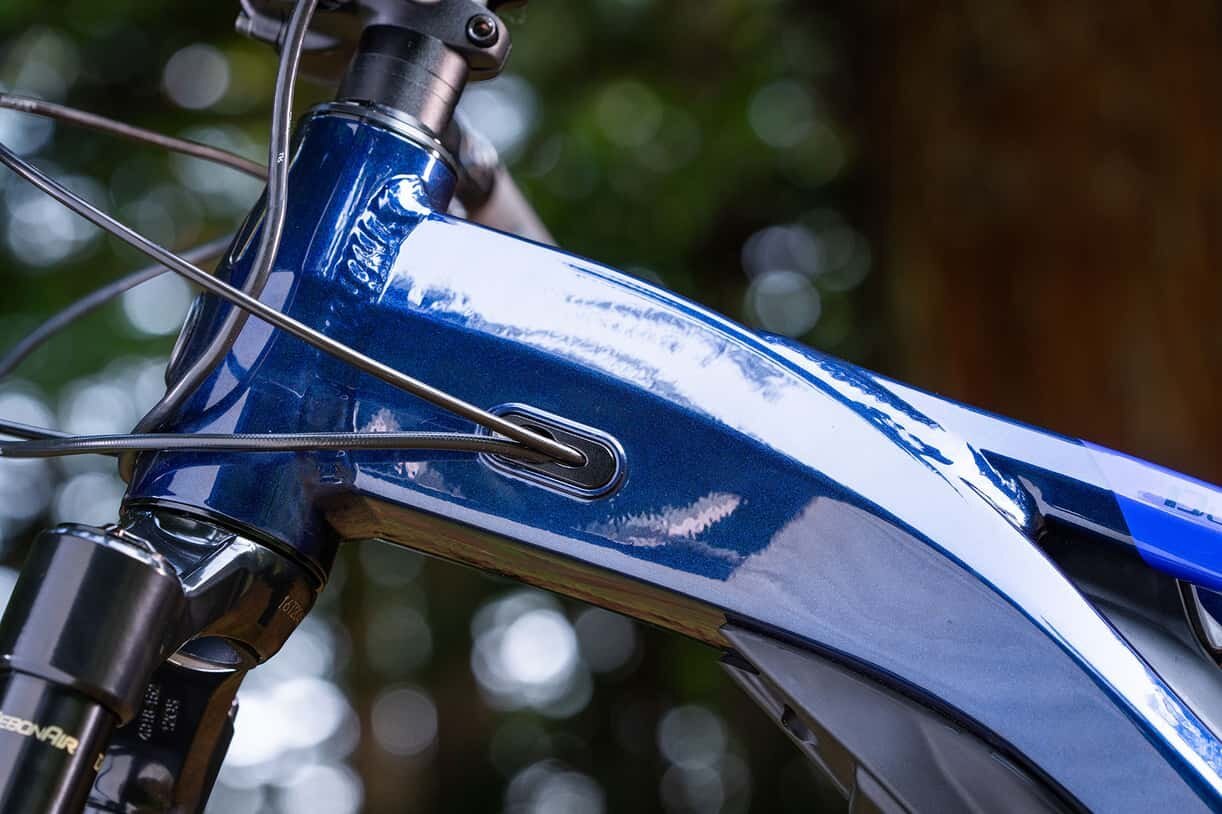

• Yamaha's patented Dual Twin construct combines hydroforming and forging techniques to create a frame to protect components with uncompromised riding control.
  • Features Tapered Headtube
• Mass has been centralized utilizing a combination that creates a near-perfect weight distribution for ultimate control on the ground or in the air.
• Internal cable/housing routing for seamless fit and finish
• 12x148mm rear axle spacing

Suspension:

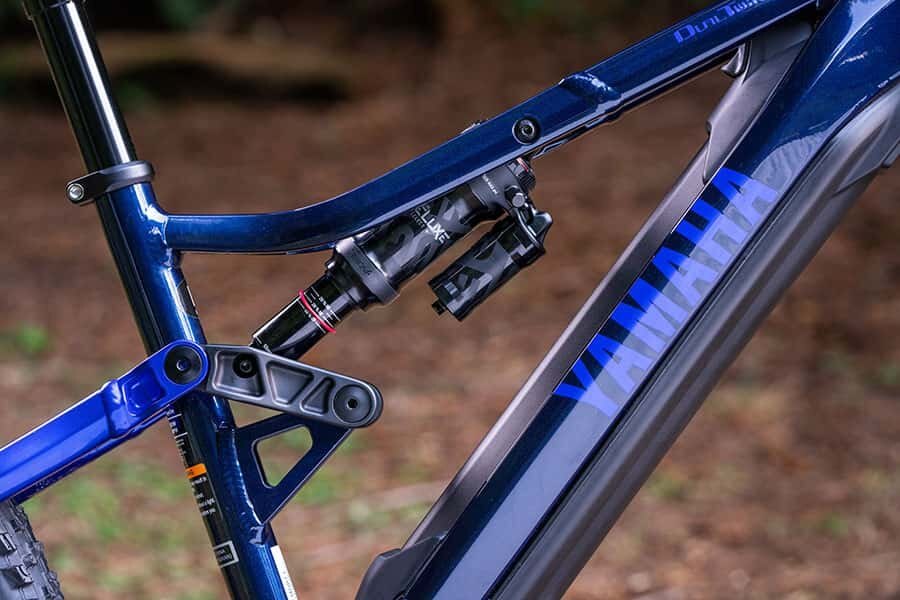

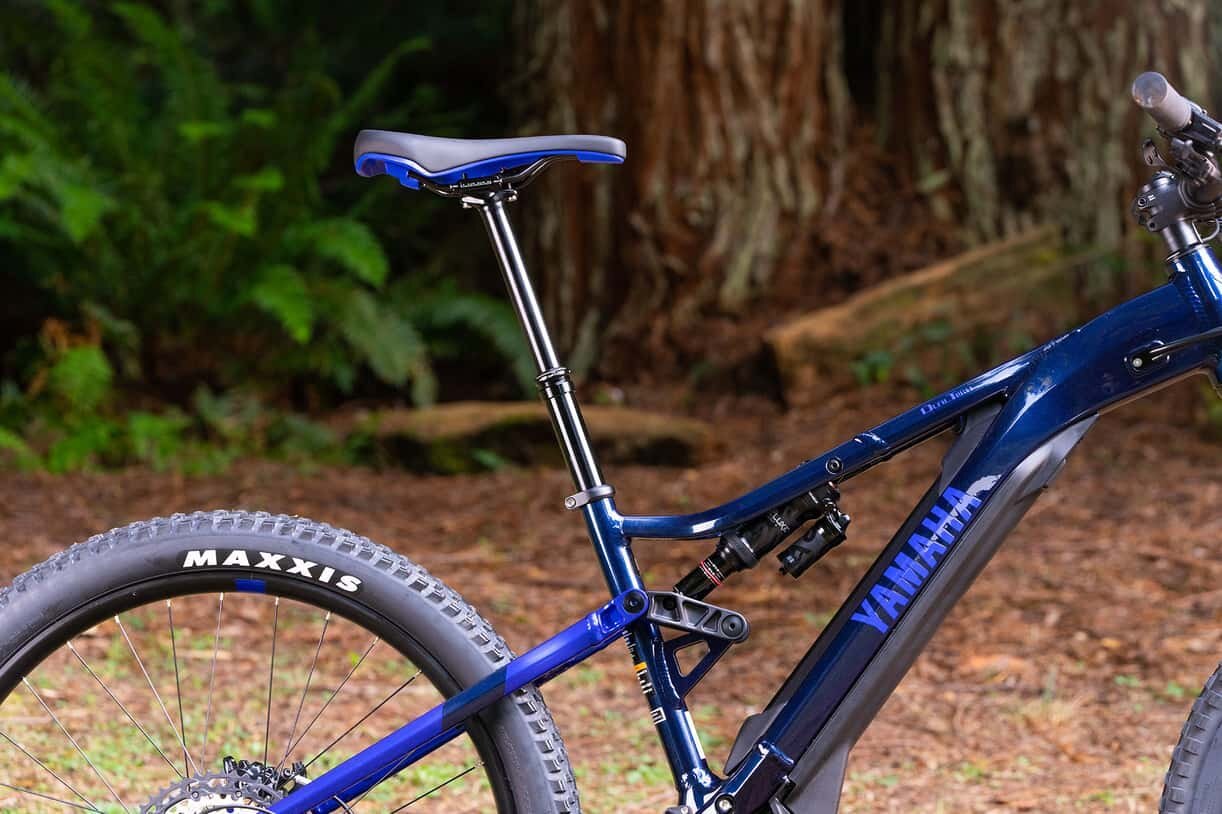

• Rear Shock: ROCKSHOX SUPER DELUXE SELECT +
  • Custom-tuned for the YDX-MORO 07
  • Features 15 clicks of rebound adjustment, dual-level compression quick switch, and adjustable air pressure options to give riders the ultimate confidence through rough terrain.
• Front Fork: ROCKSHOX LYRIK SELECT
  • Charger RC damper with low-speed compression and rebound adjust

ELECTRONICS:

• Yamaha 500Wh 36V Battery
  • Charge-life indicator and Self-diagnosis display
  • Anti-Vibration Mounting Plate
  • Weight: 3kg (6.61lbs)
  • Re-charge time: 1-hour 80%, 4-hour 100%

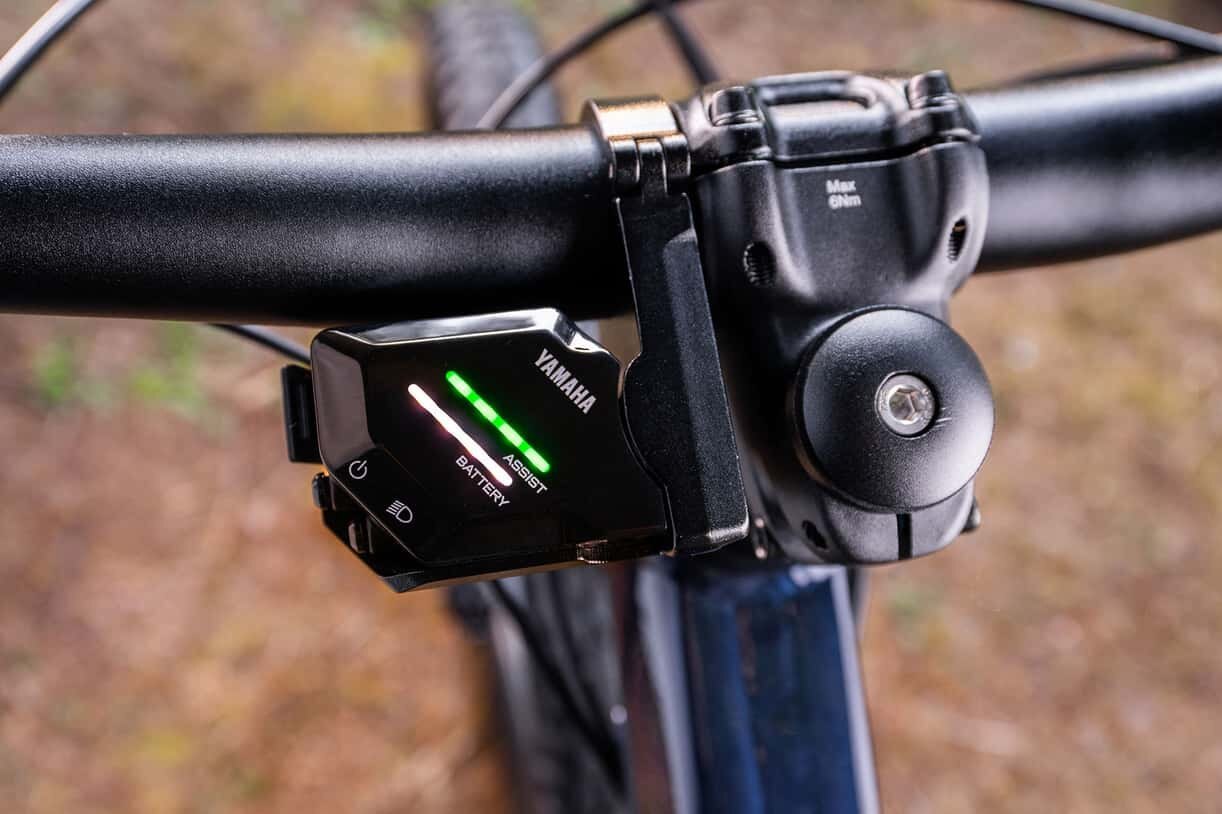

• YAMAHA Interface X Control
  • 3-colour LED support-mode level light indicator
  • (5) Support-mode control switch, plus AUTOMATIC support mode (Aqua LED indicator)
  • Walk Assist mode (Purple LED indicator)
  • Bluetooth™ connectivity
  • LED brightness adjustability
  • Battery capacity (4-LED capacity indicators)
