Key Features

• The all-new PW-X3 mid drive motor
• The all-new Interface X exceeds rider demands with intuitive movements to access power assist levels, walk assist and automatic support mode.
• Shimano DEORE SL-M6100-R shifter
• Shimano DEORE RD-M6100-SGS derailleur
• 12-speed Shimano SLX CS-M7100-12 cassette

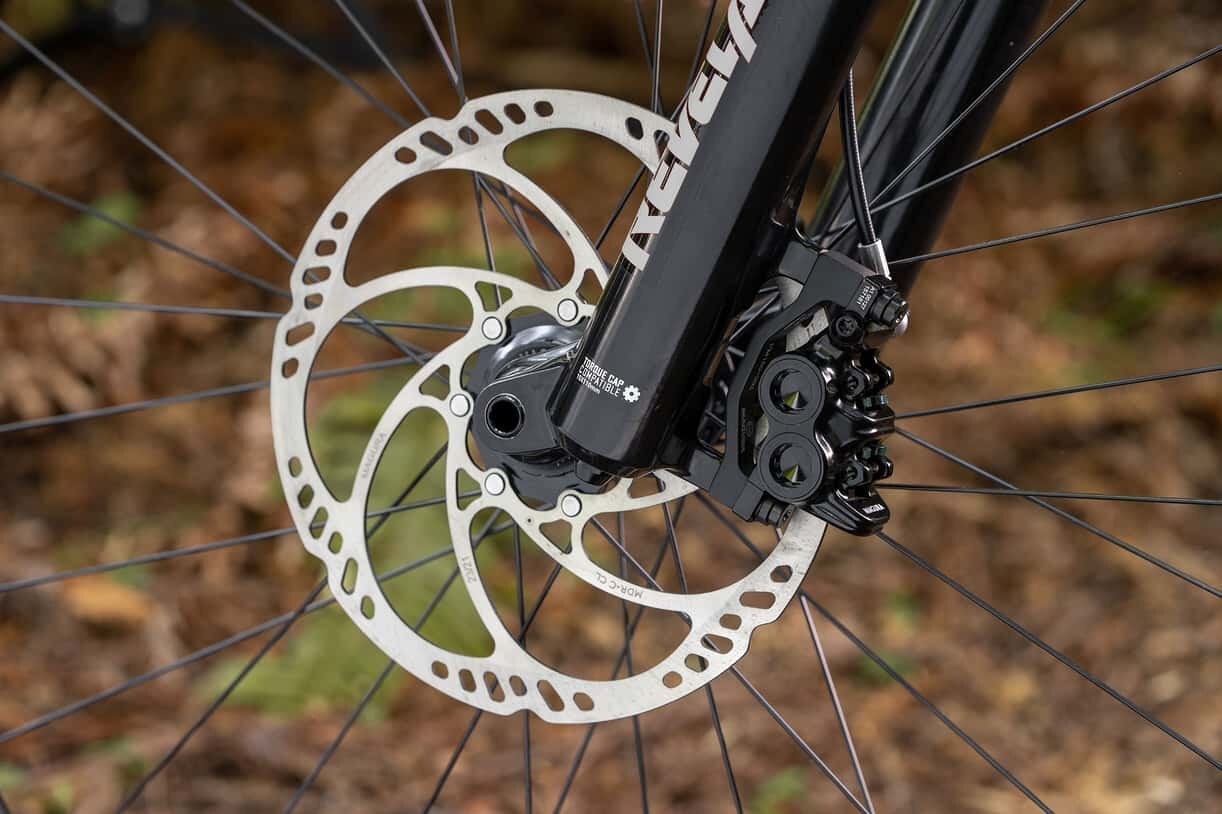

• 4-piston front and 2-Piston rear calipers engaged by its ergonomic single-finger lever
• Yamaha 500Wh battery with Charge-life indicator and Self-diagnosis display
• YAMAHA 27.5+ Alloy rims with MAXXIS 27.5X2.6 tires for optimized traction

DRIVE TRAIN:

Drive Motor:

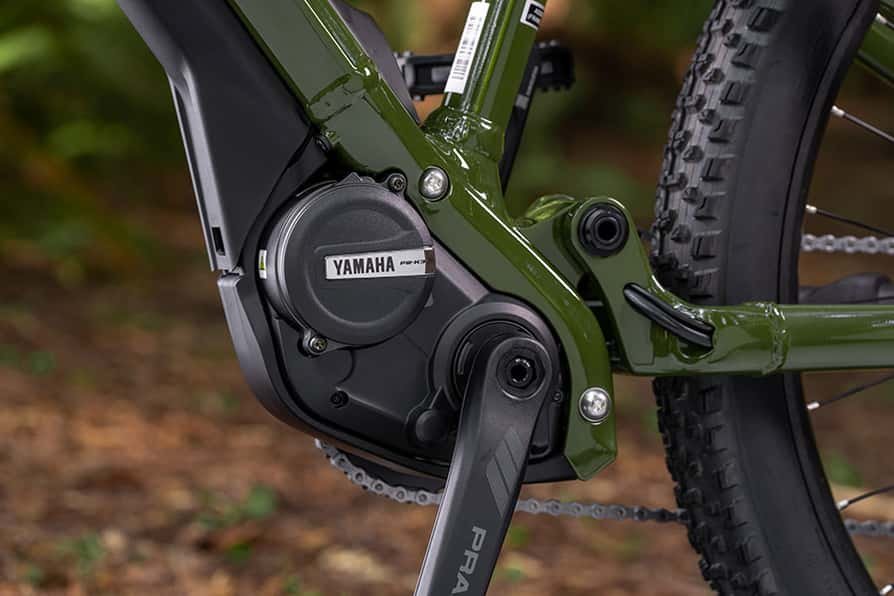

• All-New YAMAHA PW-X3 Class Drive Motor
• PW-X3 mid drive motor is Yamaha’s smallest and lightest to date and ensures the best power-to-weight ratio with jaw-dropping responsiveness and smooth power delivery.
  • Equipped with Yamaha Quad Sensor with:
    • Automatic Support and Walk Assist Modes
    • Rate power: 250W (nominal), 500W (maximum)
    • Max torque: 85Nm
    • Max speed support: 32.2kph (20mph)
    • Support Modes: ECO, Standard, High, MTB, Extra-Power, Automatic, Walk Assist
  • 2-bolt drive unit mount

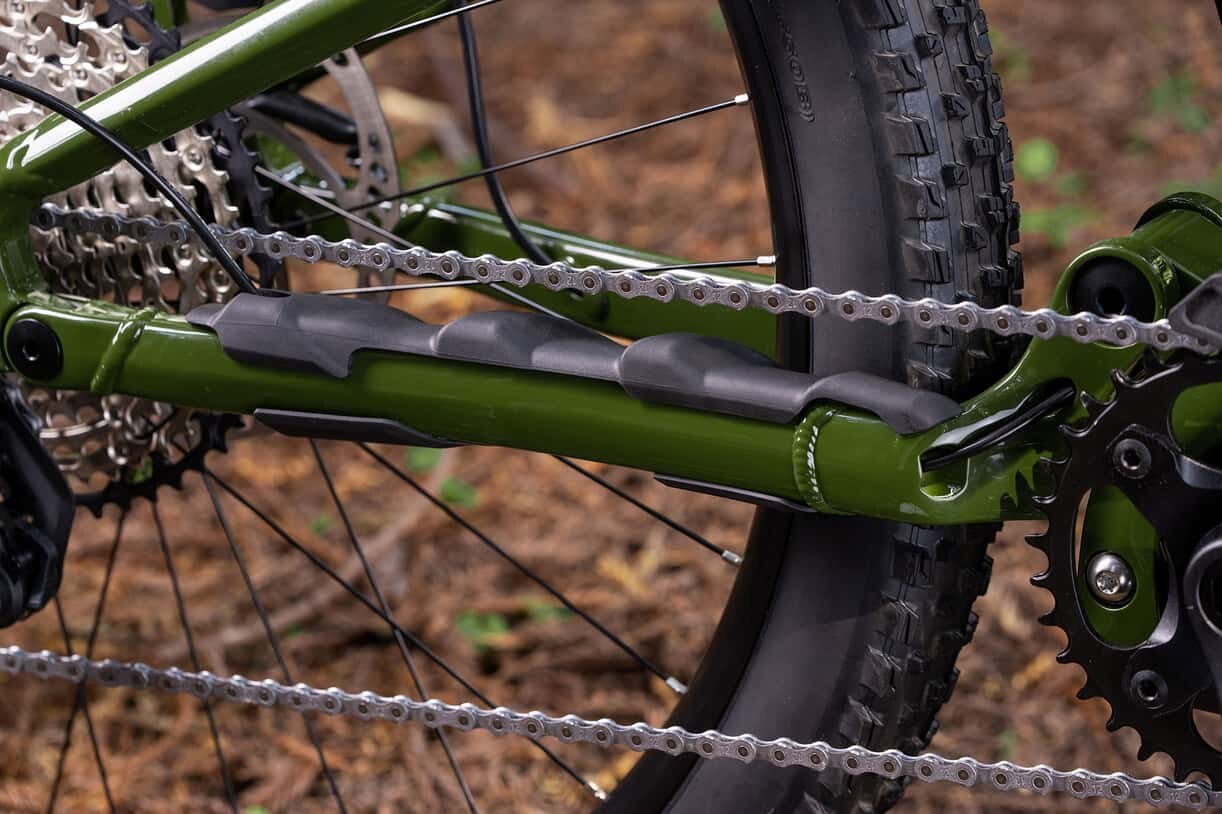

Drive Line Components:

• Shimano DEORE RD-M6100-SGS rear derailer
• 12-speed Shimano SLX CS-M7100-12 cassette
  • Optimized gears for riders to find the best balance of power and cadence.
• Shimano DEORE SL-M6100-R shifter

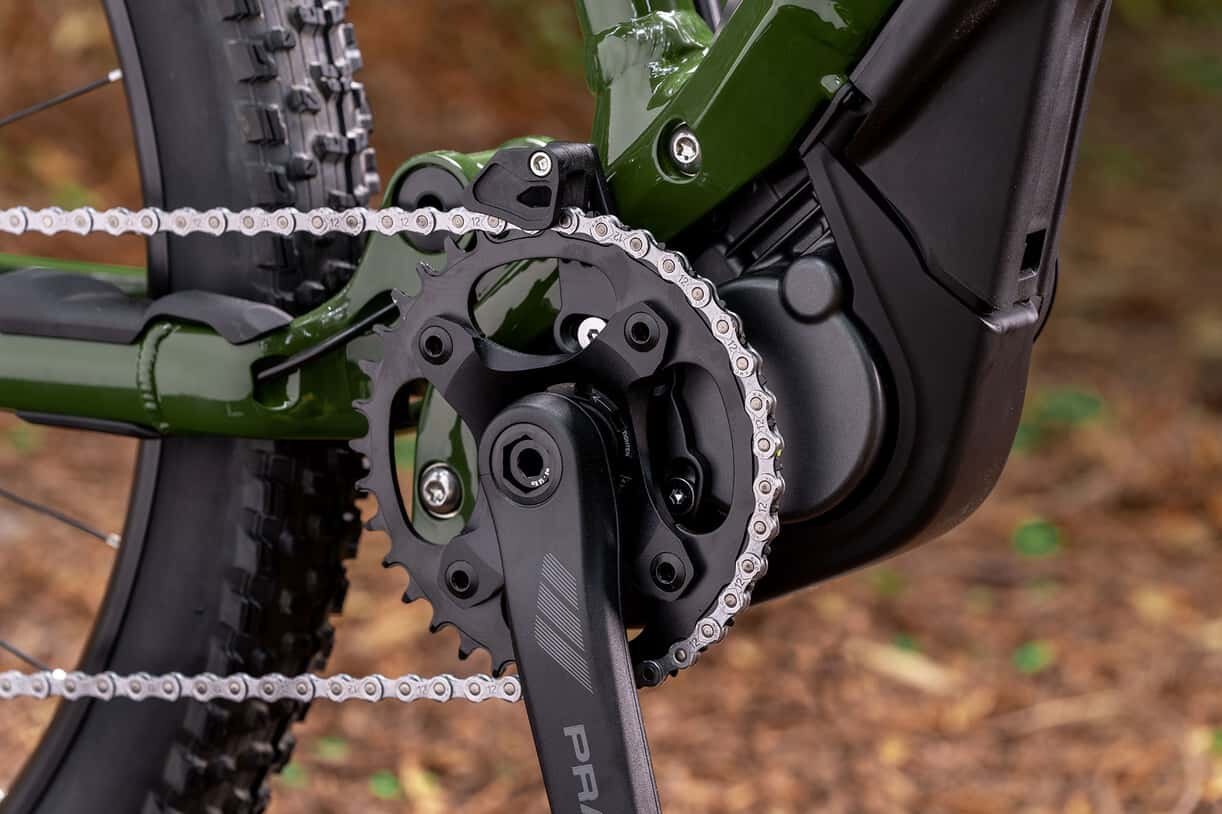

• 165mm Long PRAXIS E-CRANK Arm

CHASSIS:

Frame:

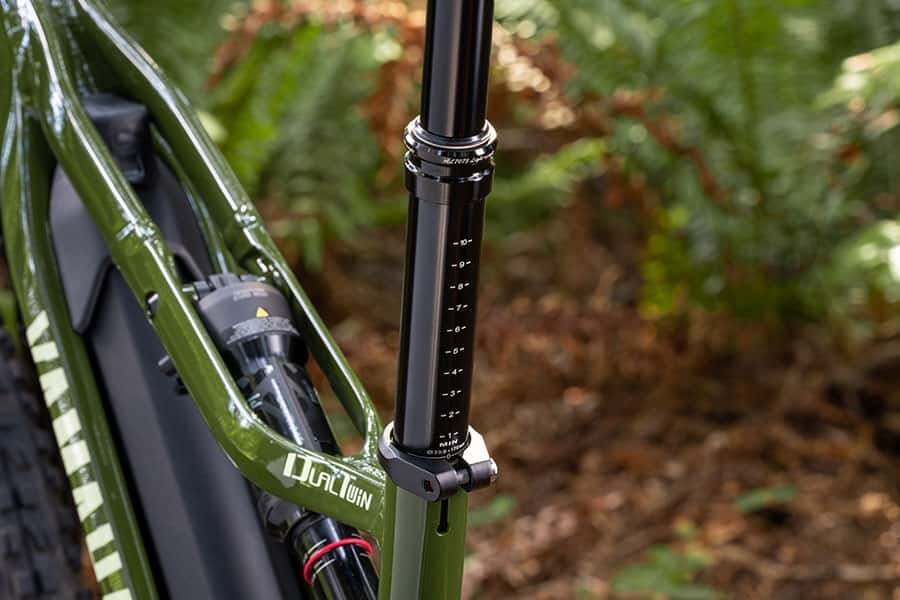

• Yamaha's patented Dual Twin construct combines hydroforming and forging techniques to create a frame to protect components with uncompromised riding control.
  • Features Tapered Headtube
• Mass has been centralized utilizing a combination that creates a near-perfect weight distribution for ultimate control on the ground or in the air.

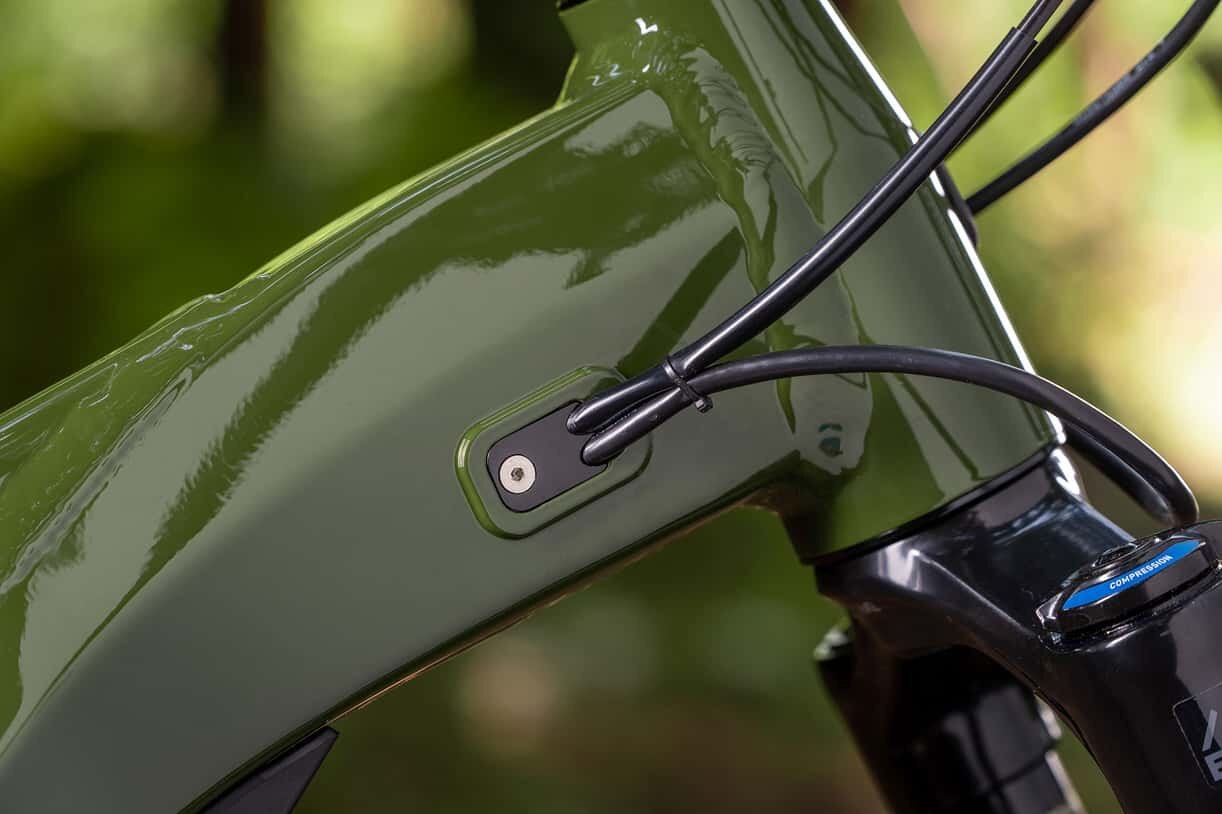

• Internal cable/housing routing for seamless fit and finish
• 12x148mm rear axle spacing

Suspension:

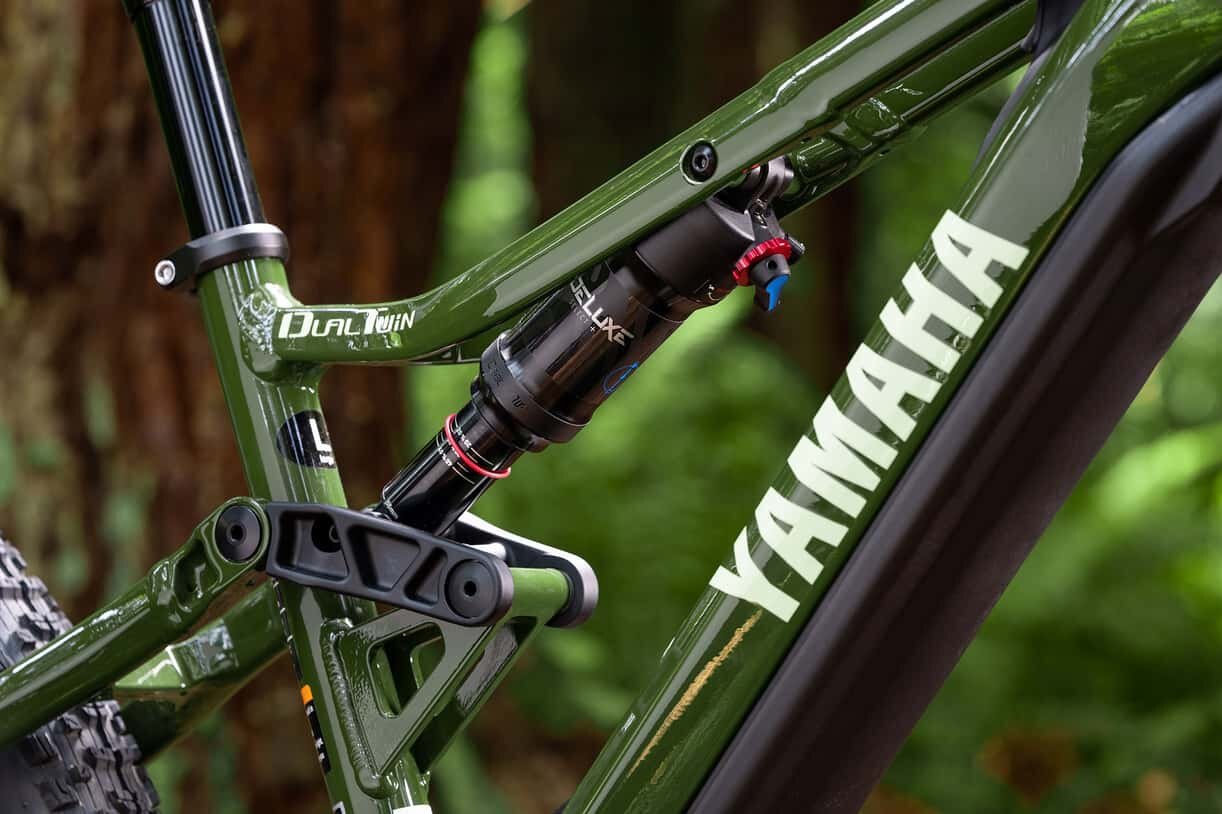

• Rear Shock: ROCKSHOX DELUXE SELECT +
  • 150mm travel
  • Features 15 clicks of rebound adjustment, dual-level compression quick switch, and adjustable air pressure options to give riders the ultimate confidence through rough terrain.
• Front Fork: ROCKSHOX REVELATION RC
  • 160mm travel
  • Features low-speed compression adjustability.

ELECTRONICS:

• Yamaha 500Wh 36V Battery
  • Charge-life indicator and Self-diagnosis display
  • Anti-vibration mounting plate
  • Weight: 3kg (6.61lbs)
  • Recharge time: 1-hour 80%, 4-hour 100%

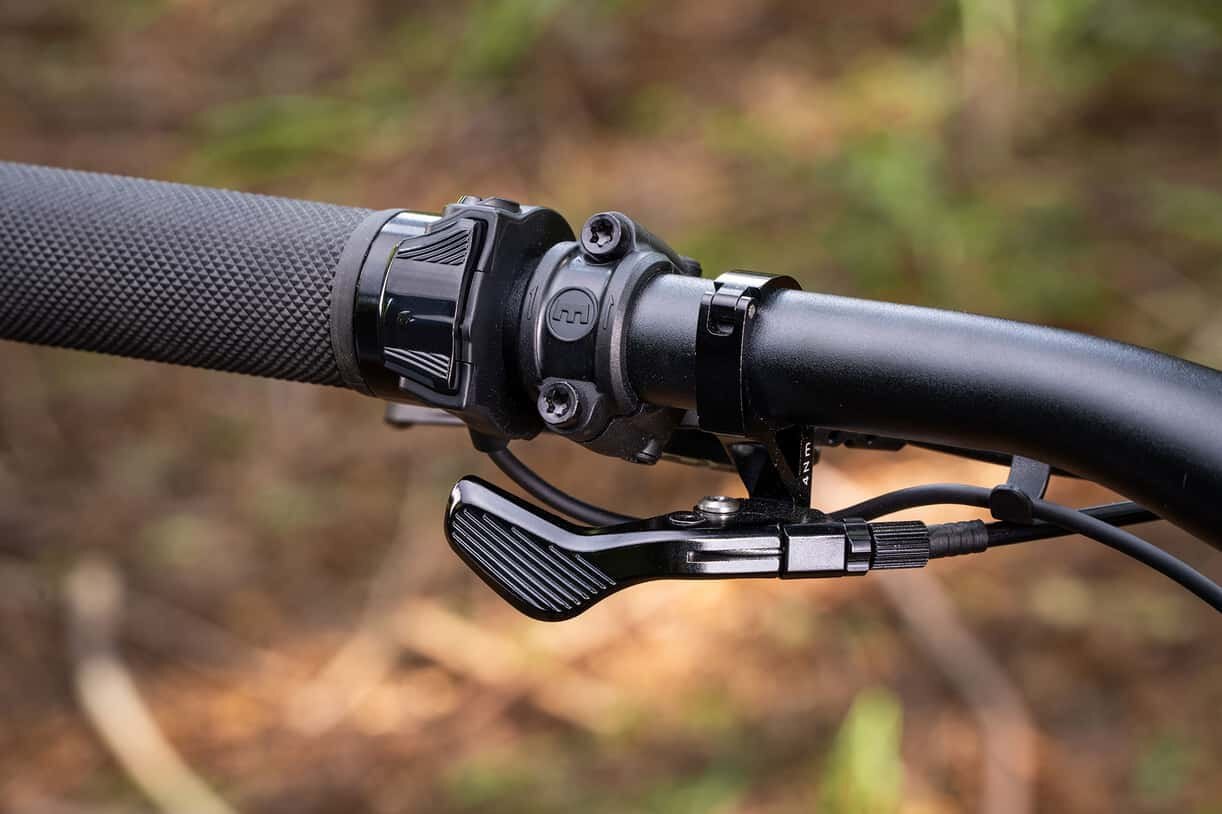

• YAMAHA Interface X Control
  • 3-colour LED support-mode level light indicator
  • (5) Support-mode control switch, plus AUTOMATIC support mode (Aqua LED indicator)
  • Walk Assist mode (Purple LED indicator)
  • Bluetooth™ connectivity
  • LED brightness adjustability
  • Battery capacity (4-LED capacity indicators)
