Woods

ID # 13218775

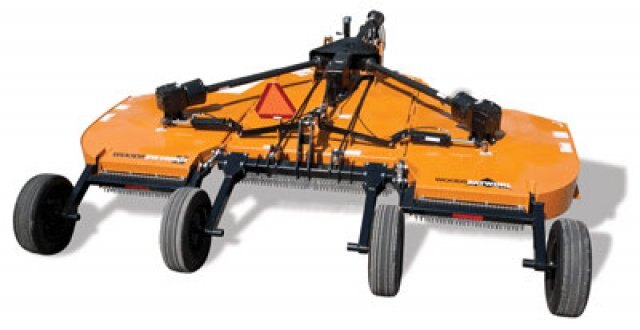

BW180XHD

Videos
Call for Price
Overview
We not only build the toughest Batwing® cutter, we build the only Batwing®. But don’t just choose us for our name, choose us for the hours of testing in extreme conditions, the rugged sub-structure, and the industry-leading welding and paint standards. Today “Batwing®” has become synonymous with “flexwing,” but don’t settle for one of those other cutters. Choose Batwing® for the sheer ability to tame the most unruly waterways, pastures, and roadsides – choose the original, choose a Batwing®.
  Features
  • 15-foot Heavy-Duty Dual-Wing Cutter
  • Main driveline: Cat 6 CV or Cat 5 heavy 3 joint
  • Tractor HP range: 55-235 hp
  • Swivel clevis or optional pintel ring hitch
  • Cuts brush up to 3.5-inches in diameter
  • Side frame depth of 13 inches increases cut material capacity
  • Dual-wheels available on wings and center for extra flotation
  • Full-length, 1-inch wing hinge pin
  • Fully baffled deck for even distribution and a finer shred
  • Exclusive quick-change pins enable speedy blade changes in the field
  • Six-year gearbox limited warranty
  • Ten-year deck rust-through warranty




Specifications
Model
BW180XHD
Category Name
Agriculture
Year
2014
Sale Type
New
Manufacturer
Woods
Tractor PTO Hp Range
55-235 hp
Side Frame Depth
13''
Cutting Swath
180''
Cutting Height
2'' - 15''
Cutting Capacity Diameter
3.5''
Hitch
swivel clevis; optional pintel ring
Transport Width
96''
Overall Width
190'' - 205''
Deck Type
smooth, sloped
Deck Thickness
.135''
Side Frame Thickness
.25''
Hinge Rod Diameter
1" full length
Weight
4,730 lbs
Tongue Weight
1,660 lbs
Main Driveline Rating
Cat 6 CV or Cat 5 heavy 3 joint
Output Shaft Diameter
2.38''
Splitter
235 - 205 hp
Blade Type
.5'' x 4'' quick change blade pins, hi-lift, flat or shredder
Blade Overlap
6''
Blade Tip Speed 540 Rpm
16,000 fpm
Blade Tip Speed 1
16,000 fpm
Material Flow System
fully baffled deck
Stump Jumper Type
standard round-welded
Wing Flex Up
90° up, 22° down
Suspension
spring on cylinder - walking tandem spring arms
Wheel Type
15'' rims, 21'' laminated, 24'' or 29'' used aircraft tires or foam-filled aircraft tire
Wing Leveling Adjustment
easy adjust turnbuckle
Shielding
rubber belting, single or double chain
