Overview

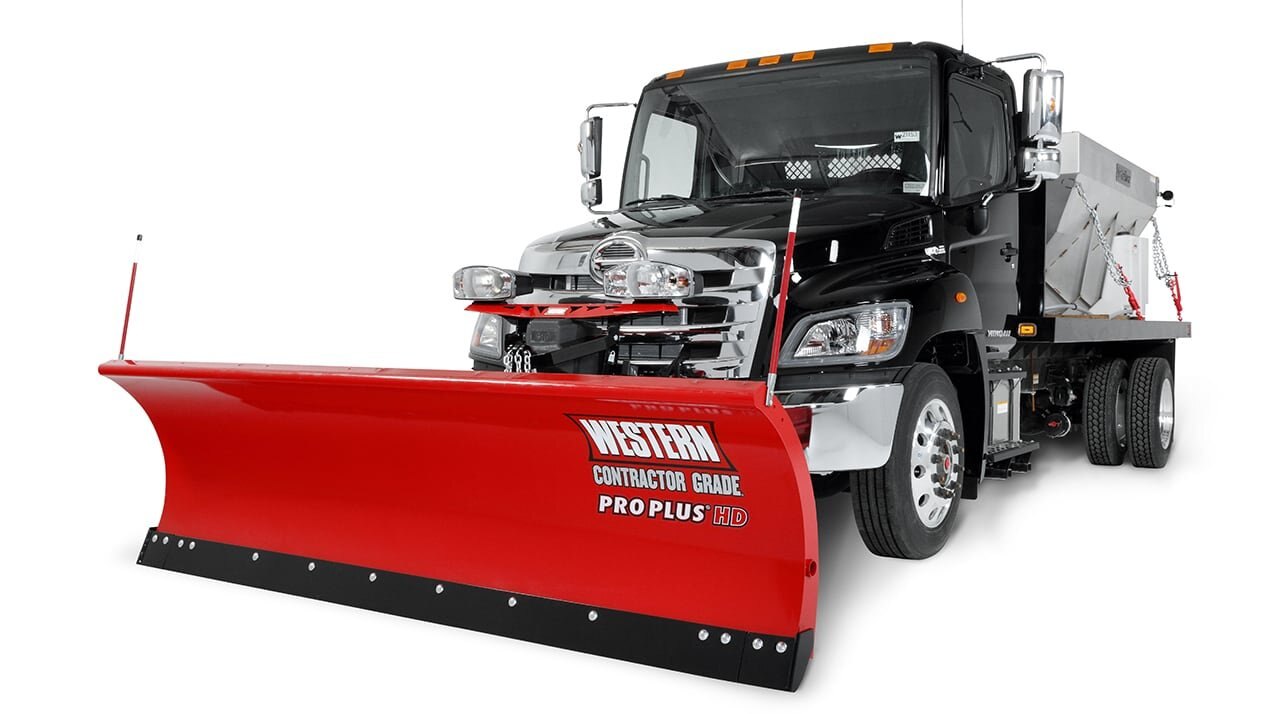

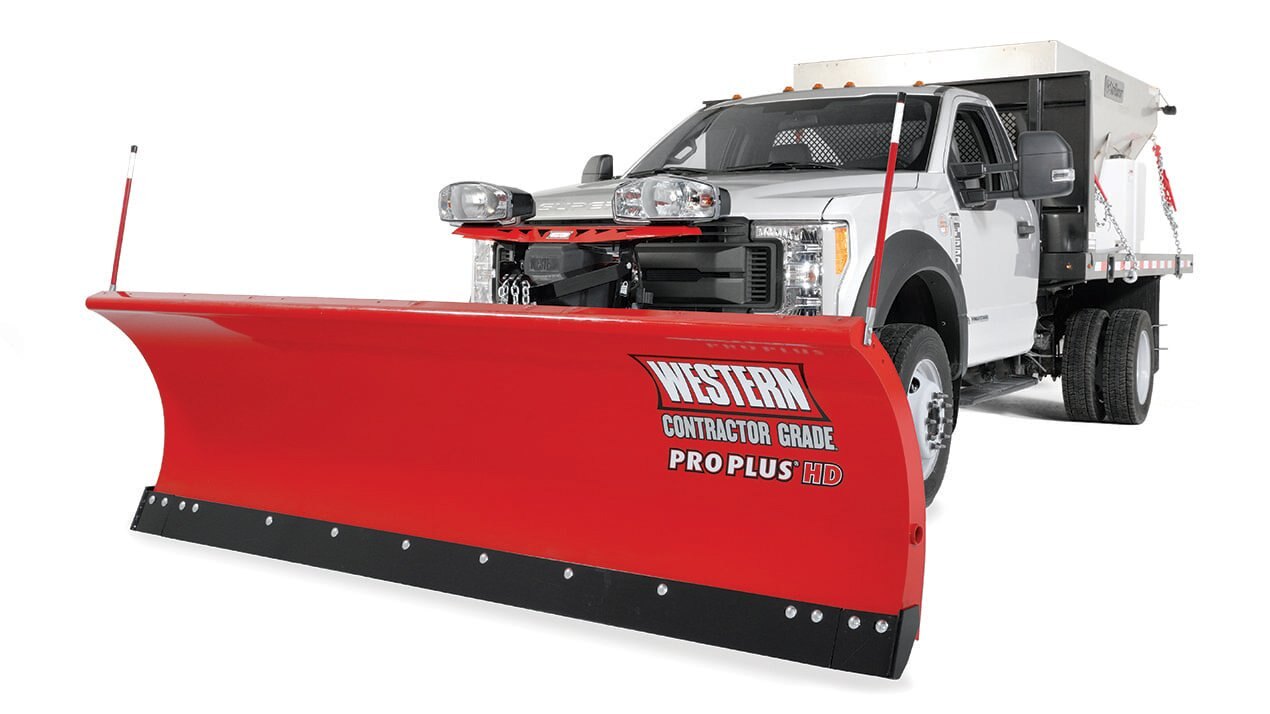

STRAIGHT BLADE SNOWPLOW

  • Blade Width: 10'
  • Fits: Truck Class 5, 6 & 7 (low-end)
  • Moldboard: Powder-Coated Steel

MAKE SHORT WORK OUT OF ANY JOB

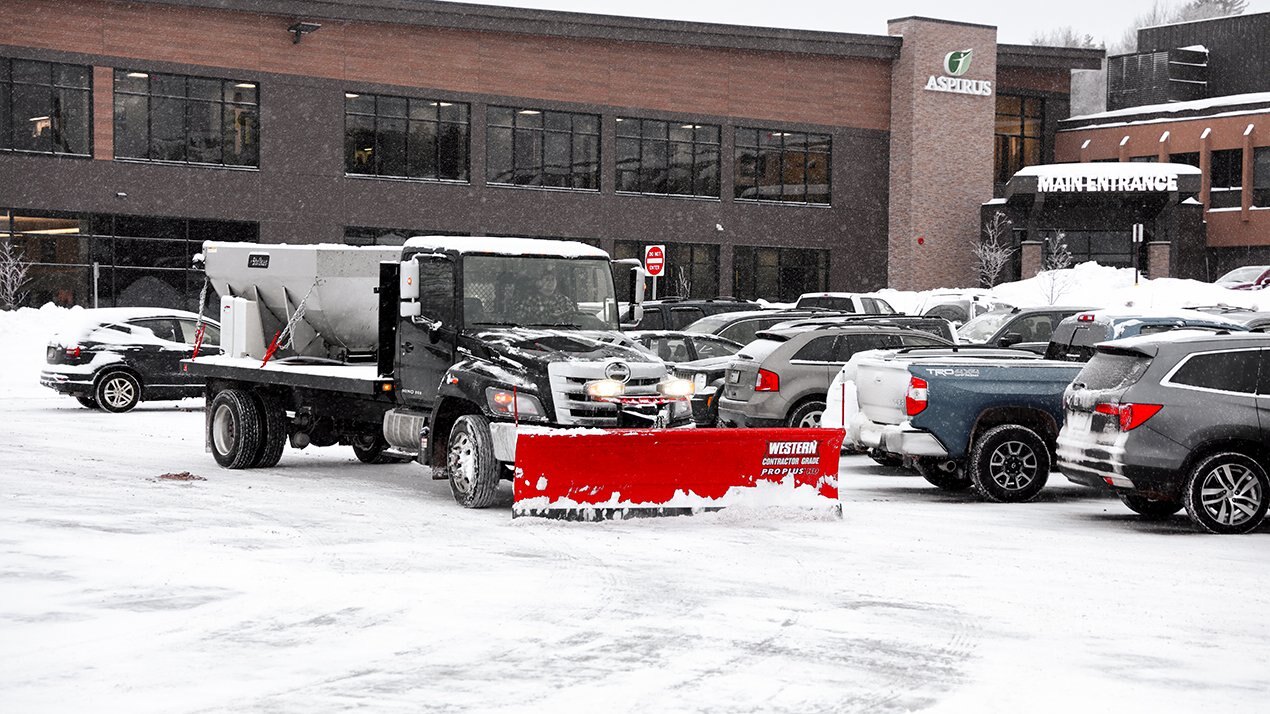

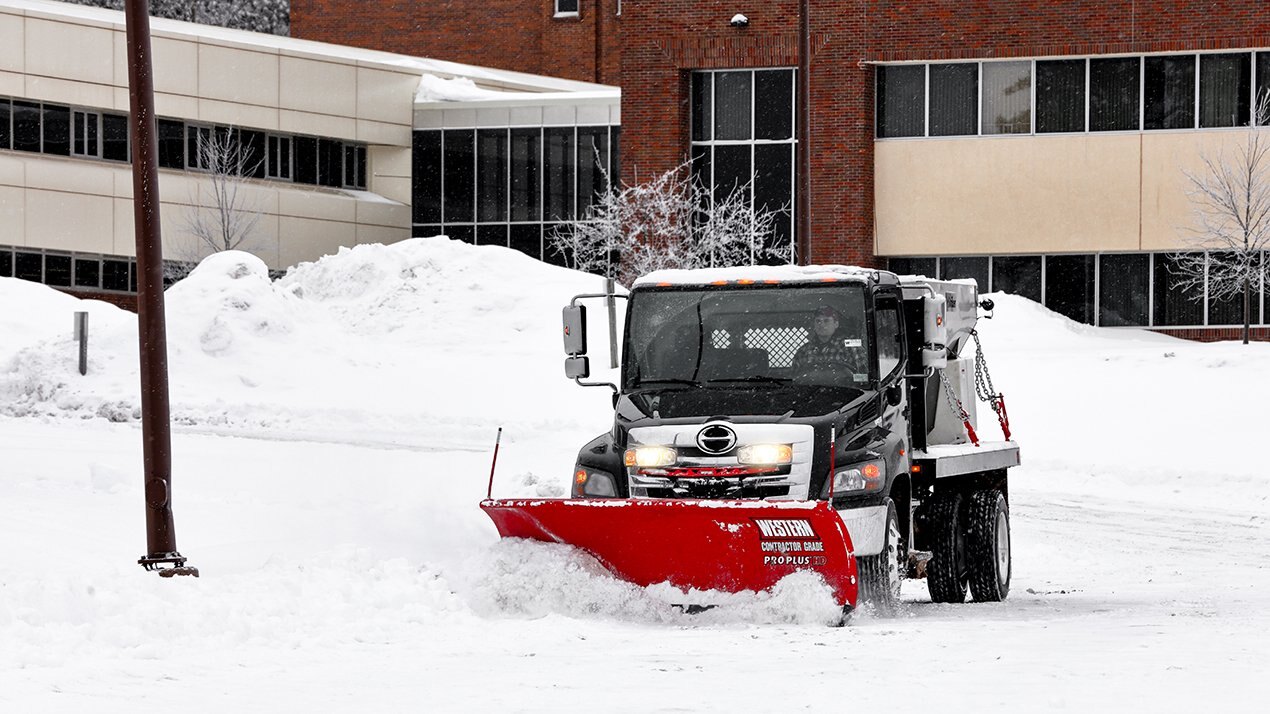

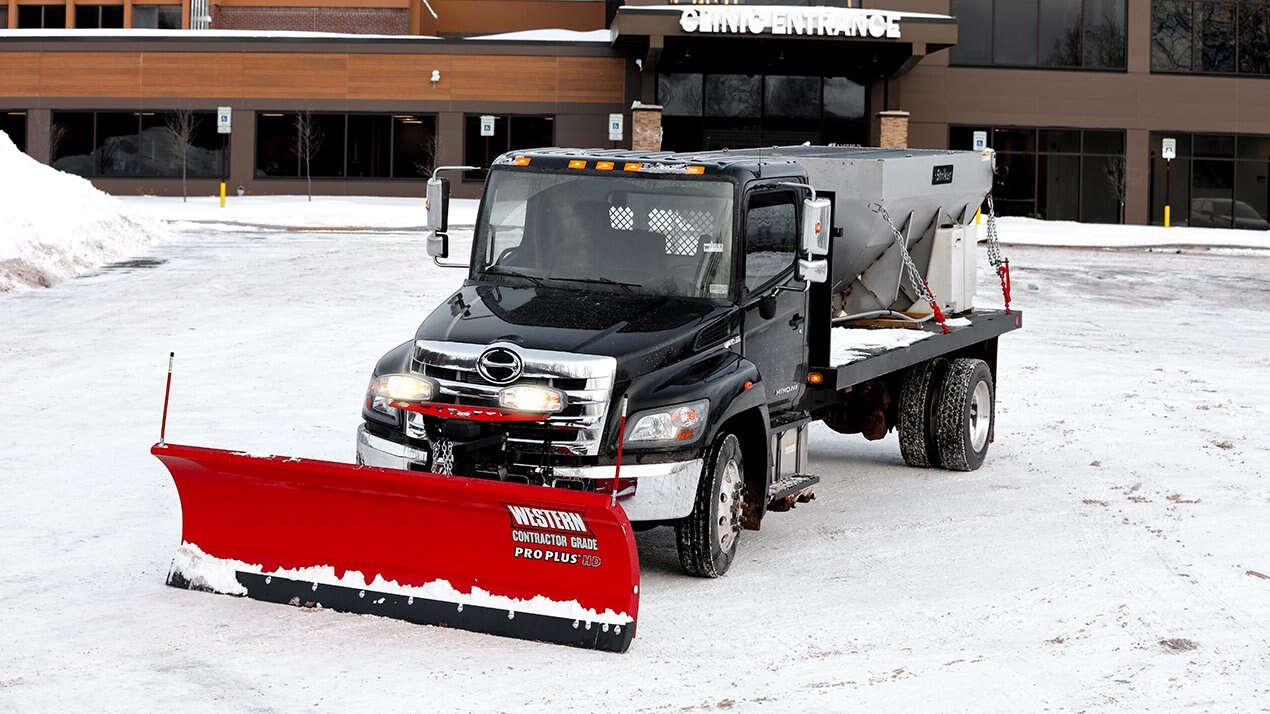

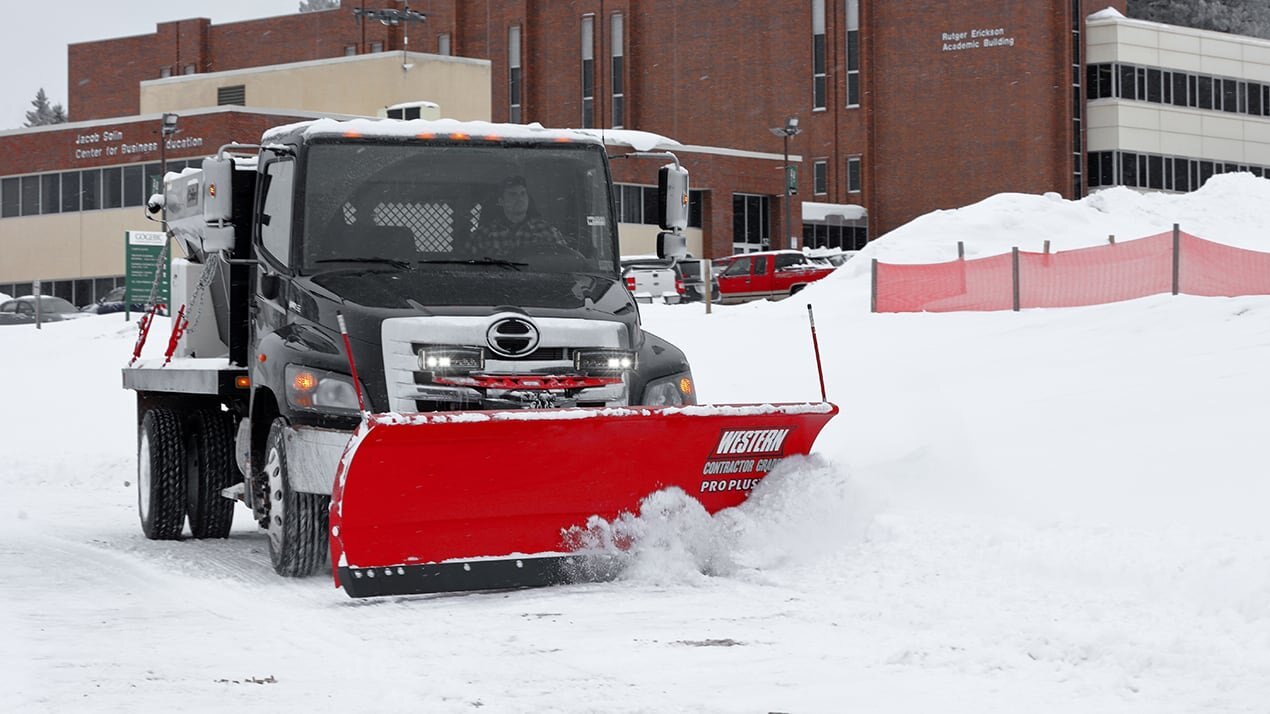

Make the most of the Class 4 to 6 trucks in your fleet with a plow that stands up to the demands of heavy-duty commercial and light municipal snow plowing. The WESTERN® PRO PLUS® HD snow plow lets you make short work of large parking lots and local streets. Forget business cards—distinguish yourself with the clean pavement you leave behind you when using our heaviest-duty plow.

Specifications
Model
PRO PLUS® HD
Category Name
Snowplows
Year
2023
Sale Type
New
Manufacturer
Western
unique features

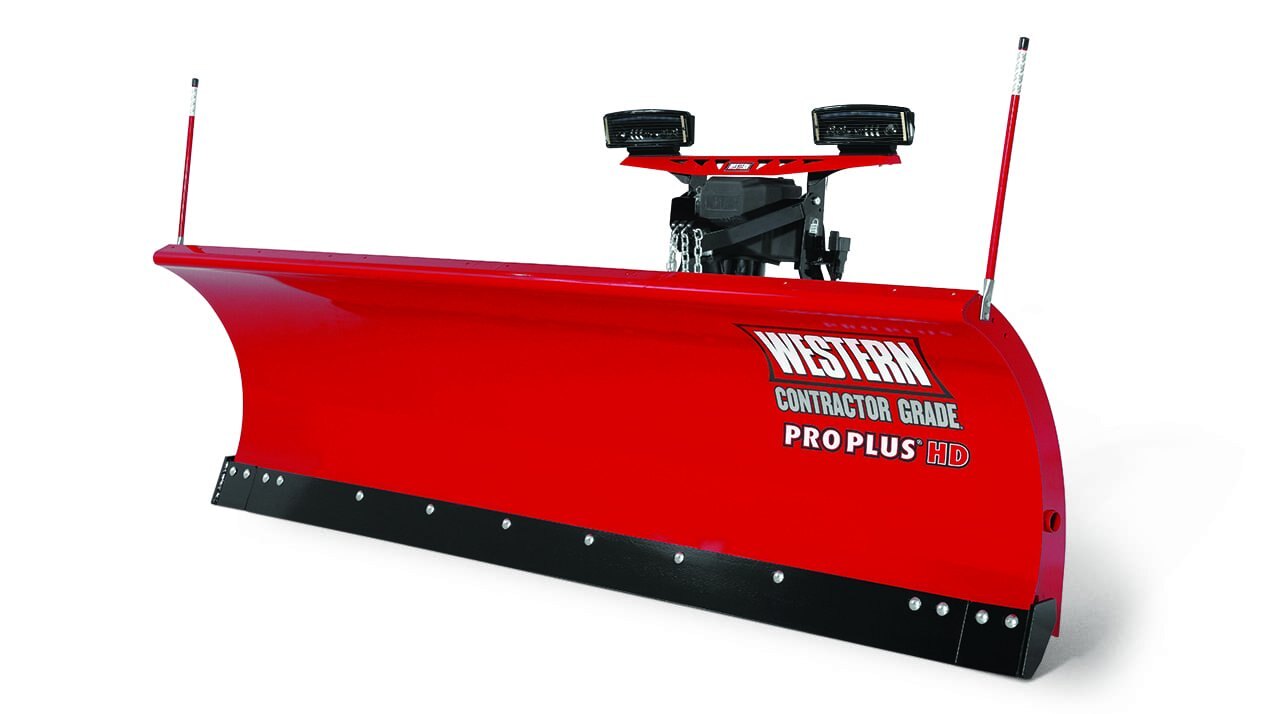

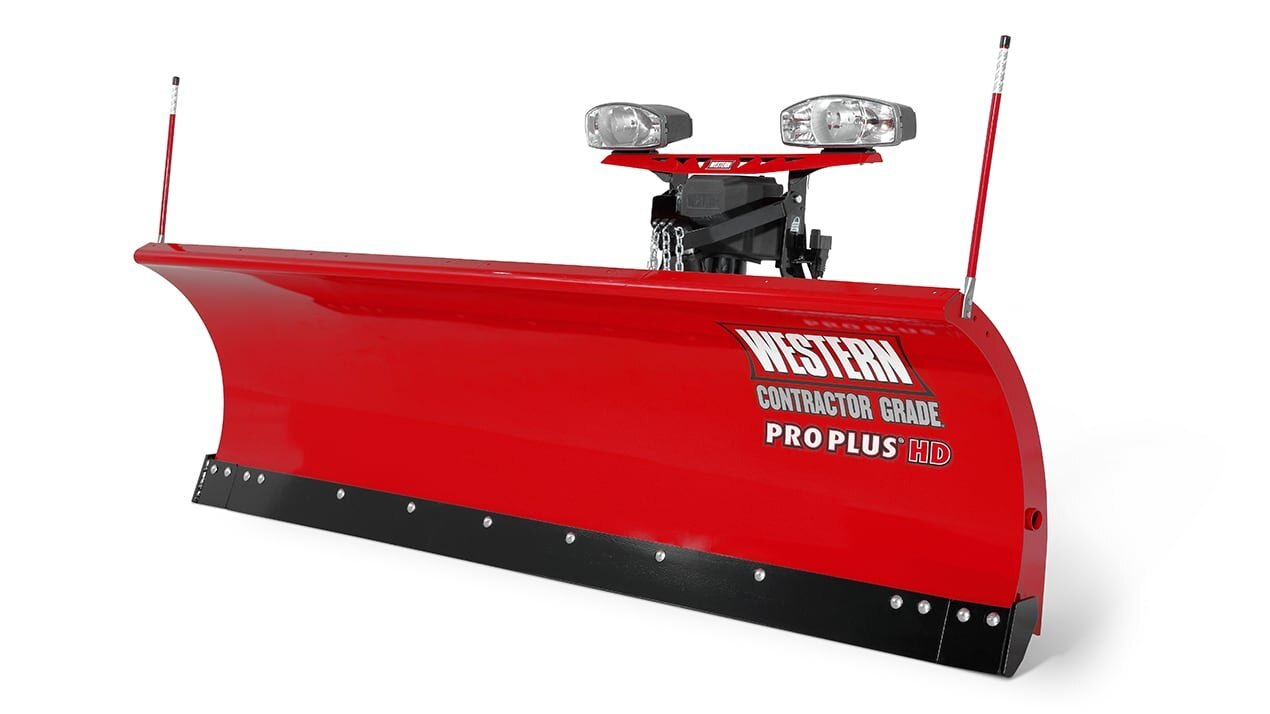

Westernplows PRO PLUS® HD Plow Blade Construction

Built to withstand high demands, the 34″ tall, 10′ wide, 11-gauge, powder-coated steel moldboard is constructed to take on jobs like large parking lots and local streets. Equipped with a high-carbon steel cutting edge to reduce wear and extend the life of the blade, the PRO PLUS® HD snow plow ensures a clean scrape on every pass.

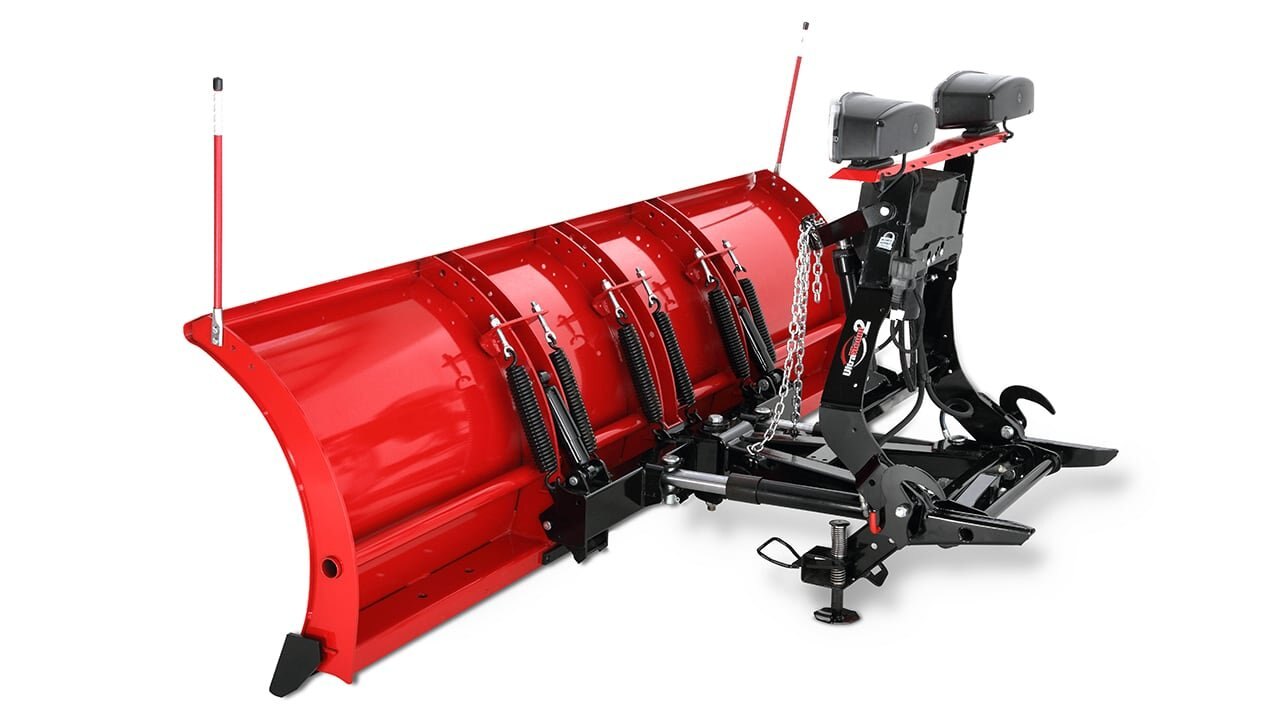

Westernplows PRO PLUS® HD STRUCTURAL REINFORCEMENT

Eight vertical ribs provide structural reinforcement, ensuring proper alignment and reducing stress on the overall plow assembly.

Westernplows PRO PLUS® HD RELIABLE HYDRAULICS

We manufacture our own hydraulic components to ensure the highest standards of quality and reliability, so that you get a hydraulics system that’s not only fast and responsive, but that’s built to last season after season.

Fully enclosed components are protected from the elements.

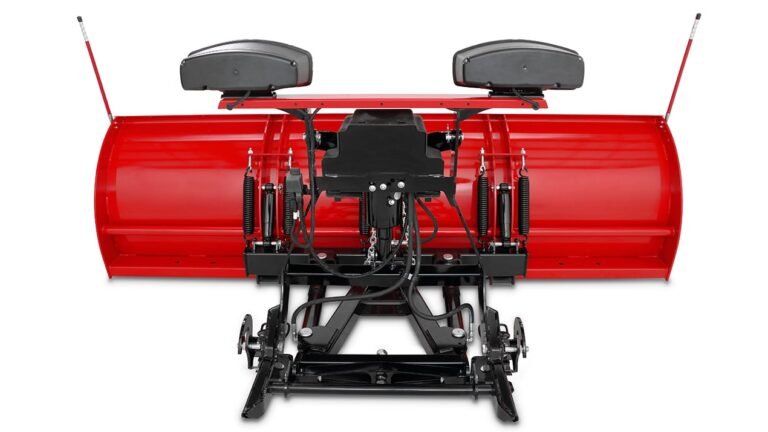

Westernplows PRO PLUS® HD TRIP PROTECTION

Six heavy-duty coil springs protect your plow and truck by allowing the whole blade to trip when striking obstacles.

Dual shock absorbers reduce jarring and soften the blade return when tripping occurs, to extend the life of your truck and plow.
standard plow features

Westernplows PRO PLUS® HD NIGHTHAWK™ Snow Plow Headlights

Available in both LED and Dual-Halogen models, NIGHTHAWK plow lights are engineered and tested for maximum light output, performance and durability to keep you ahead of the storm.

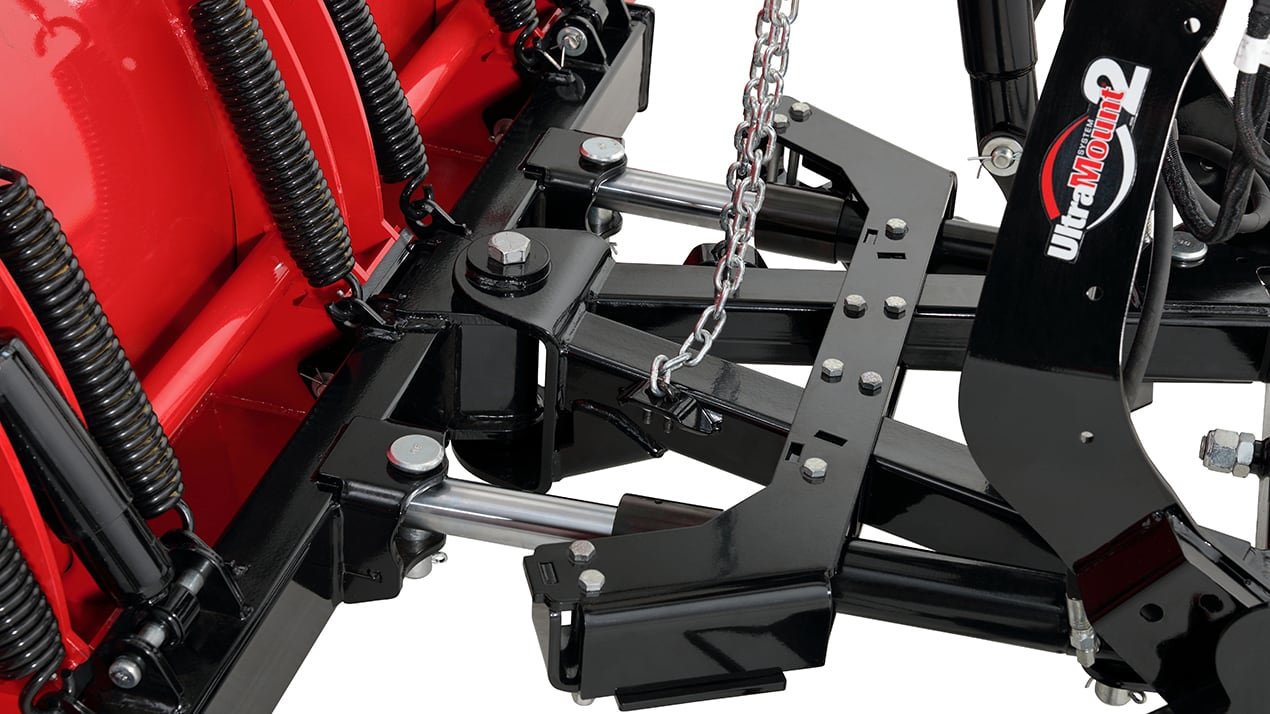

Westernplows PRO PLUS® HD UltraMount® 2 SNOWPLOW MOUNTING SYSTEM

The UltraMount® 2 system is designed for fast and easy installation and removal using a simple mechanical system. It features a robust one-piece design and is 100% compatible with UltraMount® system mounts and electrical platforms.

Westernplows PRO PLUS® HD CHAIN LIFT SYSTEM

The mechanical chain lift system offers a variety of performance and reliability advantages over a hydraulic system. Main benefits include cleaner scraping performance, higher stacking capabilities, reliability, and easy recovery in the event of a breakdown.

Westernplows PRO PLUS® HD FLEET FLEX ELECTRICAL SYSTEM

The FLEET FLEX electrical system provides true fleet interchangeability. The same FLEET FLEX CabCommand hand-held or joystick control can operate any UltraMount® and UltraMount® 2 mounted plow on any truck at any time.

Westernplows PRO PLUS® HD PLOW CONTROL OPTIONS

Choose between a CabCommand hand-held control with push buttons or a joystick control, based on operator preference. For efficient, precise and intuitive blade control while plowing, both controls feature power “on” and “float” LED lights, backlighting for night operation, and plug-in connector for easy removal.

Westernplows PRO PLUS® HD SECURITY GUARD™ ANTI-THEFT SYSTEM

The exclusive WESTERN® SECURITY GUARD™ snowplow anti-theft system is a safe and secure way to electronically lock your snow plow when it is detached from your truck as a deterrent from theft. Unlike physical locks that can easily be cut or removed, the system allows you to electronically lock the snowplow’s hydraulic functions, rendering your plow inoperable to unauthorized users.

Westernplows PRO PLUS® HD Isolation Module

This advanced snow plow light and electrical system features improved electrical pins in the harness for trouble-free connections. An underhood module improves system life and complies with OEM requirements. No toggle switch needed to change from vehicle to plow lights.

Westernplows PRO PLUS® HD ULTRAFINISH™ BAKED-ON POWDER COAT

The ULTRAFINISH™ baked on powder coat with epoxy primer is standard on all WESTERN® plows, providing outstanding protection against wear and rust.

Westernplows PRO PLUS® HD Pre-Punched Blades for Accessories

The blade is pre-punched for easy installation of accessories, providing a custom fit. The pre-punched holes also prevent damage to the powder coat that can sometimes occur when installing an accessory.

featured accessories

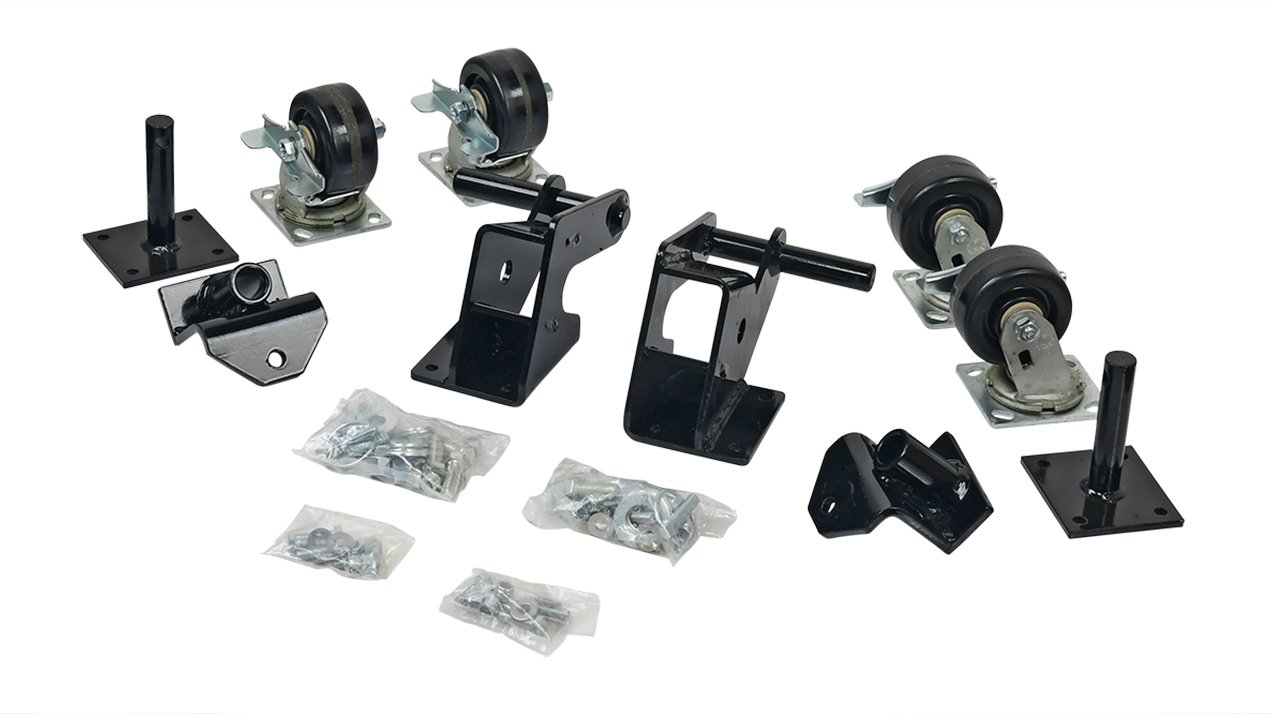

Westernplows PRO PLUS® HD WHEEL KIT

Easily move around your unattached plow by utilizing the Wheel Kit. Whether you’re moving it into storage, performing maintenance or just have limited space, this kit makes your plow mobile.

Westernplows PRO PLUS® HD BLADE STOP KIT

Protect your plow by ensuring heavy snow loads are distributed evenly with the blade stop kit. Made of reinforced, 0.188″ high-strength steel that reduces stress on the plow’s back iron and hydraulic rams for improved service life and performance. The easy-to-install kit comes with all of the required hardware.

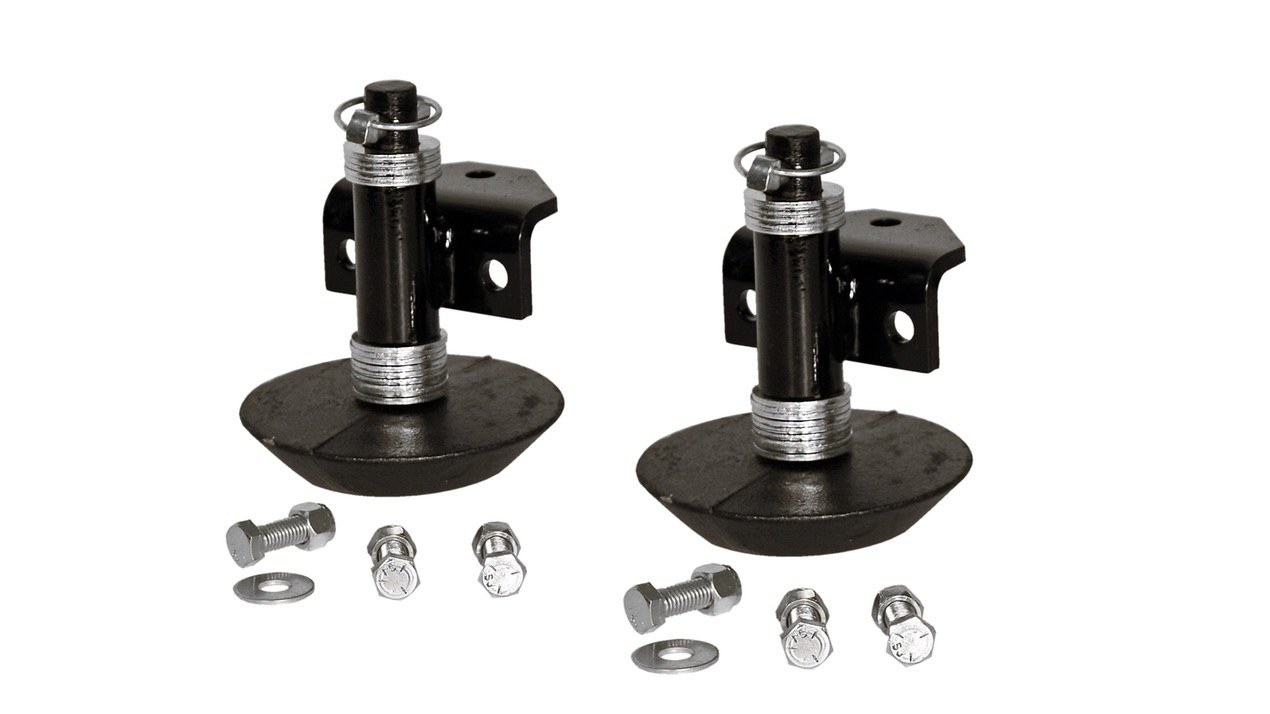

Westernplows PRO PLUS® HD SHOE KIT

Protect your plow and the road, while extending the life of your cutting edge with an adjustable shoe kit. The cast iron construction and shape increases the surface contact area and helps glide over gravel and dirt at the correct height. Extending cutting edge and base angle life when plowing on rocky or abrasive surfaces.
specifications
MODELS 10'
MOLDBOARD OPTIONS Steel
BLADE TYPE Straight Blade
VEHICLE COMPATIBILITY Truck Class 5, 6 & 7 (low-end)
APPROX. WEIGHT*
(WITHOUT MOUNT)		 1,075 lb
PLOWING WIDTH
(FULL ANGLE)		 8'9"
BLADE WIDTH 10'
BLADE HEIGHT 34"
BLADE THICKNESS 11 ga
SHOCK ABSORBERS 2
TRIP SPRINGS 6
RIBS 8
LIFT CYLINDER 1.75" x 8"
ANGLING RAMS 2" x 12.5"
CUTTING EDGE 0.5" x 6"
MOUNT TYPE UltraMount® 2
