WESTERN® LOW PROFILE 500 UTV TAILGATE SPREADER

  • WESTERN® LOW PROFILE 500 UTV TAILGATE SPREADER
  • WESTERN® LOW PROFILE 500 UTV TAILGATE SPREADER
  • WESTERN® LOW PROFILE 500 UTV TAILGATE SPREADER
  • WESTERN® LOW PROFILE 500 UTV TAILGATE SPREADER
  • WESTERN® LOW PROFILE 500 UTV TAILGATE SPREADER
  • WESTERN® LOW PROFILE 500 UTV TAILGATE SPREADER
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

LOW PROFILE 500

UTV TAILGATE SPREADER

OPERATOR-FRIENDLY VISIBILITY

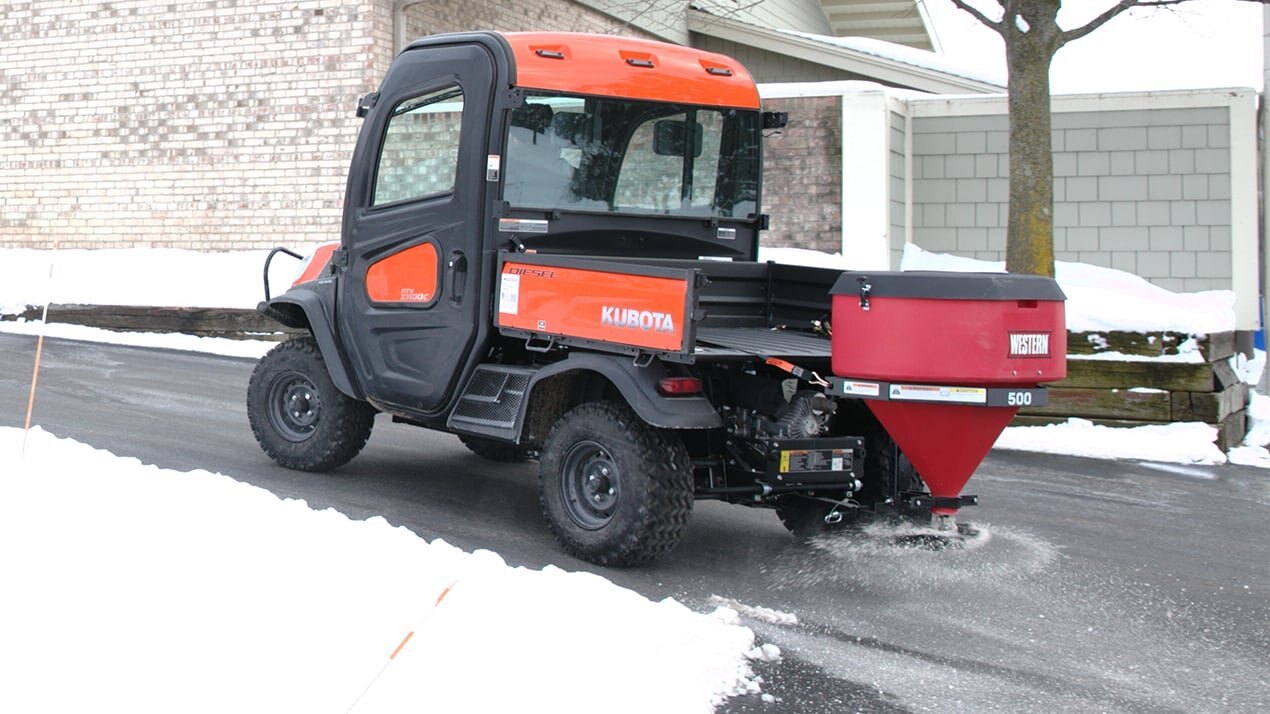

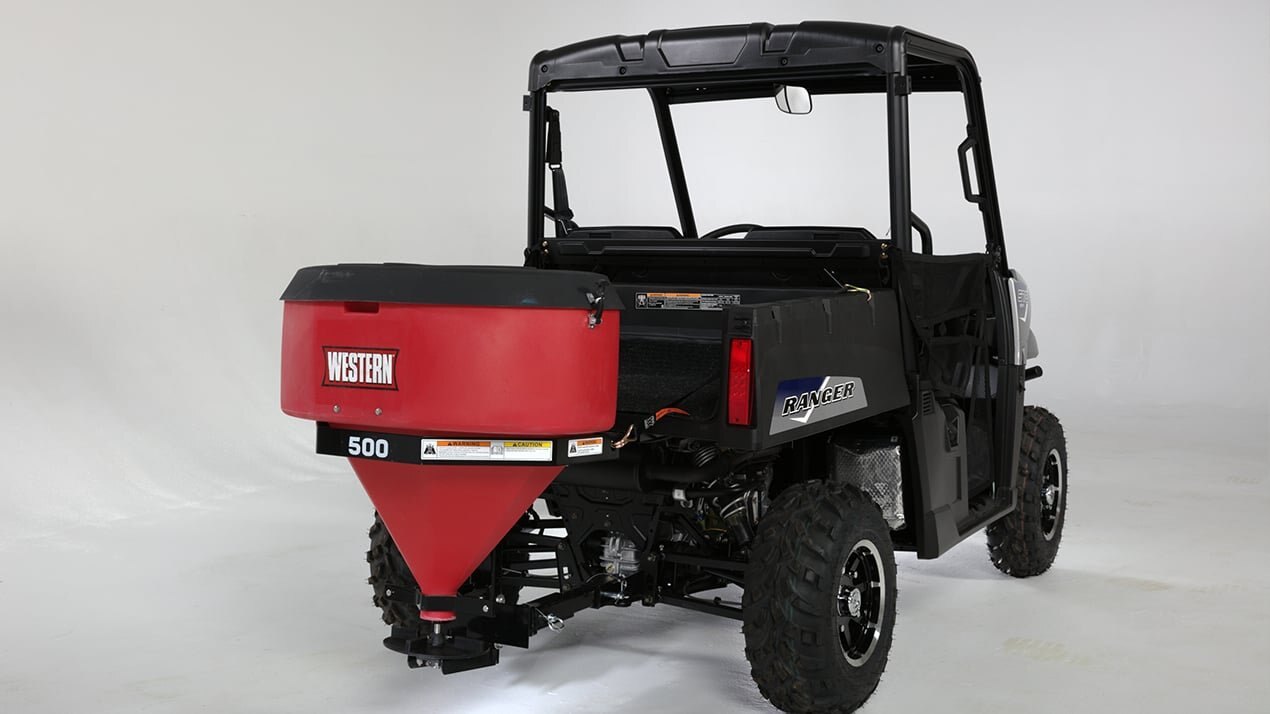

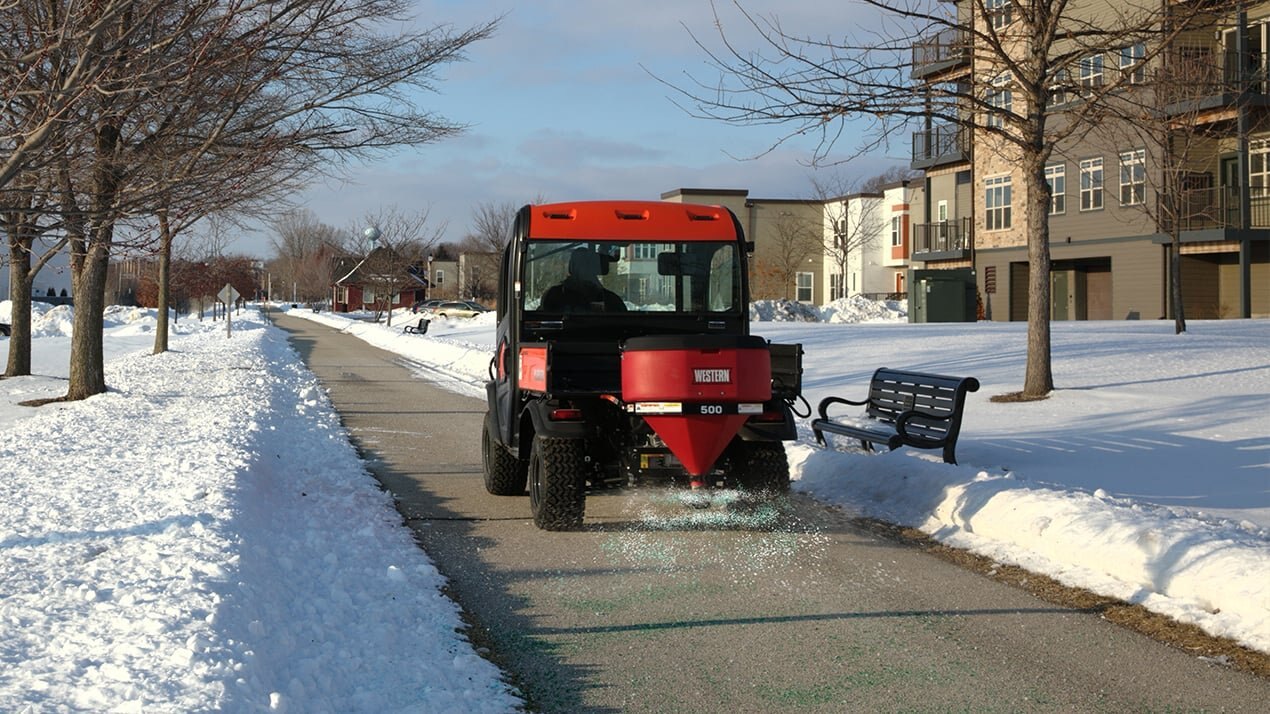

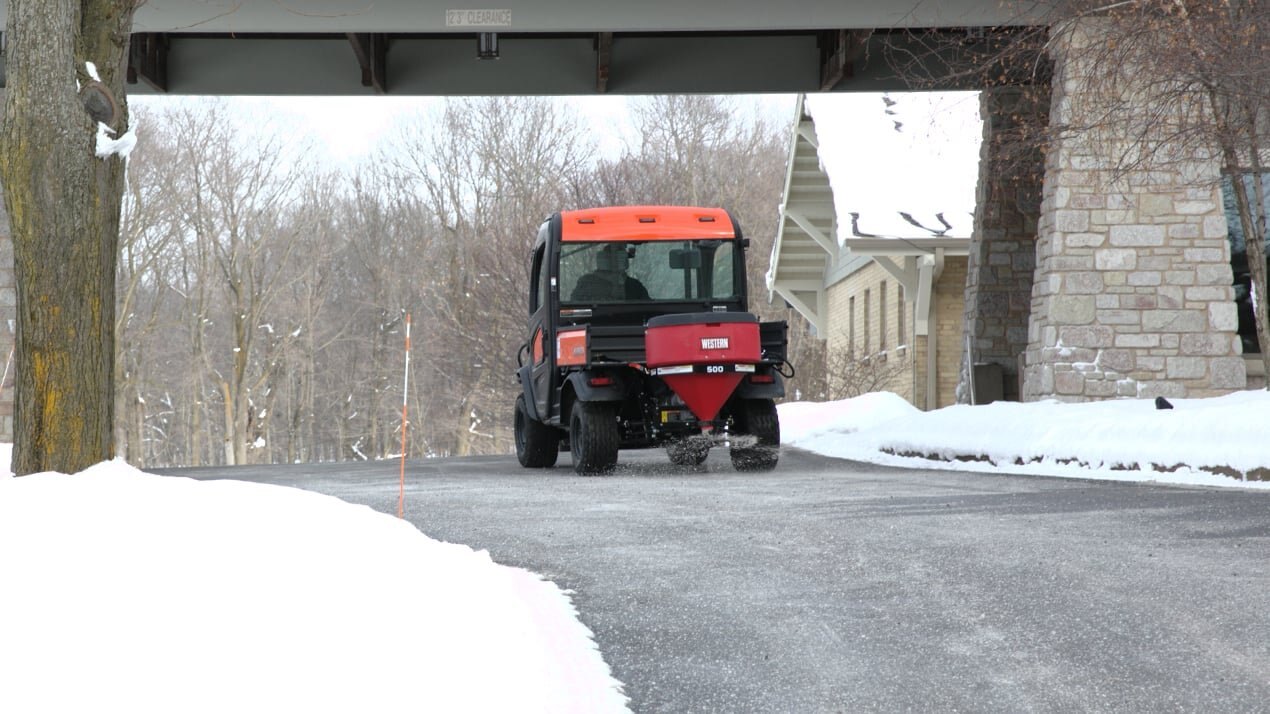

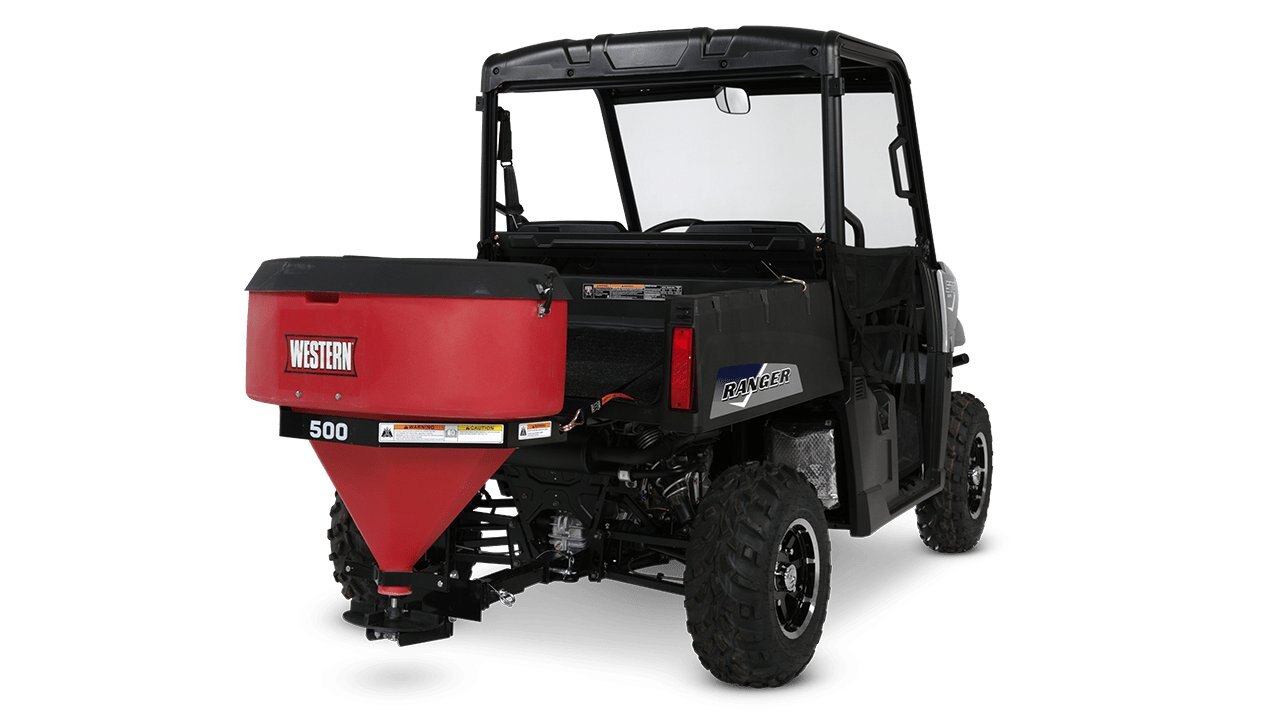

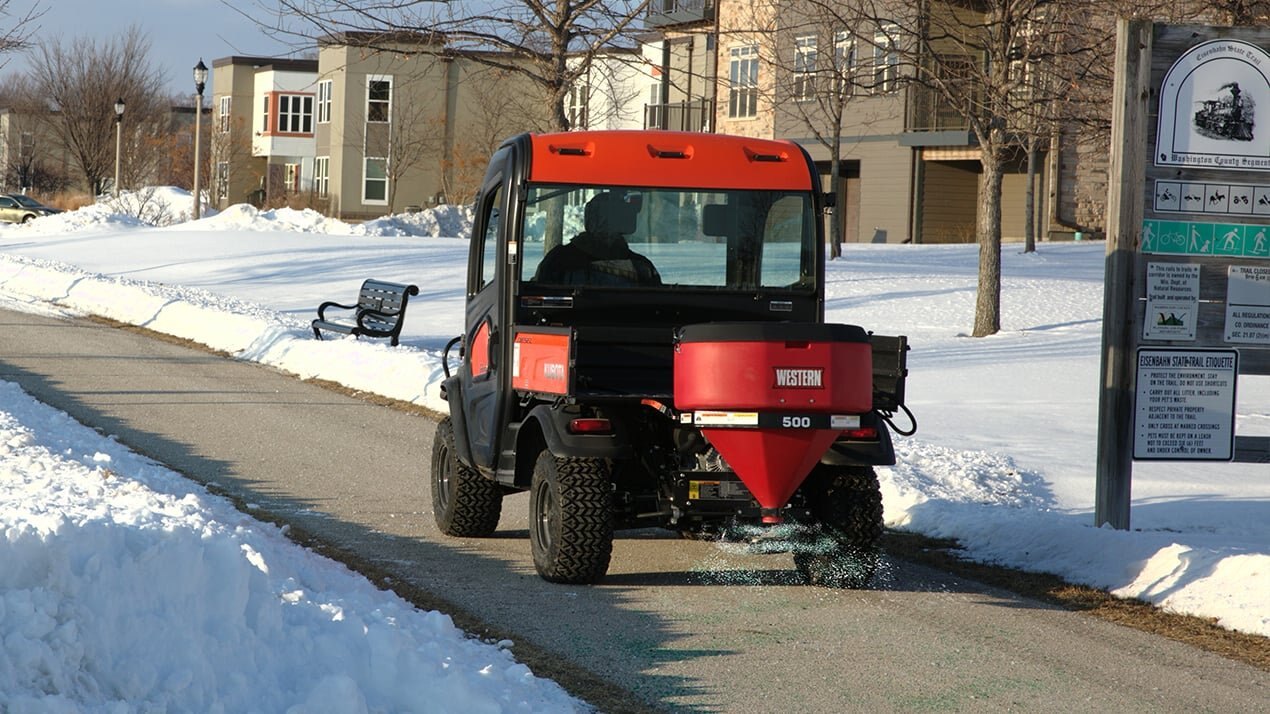

Ideal for treating sidewalks, driveways and small parking lots, the Low Profile 500 tailgate spreader offers everything you need in a light-duty spreader for your UTV. Operator-friendly and cost-effective, the Low Profile 500 is engineered to allow maximum visibility out the back of the UTV, while the simple design and rugged construction helps get the job done quickly, all from the comfort of your UTV.

Specifications
Model
LOW PROFILE 500
Category Name
Equipment
Year
2021
Sale Type
New
Manufacturer
Western
Motor
1/3 hp
Models
Model 500
Capacity
5.00 cu ft
Material
Salt
Spinner Size
10"
Spreading Width
Up to 30'
Available Mounts
Standard Class III Receiver Hitch Mount
Hopper Construction
Polyethylene
Vehicle Application
Vehicles with Class III Hitch
Approx. Weight (Empty)
75 lb With Mount
Auger (Diam. X Length)
2 ⅝" x 6"
Dimensions Overall (LxWxH)
21" x 39" x 34"
unique features

https://westernplows.com/wp-content/uploads/2020/07/Features_Cover-1.jpg Cover

A latching, molded polyethylene lid protects de-icing material from the elements.

https://westernplows.com/wp-content/uploads/2020/07/Features_ElectricMotor.jpg Electric Motors

A fully enclosed 12-volt electric, 1/3 HP motor is mounted inside a sealed housing, protecting it from corrosion.

https://westernplows.com/wp-content/uploads/2020/07/Features_Control.jpg CONTROLS

Choose between a variable speed control with an "on/off" button and blast option to optimize material usage or a basic "on/off" toggle control (controls are sold separately).

https://westernplows.com/wp-content/uploads/2020/07/Features_CorrosionResistentHopper_v2.jpg Corrosion-Resistant Hopper

The low profile tailgate spreaders feature corrosion-free polyethylene hoppers for long-lasting durability.

https://westernplows.com/wp-content/uploads/2020/07/low-profile-material-delivery1.jpg Material Delivery

Material is delivered by a powder coated, vertical steel auger to provide long-lasting, reliable performance.

https://westernplows.com/wp-content/uploads/2020/07/Features_Spinner-1.jpg Spinner

Model 500 features a durable 10" polyurethane spinner that delivers a spread pattern of up to 30'.

https://westernplows.com/wp-content/uploads/2020/07/Features_MountingOptions-1.jpg Mounting Options

The Model 500 tailgate spreader comes standard with a Class III receiver hitch mount.

https://westernplows.com/wp-content/uploads/2020/07/Features_RatchetStraps.jpg RATCHET STRAPS

Add additional spreader stability to your vehicle with standard nylon tie-down ratchet straps.
