ID # 13928844

WESTERN® PRO PLUS®

Call for Price
Overview



HEAVY-DUTY CONTRACTOR GRADE® PERFORMANCE

With a winter workhorse like the WESTERN® PRO PLUS® snow plow on your truck, there’s no holding back. Designed to fit a wide range of vehicles, including skid-steers, this plow is built for the toughest commercial operations. Give it all you’ve got, because going halfway has never been your style.

  Features

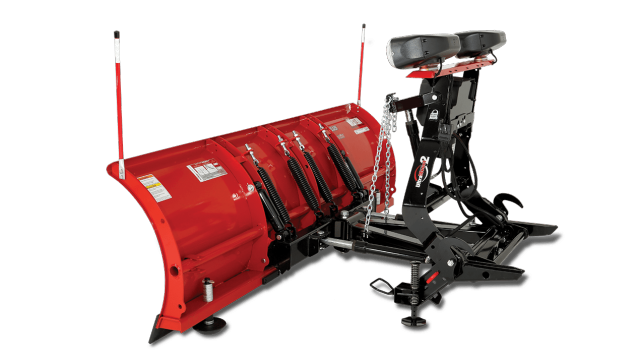

Pro Plus Front Of PlowPlow Blade Construction

The robust 12-gauge powder coated steel moldboard is a full 31½" tall and comes in 8', 8' 6", and 9' widths.

The PRO PLUS® blade features a 65-degree attack angle, and a high carbon steel cutting edge comes standard, reducing wear and extending the life of the blade.

Pro Plus Back Of PlowStructural Reinforcement

Eight vertical ribs, a heavy-duty quadrant, and the exclusive WESTERN® POWER BAR provide exceptional torsional strength and rigidity, to eliminate blade twisting even under the most brutal conditions.

The high-strength steel base channel provides extra support along the bottom of the plow blade.

The 1" diameter pivot bolt secures the plow in place, ensuring proper alignment and reducing stress on the overall plow assembly.


Reliable Hydraulics

We manufacture our own hydraulic components to ensure the highest standards of quality and reliability, so that you get a hydraulics system that's not only fast and responsive, but that's built to last season after season.

Fully enclosed components are protected from the elements.

Pro Plus Trip Springs

Trip Protection

Four heavy-duty coil springs protect your plow and truck by allowing the whole blade to trip when striking obstacles.

Dual shock absorbers reduce jarring and soften the blade return when tripping occurs, to extend the life of your truck and plow.


Models

8' 8' 6" 9'
Blade Width 8' 8' 6" 9'
Blade Height 31½" 31½" 31½"
Blade Gauge 12 12 12
Trip Springs 4 4 4
Shock Absorbers 2 2 2
Vertical Ribs 8 8 8
Angling Rams 1 ½" x 12" 1 ½" x 12" 1 ½" x 12"
Plowing Width (full angle) 6' 11" 7' 4" 7' 9"
Approx. Weight (less mount) 805 lb** 821 lb** 837 lb**
Disc Shoes Cast Iron Cast Iron Cast Iron
Cutting Edge 1/2" x 6" 1/2" x 6" 1/2" x 6"
Mount Type UltraMount® 2 UltraMount® 2 UltraMount® 2


Specifications
Model
PRO PLUS®
Category Name
Equipment
Year
2018
Sale Type
New
Manufacturer
Western
Documents
