WESTERN® Low Profile

  • WESTERN® Low Profile
  • WESTERN® Low Profile
  • WESTERN® Low Profile
  • WESTERN® Low Profile
  • WESTERN® Low Profile
  • WESTERN® Low Profile
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

CONSIDER IT DONE.

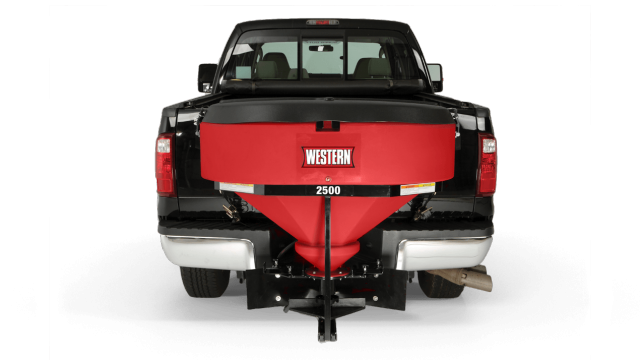

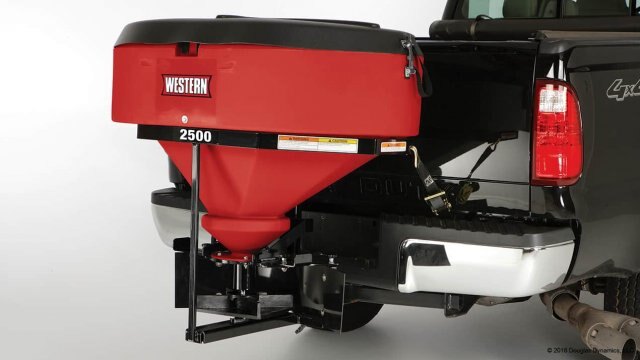

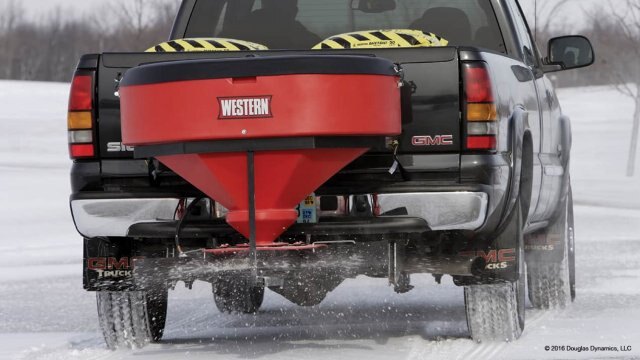

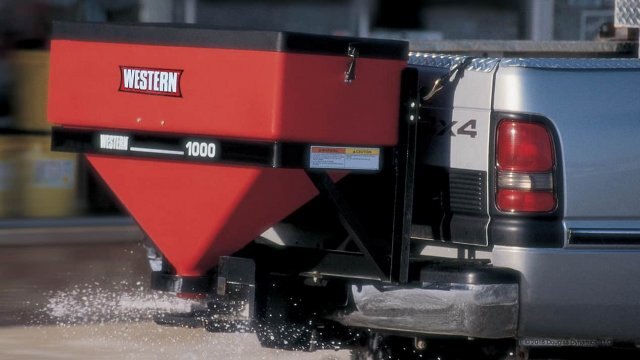

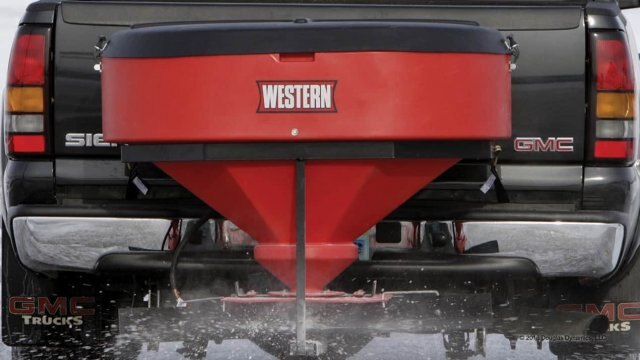

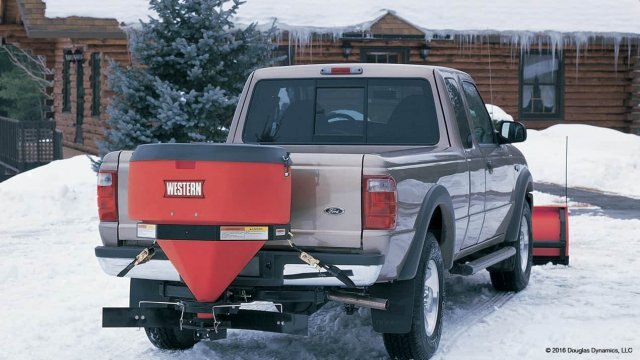

Get the job done with one of the WESTERN® Low Profile tailgate spreaders. Constructed of high density polyethlene and designed for convenience and performance without affecting the operator's view from behind the wheel.

  Features

Low Profile CoverCover

A latching, molded polyethylene lid protects de-icing material from the elements.



Low Profile MotorElectric Motor

A fully enclosed 12-volt electric, 1/3 HP motor is mounted inside a sealed housing, protecting it from corrosion.

Low Profile ControlControls

Choose between a variable speed control with an "on/off" button and blast option to optimize material usage or a basic "on/off" toggle control (controls are sold separately).

Low Profile HopperCorrosion-Resistant Hopper

The low profile tailgate spreaders feature corrosion-free polyethylene hoppers for long-lasting durability.


.

Low Profile Material Delivery(1)

Material Delivery

Material is delivered by a powder coated, vertical steel auger to provide long-lasting, reliable performance.

Low Profile MotorSpinner

Models 500 and 1000 both feature a durable 10" polyurethane spinner that delivers a spread pattern of up to 30'.

Model 2500 comes standard with a large, 15" polyurethane spinner that delivers a spread pattern of up to 30'.

Low Profile Material Delivery

Adjustable Feed Gate

On Model 2500, a specialized "saw tooth" feed gate and auger design combine to deliver complete, reliable flow control with positive shut-off, eliminating spillage and waste.

Low Profile Ratchet StrapMounting Options

The Model 500 tailgate spreader comes standard with a Class III receiver hitch mount.

The Model 1000 tailgate spreader requires the additional purchase of one of the available mount options: a Class IV receiver hitch mount, a fixed bumper mounting system, or the SWING AWAY® mount.

The Model 2500 tailgate spreader comes standard with a Class IV receiver hitch mount.

Low Profile Top Screen

Optional Top Screen

Optional on all three models, a coated steel top screen helps break up large chunks of de-icing material during the loading process to help prevent clogging and bridging during spreader operation.

Low Profile Ratchet StrapRatchet Straps

Add additional spreader stability to your vehicle with standard nylon tie-down ratchet straps.

Models Model 500 Model 1000 Model 2500
Capacity 5.00 cu ft 8.00 cu ft 8.50 cu ft
Hopper Construction Polyethylene Polyethylene Polyethylene
Dimensions Overall (LxWxH) 21" x 39" x 34" 19 ½" x 50 ½" x 35" 25" x 50" x 42"
Approx. Weight (empty) 75 lb with mount 105 lb w/o mount 131 lb with mount
Motor 1/3 hp 1/3 hp 1/3 hp
Auger (diam. x length) 2.63" x 6" 2.63" x 6" 2.63" x 9"
Spinner Size 10" 10" 15"
Spreading Width Up to 30' Up to 30' Up to 30'
Materials Salt Salt Salt
Vehicle Application Vehicles with Class III Hitch Full Size Trucks (over 6,000 lb GVWR) Full Size Trucks (over 6,000 lb GVWR)
Available Mounts Standard Class III Receiver Hitch Mount Optional Fixed Mount, Class IV Hitched Mount, Dual Swing Mount Standard Class IV Hitch Mount


Specifications
Model
Low Profile
Category Name
Equipment
Year
2017
Sale Type
New
Manufacturer
Western
Documents
