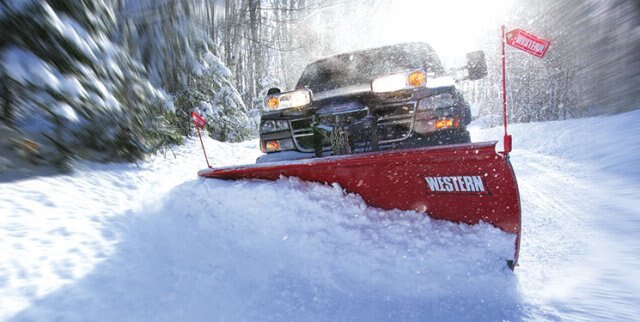

WESTERN® PRO-PLOW®

  • WESTERN® PRO PLOW®
  • Video Button Hqdefault
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Stake Your Reputation on It

When it comes to your business, taking care of the customers is what it’s all about. Designed for the pros, the WESTERN® PRO-PLOW® has been one of the best-selling straight-blade models for snow plow contractors since its introduction. When they’re counting on you, you can count on the PRO-PLOW.

- See more at: http://www.westernplows.com/wp/showroom/proplow#sthash.QBIlB6cQ.dpuf
Stake Your Reputation on It

When it comes to your business, taking care of the customers is what it’s all about. Designed for the pros, the WESTERN® PRO-PLOW® has been one of the best-selling straight-blade models for snow plow contractors since its introduction. When they’re counting on you, you can count on the PRO-PLOW.
Features

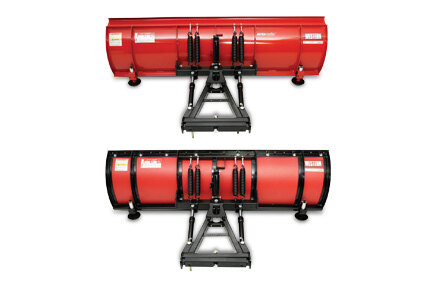

1536 Powder-Coated Steel Moldboard



 Designed to meet the demands of professional snow plowing, the powder-coated STEEL PRO-PLOW blade is 29” tall and comes in 7½’, 8’, and 8½’ widths. Seven vertical ribs provide structural reinforcement. The ⅜” x 6” high carbon steel cutting edge is standard, to reduce wear and protect the blade


1536

 Poly Moldboard

Available in 7½’ and 8’ widths, the POLY PRO-PLOW is made from thermal-formed, high-density polyethylene. The slick surface of this durable poly blade provides superior snow-rolling action for snow plowing efficiency, and the surface is rust-proof and maintenance-free. Seven vertical ribs provide structural reinforcement.

    A rubber snow deflector is standard on the POLY PRO-PLOW.
    The 3/8” x 6” high carbon steel cutting edge reduces wear



1378 Trip Blade with Shock Absorber



 Four heavy-duty coil springs help protect your plow and truck when striking an obstacle. The shock absorber helps soften the trip blade return, to extend the life of your truck and plow.
1357
Isolation Module
Advanced snow plow light and electrical system features solid electrical pins in the harness plugs for trouble free connections.
Under-hood module improves system life and complies with OEM requirements.
No toggle switch needed to change from vehicle to plow lights.

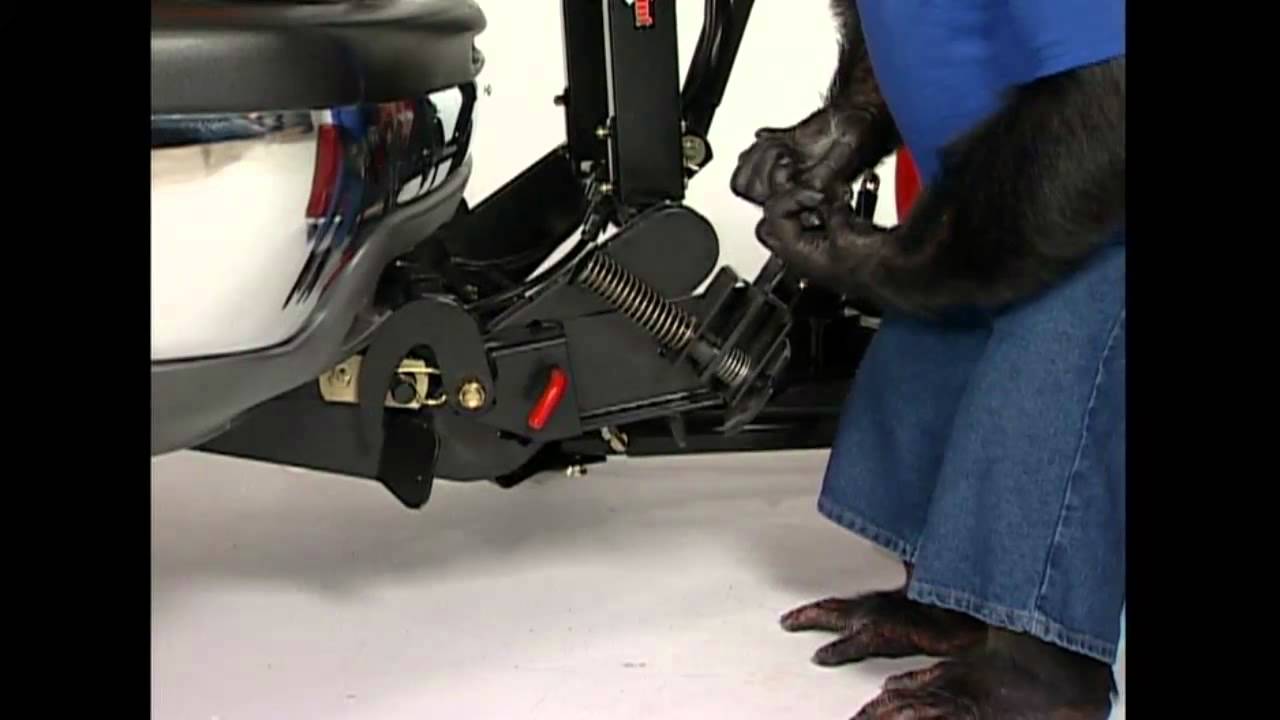

UltraMount®  2 Snowplow Mounting System Video

An enhanced version of the popular UltraMount® mounting system

    Fast and easy – no tools required!
    Extra wide receiver brackets for easy drive-in alignment
    New one-piece lift frame design for added strength and durability
    Simple mechanical connecting hook
    Rotating pivot bar keeps attaching points level
    Blade pivots while plowing for a cleaner scrape
    Chain lift system for higher stacking and safe emergency transport
    Removable receiver brackets for off-season ground clearance

Reliable Hydraulics

Western Products manufactures our own hydraulic components to assure the highest quality and reliability standards are met. You get a hydraulics system that's not only fast and responsive for snow plowing efficiency, but that's built to last season after season.



    Fast responsive hydraulics for maximum snow plowing efficiency
    Fully enclosed components are protected from the elements

Chain Lift System

    With the chain lift system, you get instantaneous “float” when lowering the blade. Unrestricted, the blade can freely follow the contours of the plowing surface for a cleaner scrape.
    With the chain lift you can stack higher because you’re not limited by the hydraulic ram stroke, unlike cylinder lift systems, which can only pull the snow plow up as far as the limits of the cylinder’s range.
    In the rare event of a hydraulic failure, you can push the snow plow up into a snowbank and “short chain” the snow plow by attaching it to the specially designed bracket and safely transport the snow plow back to the shop.

Intuitive Plow Controls

Choose between the CabCommand hand-held control option, or the joystick control for efficient, precise and intuitive blade control while plowing.

CabCommand Control Option

    Power “on” and “float” LED
    Backlit for night operation
    Coil cord for easy mobility


Joystick Control Option

    Compact to fit anywhere
    On/off indicator light
    Plug-in connecter for easy removal

4480FLEET FLEX Electrical System

The FLEET FLEX electrical system provides true fleet interchangeability among current UltraMount® and UltraMount® 2 mounted snow plows. The same handheld or joystick control operates the following WESTERN® snow plows.

            WIDE-OUT™            PRO PLUS®

            PRODIGY™              PRO-PLOW®

            MVP 3™                  MIDWEIGHT™

            MVP PLUS™           HTS™

Features include:

    Programmable "soft-stop" and "one-touch" float
    Simple wiring and easier installation


SECURITY GUARD™ Anti-Theft System

The exclusive WESTERN® SECURITY GUARD™ snow plow anti-theft system is a safe and secure way to electronically “lock” your snow plow when it is detached from your truck.

    Electronically synchronizes your snow plow control and plow module
    When activated, SECURITY GUARD disables the electrical control system and renders the plow inoperable to unauthorized users
    Activate or deactivate at your discretion

Click here for more information.
NIGHTHAWK™ Halogen Headlamps

    State-of-the-art reflector optics
    Smooth wide beam pattern
    Robust two-stud mounting
    Watertight adhesive-bonded housing
    Long life halogen bulbs

ULTRAFINISH™ Baked-On Powder Coat

The ULTRAFINISH™ baked-on powder coat provides outstanding protection against wear and rust.

    Eight-wheel shot blaster pre-treatment removes mill scale and abrades surfaces for optimum adhesion
    Multi-stage pre-wash provides superior surface preparation
    Epoxy primer is applied to improve corrosion resistance and enhance powder coat adhesion
    Robotic guns deliver precise, consistent powder coat coverage
    Final baking process provides a long-lasting hard-as-nails WESTERN red, that’s become synonymous with quality

Model Blade Width Blade Height Blade Gauge Trip Springs Shock Absorbers Vertical Ribs Angling Rams Plowing Width
(full angle)		 Approx. Weight
(less mount)		 Disc Shoes Cutting Edge
PRO PLOW Series 2 7' 6" 29″ 11 4 1 7 1½" x 10" 6' 6" 653 lb cast iron 3/8" x 6"
PRO PLOW Series 2 8' 29" 11 4 1 7 1½" x 10" 6' 11" 668 lb cast iron 3/8" x 6"
PRO PLOW Series 2 8' 6" 29" 11 4 1 7 1½" x 10" 7' 4" 686 lb cast iron 3/8" x 6"
POLY PRO PLOW® Series 2 7' 6" 29" 3/8" poly 4 1 7 1½" x 10" 6' 6" 677 lb cast iron 3/8" x 6"
POLY PRO PLOW
Series 2		 8' 29" 3/8" poly 4 1 7 1½" x 10" 6' 11" 690 lb cast iron 3/8" x 6"

Specifications
Model
PRO-PLOW®
Category Name
Equipment
Year
2016
Sale Type
New
Manufacturer
