Western
ID # 13233412

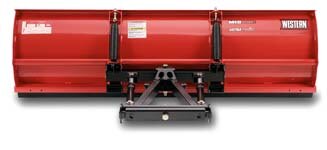

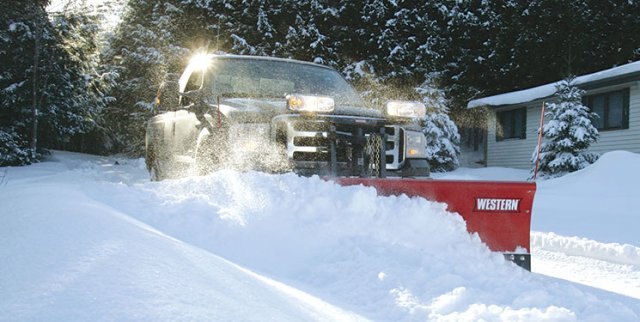

WESTERN® MIDWEIGHT™ snow plow
Call for Price
Overview
Specifications
Videos
Documents
|
Built for Light Commercial Use
When winter’s coming on strong, you need a plow that’s going to give you some real pushback. The WESTERN® MIDWEIGHT™ snow plow is lean, nimble and provides plenty of muscle. Big performance for light commercial use. | |||||||||||||||||||||||||||||||||
|
Features | |||||||||||||||||||||||||||||||||
|
Reinforced Plow Blade Structure Six vertical ribs and the exclusive POWER BAR provide unmatched structural reinforcement, delivering exceptional torsional strength and rigidity to eliminate blade twisting. | |||||||||||||||||||||||||||||||||
|
The two-spring trip blade protects your snow plow and truck when striking hidden obstacles. Elastomer trip pads further reduce excessive jarring and soften the blade return when tripping occurs.
| |||||||||||||||||||||||||||||||||
 Steel Base Channel for Strength
High-strength steel base channel reinforces the plow blade, providing extra support where it’s needed most. | |||||||||||||||||||||||||||||||||
Isolation Module
Advanced snow plow light and electrical system features solid electrical pins in the harness plugs for trouble free connections.
Under-hood module improves system life and complies with OEM requirements.
No toggle switch needed to change from vehicle to plow lights.
| |||||||||||||||||||||||||||||||||
|
UltraMount® 2 Snowplow Mounting System Video
An enhanced version of the popular UltraMount® mounting system Fast and easy – no tools required! Extra wide receiver brackets for easy drive-in alignment New one-piece lift frame design for added strength and durability Simple mechanical connecting hook Rotating pivot bar keeps attaching points level Blade pivots while plowing for a cleaner scrape Chain lift system for higher stacking and safe emergency transport Removable receiver brackets for off-season ground clearance | |||||||||||||||||||||||||||||||||
|
Reliable Hydraulics
Western Products manufactures our own hydraulic components to assure the highest quality and reliability standards are met. You get a hydraulics system that's not only fast and responsive for snow plowing efficiency, but that's built to last season after season. Fast responsive hydraulics for maximum snow plowing efficiency Fully enclosed components are protected from the elements | |||||||||||||||||||||||||||||||||
|
Chain Lift System
With the chain lift system, you get instantaneous “float” when lowering the blade. Unrestricted, the blade can freely follow the contours of the plowing surface for a cleaner scrape. With the chain lift you can stack higher because you’re not limited by the hydraulic ram stroke, unlike cylinder lift systems, which can only pull the snow plow up as far as the limits of the cylinder’s range. In the rare event of a hydraulic failure, you can push the snow plow up into a snowbank and “short chain” the snow plow by attaching it to the specially designed bracket and safely transport the snow plow back to the shop. | |||||||||||||||||||||||||||||||||
|
Intuitive Plow Controls
Choose between the CabCommand hand-held control option, or the joystick control for efficient, precise and intuitive blade control while plowing. CabCommand Control Option Power “on” and “float” LED Backlit for night operation Coil cord for easy mobility Joystick Control Option Compact to fit anywhere On/off indicator light Plug-in connecter for easy removal | |||||||||||||||||||||||||||||||||
 FLEET FLEX Electrical System
The FLEET FLEX electrical system provides true fleet interchangeability among current UltraMount® and UltraMount® 2 mounted snow plows. The same handheld or joystick control operates the following WESTERN® snow plows. WIDE-OUT™ PRO PLUS® PRODIGY™ PRO-PLOW® MVP 3™ MIDWEIGHT™ MVP PLUS™ HTS™ Features include: Programmable "soft-stop" and "one-touch" float Simple wiring and easier installation | |||||||||||||||||||||||||||||||||
|
SECURITY GUARD™ Anti-Theft System
The exclusive WESTERN® SECURITY GUARD™ snow plow anti-theft system is a safe and secure way to electronically “lock” your snow plow when it is detached from your truck. Electronically synchronizes your snow plow control and plow module When activated, SECURITY GUARD disables the electrical control system and renders the plow inoperable to unauthorized users Activate or deactivate at your discretion | |||||||||||||||||||||||||||||||||
|
NIGHTHAWK™ Halogen Headlamps Video
State-of-the-art reflector optics Smooth wide beam pattern Robust two-stud mounting Watertight adhesive-bonded housing Long life halogen bulbs | |||||||||||||||||||||||||||||||||
|
ULTRAFINISH™ Baked-On Powder Coat The ULTRAFINISH™ baked-on powder coat provides outstanding protection against wear and rust. Eight-wheel shot blaster pre-treatment removes mill scale and abrades surfaces for optimum adhesion Multi-stage pre-wash provides superior surface preparation Epoxy primer is applied to improve corrosion resistance and enhance powder coat adhesion Robotic guns deliver precise, consistent powder coat coverage Final baking process provides a long-lasting hard-as-nails WESTERN red, that’s become synonymous with quality | |||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||
Model
MIDWEIGHT™
Category Name
Equipment
Year
2016
Sale Type
New
Manufacturer
Western
Videos
Documents
Quick_Plow_Tips.pdf Model
MIDWEIGHT™
Category Name
Equipment
Year
2016
Sale Type
New
Manufacturer
Western
Quantity
0
