ID # 13633937

Westeel Magnum-F™ Smoothwall Bins

  • Westeel Magnum F™ Smoothwall Bins
  • Westeel Magnum F™ Smoothwall Bins
  • Westeel Magnum F™ Smoothwall Bins
  • Westeel Magnum F™ Smoothwall Bins
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

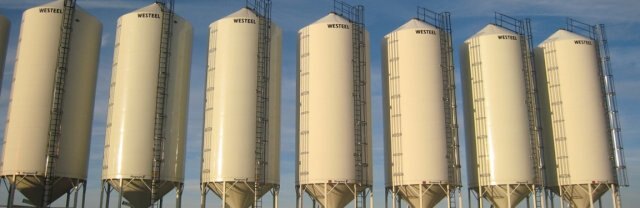

Specially designed for the safe, long-term storage of fertilizer, grain, or seed, Magnum-F™ smoothwall bins are professionally designed hopper bottom bins.

A slip-additive in the interior epoxy reduces friction and improves clean out.

Additional features and benefits:

  • 40 or 55-degree cone slope and 19" opening to help eliminate grain hang-up
  • State of the art paint finish inside and out
  • A full range of accessories comes standard including Sight Glasses, Inspection Hatch, Stainless Steel Rack & Pinion Slide Gate, Poke Hole
  • Holds up to 223 tons
  Resources
  Models

Part # Model Description Approximate Weight Capacity Diameter Overall Height
291010 Model MAG1408F Smoothwall Fertilizer Storage Bin (40-degree bottom cone) 1461 kg 49 t 4.27 m 6.00 m
291020 Model MAG1412F Smoothwall Fertilizer Storage Bin (40-degree bottom cone) 1755 kg 66 t 4.27 m 7.22 m
291025 Model MAG1416F Smoothwall Fertilizer Storage Bin (40-degree bottom cone) 2177 kg 84 t 4.27 m 8.44 m
291036 Model MAG1612F Smoothwall Fertilizer Storage Bin (40-degree bottom cone) 2195 kg 91 t 4.88 m 7.89 m
291037 Model MAG1616F Smoothwall Fertilizer Storage Bin (40-degree bottom cone) 2585 kg 114 t 4.88 m 9.11 m
291038 Model MAG1620F Smoothwall Fertilizer Storage Bin (40-degree bottom cone) 3357 kg 137 t 4.88 m 10.33 m
291039 Model MAG1624F Smoothwall Fertilizer Storage Bin (40-degree bottom cone) 3856 kg 159 t 4.88 m 11.55 m
291040 Model MAG1240F Smoothwall Fertilizer Storage Bin (40-degree bottom cone) 1043 kg 25 t 3.81 m 4.60 m
291041 Model MAG1628F Smoothwall Fertilizer Storage Bin (40-degree bottom cone) 4354 kg 180 t 4.88 m 12.47 m
291042 Model MAG1208F Smoothwall Fertilizer Storage Bin (40-degree bottom cone) 1238 kg 38 t 3.81 m 5.82 m

Part # Model Description Approximate Weight Capacity Diameter Overall Height
291044 Model MAG1212F Smoothwall Fertilizer Storage Bin (40-degree bottom cone) 1515 kg 52 t 3.81 m 7.04 m
291046 Model MAG1216F Smoothwall Fertilizer Storage Bin (40-degree bottom cone) 1755 kg 66 t 3.81 m 8.26 m
291048 Model MAG1630F Smoothwall Fertilizer Storage Bin (40-degree bottom cone) 4627 kg 191 t 4.88 m 13.08 m
291049 Model MAG1632F Smoothwall Fertilizer Storage Bin (40-degree bottom cone) 4902 kg 202 t 4.88 m 13.69 m
291142 Model MAG1204F Smoothwall Fertilizer Storage Bin (55-degree bottom cone) 1224.70 kg 18.78 t 3.66 m 5.64 m
291144 Model MAG1208F Smoothwall Fertilizer Storage Bin (55-degree bottom cone) 1451.50 kg 27.67 t 3.66 m 6.86 m
291146 Model MAG1212F Smoothwall Fertilizer Storage Bin (55-degree bottom cone) 1678.29 kg 36.56 t 3.66 m 8.08 m
291148 Model MAG1216F Smoothwall Fertilizer Storage Bin (55-degree bottom cone) 1950.45 kg 45.54 t 3.66 m 9.30 m
291164 Model MAG1416F Smoothwall Fertilizer Storage Bin (55-degree bottom cone) 2349.61 kg 58.33 t 4.27 m 9.66 m
291166 Model MAG1612F Smoothwall Fertilizer Storage Bin (55-degree bottom cone) 2766.91 kg 64.50 t 4.88 m 9.17 m

Part # Model Description Approximate Weight Capacity Diameter Overall Height
291168 Model MAG1616F Smoothwall Fertilizer Storage Bin (55-degree bottom cone) 3039.07 kg 79.11 t 4.88 m 10.39 m
294747 Model MAG1412F Smoothwall Fertilizer Storage Bin (55-degree bottom cone) 1927.77 kg 46.81 t 4.27 m 8.44 m



Specifications
Model
Magnum-F™ Smoothwall Bins
Category Name
Equipment
Year
2017
Sale Type
New
Manufacturer
Westeel
