The Weidemann benefits at a glance

Weidemann articulated pendulum joint

The backbone of the Weidemann design. The legendary articulated pendulum joint. All four wheels are in constant contact with the ground and the machine moves with maximum traction. This also makes the machine uniquely manoeuvrable.

High quality powder coating

Quality creates added value. The powder coating is a key feature of the Weidemann quality standard. In contrast to the conventional wet painting, it greatly increases the service life and is more efficient and also environmentally friendly in the process.

High shear forces from planetary axle

The drive via the planetary axle increases the torque on the wheel and thereby improves the shear force. Due to the optimal ratio between the shear force and machine capacity, you work flexibly and economically at the same time.

100% differential lock

If necessary, the up to 100% connectable differential lock offers you maximum traction and shear force and keeps the tyre wear low (switched off during normal operation).

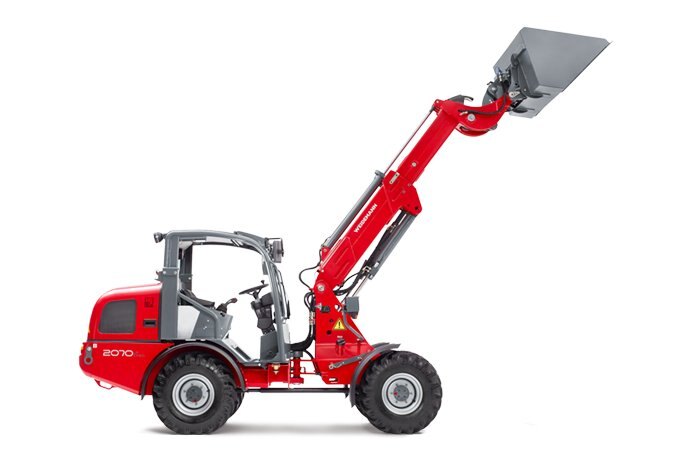

Sturdy telescopic boom

The telescopic boom is built to be sturdy and stable. The parallel motion takes place hydraulically. All important hydraulic lines are inside and are protected against external influences. The telescopic boom for Weidemann wheel loaders combines the advantages of an articulated machine with those of a telehandler. High overhead loading heights are therefore not a problem.

Rollback angle limitation

A rollback angle limitation is installed as a standard on all Weidemann telescopic wheel loaders. This is located on the Weidemann receptacle and, if necessary, limits the rollback angle. The retainer prevents rolling in too far with an extended or retracted telescopic boom. In this way, for example, the contents of the bucket cannot fall onto the driver's cab.

Stainless steel steering stops

At a full steering stop, the front and rear carriage of the machine touch. With Weidemann, this area is particularly well-protected by the stainless steel steering stops and the machine's paint is not damaged. This provides for value preservation!

Good accessibility for all LP models

The driver's seat can be removed and the engine hood can be opened backward widely. This makes the engine, hydraulic system and electrical system easily accessible for our LP models.

Easily accessible lubrication service points

Regularly lubricating all lubrication service points of the machine is essential for correct and effective maintenance and therefore for the value preservation of the machine. In order to save time and facilitate the work, the lubrication service points are always in an easily accessible position at Weidemann. Optionally, a central lubrication system is available that takes over the lubrication for you.

Short hydraulic hose lengths

Weidemann machines have short hydraulic hose lengths - the hoses are split in several places. If a hydraulic hose needs to be exchanged, the entyre hose in the hydraulic circuit does not need to be exchanged, but rather just the affected part. This speeds up work enormously and saves money.
