ID # 39462675

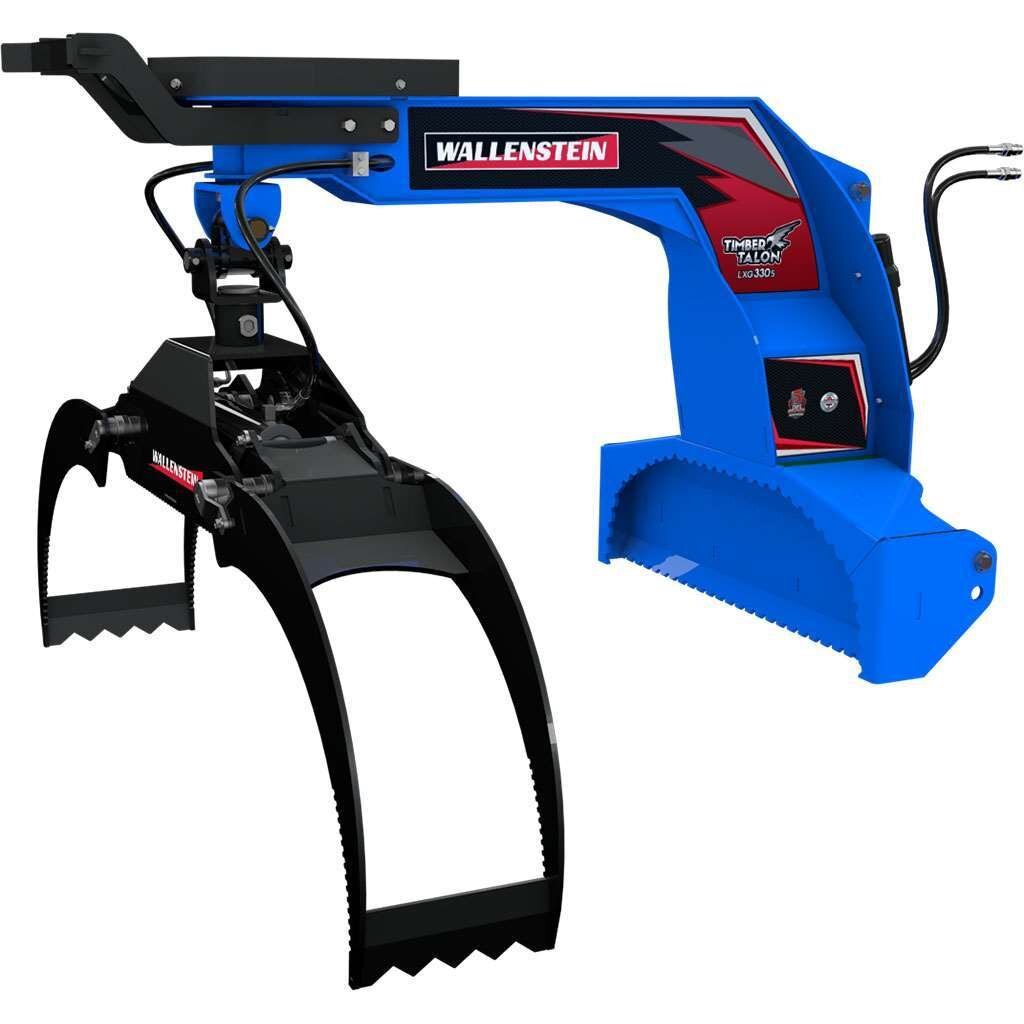

Wallenstein LXG330S 180° Spring Return

  • Wallenstein LXG330S 180° Spring Return
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

72" opening, the LXG330S 3-point hitch mount, spring-centered log grapple twists when turning corners but stays straight when grabbing logs. Perfect partners for farmers, rural property owners, and logging contractors to haul logs out of the woods with confidence.

Specifications
Model
LXG330S
Category Name
Agriculture
Year
2026
Sale Type
New
Manufacturer
Wallenstein
Clamp Force
21000 lbs (9525 kg)
Total Weight
836 lbs (380 kg)
Engine HP Range
55 - 120
Grapple Opening
3" - 72" (8 cm - 182 cm)
Lift Capacity
4500 lbs (2041 kg)
Mounting System
Cat II & III
Grapple Rotation
180°
Dimensions (LxWxH)
70" x 76" x 56" (178 cm x 193 cm x 143 cm)
Recommended Hydraulic Flow
5 gpm (19 lpm)
features

Wallenstein LXG330S 180° Spring Return Bypass Grapples

Grapple tines interlink as tight as 3” (7.5 cm), ensuring easy handling of smaller logs and branches.

Wallenstein LXG330S 180° Spring Return Cantilever Cradle

Leverage and secure your load with the serrated cradle when lifting logs in-line.

Wallenstein LXG330S 180° Spring Return Push Bar

Control what is happening in front of you by forcing trees to fall away from your tractor or skidsteer.

Wallenstein LXG330S 180° Spring Return Spring Centered Grapple With Locking Positions

The grapple rotates when turning corners but stays straight when grabbing logs. Features lateral and in-line lock positions.



available colours
Wallenstein LXG330S 180° Spring Return
